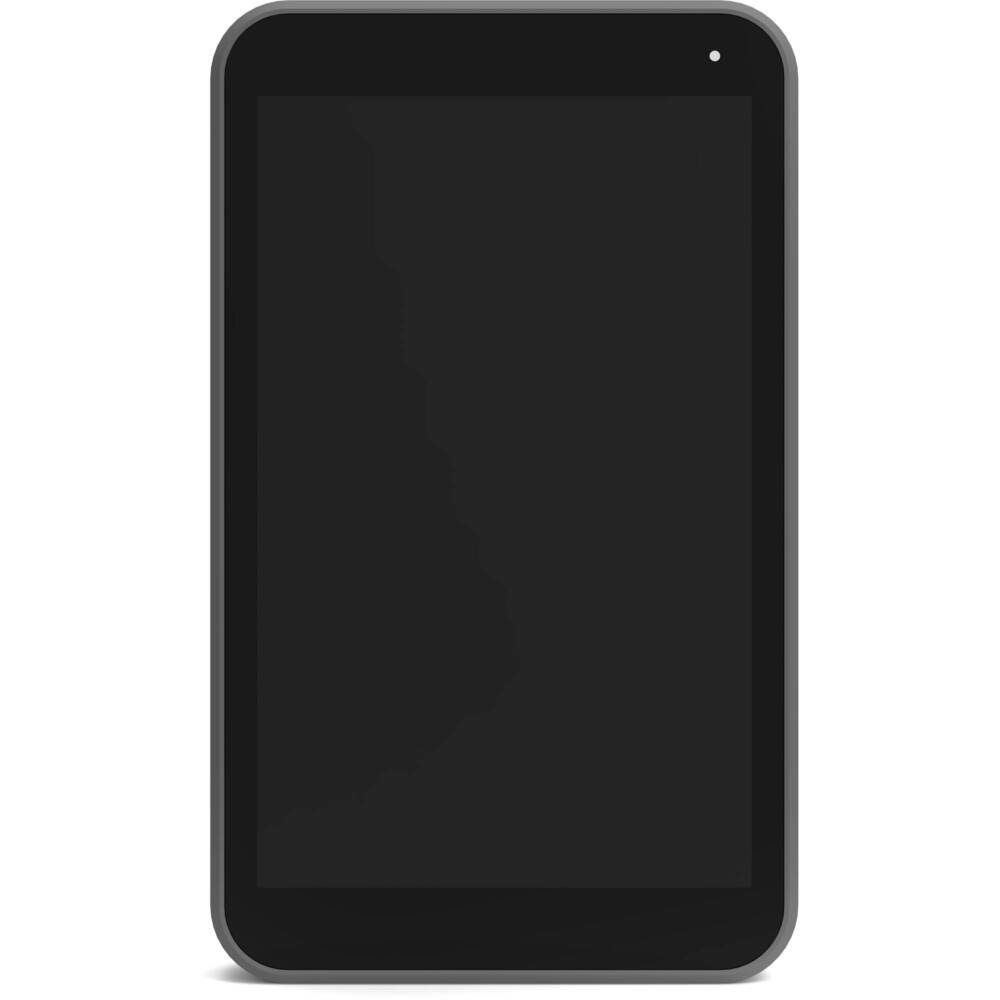

YoloLiv Instream Vertical Live Streaming Encoder and Monitor
$1,999.00
Sale price
$1,999.00
Description
- Encoder, Monitor, Recorder, Switcher
- Intuitive 7" Touchscreen LCD Display
- Stream via Ethernet, Wi-Fi, 4G LTE
- Stream at up to 1080p60, Supports H.264
- 2 x HDMI, 1 x USB In, 1 x SD Card Input
- Supports H.264/MP4 up to 1080p Video
- Built-In Chroma Key
- Lower-Thirds/Graphic Overlays/Countdown
- Picture-in-Picture & Transition Effects
- Add Logos/Comments to the Stream
Delivery
Australia
Standard Shipping 4-7 business days: AU $8.95*
Express Shipping 1-3 business days: AU $15*
International Shipping
New Zealand 9-12 business days: AU$21*
*During peak promotional periods, please allow additional time for your order dispatch.
Returns
While we can’t offer a refund or replacement if you simply change your mind, we’re here to help if your item has a problem under Australian Consumer Law. You may be entitled to a refund or exchange if an item has a major problem. This is when the item:
- has a problem that would have stopped someone from buying the item if they had known about it
- is unsafe
- is significantly different from the sample or description
- doesn't do what we said it would, or what you asked for and can't be easily fixed
If the problem is not major, we will repair the item within a reasonable time. If it can’t be repaired in a reasonable time, we’ll offer a suitable resolution such as a refund or replacement. Please keep your proof of purchase — e.g. your receipt.
$1,999.00
Sale price
$1,999.00
BANK TRANSFER (EFT)
Description
- Encoder, Monitor, Recorder, Switcher
- Intuitive 7" Touchscreen LCD Display
- Stream via Ethernet, Wi-Fi, 4G LTE
- Stream at up to 1080p60, Supports H.264
- 2 x HDMI, 1 x USB In, 1 x SD Card Input
- Supports H.264/MP4 up to 1080p Video
- Built-In Chroma Key
- Lower-Thirds/Graphic Overlays/Countdown
- Picture-in-Picture & Transition Effects
- Add Logos/Comments to the Stream
Delivery
Australia
Standard Shipping 4-7 business days: AU $8.95*
Express Shipping 1-3 business days: AU $15*
International Shipping
New Zealand 9-12 business days: AU$21*
*During peak promotional periods, please allow additional time for your order dispatch.
Returns
While we can’t offer a refund or replacement if you simply change your mind, we’re here to help if your item has a problem under Australian Consumer Law. You may be entitled to a refund or exchange if an item has a major problem. This is when the item:
- has a problem that would have stopped someone from buying the item if they had known about it
- is unsafe
- is significantly different from the sample or description
- doesn't do what we said it would, or what you asked for and can't be easily fixed
If the problem is not major, we will repair the item within a reasonable time. If it can’t be repaired in a reasonable time, we’ll offer a suitable resolution such as a refund or replacement. Please keep your proof of purchase — e.g. your receipt.
Frequently bought with
IP Encoding/Decoding
| IP Video | H.264: 720 x 480 to 1920 x 1080 Encoding |
|---|---|
| IP Audio | AAC-LC: Encoding |
| Transport Protocols | RTMP, RTMPS |
| Simultaneous Streams | 1 Stream |
| Compatible Services | Instagram, TikTok |
Wireless
| Wi-Fi | Yes |
|---|---|
| Bluetooth | No |
| Cellular Support | 4G LTE via Nano-SIM |
| SIM Card Slots | 1 x Nano SIM |

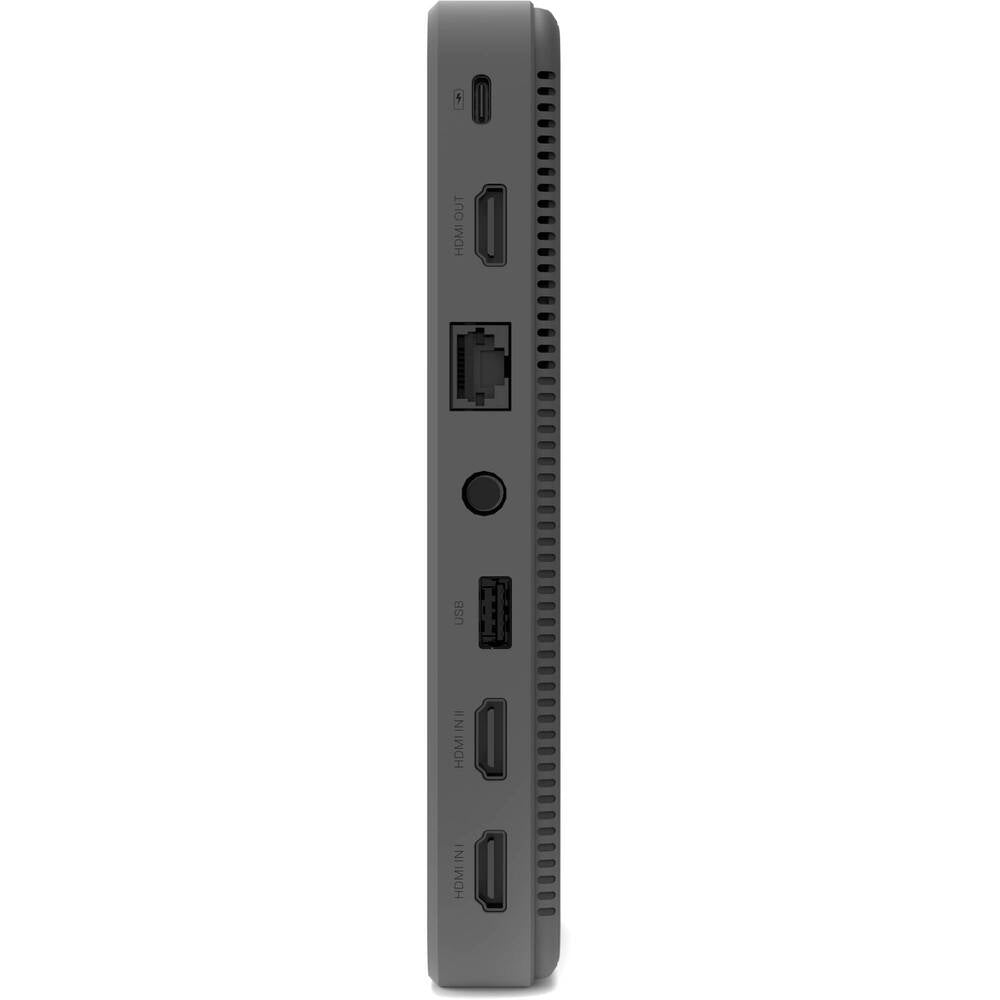

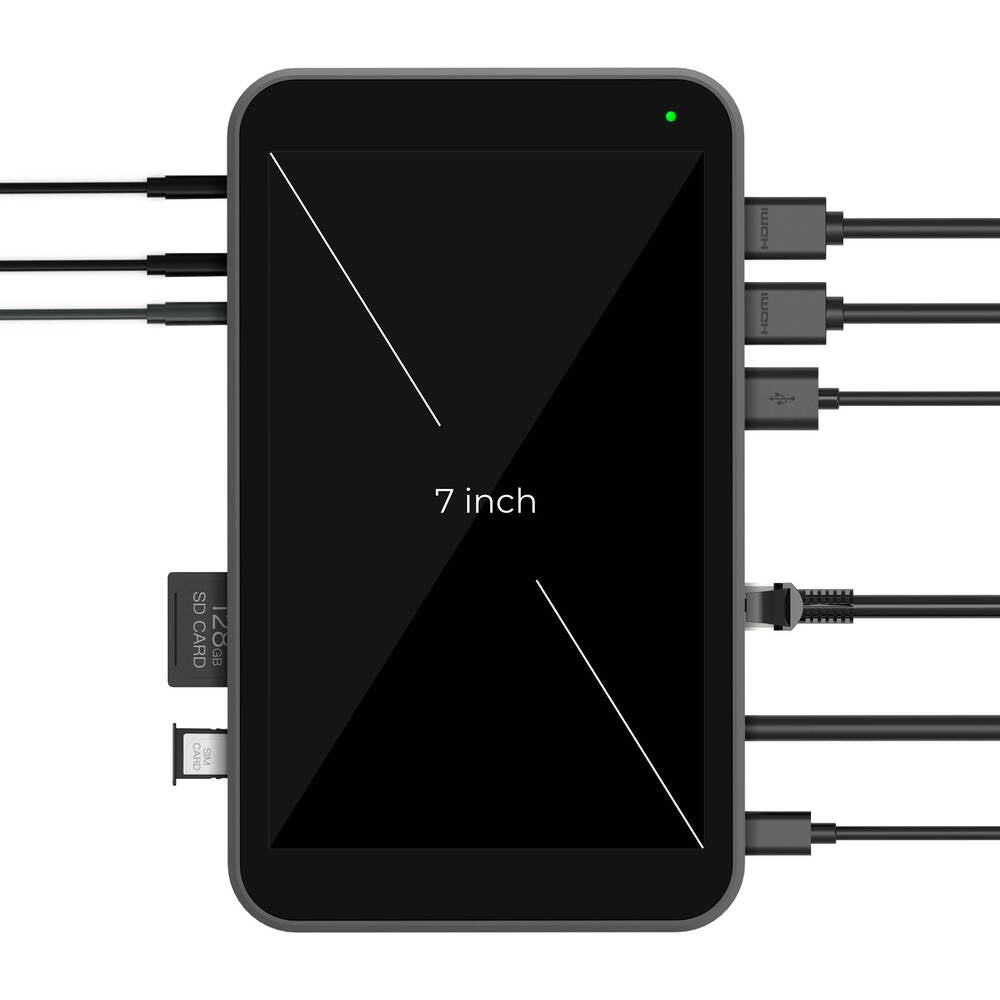

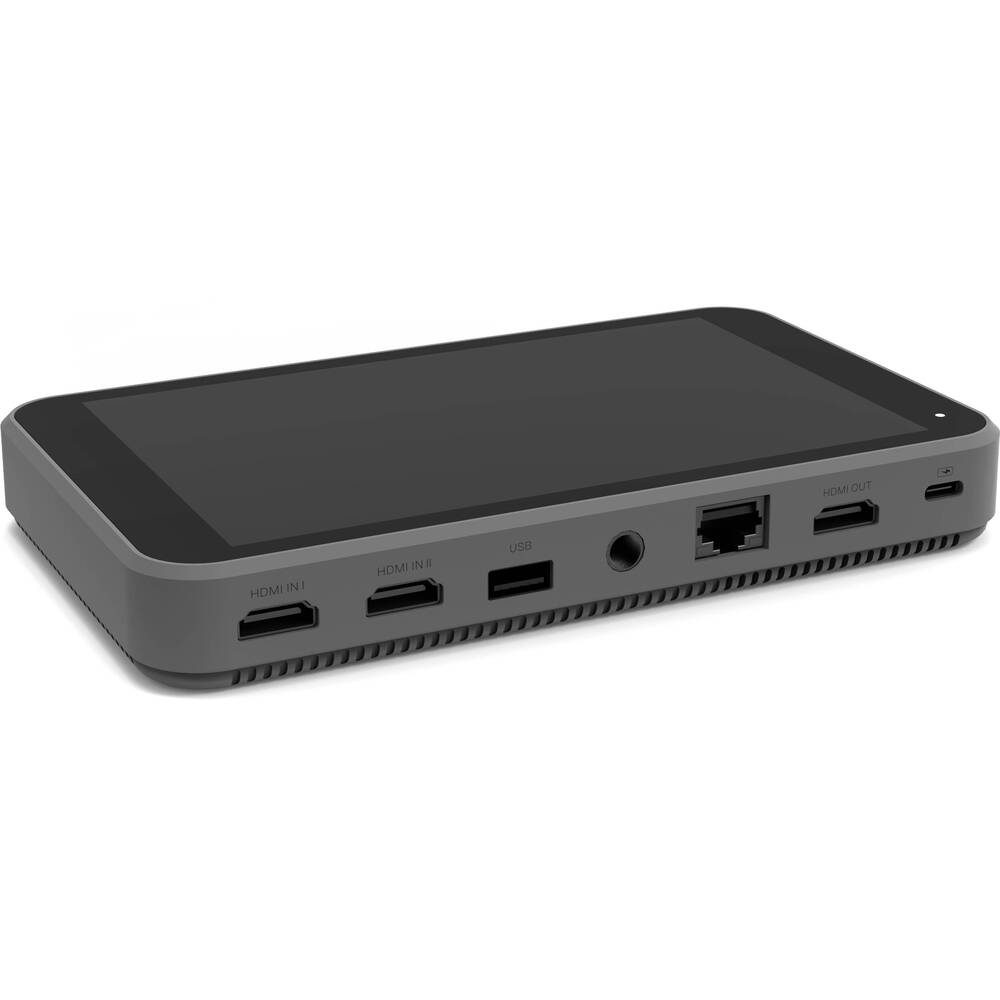

Interfaces
| Video I/O | 2 x HDMI Input
1 x HDMI Output |
|---|---|
| Audio I/O | 1 x 1/8" / 3.5 mm TRS Stereo Analog Input
1 x 1/8" / 3.5 mm TRS Mono Analog Input 1 x 1/8" / 3.5 mm TRS Stereo Analog Output |
| Other I/O | 1 x RJ45 (10/100 Ethernet) Input/Output
1 x USB-A 3.0 / 3.1/3.2 Gen 1 Input |
| Embedded Audio | HDMI: 2-Channel |
Internal Recording
| Recording Media | 1 x SD (Unspecified Type) |
|---|---|
| Recording Modes | 1920 x 1080p up to 60 fps |
Power
| Built-In Battery | 10,000 mAh |
|---|---|
| Power Connector | 1 x USB-C (5 to 12 VDC at 1.5 A) Input |
Environmental
| Operating Temperature | 14 to 104°F / -10 to 40°C |
|---|---|
| Storage Temperature | 41 to 104°F / 5 to 40°C |
General
| Display | LCD |
|---|---|
| Dimensions | 7.4 x 4.4 x 1" / 188 x 112.5 x 25 mm |
| Weight | 21.2 oz / 600 g |
Packaging Info
| Package Weight | 1.20 kg |
|---|---|
| Box Dimensions (LxWxH) | 24.38 x 15.88 x 8.26 cm |
- YoloLiv Instream Vertical Live Streaming Encoder and Monitor
- 2 x USB Type-C Cable
- Shoe Mount
- SIM Card Eject Pin
0
Add multi-camera streaming to your Instagram, TikTok, and other livestream services with the YoloLiv Instream Vertical Live Streaming Encoder and Monitor.The Instream features native integration with Instagram and TikTok, and it is designed to allow you to use external cameras when streaming, which you cannot normally do when streaming from the Instagram app on your phone as the app doesn't allow it. However, the Instream allows you to select and switch between three external cameras while using the Instagram app.

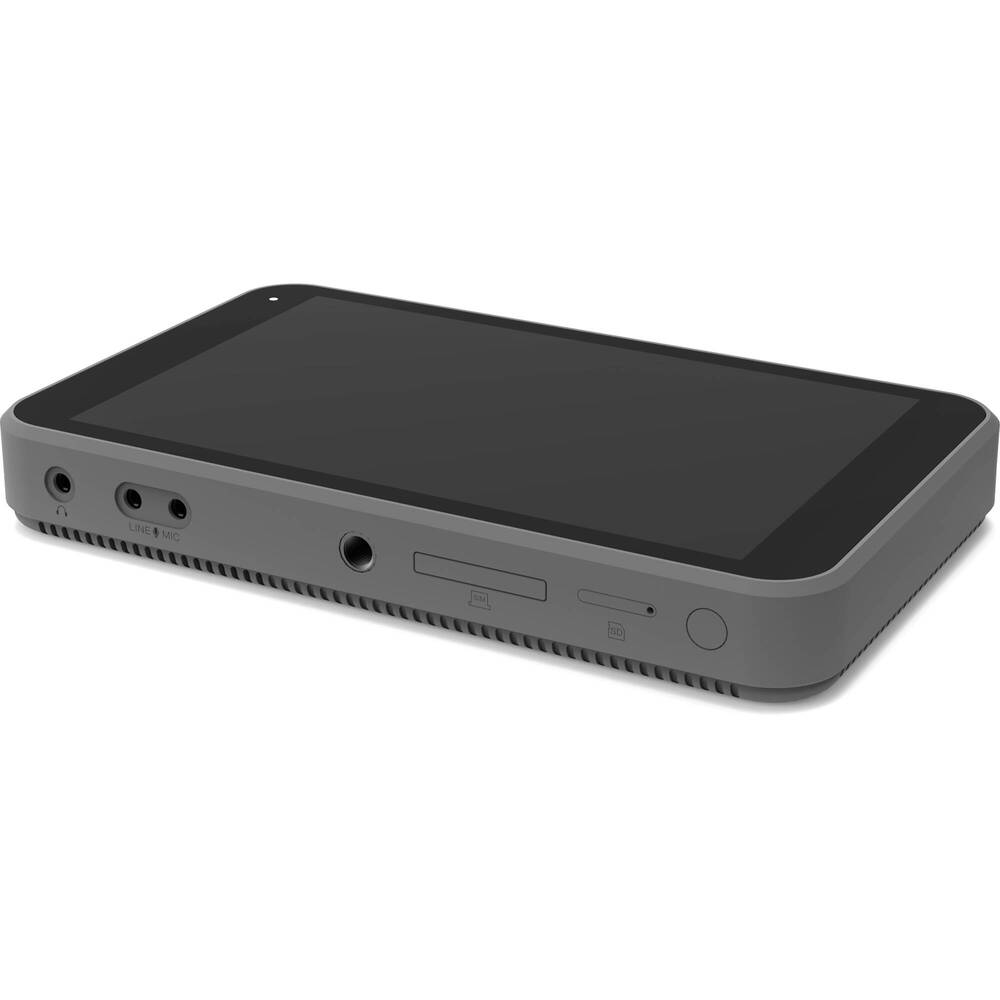

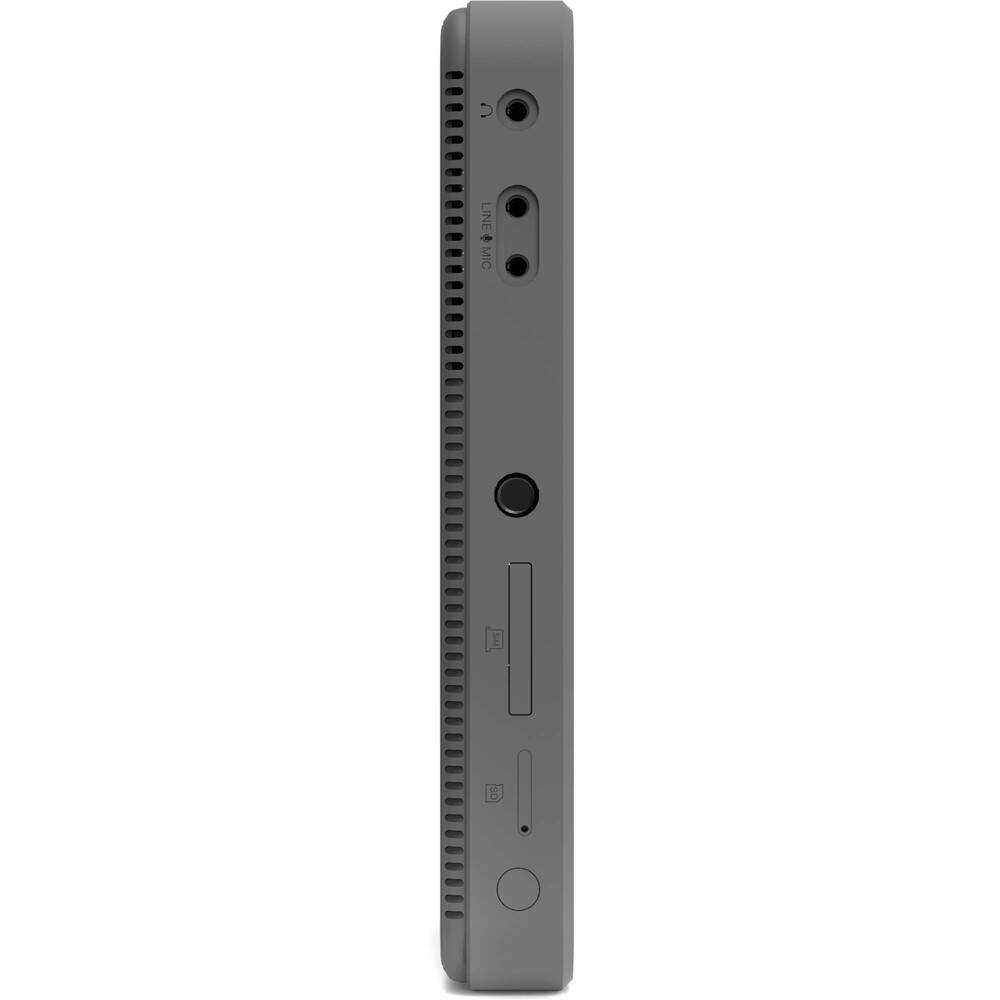

In addition to multi-cam streaming over a variety of platforms, the Instream allows you to add graphic overlays, picture-in-picture, chroma key, and use transition effects when switching camera inputs. Stream at up to 1080p60 using the H.264 codec and record to an optional SD card. Featuring a 7" LCD touchscreen display, two HDMI and one USB-A input, and one HDMI output for viewing your stream on a local device. The Instream doesn't neglect audio as it has a line-level audio input as well as mic input and a headphone jack for direct audio monitoring.
Key Features of the YoloLiv Instream Vertical Live Streaming Encoder and Monitor
- Encoder, Monitor, Recorder, Switcher
- Intuitive 7" Touchscreen LCD Display
- Stream via Ethernet, Wi-Fi, 4G LTE
- Stream at up to 1080p60, Supports H.264
- 2 x HDMI, 1 x USB In, 1 x SD Card Input
- Supports H.264/MP4 up to 1080p Video
- Built-In Chroma Key
- Lower-Thirds/Graphic Overlays/Countdown
- Picture-in-Picture & Transition Effects
- Add Logos/Comments to the Stream
Software Updates
- Instream v1.6.0 – Web URL Overlay, Auto-Switching, and Built-In App Updates
- Instream v1.4.0 – Major Improvements & NEW App Built-In (Facebook vertical, Zoom, Capcut built-in added)
- Instream v1.1.0- Horizontal-to-Vertical Video Flip, New Multi-view Layouts, Zoom App & SD Card Audio Optimized
Touchscreen Control
The Instream provides you with a touchscreen interface for easy streaming and control.
Streaming Platforms
Major streaming platforms such as Instagram & TikTok are directly integrated in the Instream device. You can simply login to your social account and stream. The Instream supports RTMP and RTMPS streaming for compatibility with many livestreaming services.
Functions
The Instream works as a switcher with a variety of picture-in-picture templates as well as graphic layers. It has a built-in encoder that allows for live streaming, and it can record to optional SD cards.

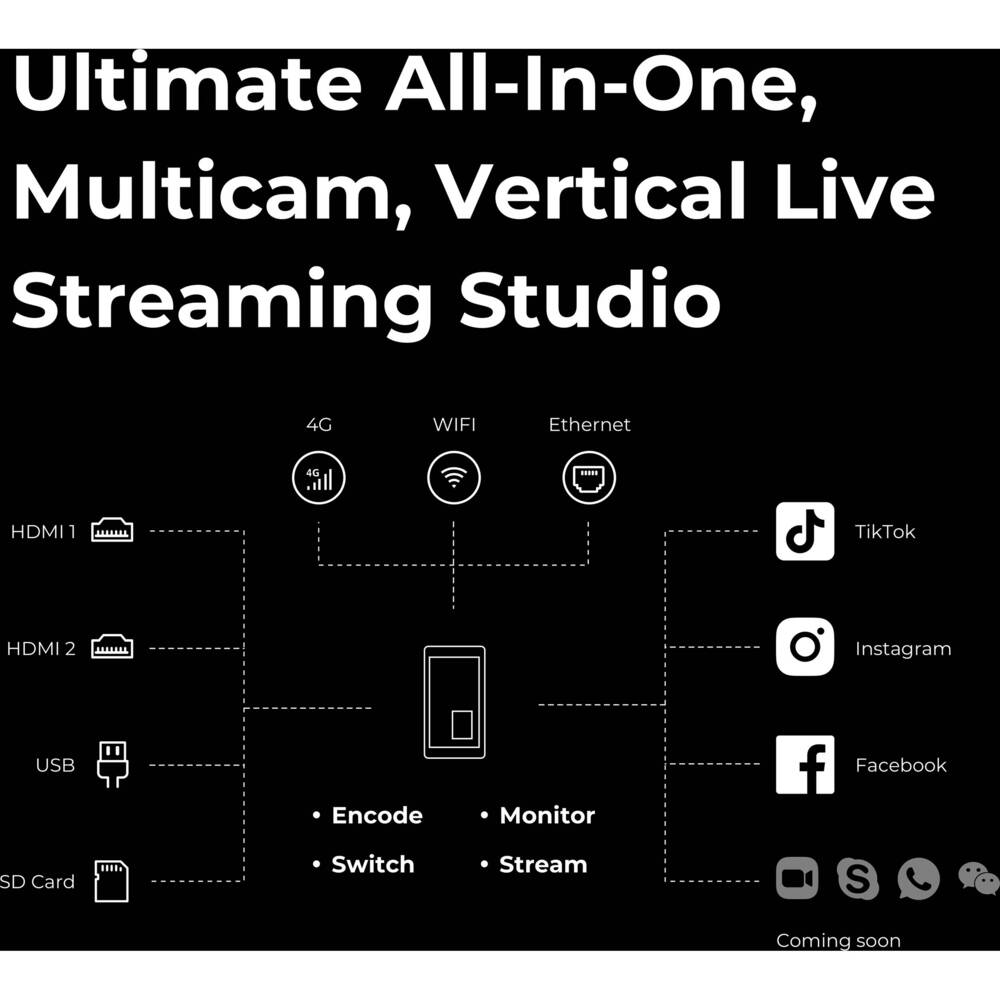

Three Ways to Connect
- Wi-Fi
- 4G LTE
- Ethernet
Overlays
- You can brand your livestream by adding logos/watermarks/rolling captions
- Customized PiP options allow you to bring a unique look and feel to your stream
- Engage with your audience in real time via feature comment overlays
- Supports Chroma Keying
- Built-in lower-thirds & animated countdown templates can be edited or you can add your own
SD Card Input
Roll in pre-recorded videos for intro, countdown, B-rolls, or special segments from an SD media card.
Use Only as a Monitor & Recorder
You can use the Instream, even when you are not live streaming. Record, switch, add overlays and transitions to level up your video production efficiency.
Battery
The 10,000mAh internal battery can power your Instream for approximately 3 hours. The Instream charges via the USB-C connection, which is used for power only.
- MPN - INSTREAM
- GTIN - 664918139100
