PDMOVIE Remote Air Pro 3 Dual Channel Wireless Follow Focus System
$2,365.00
Sale price
$2,365.00
Description
- Single Controller, Two Motors
- Wireless Handwheel Range 328'
- Bluetooth App Range 33'
- Handwheel Controls Focus, Zoom, and Iris
- 19 Wireless Channels
- Removable Battery with 12-Hour Runtime
- 0.8 MOD Cine-Style Drive Gear
- For Lenses with/without Hardstops
- OLED Info Screen on Motor and Handwheel
Delivery
Australia
Standard Shipping 4-7 business days: AU $8.95*
Express Shipping 1-3 business days: AU $15*
International Shipping
New Zealand 9-12 business days: AU$21*
*During peak promotional periods, please allow additional time for your order dispatch.
Returns
While we can’t offer a refund or replacement if you simply change your mind, we’re here to help if your item has a problem under Australian Consumer Law. You may be entitled to a refund or exchange if an item has a major problem. This is when the item:
- has a problem that would have stopped someone from buying the item if they had known about it
- is unsafe
- is significantly different from the sample or description
- doesn't do what we said it would, or what you asked for and can't be easily fixed
If the problem is not major, we will repair the item within a reasonable time. If it can’t be repaired in a reasonable time, we’ll offer a suitable resolution such as a refund or replacement. Please keep your proof of purchase — e.g. your receipt.
BANK TRANSFER (EFT)
$2,365.00
Sale price
$2,365.00
BANK TRANSFER (EFT)
Description
- Single Controller, Two Motors
- Wireless Handwheel Range 328'
- Bluetooth App Range 33'
- Handwheel Controls Focus, Zoom, and Iris
- 19 Wireless Channels
- Removable Battery with 12-Hour Runtime
- 0.8 MOD Cine-Style Drive Gear
- For Lenses with/without Hardstops
- OLED Info Screen on Motor and Handwheel
Delivery
Australia
Standard Shipping 4-7 business days: AU $8.95*
Express Shipping 1-3 business days: AU $15*
International Shipping
New Zealand 9-12 business days: AU$21*
*During peak promotional periods, please allow additional time for your order dispatch.
Returns
While we can’t offer a refund or replacement if you simply change your mind, we’re here to help if your item has a problem under Australian Consumer Law. You may be entitled to a refund or exchange if an item has a major problem. This is when the item:
- has a problem that would have stopped someone from buying the item if they had known about it
- is unsafe
- is significantly different from the sample or description
- doesn't do what we said it would, or what you asked for and can't be easily fixed
If the problem is not major, we will repair the item within a reasonable time. If it can’t be repaired in a reasonable time, we’ll offer a suitable resolution such as a refund or replacement. Please keep your proof of purchase — e.g. your receipt.
Frequently bought with
System
| Number of Channels | 2 |
|---|---|
| Maximum Range | 328' / 99.97 m |
| Wireless Frequency | 2.4 GHz |
Receiver / Motor
| Bluetooth | Yes |
|---|---|
| Included Drive Gear | 0.8 MOD 40 Teeth |
| Included Motors | 2 |
| Maximum Peak Torque | 0.5 Nm (Master)
1.2 Nm (Slave) |
| Motor Noise | 28 dB |
Transmitter / Controller
| Camera Trigger | Yes |
|---|---|
| Battery Type | LI-42B |
| DC Input Power | 3.7 VDC |
| Dimensions | 3.15 x 3.15 x 1.77" / 8 x 8 x 4.5 cm |
| Weight | 9.24 oz / 262 g |
Packaging Info
| Package Weight | 2.4 kg |
|---|---|
| Box Dimensions (LxWxH) | 25.9 x 23.6 x 10.16 cm |
- PDMOVIE Remote Air Pro 3 Dual Channel Wireless Follow Focus System
- 2 x 15/19mm Adapter Bushing
- 4 x Glow-in-the-Dark Marking Disk
- Short Antenna
- Long Antenna
- Connector
- 1/4"-20 Screw
- Hex Key
- Carry Case
- Rope
0

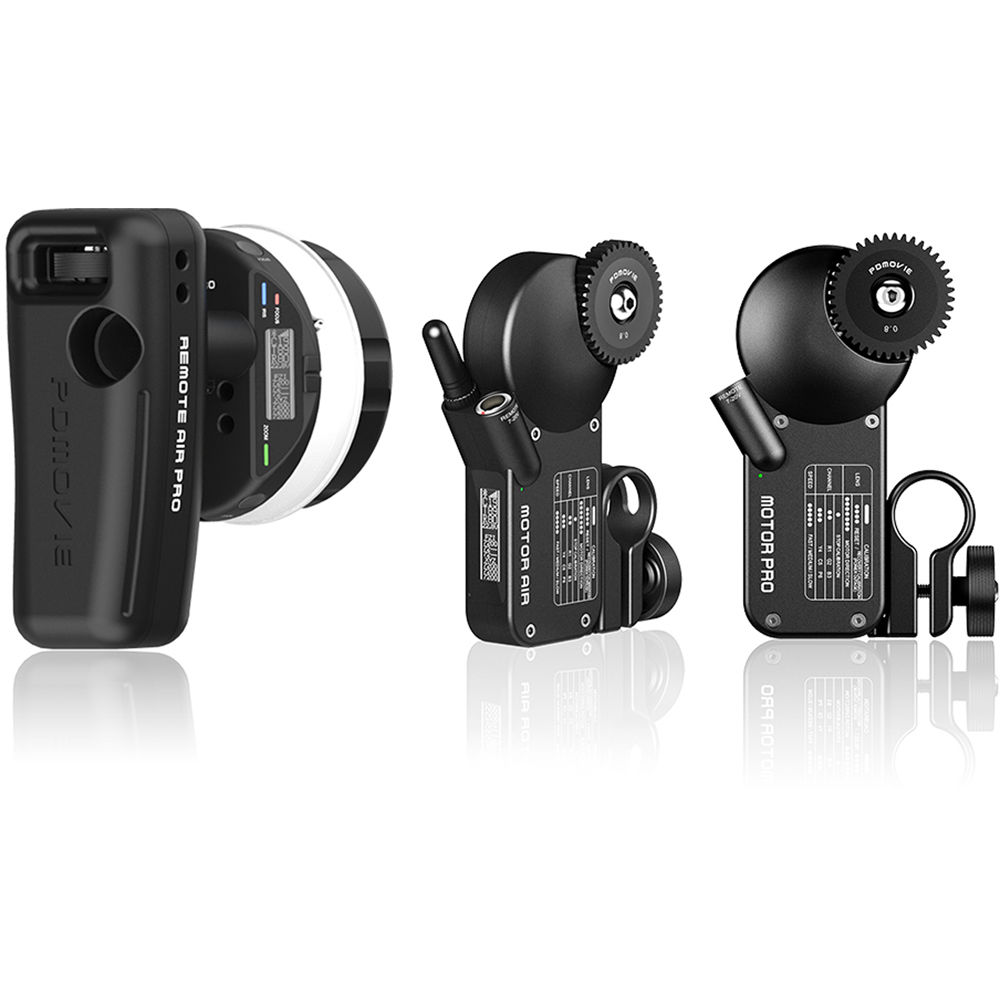

The PDMOVIE Remote Air Pro 3 Dual Channel Wireless Follow Focus System includes a single wireless receiving motor, a single slave motor for controlling a second lens function, and a handwheel that integrates focus, zoom, and iris control. The handwheel has a wireless range of 328' and supports 19 wireless channels, allowing you to find the cleanest signal path even when using multiple motors in a FIZ (focus, iris, zoom) setup. An available iOS app allows you to control the system with your iOS device from up to 33' away.
The included receiver motor connects to a power source and receives the wireless control signals. This motor features a cine-style drive gear with 0.8 MOD and can drive either focus, iris, or zoom on a lens with cine-style gears. It also provides power and control via an included cable to the slave motor. If you need to drive more than two lens rings, you will need an additional motor. The calibration procedure has been simplified and you can calibrate lenses with or without hardstops. Built-in OLED screens on the motor and handwheel provide clear information on the state of your system.
Key Features of the PDMOVIE Remote Air Pro 3 Dual Channel Wireless Follow Focus System
- Single Controller, Two Motors
- Wireless Handwheel Range 328'
- Bluetooth App Range 33'
- Handwheel Controls Focus, Zoom, and Iris
- 19 Wireless Channels
- Removable Battery with 12-Hour Runtime
- 0.8 MOD Cine-Style Drive Gear
- For Lenses with/without Hardstops
- OLED Info Screen on Motor and Handwheel
Remote Air App
The controller and receiver motor have a built-in Bluetooth module. An iPhone i0S APP controls the lens, lens data, and set automated lens movements.

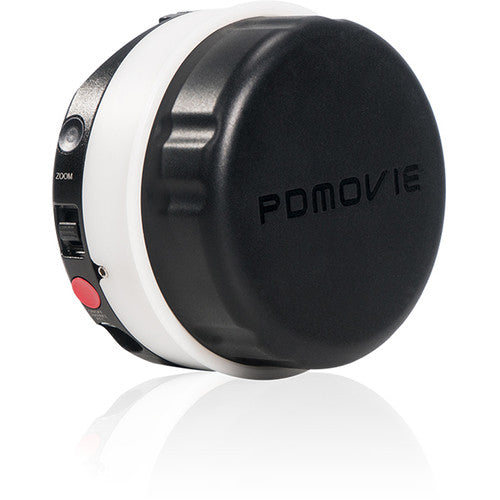

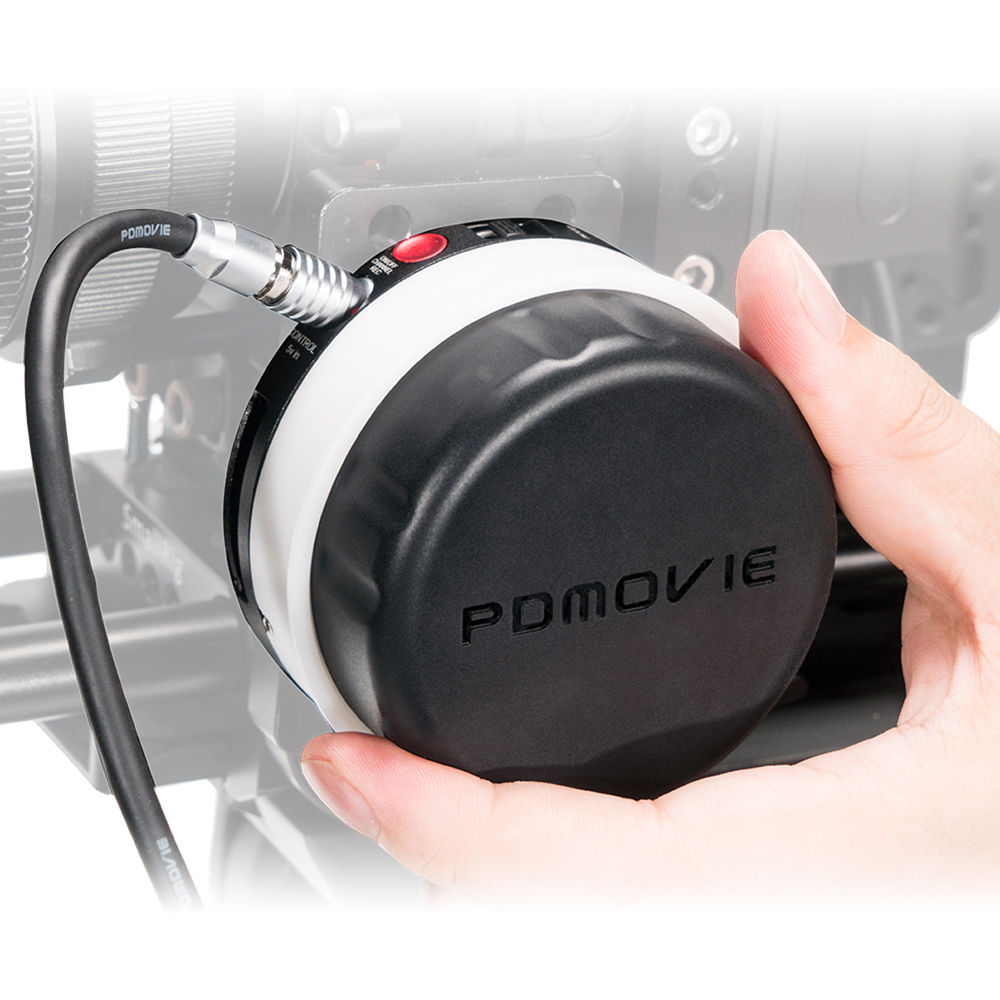

Handwheel Controller

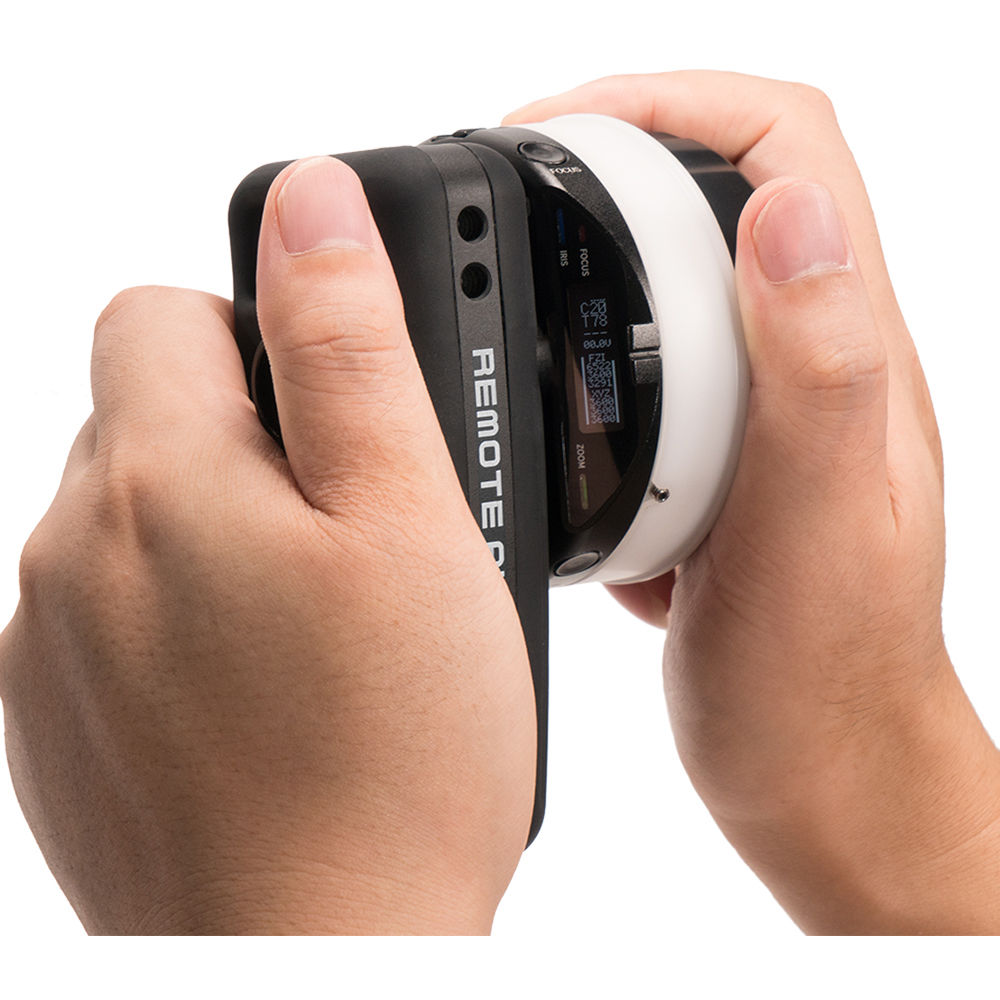

The controller features a 75mm diameter large follow control handwheel, which is more effective when using the palm of your hand to pull focus or when wearing gloves. with four standard 1/4"-20 threads, it can be easily attached to the included handle or mounted on virtually any handle, monitor, or arm.
Focus, Iris, Zoom
The handwheel incorporates a focus controller, a zoom rocker, and an iris rocker, allowing you to simultaneously control up to three axes with the proper number of motors. The focus controller features a built-in LED light and glow-in-the-dark marking disks that allow you to see your custom markings while in low-light situations.

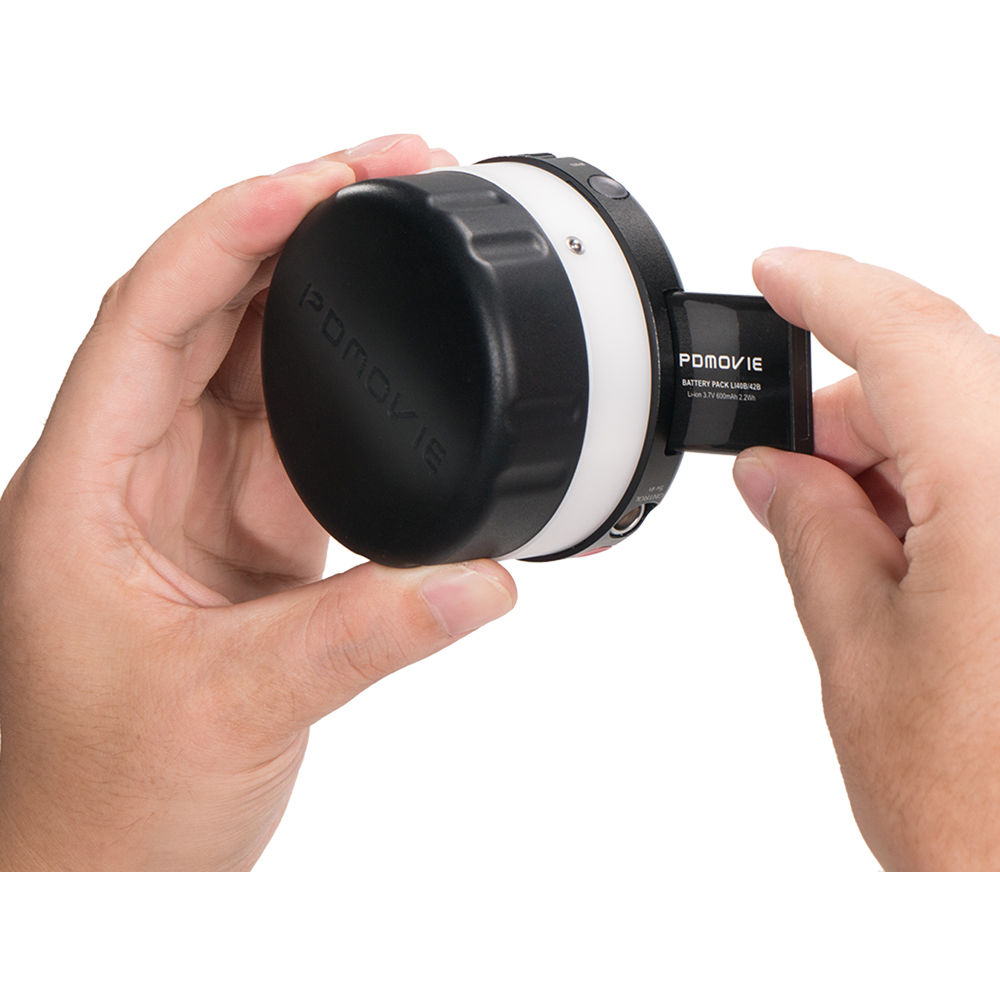

Battery Life
The controller uses a replaceable 600mAh battery, supports hot plug, and features a battery life of 12 hours.
Data Display
The controller and receiver motor both use the same data display mode, and the LED screens are placed so that the data can be easily read.

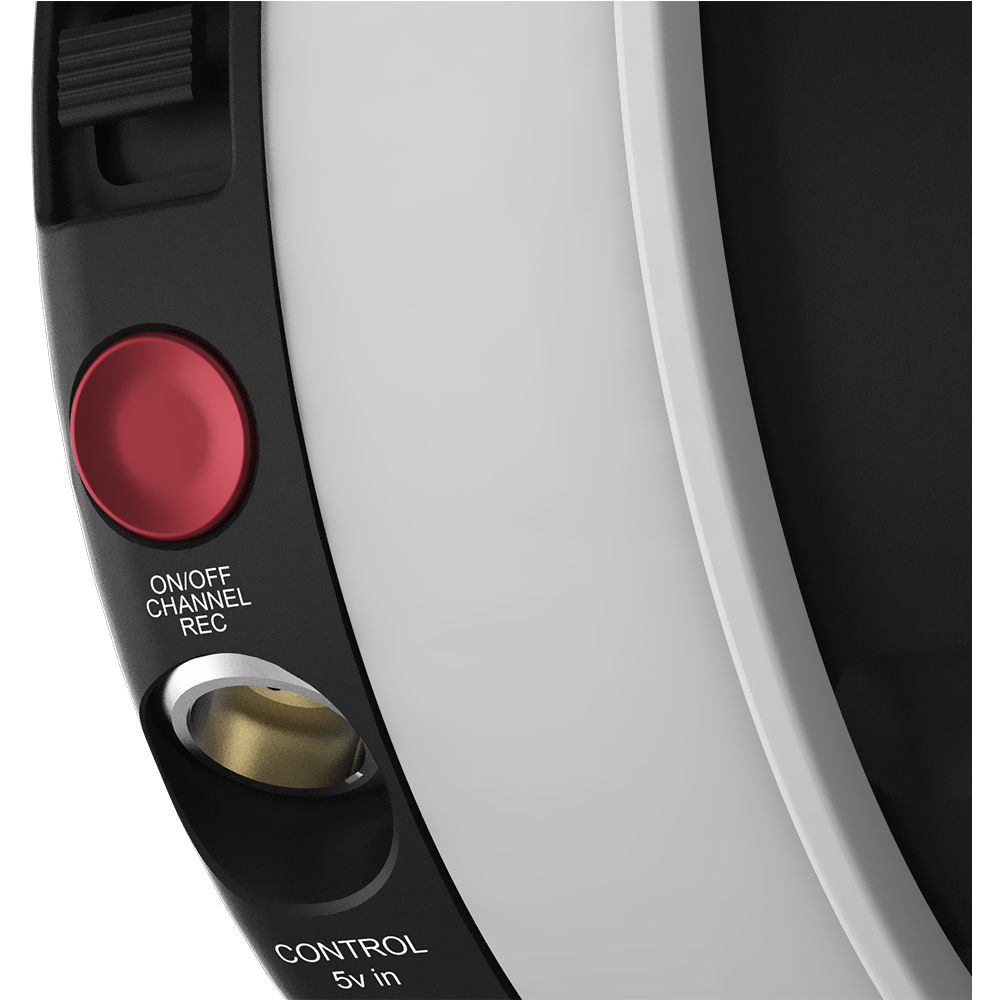

All-in-One Control Button
The Remote Air Pro 3 features an all-in-one multifunction button. It allows you to quickly set the signal channel, control channel, motor speed, and remote recording.
Remote Run/Stop
The handwheel controller is compatible with RED and ARRI as well as LANC control of your camera's run/stop.

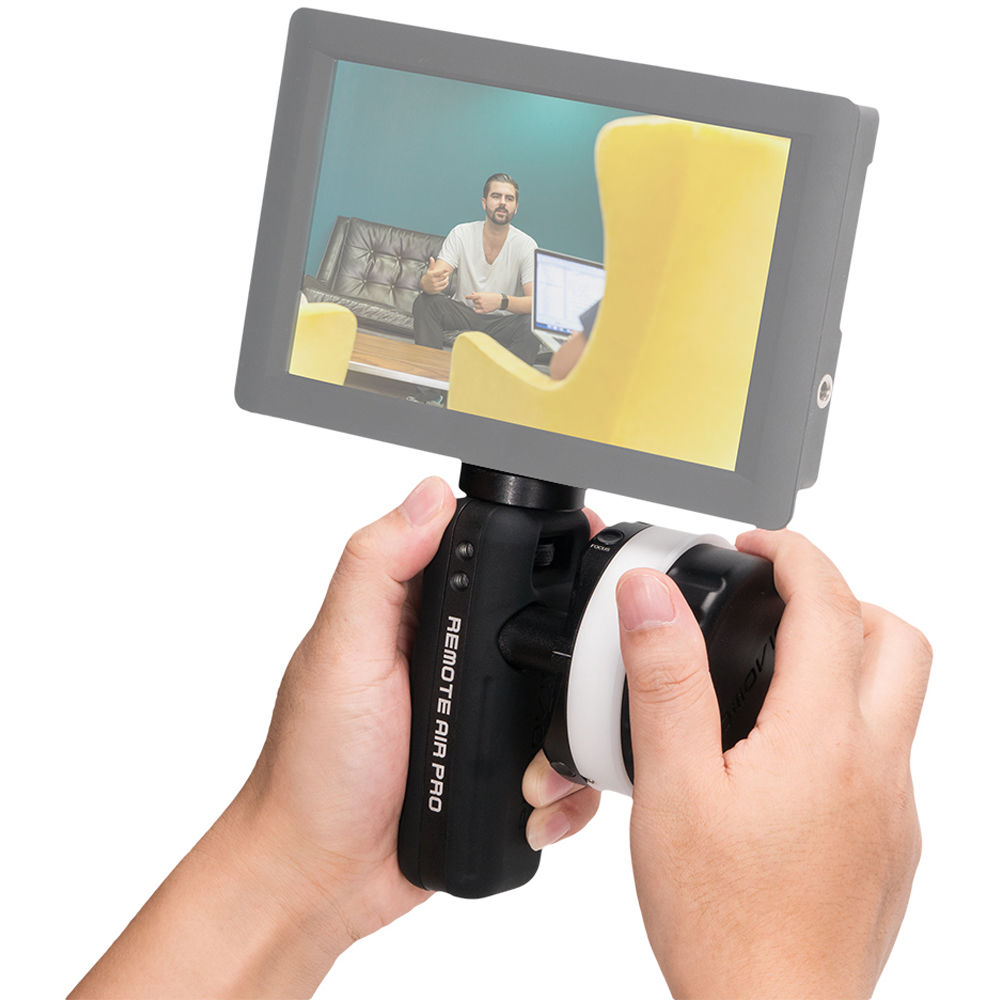

Handwheel Handle
The Remote Air Pro 3 includes a redesigned handle from previous versions. You can now mount and unmount the handwheel from the handle. The handle incorporates nine 1/4"-20 mounting holes that allow you to mount accessories such as a mobile device, monitor, wireless receiver, and lanyard. The handle is made of high-strength aluminum alloy and durable rubber.
Wired or Wireless
If you want to operate the focus controller in wired mode, simply connect the 6-pin motor drive cable from the motor to the controller.

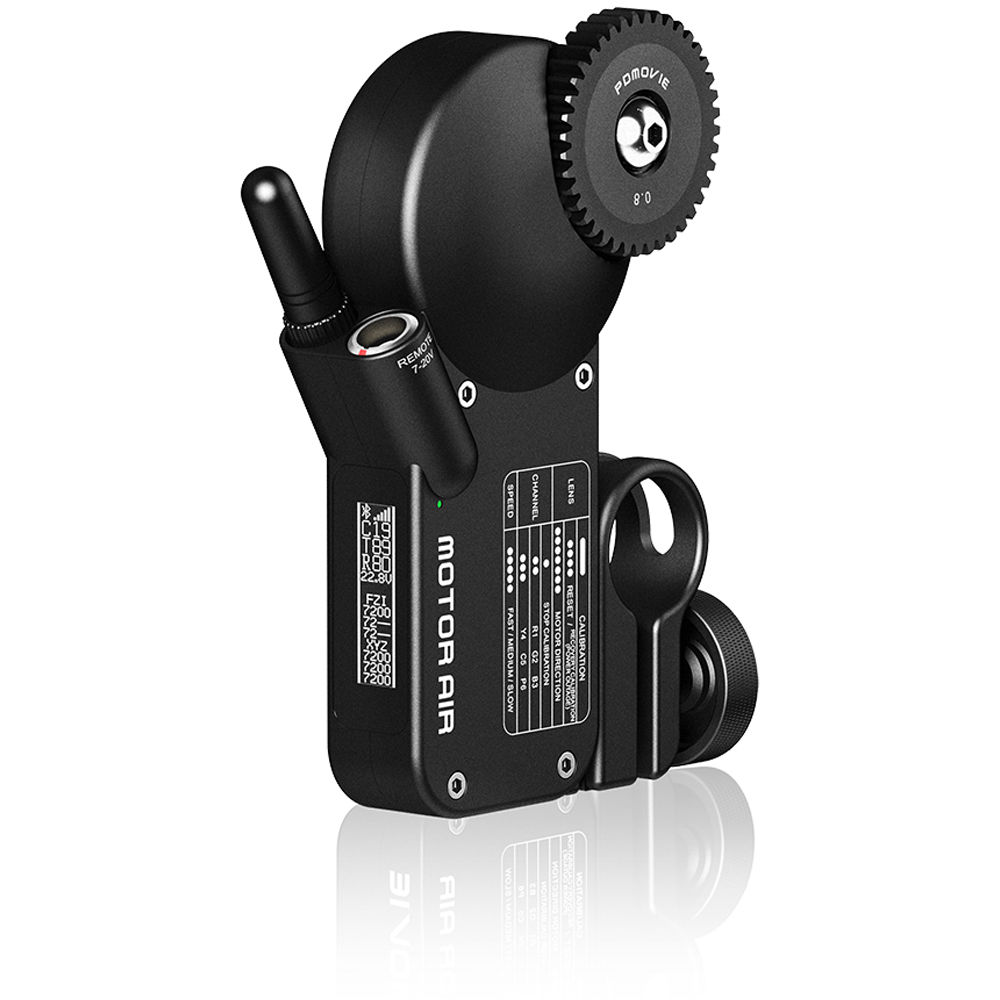

Motor Improvements
- The Remote Air motor is 0.67" thick, down from the previous generation's 0.75"
- It also has twice the amount of torque than the previous motor
- The motor also has 8192 DPI (steps of resolution), which is significantly higher than the previous versions 1920 DPI, this provides the motor with increased accuracy
- The receiver motor's OLED screen has been moved to the side for easier viewing. It can display the signal channel, signal strength, and the controller's battery information
Motor Power
The new MOTOR AIR supports 7 to 20V input voltage, which means that it can now be used with a 7.2V power supply.
Calibration
You can calibrate your lens manually or automatically, adjust the lens speed from slow to medium or fast, change the motor direction, cancel the calibration, and recover the calibration.
Motor Torque

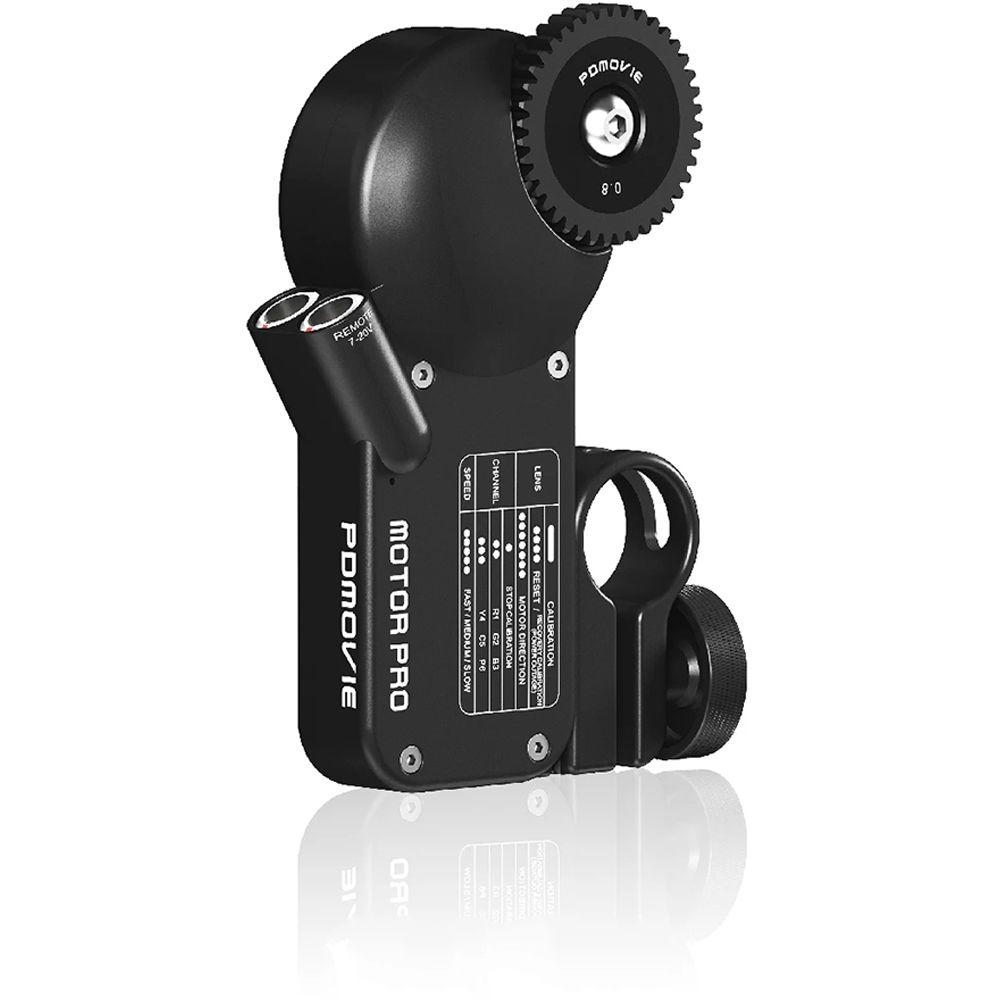

The PD-RX REMOTE AIR Receiver Motor features 0.5 Nm of torque. The PDMOVIE Motor Pro (the slave motor) features 1.2 Nm of torque, useful with stiff zoom lenses.
- MPN - PD4-S2
- GTIN - 6976679540106
