Aten UC9040 StreamLIVE PRO All-in-one Multi-channel AV Mixer
Skip to product information
View full item details
Order Limits Apply
View Full Details
Learn More
More details here.
Aten UC9040 StreamLIVE PRO All-in-one Multi-channel AV Mixer
$2,439.00
Sale price
$2,439.00
Description
- Integrates 1080p video capture, video recorder, video switch, streaming encoder, video converter, video splitter, and audio mixer
- Compatible with every major platform and can livestream to two platforms at the same time from virtually anywhere
- Features a media recording that can be used to record a program and save recordings directly to a connected external hard drive or flash drive via USB
- Switching & mix between multiple video & audio sources with the help of easily identifiable luminous keys
- OnAir™ Pro App preset up to 8 scenes with custom video layout, preview and full screen program monitoring, real-time editing, transitions in stunning DVE, PbP or PiP visual effects, and graphic and text overlays for a professional finish
- Including circle drop, window slice, polka dot, circle open, fade, heart, cross hatch and random square.
- Storyboard-like management, quick and smooth transitions control for professional programming during live events
- Multi-channel audio mixing with faders, meters, and balance for every input
- Fanless and optimized thermal air flow system for quiet operation
- Multitask designed handle-stand to enhance portability and ergonomic comfort angle
Delivery
Australia
Standard Shipping 4-7 business days: AU $8.95*
Express Shipping 1-3 business days: AU $15*
International Shipping
New Zealand 9-12 business days: AU$21*
*During peak promotional periods, please allow additional time for your order dispatch.
Returns
While we can’t offer a refund or replacement if you simply change your mind, we’re here to help if your item has a problem under Australian Consumer Law. You may be entitled to a refund or exchange if an item has a major problem. This is when the item:
- has a problem that would have stopped someone from buying the item if they had known about it
- is unsafe
- is significantly different from the sample or description
- doesn't do what we said it would, or what you asked for and can't be easily fixed
If the problem is not major, we will repair the item within a reasonable time. If it can’t be repaired in a reasonable time, we’ll offer a suitable resolution such as a refund or replacement. Please keep your proof of purchase — e.g. your receipt.
$2,439.00
Sale price
$2,439.00
BANK TRANSFER (EFT)
Description
- Integrates 1080p video capture, video recorder, video switch, streaming encoder, video converter, video splitter, and audio mixer
- Compatible with every major platform and can livestream to two platforms at the same time from virtually anywhere
- Features a media recording that can be used to record a program and save recordings directly to a connected external hard drive or flash drive via USB
- Switching & mix between multiple video & audio sources with the help of easily identifiable luminous keys
- OnAir™ Pro App preset up to 8 scenes with custom video layout, preview and full screen program monitoring, real-time editing, transitions in stunning DVE, PbP or PiP visual effects, and graphic and text overlays for a professional finish
- Including circle drop, window slice, polka dot, circle open, fade, heart, cross hatch and random square.
- Storyboard-like management, quick and smooth transitions control for professional programming during live events
- Multi-channel audio mixing with faders, meters, and balance for every input
- Fanless and optimized thermal air flow system for quiet operation
- Multitask designed handle-stand to enhance portability and ergonomic comfort angle
Delivery
Australia
Standard Shipping 4-7 business days: AU $8.95*
Express Shipping 1-3 business days: AU $15*
International Shipping
New Zealand 9-12 business days: AU$21*
*During peak promotional periods, please allow additional time for your order dispatch.
Returns
While we can’t offer a refund or replacement if you simply change your mind, we’re here to help if your item has a problem under Australian Consumer Law. You may be entitled to a refund or exchange if an item has a major problem. This is when the item:
- has a problem that would have stopped someone from buying the item if they had known about it
- is unsafe
- is significantly different from the sample or description
- doesn't do what we said it would, or what you asked for and can't be easily fixed
If the problem is not major, we will repair the item within a reasonable time. If it can’t be repaired in a reasonable time, we’ll offer a suitable resolution such as a refund or replacement. Please keep your proof of purchase — e.g. your receipt.
Frequently bought with
| Connection | 2x USB 3.1 Gen1 Type-A Female (blue)
1x USB Type-C 1x GbE LAN port |
|---|---|
| OS Support | iPad Pro (3rd gen or later) with iOS 11 and above
The following iPad with iOS 11 and above (Additional Apple Lightning USB 3 Adapter is required): iPad Pro (1st and 2nd gen) iPad (5th gen or later) iPad Air (3rd gen or later) iPad Mini (5th gen or later) |
Network Protocol
| Video Encoding | Format: H.264
Bit rate: 512Kbps~10Mbps Color Format: YUV420 Resolution: 1080p30/25, 720p60/50/30/25, 480p60/50/30/25 |
|---|---|
| Audio Encoding | Format: AAC
Sampling rate: 48kHz Bit rate: 128kbps |
Video
| Video Input Interfaces | 1 x 4K HDMI Type-A Female
(up to 2160p60, unencrypted) 3 x HDMI Type-A Female (up to 1080p60, switcher, unencrypted ) |
|---|---|
| Video Output Interfaces | 1 x 4K Loop-Thru HDMI Type-A Female
(up to 2160p60, unencrypted) 1 x PGM HDMI Type-A Female (up to 1080p60, unencrypted) |
| Video Sampling | 4:2:2 8-bit |
| Color Space | 4:2:2 YUV |
| Video Resolution | HDMI 1 Input:
VGA(640x480@60), 480p60/50/30/25, SVGA(800x600@60), XGA(1024x768@60), 720p60/50/30/25, SXGA(1280x1024@60), WXGA+(1440x900@60), UXGA(1600x1200@60 RB), WUXGA+(1680x1050@60), 1080p60/50/30/25, 2160p60/50/30/25 HDMI 2/3/4 Input: VGA(640x480@60), 480p60/50/30/25, SVGA(800x600@60), XGA(1024x768@60), 720p60/50/30/25, SXGA(1280x1024@60), WXGA+(1440x900@60), UXGA(1600x1200@60 RB), 1080p60/50/30/25 SRC/PGM HDMI Output: 480p60/50/30/25, 576p60/50/30/25, 720p60/50/30/25, 1080p60/50/30/25 HDMI Loop-Through Output: VGA(640x480@60), 480p60/50/30/25, SVGA(800x600@60), XGA(1024x768@60), 720p60/50/30/25, SXGA(1280x1024@60), WXGA+(1440x900@60), UXGA(1600x1200@60 RB), WUXGA+(1680x1050@60), 1080p60/50/30/25, 2160p60/50/30/25 |
Audio
| Audio Input Interfaces | HDMI captured inputs (stereo)
2 x 1/4" TRS jack (dual mono) |
|---|---|
| Audio Output Interfaces | HDMI outputs (stereo)
1x 1/8" TRS jack (stereo) |
Recording Storage
| Max. video resolution | 1080p30/25 |
|---|---|
| File format | MP 4 |
| Support media | USB 3.x compatible mobile drive (HDD / SSD) or flash drive, at least 32GB of free space |
Environmental
| Operating Temperature | 0 - 40 ºC |
|---|---|
| Storage Temperature | -20 – 60 ºC |
| Humidity | 0 - 80% RH, Non-Condensing |
Power
| Maximum Input Power Rating | DC12V, 7.5A |
|---|---|
| Power Consumption | DC12V:17.37W:184BTU |
Physical Properties
| Housing | Metal |
|---|---|
| Weight | 1.85 kg |
| Dimensions (L x W x H) | 28.85 x 18.99 x 9.66 cm |
- Aten UC9040 StreamLIVE PRO All-in-one Multi-channel AV Mixer
- USB-C to USB-C Cable
- USB-C to USB-A Cable
- Power Adapter
- User Instructions
0

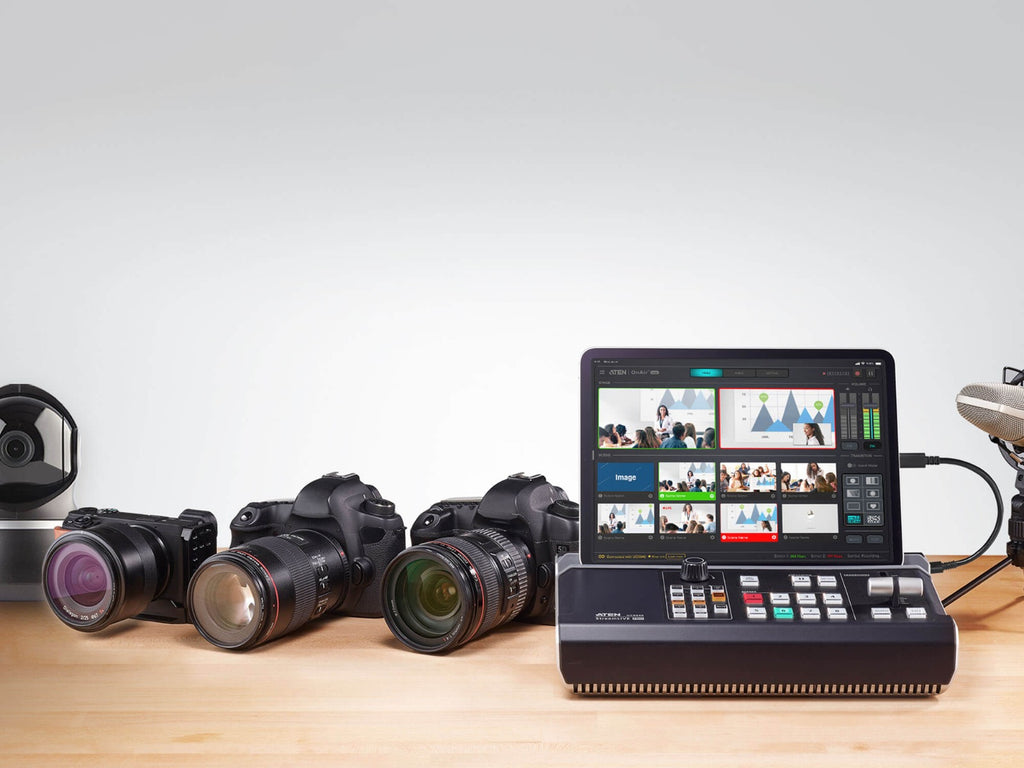

The Aten StreamLIVE™ PRO is a portable, all-in-one, multi-channel audio/video mixer device that integrates a 1080p video capture, video recorder, video switch, stream broadcaster, video converter, video splitter, and audio mixer into one compact box to eliminate the hassle of working with different AV equipment. The StreamLIVE™ PRO makes HDMI video sources broadcast for higher quality live stream to CDN platforms such as YouTube Live, Facebook,and Twitch.
For added convenience, the StreamLIVE™ PRO provides an intuitive app – OnAir™ Pro App, making it easy to monitor, edit image layouts, and DVE, PiP or PbP settings. There are eight stunning DVE transitions including circle drop, window slice, polka dot, circle open, fade, heart, cross hatch and random square. The StreamLIVE™ PRO is PC and software-free, and with its well-designed control panel, it makes livestreaming operations smooth and effortless. You can even preview video and monitor audio levels before going live with your web broadcast! To get started, simply connect video/audio sources, and an Ethernet with an ATEN app-installed iPad, and you are ready to roll.
Whether you're capturing, editing or streaming, the StreamLIVE™ PRO with its ergonomic and practical design, it is flexible enough to fit all independent live streaming broadcasting environments. With a rich feature set, the StreamLIVE™ PRO addresses the challenges that independent live streaming broadcasters encounter and provides an easy-to-use solution.

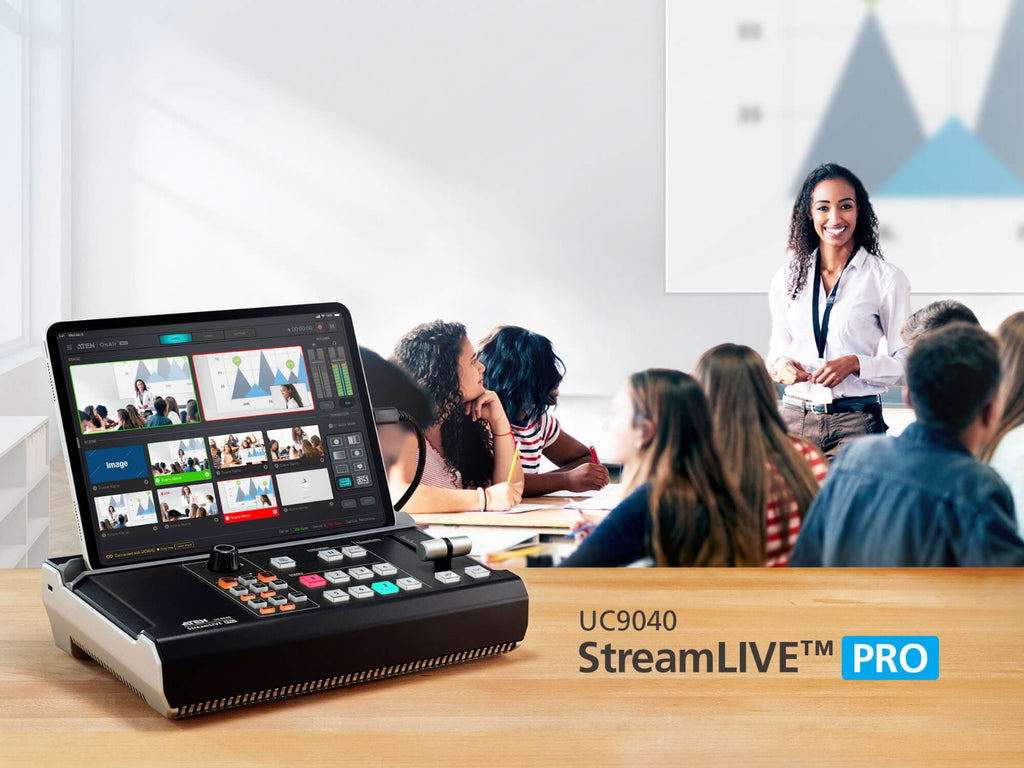

Note: Product is shown in use for illustration only, additional equipment and iPad are not included.
Key Features of the Aten UC9040 StreamLIVE PRO All-in-one Multi-channel AV Mixer
- Integrates 1080p video capture, video recorder, video switch, streaming encoder, video converter, video splitter, and audio mixer
- Compatible with every major platform and can livestream to two platforms at the same time from virtually anywhere
- Features a media recording that can be used to record a program and save recordings directly to a connected external hard drive or flash drive via USB
- Switching & mix between multiple video & audio sources with the help of easily identifiable luminous keys
- OnAir™ Pro App preset up to 8 scenes with custom video layout, preview and full screen program monitoring, real-time editing, transitions in stunning DVE, PbP or PiP visual effects, and graphic and text overlays for a professional finish
- Including circle drop, window slice, polka dot, circle open, fade, heart, cross hatch and random square.
- Storyboard-like management, quick and smooth transitions control for professional programming during live events
- Multi-channel audio mixing with faders, meters, and balance for every input
- Fanless and optimized thermal air flow system for quiet operation
- Multitask designed handle-stand to enhance portability and ergonomic comfort angle
All-in-one Brings It All Together
ATEN UC9040 StreamLIVE PRO is an innovative all-in-one 4-port HDMI AV mixer, packed with direct streaming, direct recording, and scene-based switching capability. It is optimized for the easiest operation and uses iPad to replace a computer and a monitor for controlling, preview monitoring, real-time editing, and arranging elements into your program mixing, thus reducing the complexity of your livestreaming setup’s equipment and cabling. It is literally a live production studio in a box but with extremely powerful features.
Intuitive, Pro-level Livestreaming and Recording for Anyone
StreamLIVE is specifically designed for live video streamers who are struggling with complex streaming equipment. Everything you need for livestreaming is ready to just plug-n-play with the intuitive control interface from hardware console to touch screen on iPad. It is incredibly easy to use and works with all your existing equipment. You can set up quickly, use drag and drop to design custom layouts, and make live switching between the video sources or scenes a breeze.
Content Recording for On-demand Video
Choose to livestream your content or record it for on VOD (video on demand) experiences! The StreamLIVE PRO supports recording of video content and saving it directly to a connected external hard drive via USB. Record incredible videos in H.264 encoded FHD quality that are perfect for any production and post-production workflow and can work instantly with the most popular software packages. Build up a library of video on demand or use it for any content management system.
OnAir™ Pro App, Custom Layouts in Seconds
The OnAir Pro app includes powerful DVE (Digital Video Effects) and a built-in graphic editor to make your iPad a perfect personal video editing suite. Freely combine, crop, and scale video to make professional PnP, PbP, or split layouts. Add transparent png images and backgrounds from your iPad’s photo library, and create title overlays with professional-looking effects in seconds. Everything can de done easily and in real time for great production, even during filming.
Direct Dual-Streaming, Reach A Wider Audience
With the built-in hardware encoder and streaming server, StreamLIVE PRO can livestream to two platforms at the same time virtually anywhere via Ethernet connection, including Facebook, YouTube, Vimeo, Livestream, or any custom RTMP destination, all in stable high-quality full HD. It can also free up your computer for monitoring streams and engaging with audience, saving you from a costly powerful computer for encoding.
Portable, Stream Anywhere You Like
The all-in-one design greatly reduces setup time and streamlines the video production process. StreamLIVE packs heavy-duty performance and great features into just 2.3 kg, making StreamLIVE a portable video production system that you can take anywhere. Use this compact video production studio with an iPad, cameras, mic, and cables without the need for carrying a monitor and computer with you.
- MPN - UC9040
- GTIN - 4710469340079
