Zoom U-24 Handy Audio Interface
Skip to product information
View full item details
View Full Details
Learn More
More details here.
$189.00
Sale price
$189.00
Description
- Musicians, Songwriters, and Producers
- USB Type-A Connectivity
- 2 Mic/Line Preamps (1 with Hi-Z Switch)
- 1 Headphone Output, 4 Line Outputs
- Up to 24-Bit / 96 kHz Resolution
- Battery or Bus Power / Mac, Windows, iOS
- Phantom Power, Zero-Latency Monitoring
- User-Friendly Tactile Controls
- MIDI I/O, Output Mute Buttons
- DAW Software and iPad App
Delivery
Australia
Standard Shipping 4-7 business days: AU $8.95*
Express Shipping 1-3 business days: AU $15*
International Shipping
New Zealand 9-12 business days: AU$21*
*During peak promotional periods, please allow additional time for your order dispatch.
Returns
While we can’t offer a refund or replacement if you simply change your mind, we’re here to help if your item has a problem under Australian Consumer Law. You may be entitled to a refund or exchange if an item has a major problem. This is when the item:
- has a problem that would have stopped someone from buying the item if they had known about it
- is unsafe
- is significantly different from the sample or description
- doesn't do what we said it would, or what you asked for and can't be easily fixed
If the problem is not major, we will repair the item within a reasonable time. If it can’t be repaired in a reasonable time, we’ll offer a suitable resolution such as a refund or replacement. Please keep your proof of purchase — e.g. your receipt.
Description
- Musicians, Songwriters, and Producers
- USB Type-A Connectivity
- 2 Mic/Line Preamps (1 with Hi-Z Switch)
- 1 Headphone Output, 4 Line Outputs
- Up to 24-Bit / 96 kHz Resolution
- Battery or Bus Power / Mac, Windows, iOS
- Phantom Power, Zero-Latency Monitoring
- User-Friendly Tactile Controls
- MIDI I/O, Output Mute Buttons
- DAW Software and iPad App
Delivery
Australia
Standard Shipping 4-7 business days: AU $8.95*
Express Shipping 1-3 business days: AU $15*
International Shipping
New Zealand 9-12 business days: AU$21*
*During peak promotional periods, please allow additional time for your order dispatch.
Returns
While we can’t offer a refund or replacement if you simply change your mind, we’re here to help if your item has a problem under Australian Consumer Law. You may be entitled to a refund or exchange if an item has a major problem. This is when the item:
- has a problem that would have stopped someone from buying the item if they had known about it
- is unsafe
- is significantly different from the sample or description
- doesn't do what we said it would, or what you asked for and can't be easily fixed
If the problem is not major, we will repair the item within a reasonable time. If it can’t be repaired in a reasonable time, we’ll offer a suitable resolution such as a refund or replacement. Please keep your proof of purchase — e.g. your receipt.
Frequently bought with
| Form Factor | Desktop |
| Display | None |
| Channels of I/O | Analog:
2 Inputs / 4 Outputs |
| Maximum Sampling Rate | 96 kHz / 24-Bit |
| Number of Microphone Preamps | 2 Preamps |
| Input Level Adjustment | 2 x Knob |
| Expansion Slots | None |
Signal Processing
| Pad | None |
| Gain/Trim Range | Inputs:
0 to 43 dB |
| High-Pass Filter | None |
| Solo/Mute | Mute per Master |
Connectivity
| Analog Audio I/O | 1 x Combo XLR-1/4" TRS Balanced/Unbalanced Mic/Line/Hi-Z Input
1 x Combo XLR-1/4" TRS Balanced/Unbalanced Mic/Line Input 2 x 1/4" TRS Balanced Monitor Output 2 x Stereo RCA Coaxial Unbalanced Line Output 1 x 1/4" TRS Unbalanced Headphone Output |
| Phantom Power | 48 V, Selectable On/Off (Applied to All Inputs) |
| Digital Audio I/O | None |
| Host Connection / USB | 1 x USB Type-B (-Compliant) |
| Host Connection Protocol | USB 2.0 |
| USB (Non-Host) | 1 x Micro-USB (Power Input) |
| Sync I/O | None |
| Network I/O | None |

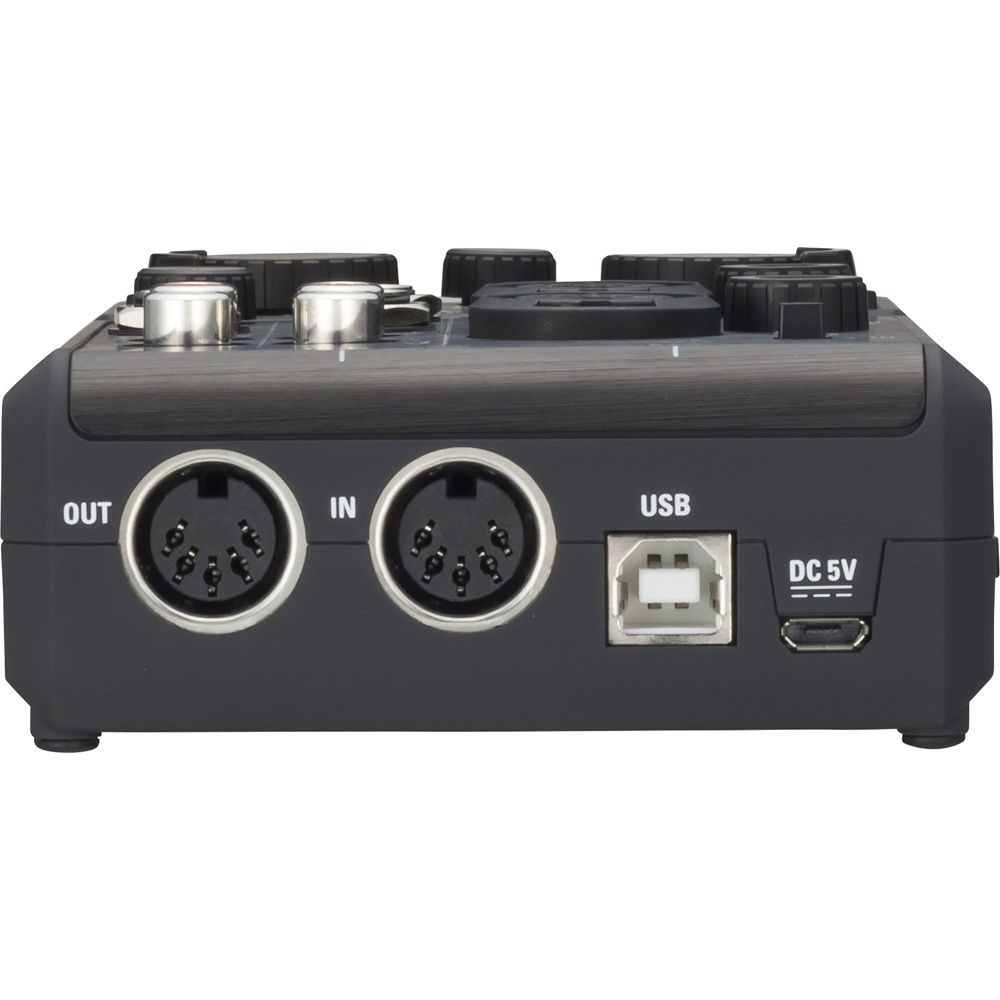

| MIDI I/O | 1 x DIN 5-Pin Input
1 x DIN 5-Pin Output |
| Wireless Connectivity | None |
Digital Audio
| Frequency Response | System:
20 Hz to 20 kHz +0/-1 dB (at 44.1 kHz) 20 Hz to 40 kHz +0/-3.5 dB (at 96 kHz) |
| Maximum Input Level | Line Inputs:
+20.7 dBu Mic Inputs: +2.7 dBu |
| Maximum Output Level | Monitor Outputs:
+10 dBu at 0 dBFS Line Outputs: +8 dBu at 0 dBFS Headphone Outputs: +10 dBu at 0 dBFS |
| Headphone Output Power | 30 mW per Channel into 32 Ohms |
| Impedance | Mic Inputs:
2.6 Kilohms Hi-Z Inputs: 1.1 Megohms Monitor Outputs: 1 Kilohm Line Outputs: 330 Ohms Headphone Outputs: 33 Ohms |
| EIN | Inputs:
-119.5 dBA (150-Ohm Source) |
Power

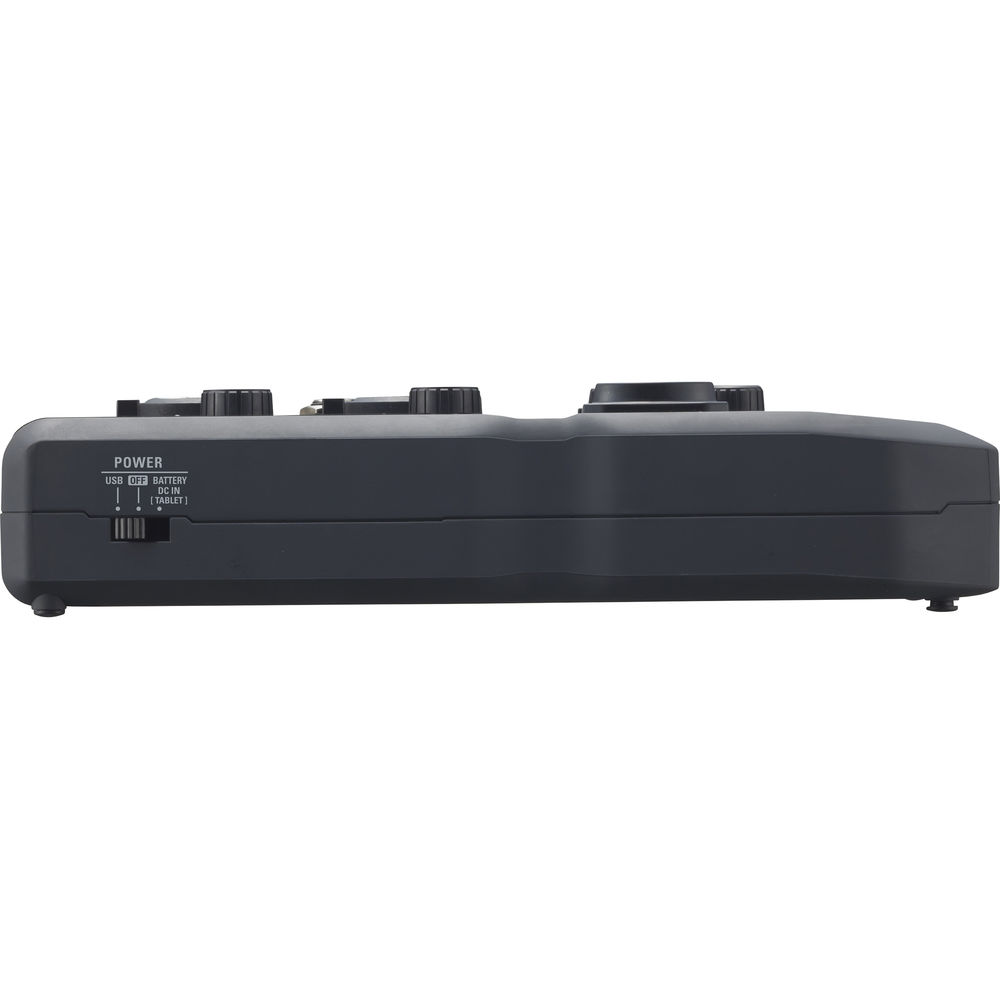

| Power Requirements | AC/DC Power Adapter (Not Included), Battery, or USB Bus Power |
| AC/DC Power Adapter | 5 VDC (Not Included) |
| Power Consumption | 5 W (Maximum) |
| Battery Type | 2 x AA |
| Approximate Battery Life | 4 Hours (Phantom Off) |
Physical
| Dimensions | 7.55 x 3.63 x 1.68" / 19.18 x 9.23 x 4.27 cm |
| Weight | 10.1 oz / 285.0 g |
- Zoom U-24 Handy Audio Interface
- USB Cable
0

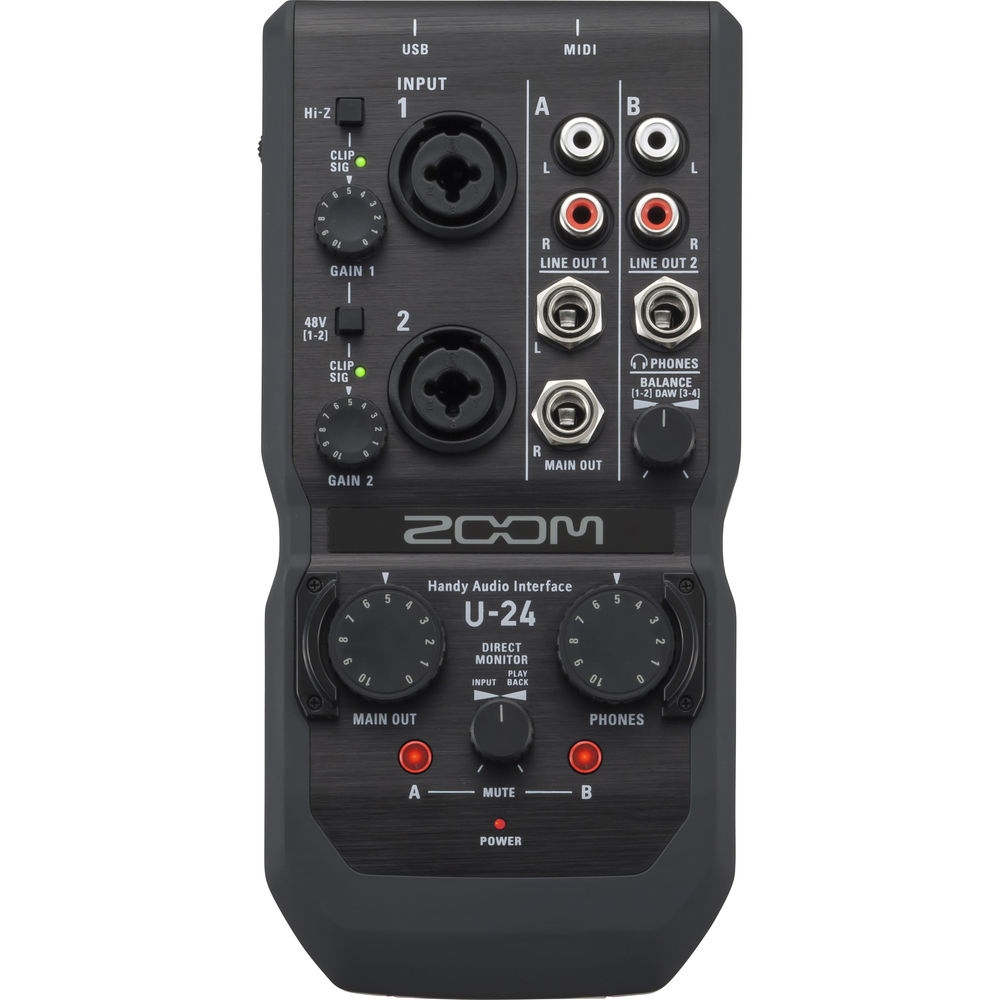

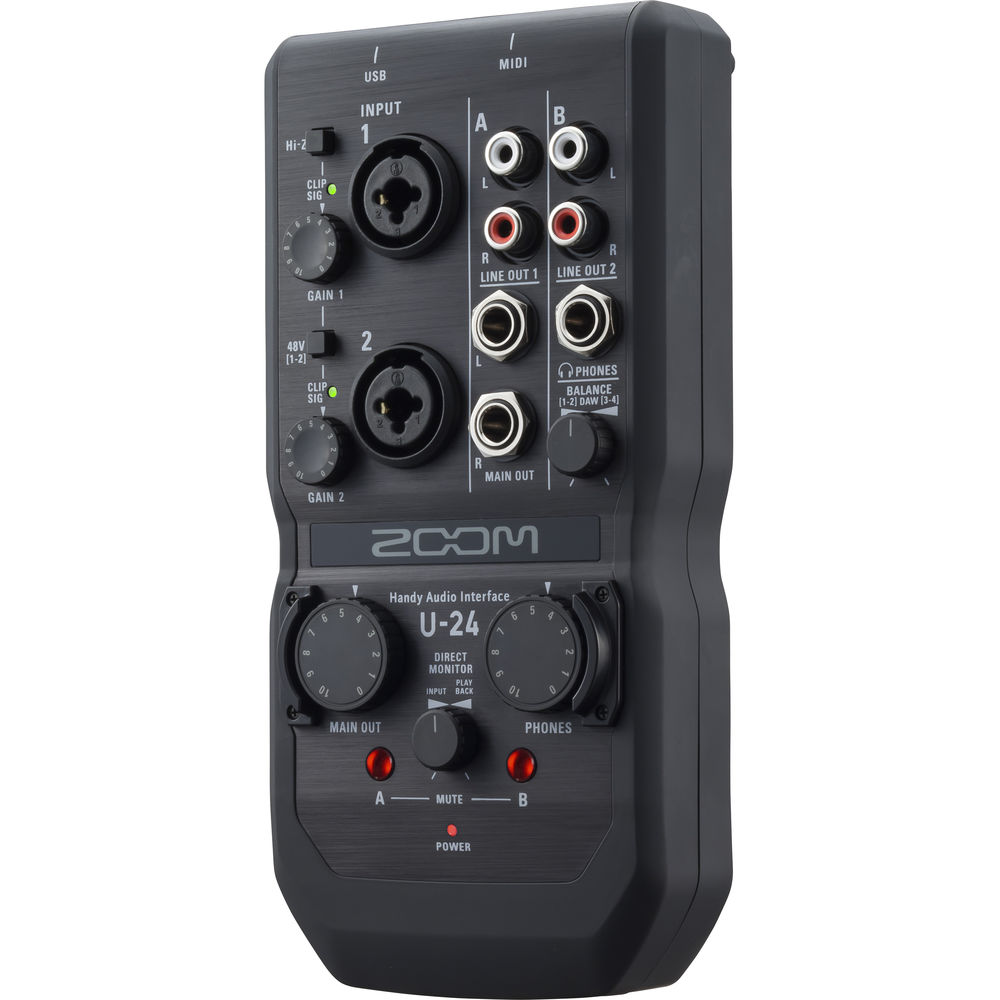

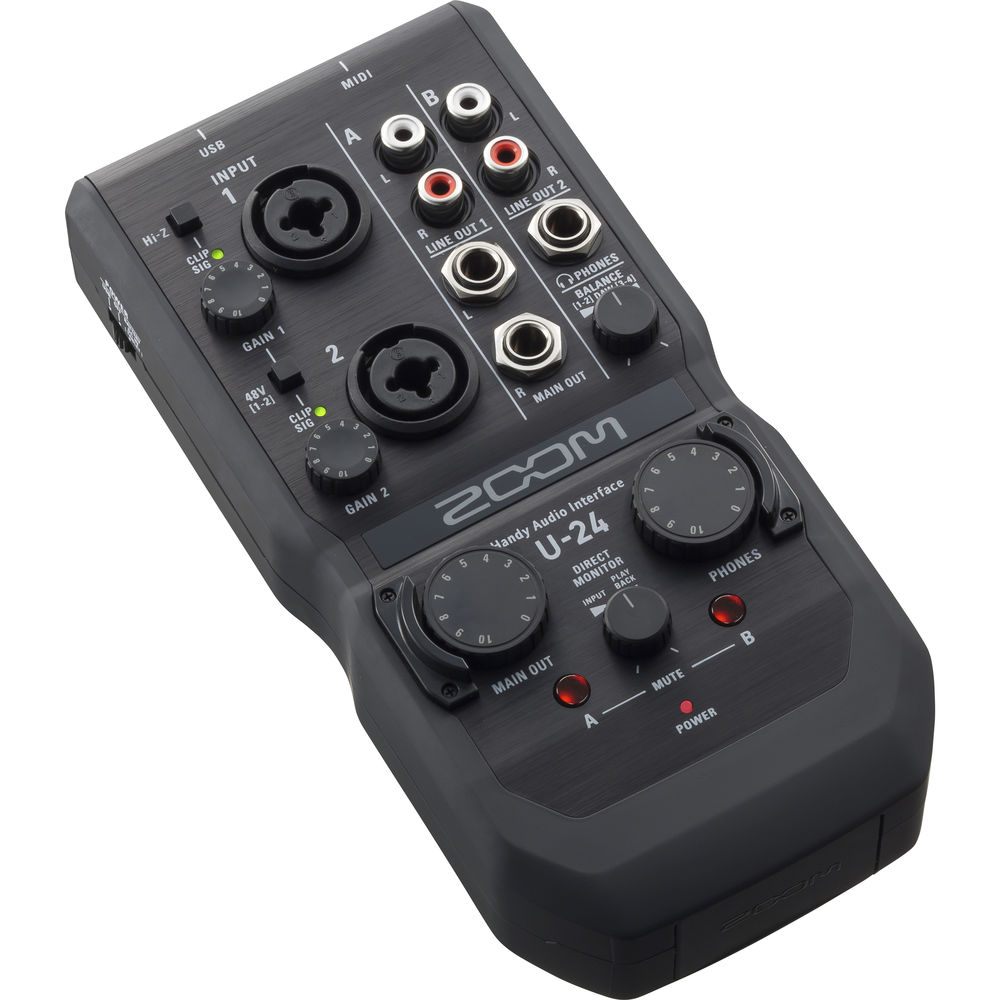

The Zoom U-24 Handy Audio Interface is a compact, 2-in/4-out audio interface that provides all of the essential tools you need for recording and performing with high resolution, 24-bit/96 kHz audio—anywhere you go. Get incredible sound quality thanks to high-quality, low-noise preamps—the same ones found on our acclaimed H5 and H6 Handy Recorders. Connect to your PC, Mac, or iPhone/iPad via USB and record mics, instruments, and more. The U-24 delivers the same great sound as our U-44 interface, with a more streamlined feature set.
Key Features of the Zoom U-24 Handy Audio Interface
- Musicians, Songwriters, and Producers
- USB Type-A Connectivity
- 2 Mic/Line Preamps (1 with Hi-Z Switch)
- 1 Headphone Output, 4 Line Outputs
- Up to 24-Bit / 96 kHz Resolution
- Battery or Bus Power / Mac, Windows, iOS
- Phantom Power, Zero-Latency Monitoring
- User-Friendly Tactile Controls
- MIDI I/O, Output Mute Buttons
- DAW Software and iPad App
THE GO-EVERYWHERE INTERFACE
The bus-powered U-24 packs all the essential tools into a compact form factor that fits in the palm of your hand. Record with mics, instruments, and more at home or on the go—the U-24 is iPhone/iPad* compatible and small enough to take anywhere. It can even run on just two AA batteries for recording in the most remote locations.
PRISTINE RECORDING AND PLAYBACK
Inspired by our Zoom H-series recorders, the U-24 is equipped with high-performance, low-noise mic preamps (-119.5 dB EIN) that enable recording and playback at resolutions up to 24-bit/96 kHz. You can also use U-24 as a studio-quality headphone amp and listen to your favorite music in full fidelity.
GET CONNECTED WITH THE U-24
The U-24 is equipped with an essential collection of inputs and outputs for streamlined recording. Two combo inputs with independent gain knobs and multi-color level indicators allow you to connect mics, keyboards, mixers, and more. 48V phantom power can be supplied to both inputs, and input 1 supports Hi-Z for connecting guitars, basses, or other passive instruments. MIDI input and output jacks allow you to use devices like keyboards, controllers, synthesizers, and drum machines. Separate TRS and RCA output jacks provide multiple options for connecting DJ mixers, monitors, and other gear. Finally, an independent headphone output with dedicated volume control gives you complete flexibility while monitoring.
YOUR MIX, YOUR WAY
The U-24 has flexible monitoring options for dialing in the perfect mix with zero latency. Balance the cue and main out signals when you’re DJ’ing, or create a mix of click track and main out signals during live performances. Each connector and knob is strategically positioned for fast access, so you can set up and control the U-24 with ease.
CREATE MORE WITH YOUR U-24
Bundled with Ableton Live Lite, the U-24 has everything the modern music creator needs. This integrated software lets you record tracks quickly and intuitively, enhancing them with studio-quality effects like EQ, compression, reverb, delay, chorus, filter, and more. Plus, Ableton’s performance workflows let you take your music to the stage where you can mix and record live.
Steinberg Cubasis LE
Cubasis LE, a 4-track audio recording/editing/mixing app for iPhone/iPad with an intuitive ‘touch’ user interface, is now available for the U-24.
- MPN - FXS024
- GTIN - 4515260016204
