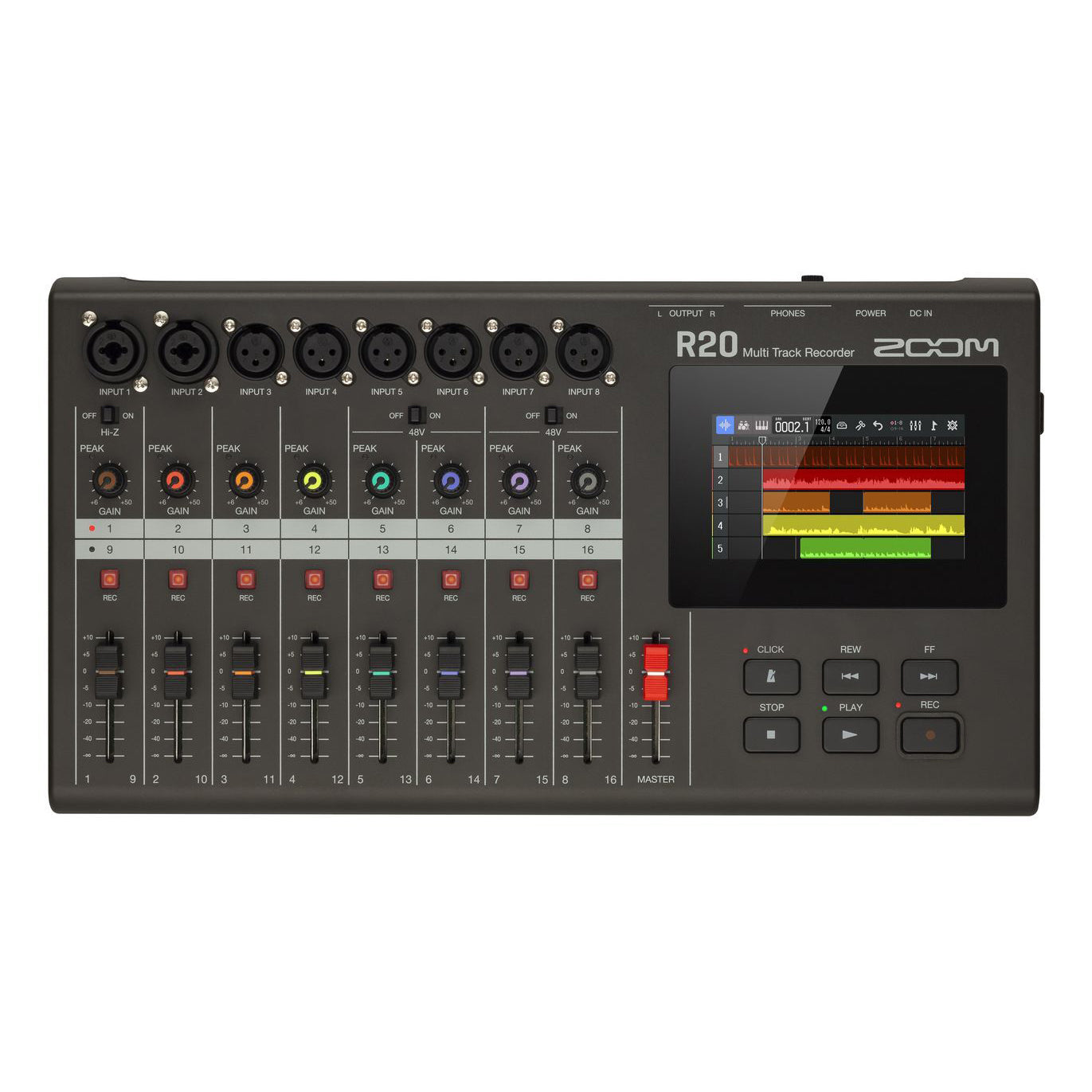

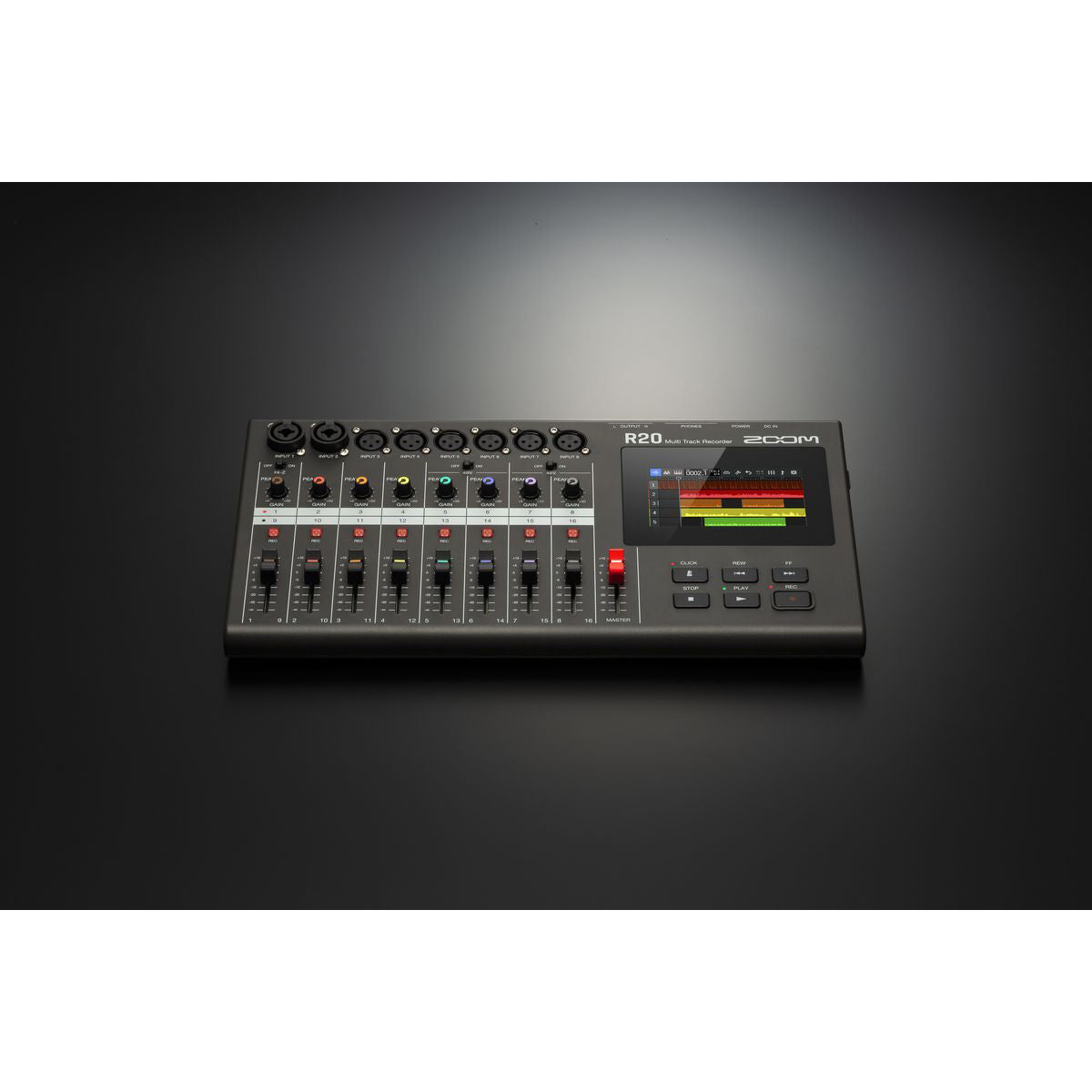

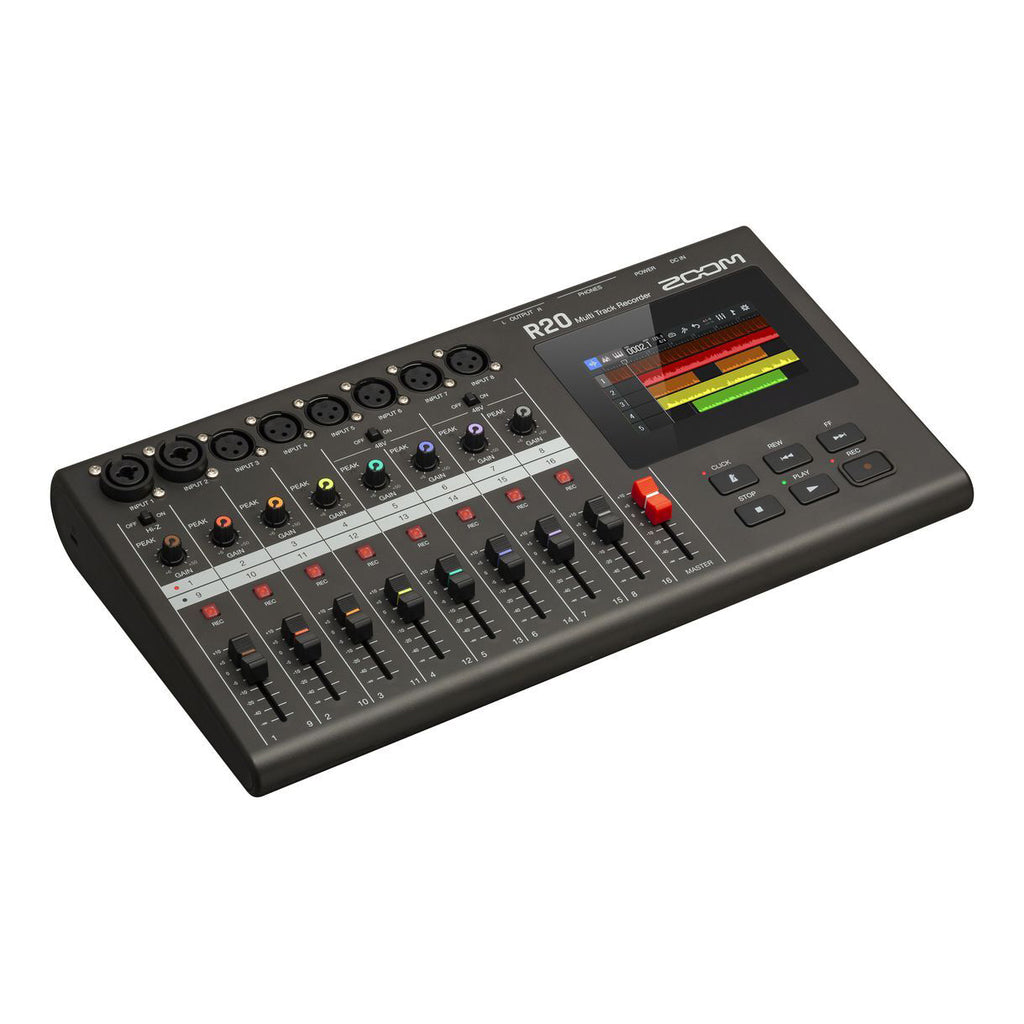

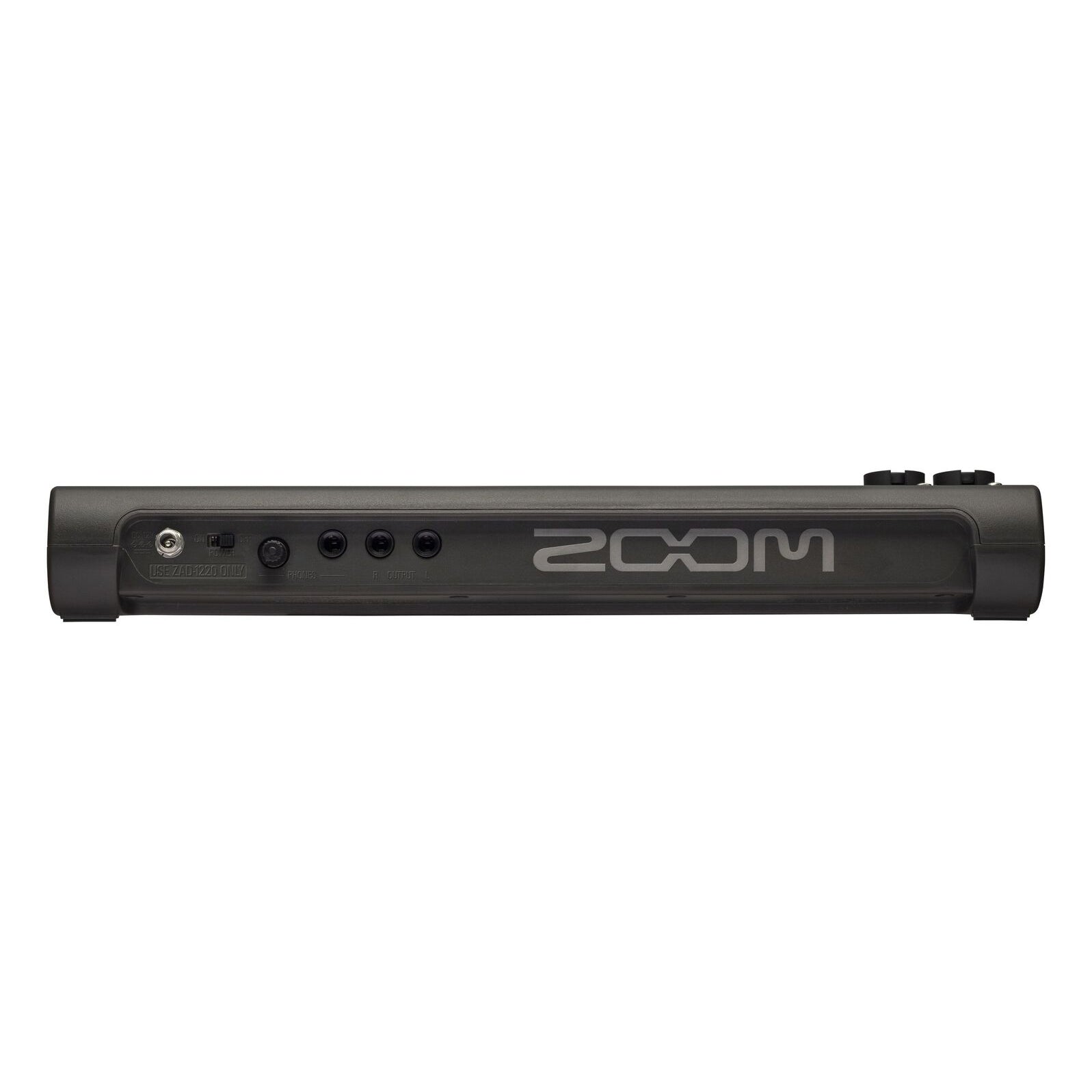

Zoom R20 MultiTrak Recorder
Skip to product information
View full item details
View Full Details
Learn More
More details here.
$829.00
Sale price
$829.00
Description
- 4.3” Full-color LCD touchscreen display
- Easy-to-use DAW-inspired interface
- Record up to 16 tracks (8 simultaneously)
- Eight XLR mic preamps, including two mic/line/instrument combo jacks
- Hi-Z available on input 1 and 48V phantom power available on inputs 5-8
- Onboard editing and built-in effects
- Pre-loaded drum loops
- Optional BTA-1 Bluetooth enables wireless control via the R20 Control App
- USB-C audio interface (Multi Track Mode : 8-in / 2-out, Stereo Mode : 2-in / 2-out)
- Records directly to SDHC cards up to 32GB and SDXC cards up to 1TB
- New locking-type AC Adapter (ZAD-1220)
- Up to 24-bit /44.1kHz audio in BWF-compliant WAV
- Compatible with Guitar Lab software for Mac/Windows PC
Delivery
Australia
Standard Shipping 4-7 business days: AU $8.95*
Express Shipping 1-3 business days: AU $15*
International Shipping
New Zealand 9-12 business days: AU$21*
*During peak promotional periods, please allow additional time for your order dispatch.
Returns
While we can’t offer a refund or replacement if you simply change your mind, we’re here to help if your item has a problem under Australian Consumer Law. You may be entitled to a refund or exchange if an item has a major problem. This is when the item:
- has a problem that would have stopped someone from buying the item if they had known about it
- is unsafe
- is significantly different from the sample or description
- doesn't do what we said it would, or what you asked for and can't be easily fixed
If the problem is not major, we will repair the item within a reasonable time. If it can’t be repaired in a reasonable time, we’ll offer a suitable resolution such as a refund or replacement. Please keep your proof of purchase — e.g. your receipt.
Description
- 4.3” Full-color LCD touchscreen display
- Easy-to-use DAW-inspired interface
- Record up to 16 tracks (8 simultaneously)
- Eight XLR mic preamps, including two mic/line/instrument combo jacks
- Hi-Z available on input 1 and 48V phantom power available on inputs 5-8
- Onboard editing and built-in effects
- Pre-loaded drum loops
- Optional BTA-1 Bluetooth enables wireless control via the R20 Control App
- USB-C audio interface (Multi Track Mode : 8-in / 2-out, Stereo Mode : 2-in / 2-out)
- Records directly to SDHC cards up to 32GB and SDXC cards up to 1TB
- New locking-type AC Adapter (ZAD-1220)
- Up to 24-bit /44.1kHz audio in BWF-compliant WAV
- Compatible with Guitar Lab software for Mac/Windows PC
Delivery
Australia
Standard Shipping 4-7 business days: AU $8.95*
Express Shipping 1-3 business days: AU $15*
International Shipping
New Zealand 9-12 business days: AU$21*
*During peak promotional periods, please allow additional time for your order dispatch.
Returns
While we can’t offer a refund or replacement if you simply change your mind, we’re here to help if your item has a problem under Australian Consumer Law. You may be entitled to a refund or exchange if an item has a major problem. This is when the item:
- has a problem that would have stopped someone from buying the item if they had known about it
- is unsafe
- is significantly different from the sample or description
- doesn't do what we said it would, or what you asked for and can't be easily fixed
If the problem is not major, we will repair the item within a reasonable time. If it can’t be repaired in a reasonable time, we’ll offer a suitable resolution such as a refund or replacement. Please keep your proof of purchase — e.g. your receipt.
Frequently bought with
INPUTS MIC/LINE (MONO)
| Connectors | XLR/TRS combo jacks × 2 XLR × 6 (XLR: 2 HOT/TRS: TIP HOT |
|---|---|
| Input gain | +6 ~ +50 dB |
| Input impedance XLR | XLR: 3.9 kΩ TRS: 5.3 kΩ/1 MΩ (when Hi-Z is ON, for INPUT 1 only) |
| Maximum input level | +4 dBu (@0 dBFS) |
| Phantom power | +48 V (INPUTS 5–8, switchable in pairs) |
| Equivalent input noise | –121 dBu or less (IHF-A) with +50dB/150Ω input |
| Frequency response | −1.0/+0.5 dB: 20 Hz – 20 kHz |
OUTPUTS MASTER OUT
| Connectors | 2 TRS phone jacks (balanced) |
|---|---|
| Maximum output level | +14 dBu |
| Output impedance | 200 Ω |
PHONES
| Connectors | 1 standard stereo phone jack |
|---|---|
| Maximum output level | 20 mW + 20 mW (into 32Ω load) |
| Output impedance | 33 Ω |
RECORDER
| Maximum simultaneous recording tracks | 8 |
|---|---|
| Maximum simultaneous playback tracks | 16 |
| Recording format | 44.1kHz, 16/24-bit, mono/stereo WAV |
| Recording media | Cards compatible with microSDHC: 4 GB – 32 GB
Cards compatible with microSDXC: 64 GB – 1 TB |
TRACK SETTINGS
| EQ High | 10 kHz, ±12 dB, shelving |
|---|---|
| Middle | 2.5 kHz, ±12 dB, peaking |
| Low | 100 Hz, ±12 dB, shelving |
EFFECTS
| Input Dynamics | Comp/Limiter/Gate |
|---|---|
| Patch memory effects | 3 effects (One insert effect on one channel or one send effect available to all tracks) |
| Patch memories | 50 |
| Tuner | Chromatic/Guitar/Bass/Open A/Open D/Open E/Open G/DADGAD |
CLICK (METRONOME)
| Time signatures | 3/4, 4/4, 6/8 |
|---|---|
| Tempo range | 40.0 – 250.0 BPM |
RHYTHM LOOPS
| Sound source format | PCM |
|---|---|
| Number of loops | 150 |
SYNTH
| Sound source format | FM |
|---|---|
| Polyphony | 8 |
| Number of sound types | 18 (and a PCM drum kit) |
DISPLAY
| DISPLAY | 4.3" (480×272) full-color touchscreen LCD |
|---|
USB
| CONNECTOR | USB Type-C
Note: Use a USB cable that supports data transfer. USB bus power is supported. |
|---|
AUDIO INTERFACE FUNCTION
| Stereo mix | USB 2.0 Full Speed
44.1kHz, 16/24-bit 2-in/2-out |
|---|---|
| Multitrack | USB 2.0 High Speed
44.1 kHz, 16/24-bit 8-in/4-out |
MASS STORAGE FUNCTION
| Host/Device | USB 2.0 High Speed (5V/500mA power supplied when host) |
|---|---|
| GUITAR LAB CONNECTION | USB 1.1 Full Speed |
| DAW CONNECTION (CONTROL SURFACE) | USB 1.1 Full Speed |
| USB MIDI KEYBOARD CONNECTION | USB 1.1 Full Speed (5V/500mA power supplied) |
MISC
| REMOTE | Dedicated wireless adapter (ZOOM BTA-1) |
|---|---|
| POWER | AC adapter (ZOOM ZAD-1220): 12 V/2.0 A |
| Power consumption | 11 W maximum |
| External dimensions | 378 mm (W) × 206 mm (D) × 58 mm (H) |
| Weight (unit only) | 1.33 kg
Note: 0 dBu = 0.775 V |
- Zoom R20 MultiTrak Recorder
0
An intuitive, all-in-one tabletop solution for recording, editing, and mixing music, the Zoom R20 MultiTrak Recorder merges a DAW-inspired touchscreen interface, color-coded tactile controls, and up to 16 total tracks so that solo artists and full bands alike can produce songs and let their creativity flow without relying on a computer. If a DAW-based workflow is needed, the R20 can serve as an 8x4 USB audio interface for virtually any audio production software.
The R20 is part recording console, part virtual instrument, and part effects unit; it comes loaded with eight preamps, channel strips, drum loops, synth sounds, and digital processing such as compression, EQ, gating, and more. Multiple mics, an electric guitar, headphones, speakers, and even a MIDI keyboard can be hooked up to the R20, making it a capable centerpiece for any home studio or mobile production rig.
Key Features of the Zoom R20 MultiTrak Recorder
- 4.3” Full-color LCD touchscreen display
- Easy-to-use DAW-inspired interface
- Record up to 16 tracks (8 simultaneously)
- Eight XLR mic preamps, including two mic/line/instrument combo jacks
- Hi-Z available on input 1 and 48V phantom power available on inputs 5-8
- Onboard editing and built-in effects
- Pre-loaded drum loops
- Optional BTA-1 Bluetooth enables wireless control via the R20 Control App
- USB-C audio interface (Multi Track Mode : 8-in / 2-out, Stereo Mode : 2-in / 2-out)
- Records directly to SDHC cards up to 32GB and SDXC cards up to 1TB
- New locking-type AC Adapter (ZAD-1220)
- Up to 24-bit /44.1kHz audio in BWF-compliant WAV
- Compatible with Guitar Lab software for Mac/Windows PC
A MULTI TRACK RECORDER THAT REDEFINES 'EASY'
With a familiar touchscreen interface, the R20 makes it insanely simple to track, edit and mix your songs, letting you focus on the music.
- MPN - AM406G
- GTIN - 6973985232312
