Zoom H5 Studio Handy Recorder
Skip to product information
Not eligible for discount.
View full item details
Not eligible for discount.
Awaiting stock
Order Limits Apply
View Full Details
Learn More
More details here.
$669.00
Sale price
$669.00
Description
- Large-diameter XY stereo microphone capsule (19.4 mm)
- Dual AD converter + 32-bit float support for clip-free recording
- 16/24-bit depth available
- 4 track simultaneous recording at up to 192kHz sampling in WAV format
- 2 XLR/TRS phone inputs (48V, +4dBu input compatible)
- F-series preamps
- Color LCD screen
- Compatible with Zoom capsule system 3.0
- 4-in/2-out USB audio interface
- 9 hours of battery life on AA battery (2x) or USB-C power
Delivery
Australia
Standard Shipping 4-7 business days: AU $8.95*
Express Shipping 1-3 business days: AU $15*
International Shipping
New Zealand 9-12 business days: AU$21*
*During peak promotional periods, please allow additional time for your order dispatch.
Returns
While we can’t offer a refund or replacement if you simply change your mind, we’re here to help if your item has a problem under Australian Consumer Law. You may be entitled to a refund or exchange if an item has a major problem. This is when the item:
- has a problem that would have stopped someone from buying the item if they had known about it
- is unsafe
- is significantly different from the sample or description
- doesn't do what we said it would, or what you asked for and can't be easily fixed
If the problem is not major, we will repair the item within a reasonable time. If it can’t be repaired in a reasonable time, we’ll offer a suitable resolution such as a refund or replacement. Please keep your proof of purchase — e.g. your receipt.
$669.00
Sale price
$669.00
BANK TRANSFER (EFT)
Description
- Large-diameter XY stereo microphone capsule (19.4 mm)
- Dual AD converter + 32-bit float support for clip-free recording
- 16/24-bit depth available
- 4 track simultaneous recording at up to 192kHz sampling in WAV format
- 2 XLR/TRS phone inputs (48V, +4dBu input compatible)
- F-series preamps
- Color LCD screen
- Compatible with Zoom capsule system 3.0
- 4-in/2-out USB audio interface
- 9 hours of battery life on AA battery (2x) or USB-C power
Delivery
Australia
Standard Shipping 4-7 business days: AU $8.95*
Express Shipping 1-3 business days: AU $15*
International Shipping
New Zealand 9-12 business days: AU$21*
*During peak promotional periods, please allow additional time for your order dispatch.
Returns
While we can’t offer a refund or replacement if you simply change your mind, we’re here to help if your item has a problem under Australian Consumer Law. You may be entitled to a refund or exchange if an item has a major problem. This is when the item:
- has a problem that would have stopped someone from buying the item if they had known about it
- is unsafe
- is significantly different from the sample or description
- doesn't do what we said it would, or what you asked for and can't be easily fixed
If the problem is not major, we will repair the item within a reasonable time. If it can’t be repaired in a reasonable time, we’ll offer a suitable resolution such as a refund or replacement. Please keep your proof of purchase — e.g. your receipt.
Frequently bought with
INPUT AND OUTPUT CHANNELS
| Inputs | Mic capsule: 1
MIC/LINE (mono): 2 |
|---|---|
| Outputs | LINE OUT: 1
Headphone: 1 Built-in speaker (mono): 1 |
INPUTS
| XY mic: XYH-5s | 90º XY stereo format |
|---|---|
| Pickup pattern | Unidirectional |
| Sensitivity | –41 dB/Pa at 1 kHz |
| Maximum sound pressure input | 140 dB SPL |
| MIC/LINE IN: XYH-5s Connector | 1 stereo mini jack |
| Input gain | −∞ – +60 dB |
| Input impedance | 2 kΩ or more |
| Plug-in power | 2.5 V |
| MIC/LINE (mono) Connectors | 2 XLR/TRS combo jacks (XLR: 2 HOT, TRS: TIP HOT) |
| Input gain | −∞ – +60 dB |
| Input impedance | MIC: 3 kΩ or more
LINE: 3 kΩ or more |
| Maximum input level | MIC: +4 dBu
LINE: +24 dBu |
| Phantom power | +48 V |
| Equivalent input noise | –127 dBu or less (IHF-A) at 150Ω input |
OUTPUTS
| LINE OUT Connector | 1 stereo mini jack |
|---|---|
| Maximum output level | +1 dBu |
| Output impedance | 110 Ω or less |
| Headphone Connector | 1 stereo mini jack |
| Maximum output level | 20 mW + 20 mW (when 32 Ω load) |
| Output impedance | 10 Ω or less |
| Built-in speaker Type | 20 mm x 30 mm elliptical dynamic speaker |
| Effective maximum output | 250 mW |
RECORDER
| Maximum simultaneous recording tracks | 6 |
|---|---|
| Maximum simultaneous playback tracks | 4 |
| Recording formats | WAV 44.1/48/96/192 kHz, 16-bit/24-bit/32-bit float, mono/stereo, BWF and iXML formats supported |
| Recording media | microSDHC memory cards
microSDXC memory cards |
DISPLAY
| 2.00" full-color LCD | 320 x 240 |
|---|
USB
| Connector | USB Type-C (use a USB cable that supports data transfer) |
|---|---|
| Audio Interface | USB 2.0 High Speed |
| Input and output channels | 4 in / 2 out (Multi), 2 in / 2 out (Stereo) |
| Sampling frequencies | 44.1/48/96 kHz (audio interface only), 44.1/48 kHz (audio interface + onboard recording) |
| Bit depths | 24-bit, 32-bit float |
| File transfer | USB 2.0 High Speed |
REMOTE
| Dedicated wireless adapter | ZOOM BTA-1 |
|---|
POWER
| 4 AA batteries | Alkaline, lithium or rechargeable NiMH batteries |
|---|---|
| AC Adapter | ZOOM AD-17 (DC 5 V/1 A), USB bus power supported |
| Estimated operation time (2-track) | Alkaline: ~15h, NiMH: ~13h, Lithium: ~21h |
| Estimated operation time (4-track) | Alkaline: ~6h, NiMH: ~6h, Lithium: ~11.5h |
| Power consumption | 5 W maximum |
| Dimensions | 86.0 mm (W) × 206.0 mm (D) × 54.6 mm (H) |
| Weight | 410 g (including batteries) |
- Zoom H5 Studio Handy Recorder
What type of microphones can I use with the Zoom H5 Studio Handy Recorder?
You can use any compatible microphones with the Zoom capsule system 3.0, as well as standard XLR or TRS microphones that support +48V phantom power.
How does the advanced limiter feature work?
The advanced limiters anticipate potential overloads in your audio signal and prevent distortion by adjusting levels before they reach the track.
Can I use the H5 Studio Handy Recorder as an audio interface?
Yes, it functions as a 4-in/2-out USB audio interface, allowing you to connect it directly to your computer for recording or streaming.
What is the maximum recording time on battery power?
The H5 Studio Handy Recorder offers up to 9 hours of recording time when using two AA batteries.
Is the H5 Studio Handy Recorder suitable for outdoor recording?
Yes, it is designed for portability and features RF shielding to minimise interference, making it suitable for outdoor use.
What formats can I record in?
You can record in WAV format with options for 16/24-bit depth and sample rates up to 192 kHz.
Does the H5 Studio Handy Recorder support wireless microphones?
Yes, it is compatible with the WLM-1 dual-channel wireless system, which allows for wireless audio capture.
The Zoom H5 Studio Handy Recorder was made for seamless and professional production. Creators can record flawless audio with stunningly clear microphones, studio-grade preamps, and 32-bit float recording.
Key Features of the Zoom H5 Studio Handy Recorder
- Large-diameter XY stereo microphone capsule (19.4 mm)
- Dual AD converter + 32-bit float support for clip-free recording
- 16/24-bit depth available
- 4 track simultaneous recording at up to 192kHz sampling in WAV format
- 2 XLR/TRS phone inputs (48V, +4dBu input compatible)
- F-series preamps
- Color LCD screen
- Compatible with Zoom capsule system 3.0
- 4-in/2-out USB audio interface
- 9 hours of battery life on AA battery (2x) or USB-C power
Six Tracks Up to 192 kHz
The H5studio captures up to six tracks (four iso-tracks plus a stereo mix) with sample rates up to 192 kHz.
Protect Your Sound
Carefully engineered RF shielding keeps interference from smartphones and Wi-Fi routers out of your recordings, anywhere you go.
Advanced Limiters
The H5studio features “advanced look-ahead” limiters which anticipate potential overloads and prevent distortion before it reaches your track.

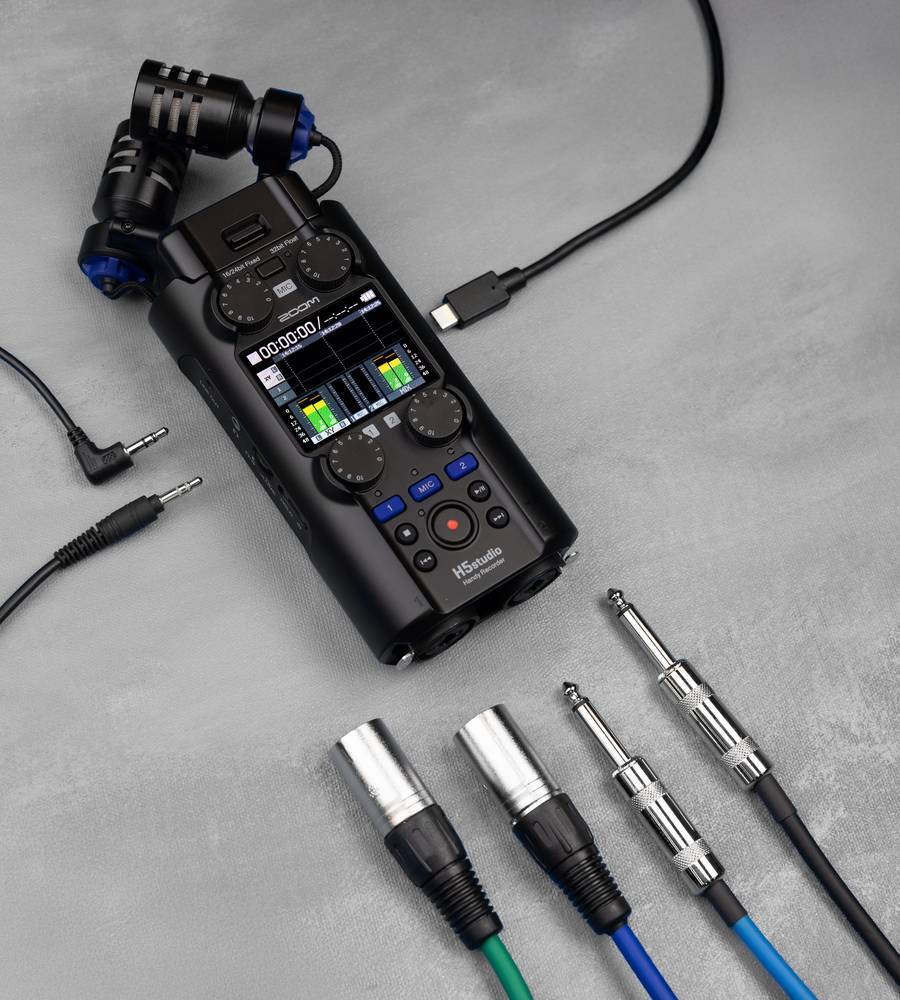

The Inputs
The two locking XLR/TRS inputs support +48V phantom power and +4dBu line level. There is also a 3.5mm stereo jack with plug-in power.

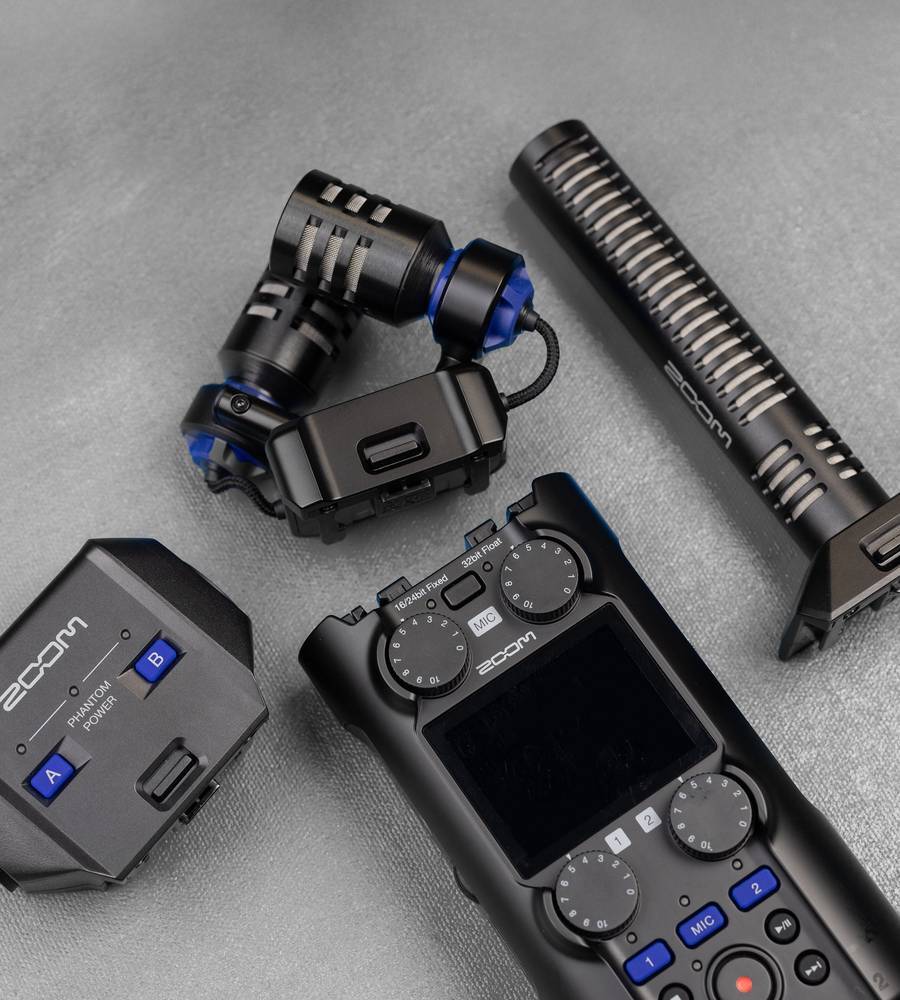

Next Generation Capsule System
The H5studio’s 3.0 capsule system* supports 32-bit float and gives creators more options to use the right mic for their recording.
Wireless Freedom
The WLM-1* is a dual-channel wireless system that comes with two transmitters and a receiver. The transmitter's built-in microphone captures clear, balanced audio at volumes up to 130 dB SPL.

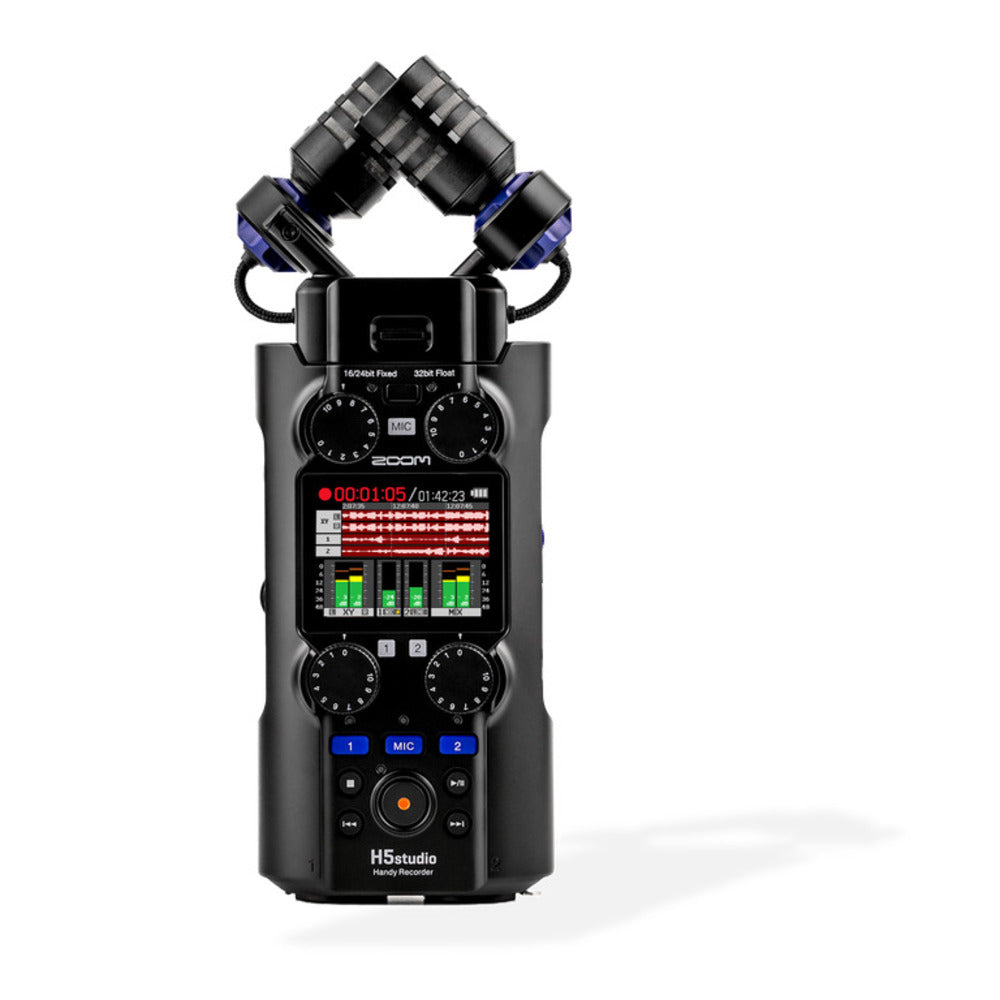

Waveforms & Levels
Monitor input levels with real-time waveforms on the full color LCD.
- MPN - FXR005S
- GTIN - FXR005S
