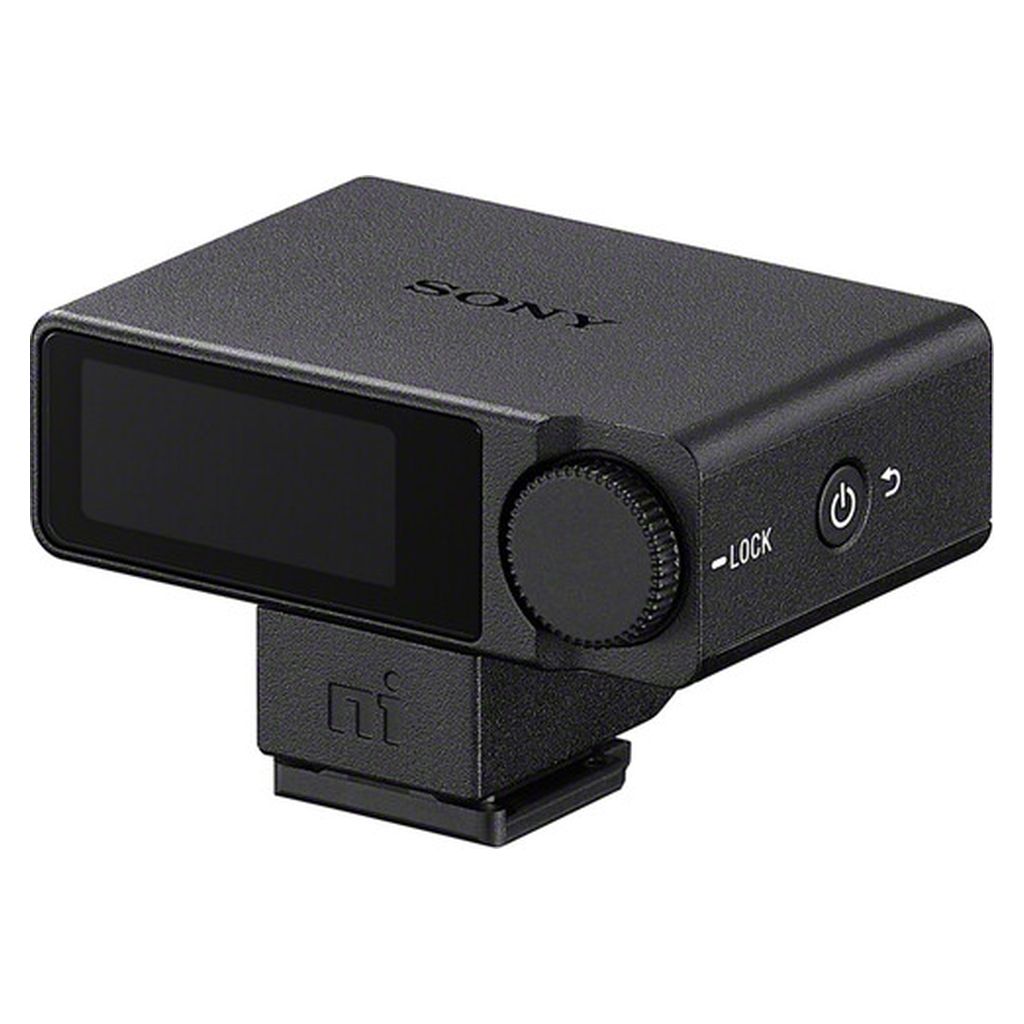

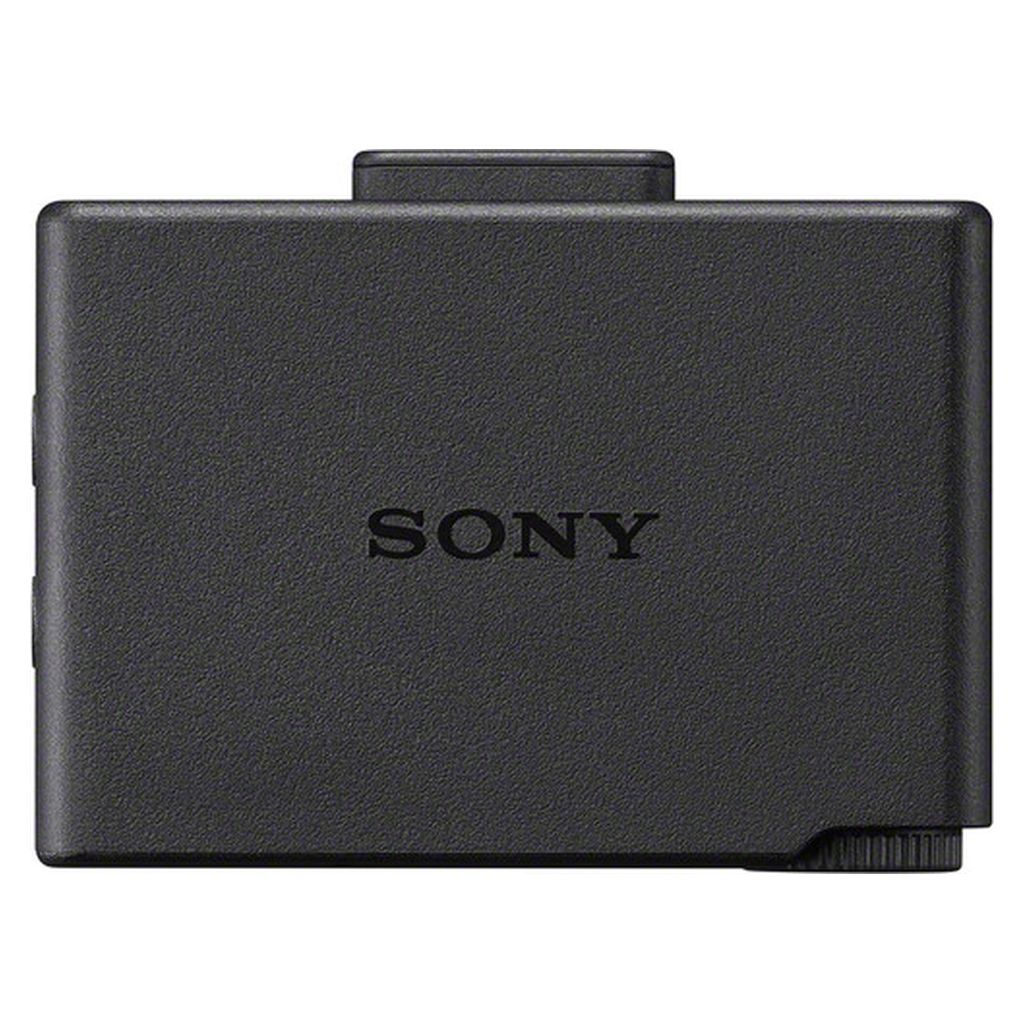

Sony ECM-W5R Wireless Receiver
Skip to product information
Not eligible for discount.
View full item details
Not eligible for discount.
Awaiting stock
Order Limits Apply
View Full Details
Learn More
More details here.
$289.00
Sale price
$289.00
Description
- For Sony Cameras with Digital MI Shoe
- For Cameras, Computers, Mobile Devices
- Use with ECM-W5T Microphone/Transmitters
- Up to 96 kHz / 24-Bit Audio Capture
- 48 kHz/32-Bit Float In-Camera Recording
- Supports Four In-Camera Audio Channels
- Compatible LE Audio Headphone Monitoring
- 3.5mm External Microphone Input
- Timecode Sync for Multi-Camera Shoots
- Up to 1640' Line-of-Sight Reception
Delivery
Australia
Standard Shipping 4-7 business days: AU $8.95*
Express Shipping 1-3 business days: AU $15*
International Shipping
New Zealand 9-12 business days: AU$21*
*During peak promotional periods, please allow additional time for your order dispatch.
Returns
While we can’t offer a refund or replacement if you simply change your mind, we’re here to help if your item has a problem under Australian Consumer Law. You may be entitled to a refund or exchange if an item has a major problem. This is when the item:
- has a problem that would have stopped someone from buying the item if they had known about it
- is unsafe
- is significantly different from the sample or description
- doesn't do what we said it would, or what you asked for and can't be easily fixed
If the problem is not major, we will repair the item within a reasonable time. If it can’t be repaired in a reasonable time, we’ll offer a suitable resolution such as a refund or replacement. Please keep your proof of purchase — e.g. your receipt.
BANK TRANSFER (EFT)
Description
- For Sony Cameras with Digital MI Shoe
- For Cameras, Computers, Mobile Devices
- Use with ECM-W5T Microphone/Transmitters
- Up to 96 kHz / 24-Bit Audio Capture
- 48 kHz/32-Bit Float In-Camera Recording
- Supports Four In-Camera Audio Channels
- Compatible LE Audio Headphone Monitoring
- 3.5mm External Microphone Input
- Timecode Sync for Multi-Camera Shoots
- Up to 1640' Line-of-Sight Reception
Delivery
Australia
Standard Shipping 4-7 business days: AU $8.95*
Express Shipping 1-3 business days: AU $15*
International Shipping
New Zealand 9-12 business days: AU$21*
*During peak promotional periods, please allow additional time for your order dispatch.
Returns
While we can’t offer a refund or replacement if you simply change your mind, we’re here to help if your item has a problem under Australian Consumer Law. You may be entitled to a refund or exchange if an item has a major problem. This is when the item:
- has a problem that would have stopped someone from buying the item if they had known about it
- is unsafe
- is significantly different from the sample or description
- doesn't do what we said it would, or what you asked for and can't be easily fixed
If the problem is not major, we will repair the item within a reasonable time. If it can’t be repaired in a reasonable time, we’ll offer a suitable resolution such as a refund or replacement. Please keep your proof of purchase — e.g. your receipt.
Frequently bought with

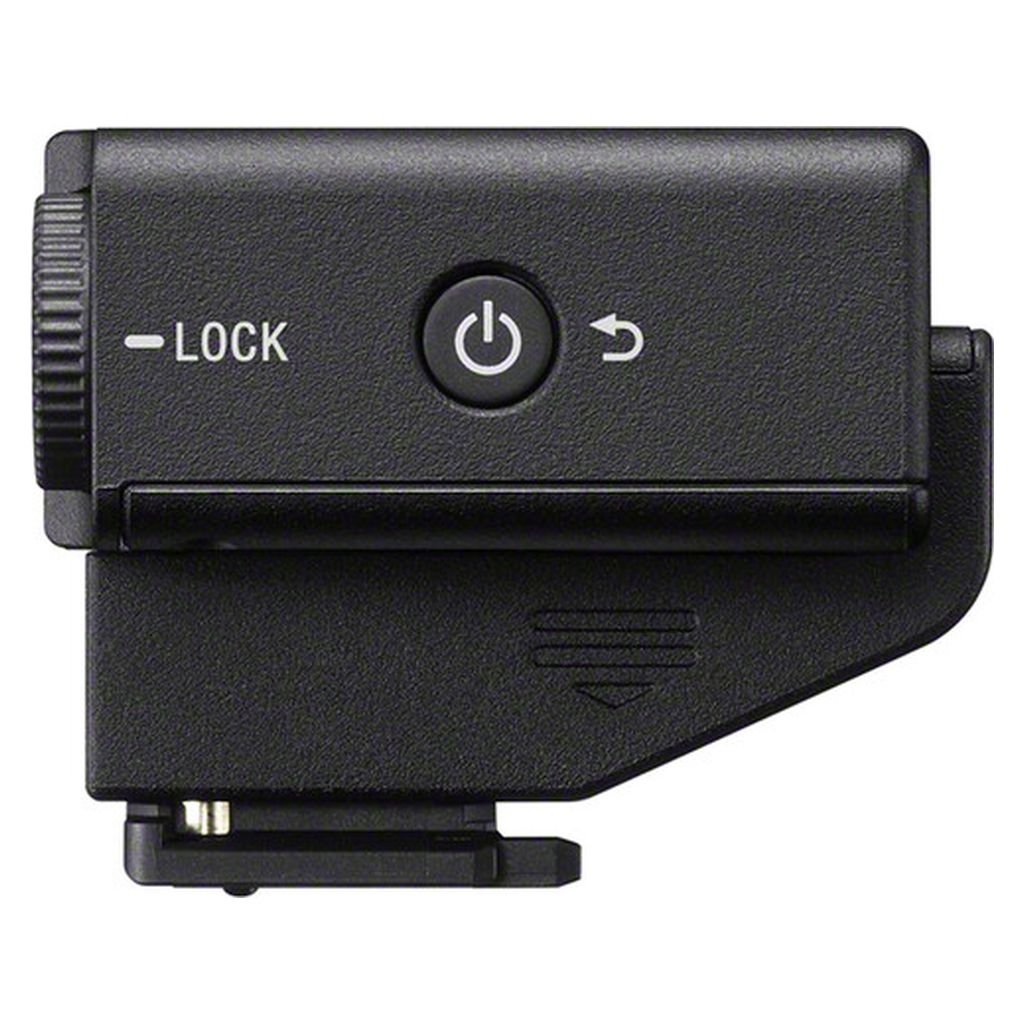

Designed primarily for Sony cameras featuring a compatible Multi Interface (MI) Shoe with a built-in digital audio interface, the Sony ECM-W5R Wireless Receiver connects directly to the camera for cable-free digital audio recording and camera-supplied power. Used with ECM-W5T microphone/transmitters (available separately), it supports high-resolution audio capture, four-channel in-camera recording, wireless headphone monitoring, and timecode synchronization. Supported Sony cameras can record 32-bit float audio directly into the video file, simplifying editing and file management. The versatile receiver can also be used with computers and mobile devices, as well as cameras without a Sony MI Shoe.
Key Features of the Sony ECM-W5R Wireless Receiver
- For Sony Cameras with Digital MI Shoe
- For Cameras, Computers, Mobile Devices
- Use with ECM-W5T Microphone/Transmitters
- Up to 96 kHz / 24-Bit Audio Capture
- 48 kHz/32-Bit Float In-Camera Recording
- Supports Four In-Camera Audio Channels
- Compatible LE Audio Headphone Monitoring
- 3.5mm External Microphone Input
- Timecode Sync for Multi-Camera Shoots
- Up to 1640' Line-of-Sight Reception
Digital Audio Integration with Select Sony Cameras
Through a compatible camera's MI Shoe, the receiver delivers digital audio at up to 96 kHz/24-bit or 48 kHz/32-bit float. On supported cameras, 32-bit float audio is recorded directly as an audio track within the video file, eliminating the need to manage and synchronize a separate audio recording. Quiet voices and sudden peaks can be adjusted in postproduction, reducing the need for ongoing gain adjustments during shooting. Compatible cameras also support simultaneous WAV recording to retain an audio source separately from the video file.
Input gain offers automatic adjustment to help prevent clipping and distortion, or manual control from -12 to +12 dB, even during 32-bit float recording. Noise-cut and low-cut functions can be switched on or off through the menu.
Four-Channel Recording and Stable Transmission
receiver supports up to four in-camera audio channels with ECM-W5T microphone/transmitters. Recording speakers on separate tracks makes it easier to edit interviews and conversations.
The system's low-latency wireless transmission operates at distances up to approximately 1640' in line-of-sight conditions. Bluetooth hopping technology and an optimized wireless design help maintain stable connections and minimize dropouts, even in crowded radio environments.
Wireless Monitoring and External Microphone Input
Connect compatible Sony Bluetooth LE Audio headphones for cable-free audio monitoring during shooting. The receiver can also capture audio from the microphone on compatible Sony wireless headphones and record it in-camera. With a compatible microphone, binaural recording supports ambient sound capture with a sense of spatial depth.

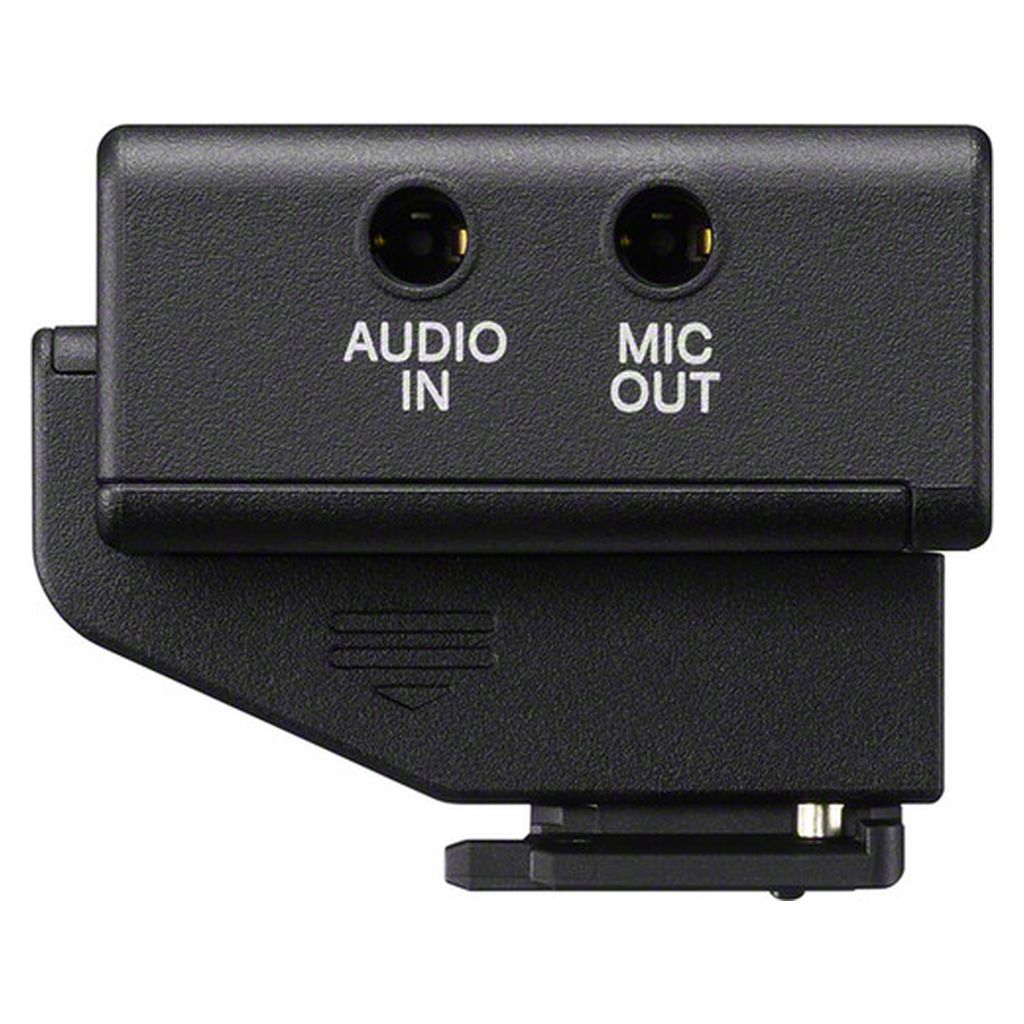

A mono 3.5mm external microphone input accepts lavaliers such as the Sony ECM-L1, available separately.
Timecode Synchronization and Flexible Connectivity
Timecode output helps align footage quickly and accurately in postproduction. In USB SYNC mode, a USB-C cable connects the receiver to a compatible Sony camera to synchronize with timecode stored as video metadata, supporting multi-camera workflows.
The receiver also supports recording to compatible smartphones and PCs. Connection to devices supporting USB Audio Class 2.0 enables USB audio recording, including 32-bit float.
Touchscreen Controls and Camera-Supplied Power

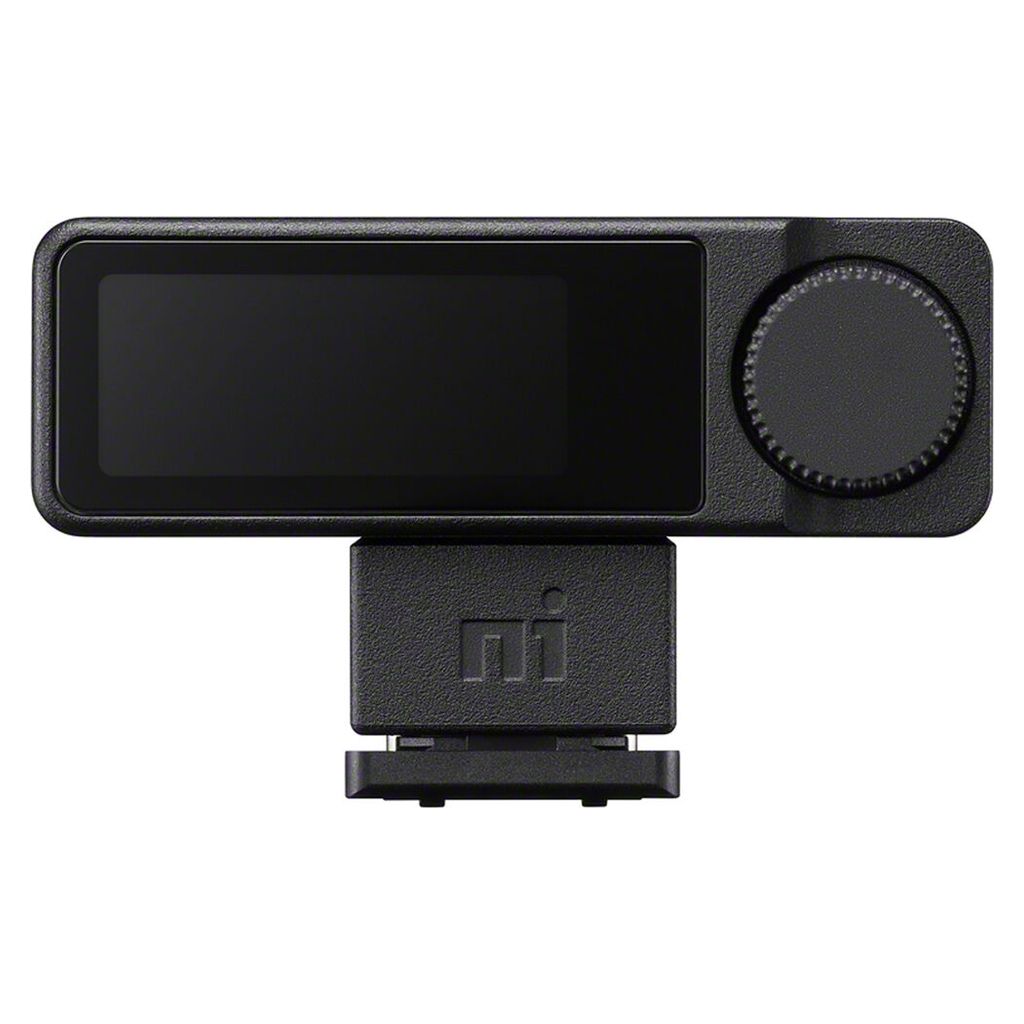

A high-contrast AMOLED touchscreen provides access to menu settings, complemented by a control wheel/button. LEDs indicate power, recording, and link status.
A compatible camera powers the receiver through the MI Shoe for extended shooting. When configured in advance, camera-linked power also switches on the receiver and paired microphones. For standalone operation, the receiver provides up to seven hours of continuous use on a full charge.
- MPN - ECMW5R
- GTIN - 4548736180741
System
| Wireless Technology | Bluetooth |
|---|---|
| Diversity | Non-Diversity |
| Max Operating Range | 500 m (Line of Sight) |
| Max Transmitters per Band | 4 |
| Encryption | No |
| Built-In Recorder | Yes (on Transmitter) |
| Timecode Support | Yes |
| Mobile App Compatible | Yes: Android & iOS |
Receiver
| Receiver Type | 1x Camera-Mount |
|---|---|
| Mounting Options | Shoe-Mount (with Included Adapter) |
| Antenna | 1x Internal |
| Number of Audio Channels | 4 |
| Audio I/O | 1x 1/8" / 3.5 mm TRS Unbalanced Mic Input (on Camera-Mount Receiver) |
| Slot-Mount I/O Adapters | No |
| Network I/O | No |
| USB/Lightning Connectivity | 1x USB-C Female |
| Gain Range | -12 to +12 dB |
| Display | OLED |
| Power Requirements | Battery or Proprietary Power Adapter |
Transmitters
| Included Transmitters | No Transmitters Included |
|---|
Microphones
| Microphone Type | No Microphone Included |
|---|
Power
| Receiver Battery Type | 1x Built-In Rechargeable |
|---|---|
| Receiver Battery Life | 7 Hours |
| Included Charging Case | No, Available Separately |
Charging Case
| AC/DC Power Adapter | No |
|---|
Physical
| Environmental Resistance | No |
|---|---|
| Dimensions | 5.35 x 3.75 x 1.78 cm |
| Weight | 0.035 kg |

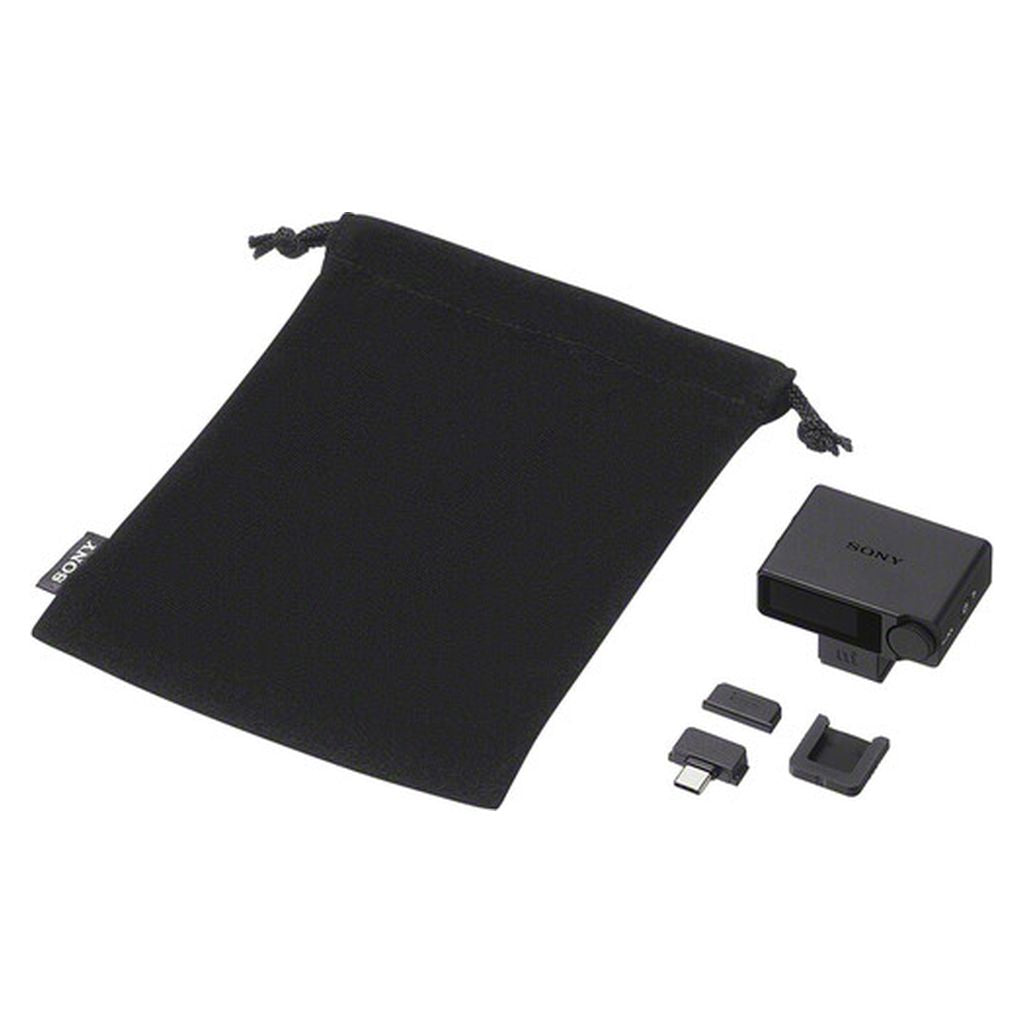

- Sony ECM-W5R Wireless Microphone Receiver

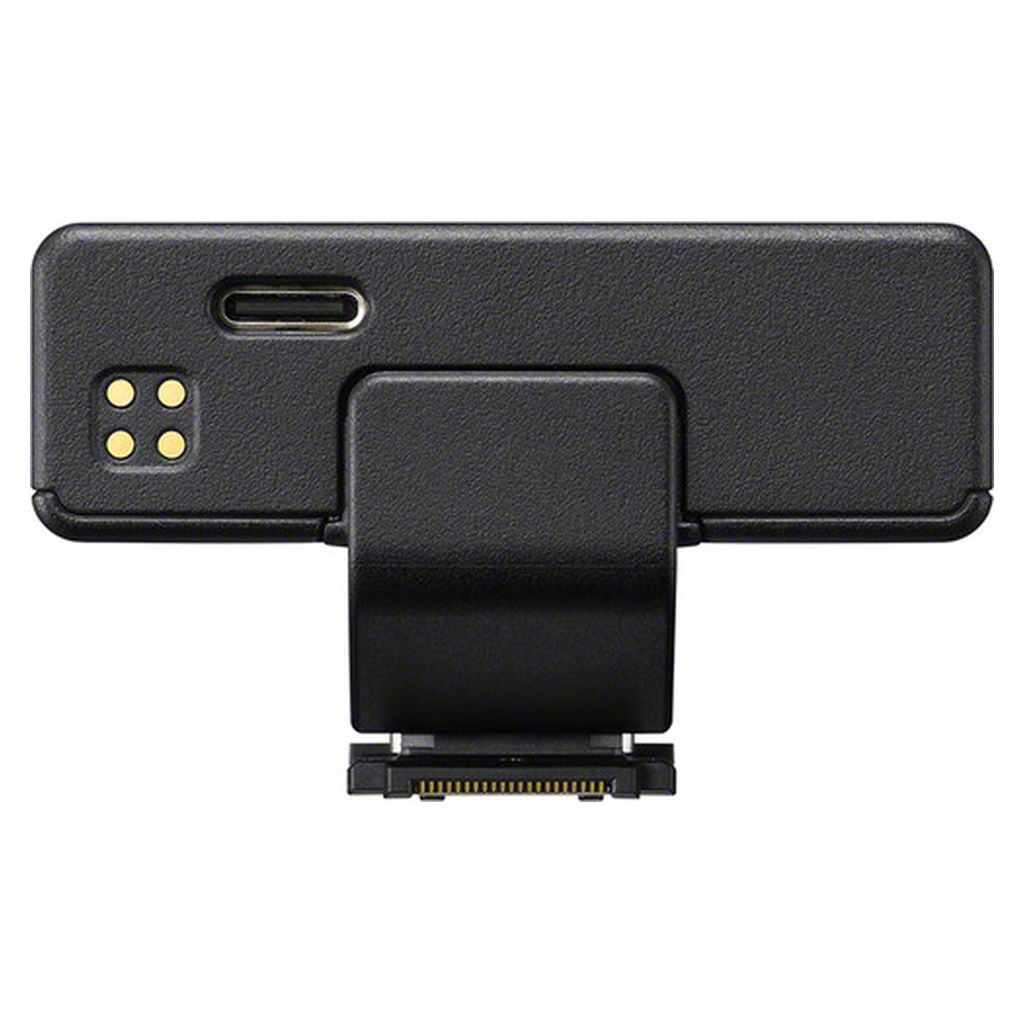

- Multi-Interface Shoe Adapter

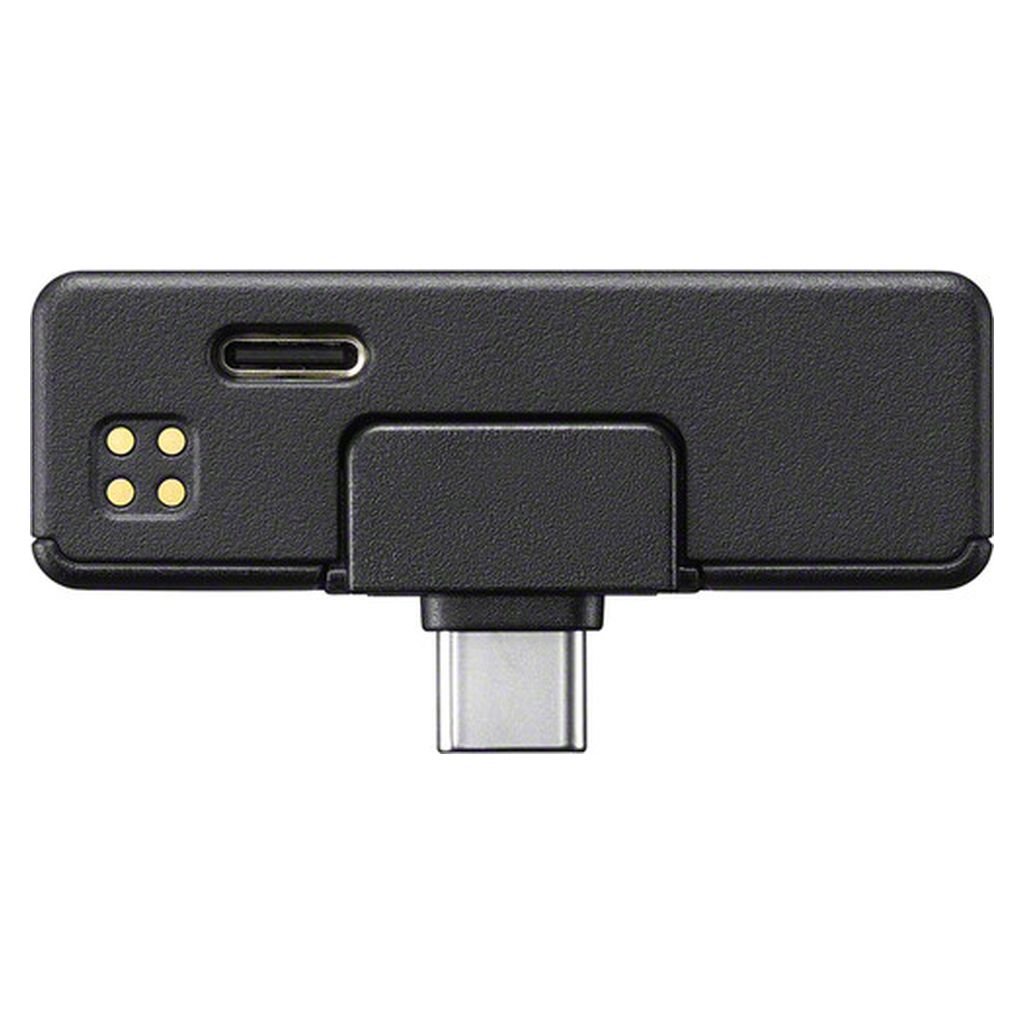

- USB Adapter

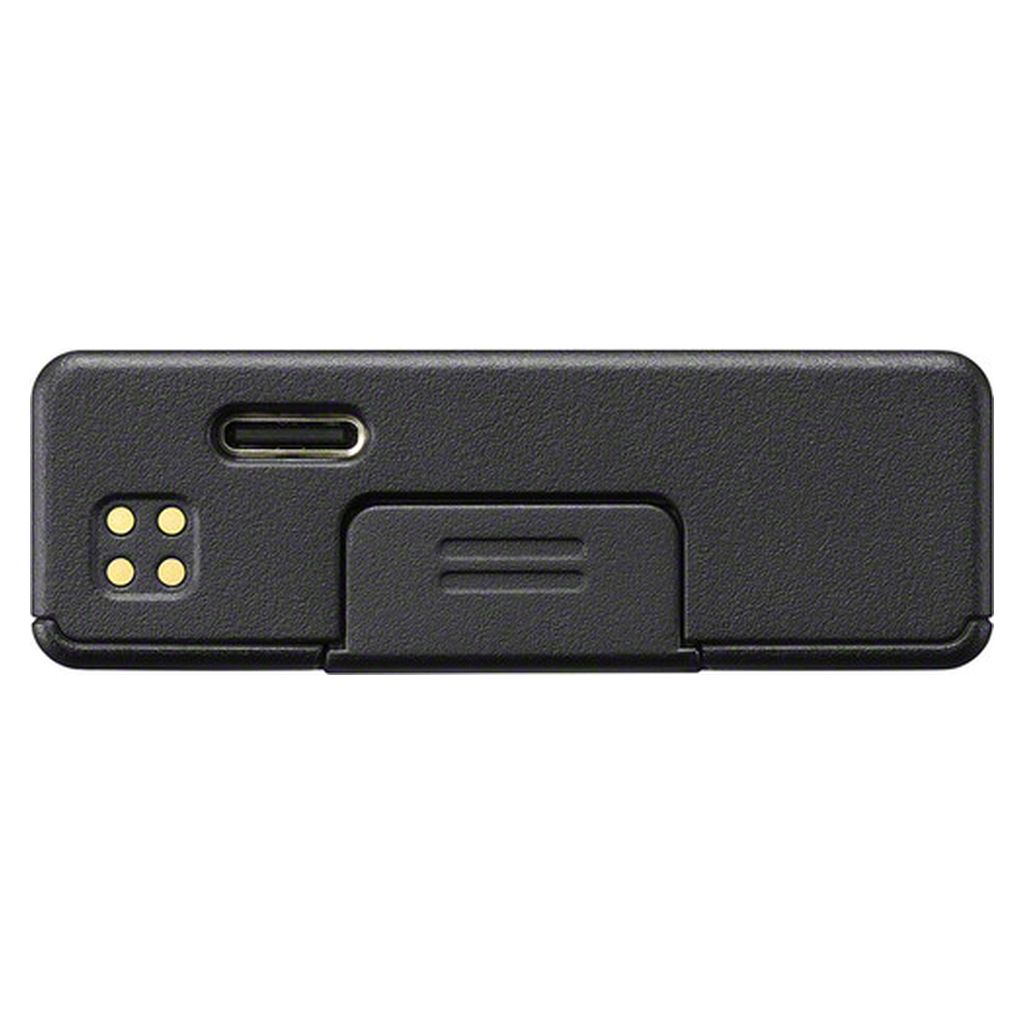

- Adapter Terminal Protection Cap
- Multi-Interface Shoe Protection Cap
- Pouch
