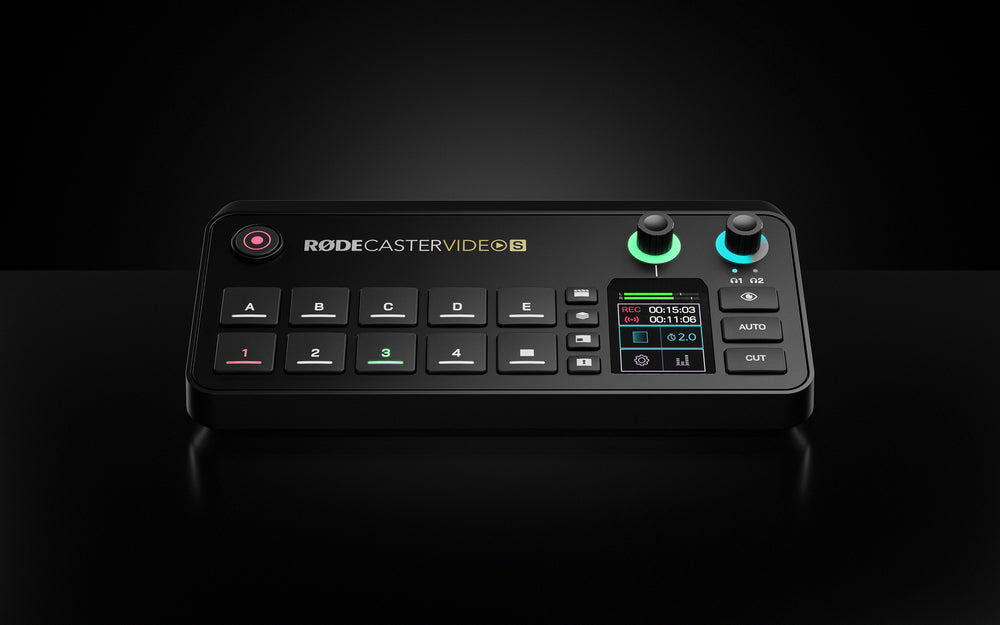

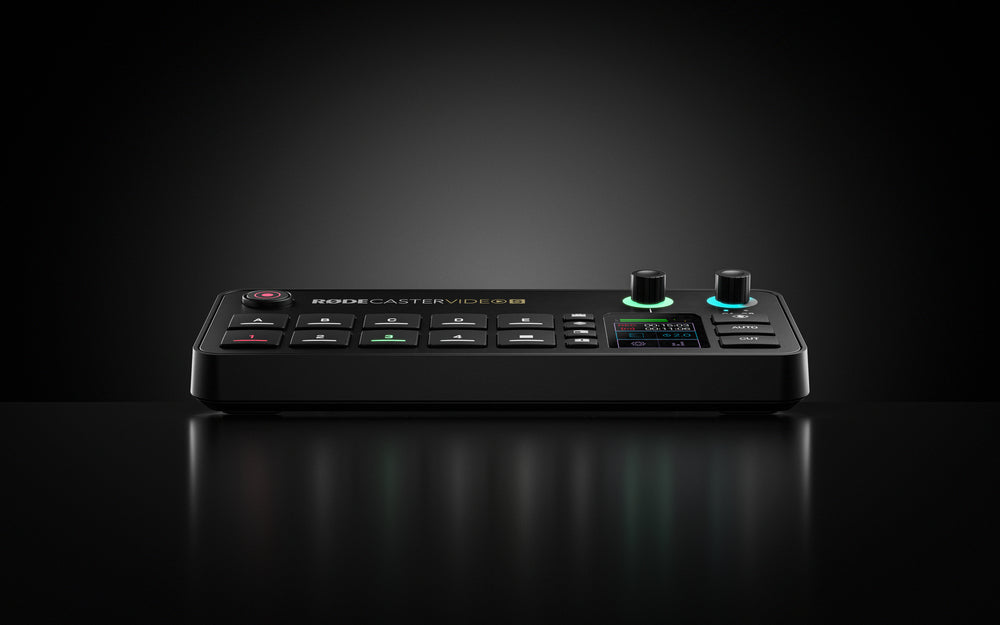

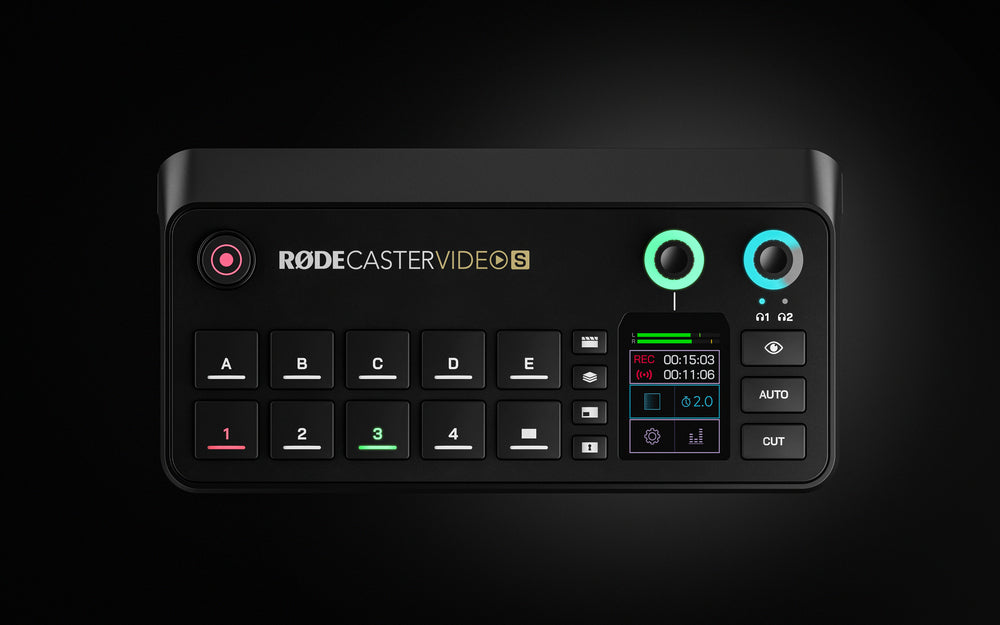

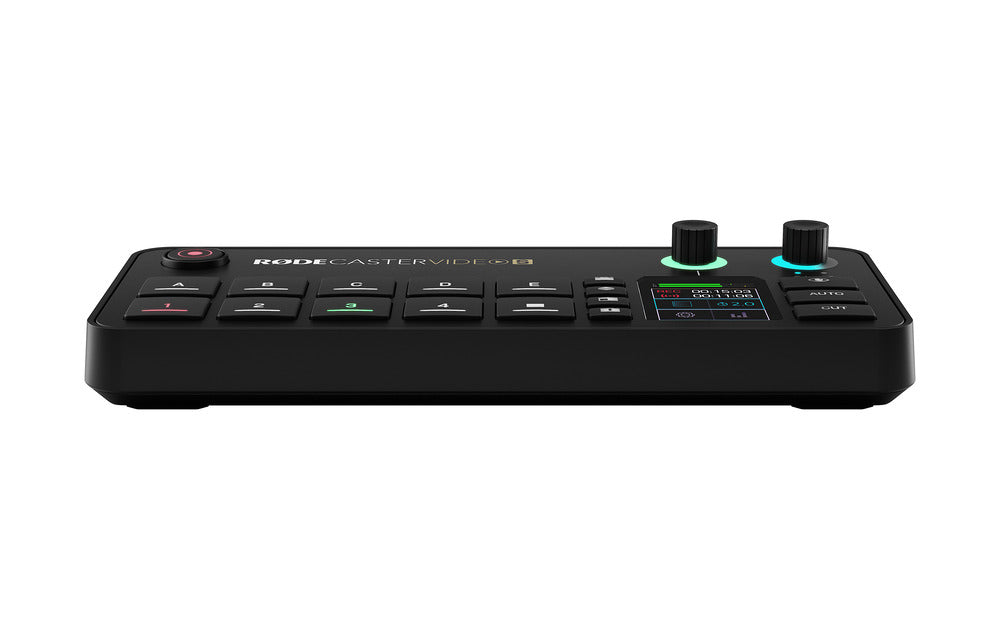

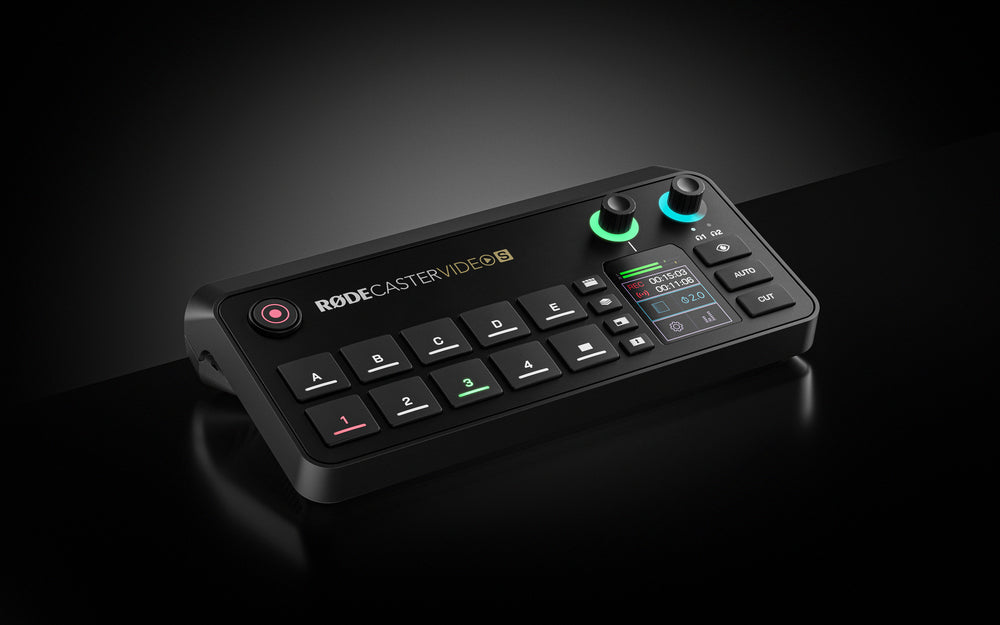

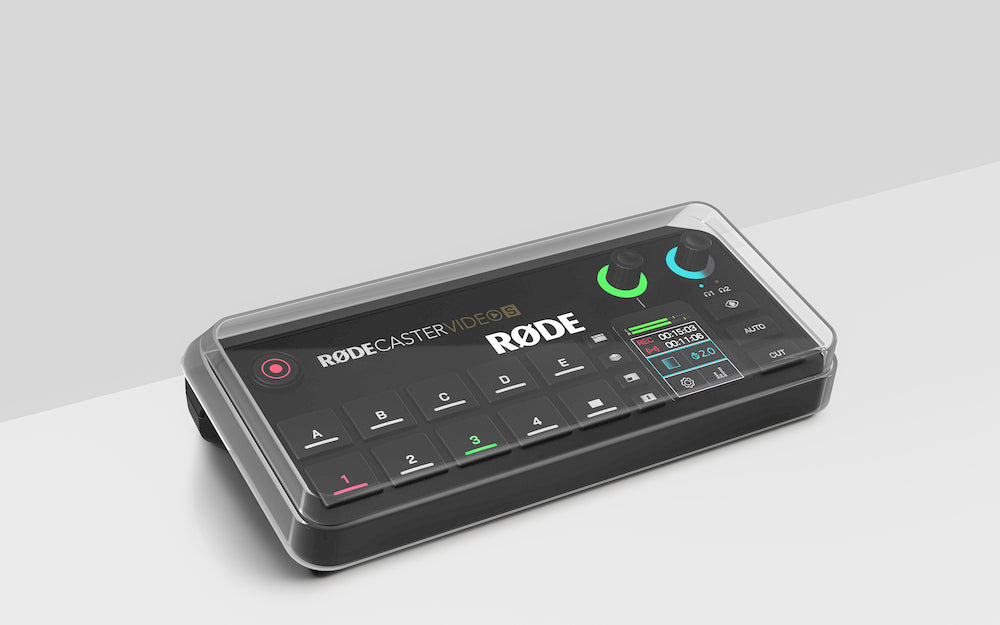

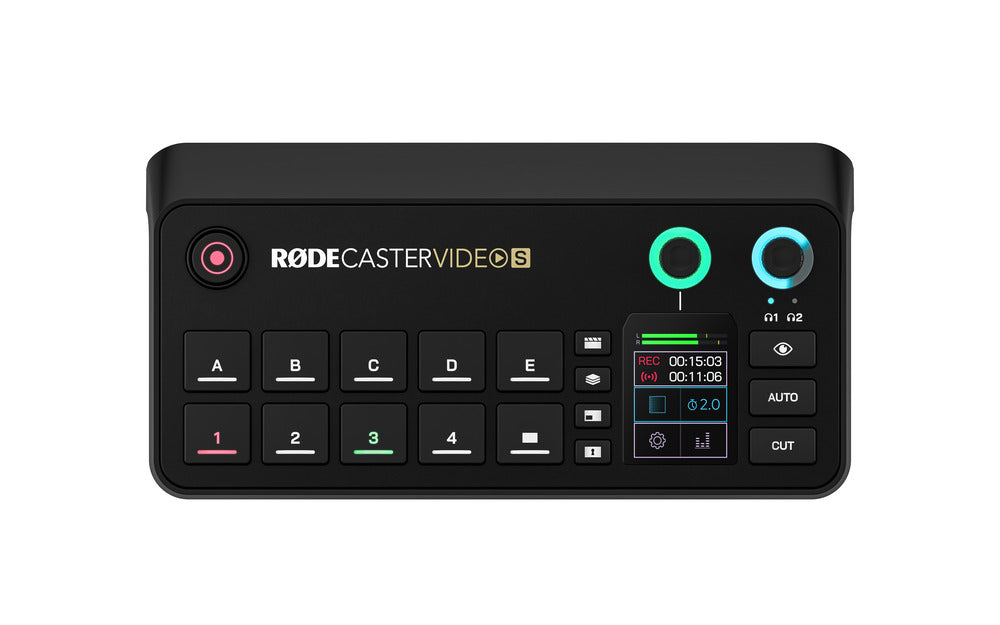

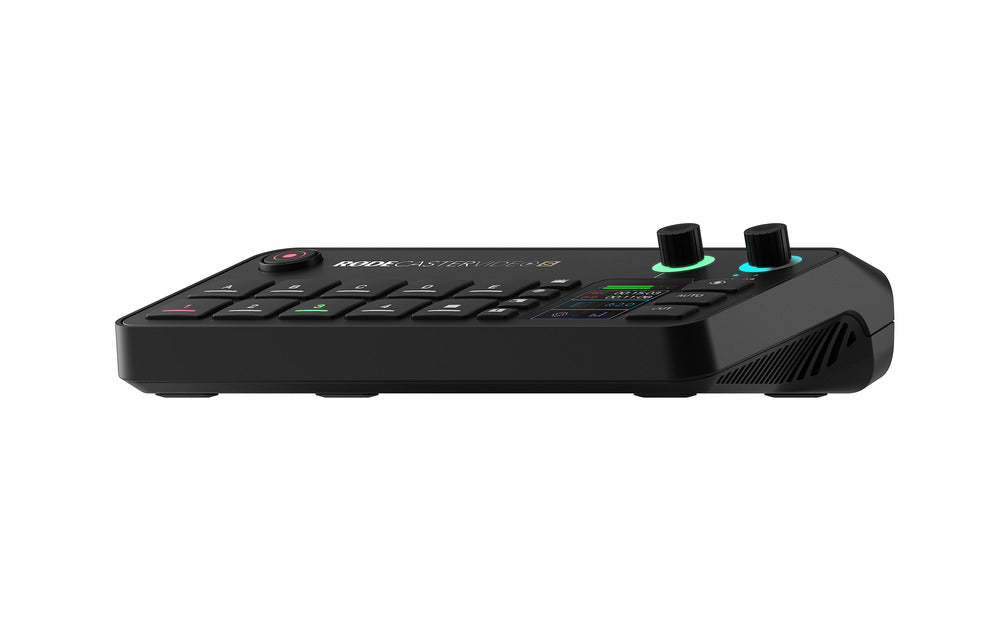

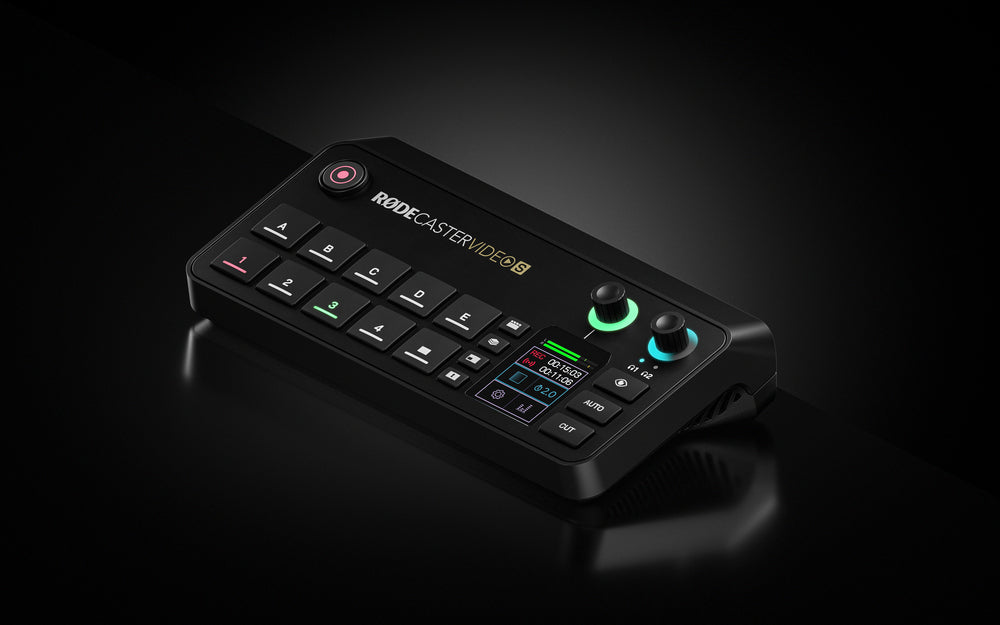

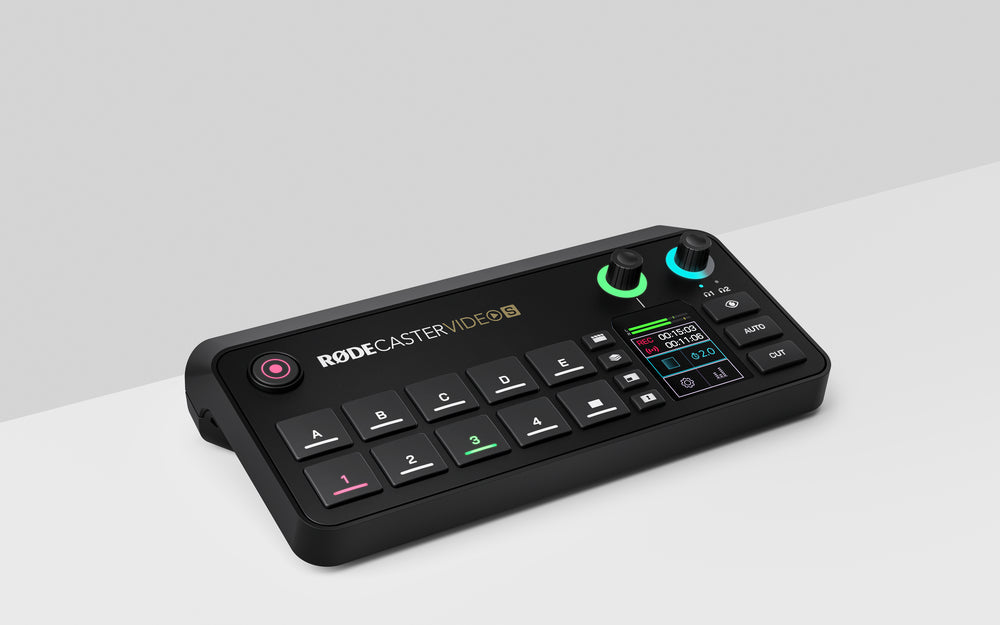

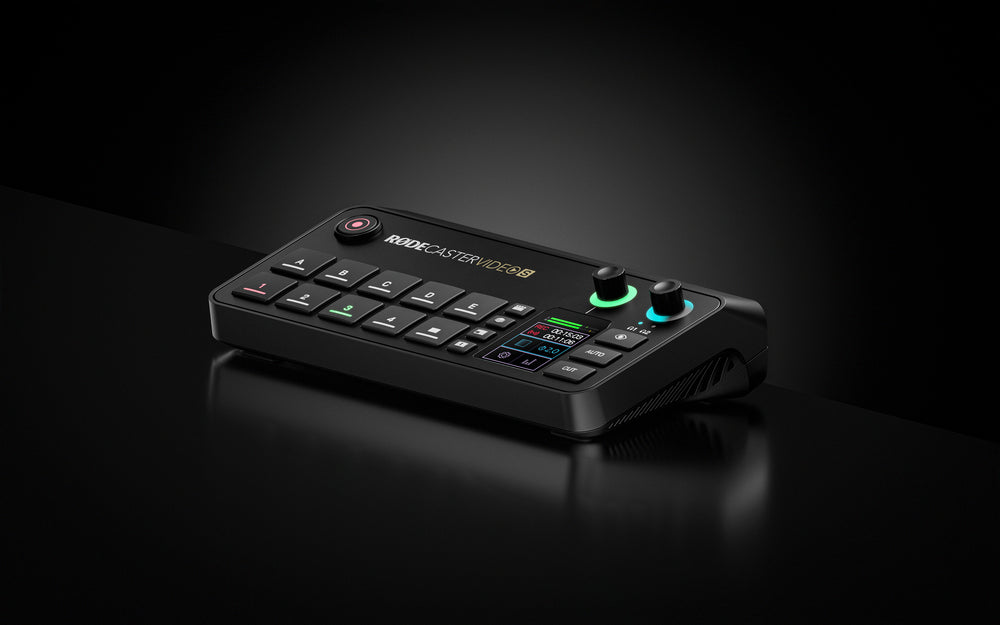

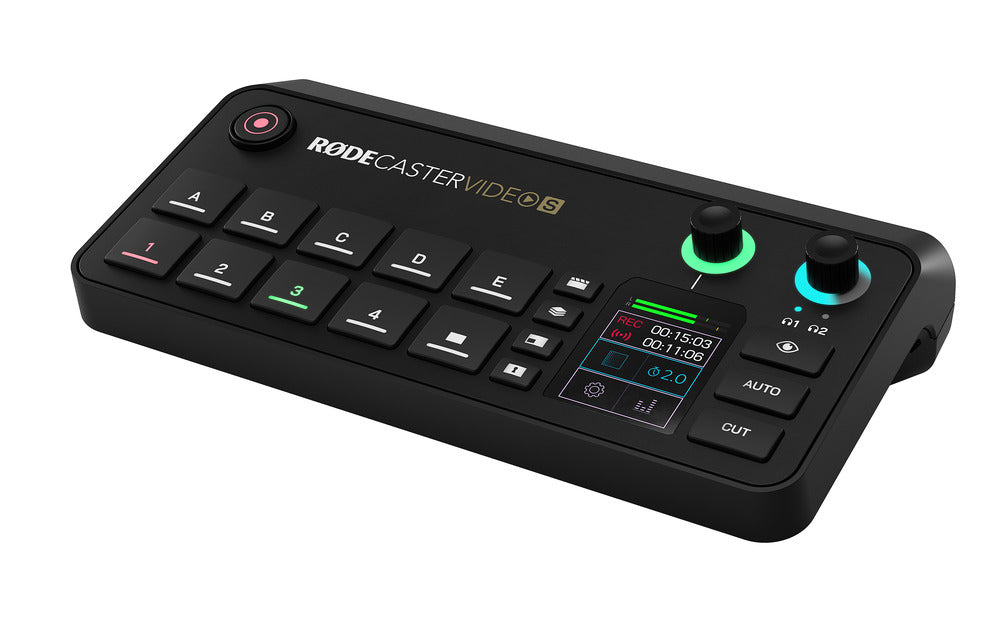

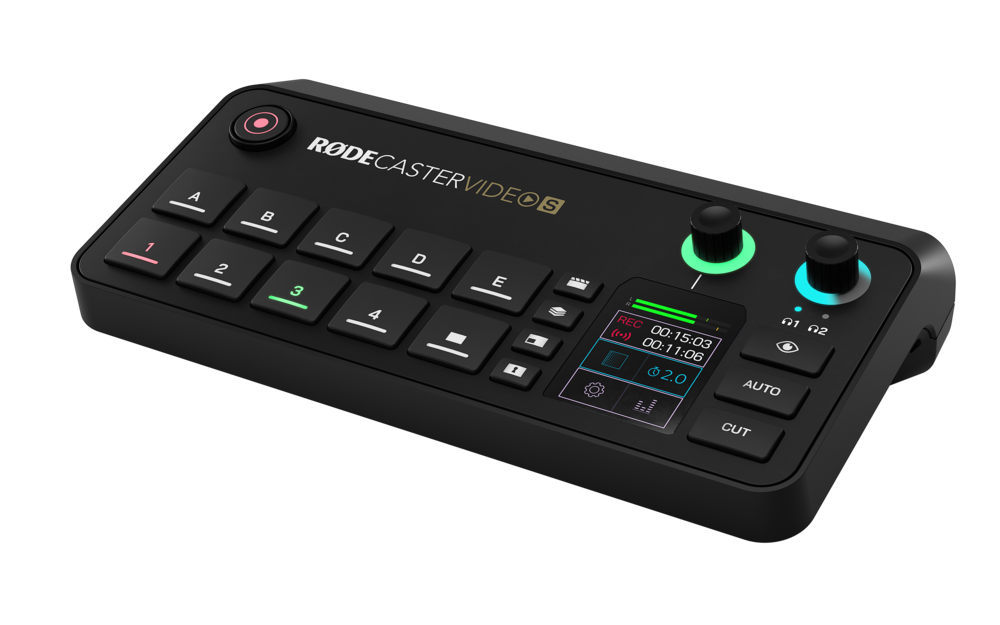

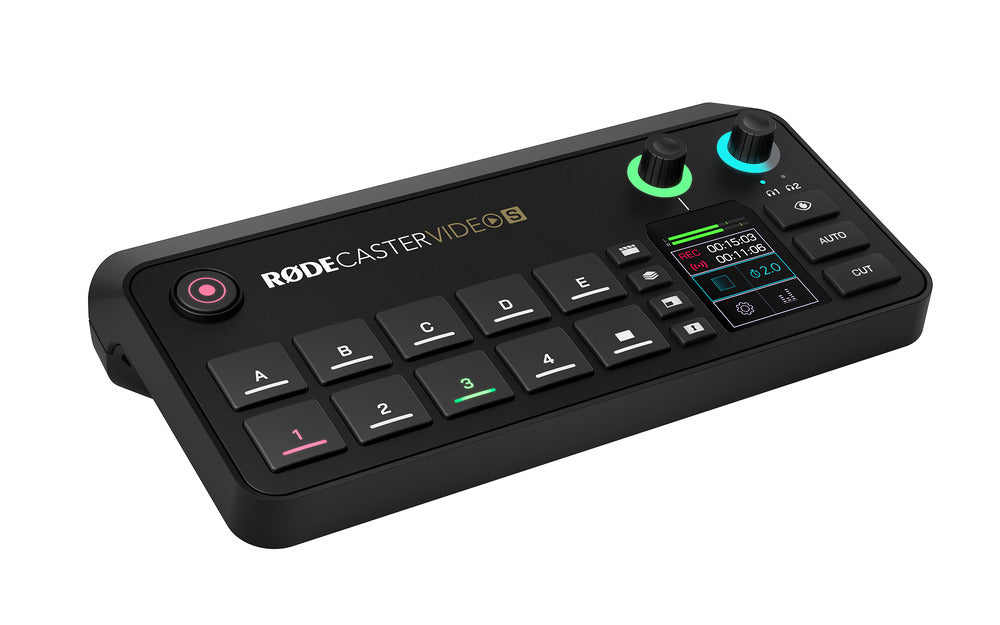

Rode RODECaster Video S
Skip to product information
Not eligible for discount.
View full item details
Not eligible for discount.
Order Limits Apply
View Full Details
Learn More
More details here.
$1,250.00
Sale price
$1,250.00
Description
- Switch between up to four video sources and five fully customisable scenes
- High-performance octa-core CPU video and audio processor

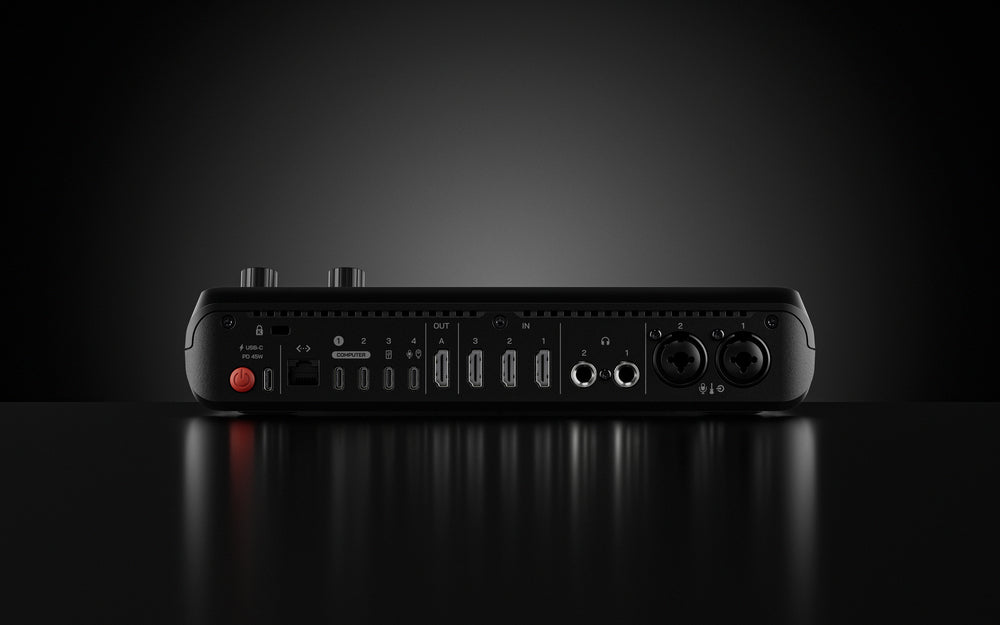

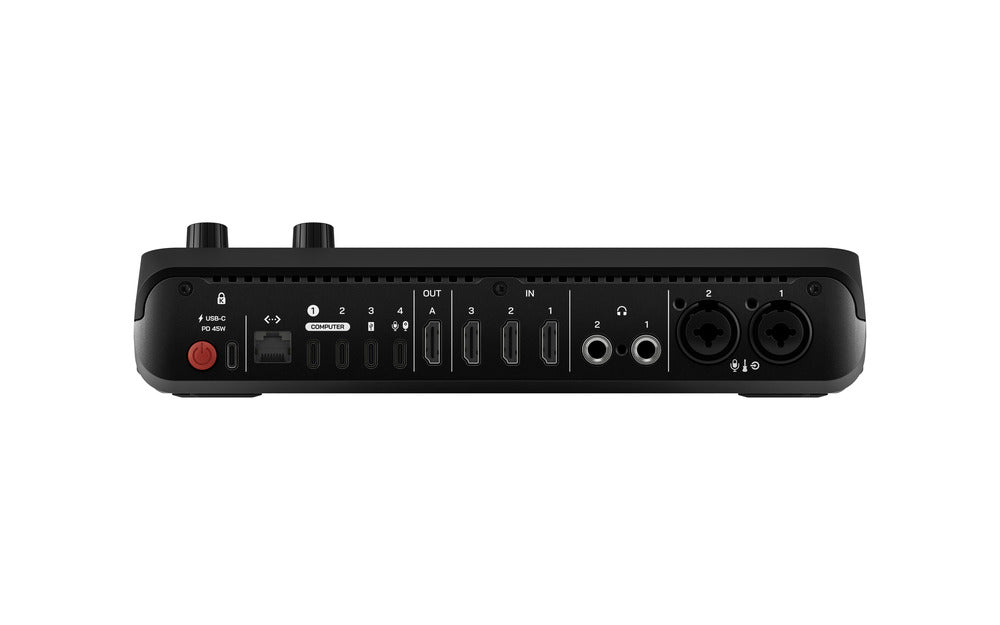

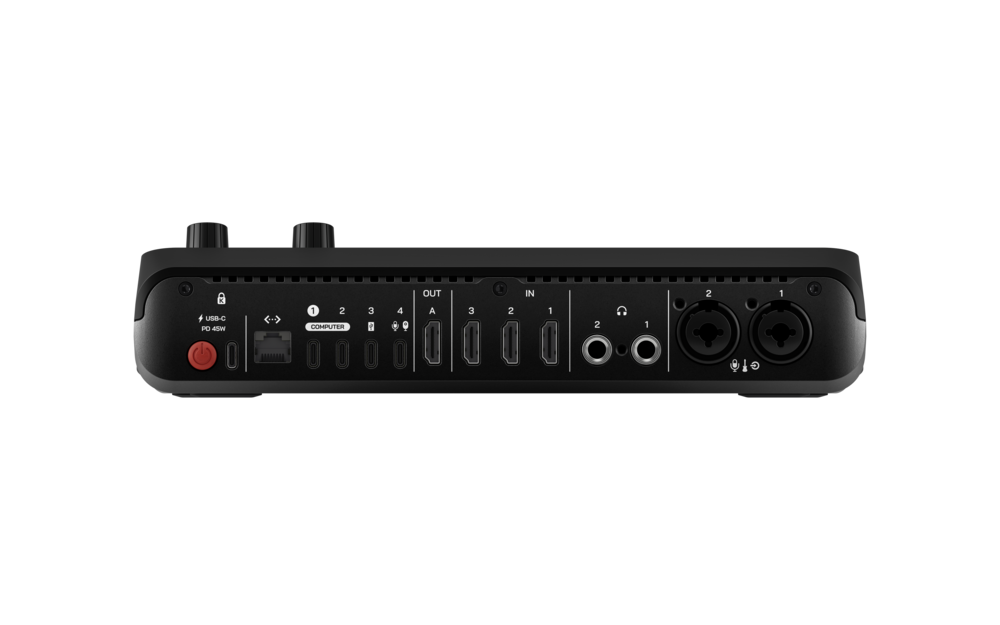

- Three HD (1080p) HDMI inputs, one configurable HDMI output, and one multi-function USB-C port for connecting webcams and RØDE USB audio devices
- Two studio-grade Neutrik® combo jacks with ultra-low noise, highgain Revolution Preamps™ for capturing pristine audio from XLR microphones, instruments or any other audio source
- Powerful APHEX® audio processing, including an EQ, compressor, noise gate, high-pass filter, de-esser and the legendary Aural Exciter™, Big Bottom™ and Compellor™ effects
- Media playback, keying, transitions, multi-source scenes and graphic overlays accessible from the front panel
- Support for network cameras (including PTZ operation) with up to four NDI inputs® and one output via Ethernet, plus dual-cam streaming with the free RØDE Capture app for iOS devices
- 2-inch high-resolution touchscreen and versatile rotary encoder for quick configuration and setting adjustment
- Connect an external SSD via USB to record video or output directly to a computer via UVC
- Remote control, user-assignable graphics and media, custom scene building, audio mixing and effects, and other advanced configuration options via RØDECaster App
- Intelligent auto-switching for seamless hands-free switching of video sources and scenes based on audio inputs
- Dual USB-C audio interfaces for simultaneous connection to two computers and/or mobile devices
- Dual internal wireless receivers for connecting RØDE Series IV wireless microphones
- Stream directly to all major platforms via Wi-Fi or Ethernet and record directly to an external USB storage device, including isolated (ISO) recording for complete postediting flexibility
- Designed and made in RØDE’s state-of-the-art facilities in Sydney, Australia
Delivery
Australia
Standard Shipping 4-7 business days: AU $8.95*
Express Shipping 1-3 business days: AU $15*
International Shipping
New Zealand 9-12 business days: AU$21*
*During peak promotional periods, please allow additional time for your order dispatch.
Returns
While we can’t offer a refund or replacement if you simply change your mind, we’re here to help if your item has a problem under Australian Consumer Law. You may be entitled to a refund or exchange if an item has a major problem. This is when the item:
- has a problem that would have stopped someone from buying the item if they had known about it
- is unsafe
- is significantly different from the sample or description
- doesn't do what we said it would, or what you asked for and can't be easily fixed
If the problem is not major, we will repair the item within a reasonable time. If it can’t be repaired in a reasonable time, we’ll offer a suitable resolution such as a refund or replacement. Please keep your proof of purchase — e.g. your receipt.
$1,250.00
Sale price
$1,250.00
BANK TRANSFER (EFT)
Description
- Switch between up to four video sources and five fully customisable scenes
- High-performance octa-core CPU video and audio processor
- Three HD (1080p) HDMI inputs, one configurable HDMI output, and one multi-function USB-C port for connecting webcams and RØDE USB audio devices
- Two studio-grade Neutrik® combo jacks with ultra-low noise, highgain Revolution Preamps™ for capturing pristine audio from XLR microphones, instruments or any other audio source
- Powerful APHEX® audio processing, including an EQ, compressor, noise gate, high-pass filter, de-esser and the legendary Aural Exciter™, Big Bottom™ and Compellor™ effects
- Media playback, keying, transitions, multi-source scenes and graphic overlays accessible from the front panel
- Support for network cameras (including PTZ operation) with up to four NDI inputs® and one output via Ethernet, plus dual-cam streaming with the free RØDE Capture app for iOS devices
- 2-inch high-resolution touchscreen and versatile rotary encoder for quick configuration and setting adjustment
- Connect an external SSD via USB to record video or output directly to a computer via UVC
- Remote control, user-assignable graphics and media, custom scene building, audio mixing and effects, and other advanced configuration options via RØDECaster App
- Intelligent auto-switching for seamless hands-free switching of video sources and scenes based on audio inputs
- Dual USB-C audio interfaces for simultaneous connection to two computers and/or mobile devices
- Dual internal wireless receivers for connecting RØDE Series IV wireless microphones
- Stream directly to all major platforms via Wi-Fi or Ethernet and record directly to an external USB storage device, including isolated (ISO) recording for complete postediting flexibility
- Designed and made in RØDE’s state-of-the-art facilities in Sydney, Australia
Delivery
Australia
Standard Shipping 4-7 business days: AU $8.95*
Express Shipping 1-3 business days: AU $15*
International Shipping
New Zealand 9-12 business days: AU$21*
*During peak promotional periods, please allow additional time for your order dispatch.
Returns
While we can’t offer a refund or replacement if you simply change your mind, we’re here to help if your item has a problem under Australian Consumer Law. You may be entitled to a refund or exchange if an item has a major problem. This is when the item:
- has a problem that would have stopped someone from buying the item if they had known about it
- is unsafe
- is significantly different from the sample or description
- doesn't do what we said it would, or what you asked for and can't be easily fixed
If the problem is not major, we will repair the item within a reasonable time. If it can’t be repaired in a reasonable time, we’ll offer a suitable resolution such as a refund or replacement. Please keep your proof of purchase — e.g. your receipt.
Frequently bought with
VIDEO SPECIFICATIONS
| Video Input Feeds | 4 simultaneous |
|---|---|
| HDMI Inputs | 3 type-A (HDMI 1.4b) |
| USB (UVC) Inputs | 1 multi-function USB-C for UVC video |
| HDMI Outputs | 1 configurable – Preview, Program, Multiview, Inputs 1 - 4 |
| Video Input Frame Rates | 1920x1080p: 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 (HDMI only) 1920x1080i: 25, 29.97, 30 |
| Video Output Frame Rates | 1920x1080p: 24, 25, 30, 50, 60 |
| Video Streaming Standards | 1920x1080p: 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 |
| Video Engine Colour Space / Bit Depth | 4:4:4 RGB / 8-bit |
| HDMI Input Colour Space / Bit Depth | 4:4:4 RGB, 4:4:4 YUV, 4:2:2 YUV / 8, 10, 12-bit |
| USB Input Colour Space | 4:2:2 YUV, 4:2:0 YUV (NV12) |
| HDMI Output Colour Space / Bit Depth | 4:4:4 RGB, 4:4:4 YUV / 8-bit |
| USB Output Colour Space / Bit Depth | 4:2:2 YUV / 8-bit |
| Format and Frame Rate Converters | On all HDMI and USB inputs |
| NDI Protocols | Single TCP, Multicast |
| NDI Formats | Hx2, Hx3 |
| NDI Video Codecs | H.264, HEVC/H.265, 4:2:0, 8-bit |
| NDI Audio Codecs | AAC-LC, L-PCM Stereo 2.0 at 48kHz |
| NDI Interfaces | Wired Ethernet |
SWITCHING SPECIFICATIONS
| Total Number of Layers | 9 simultaneous in Preview and Program |
|---|---|
| Downstream Keyers | 2 (overlays and logo) |
| Chroma Keyers (Green and Blue) | 2 |
| Luma Keyer | 1 |
| Media Players | 2 simultaneous |
| Transitions | SMPTE wipes, dip and fade |
| True Preview | Display complete scenes and overlays simultaneously in preview and program |
| Generated Borders | All scenes |
| Multiview | • Program and preview • Live inputs, scene and media thumbnails • Audio mixer and channel status • Recording, network and storage status • Run time, date and time information |
| Media Player Storage | 24GB on-board storage |
| Supported Media Formats | Videos: MP4 | Images: PNG, JPG | Audio: WAV |
| Bluetooth | 5.3 (for stereo audio input or phone calls) |
AUDIO SPECIFICATIONS
| Analog Audio Inputs | 2 combo jacks (microphone, line or instrument) with Revolution Preamps™ |
|---|---|
| Wireless Audio Inputs | 2 Series IV wireless receivers |
| Digital Audio Inputs | USB 1: 2-in/2-out or multichannel (20-in) output
USB 1 Chat (uses USB 1 port): 2-in/2-out with mix-minus USB 2: 2-in/2-out with MFi support USB 4: compatible with RØDE USB microphones and RØDECaster Pro II and Duo |
| Analog Audio Outputs | 2 headphone outputs (1/4-inch) |
| Audio Processing | APHEX® VoxLab™ Processing per channel
Advanced APHEX® granular processing on each channel: Compressor, Equaliser (EQ), De-esser, Panning, Noise Gate, High-pass Filter, Aural Exciter™, Big Bottom™ |
| Preamps | Frequency range: 20Hz – 20kHz
Input gain: up to 76dB Equivalent Input Noise: -131.5dBV (A-weighted) |
| Streaming Sample Rate / Bit Depth | 48kHz / 32-bit |
| Recording Sample Rate / Bit Depth | 48kHz / 24-bit |
| Audio Mixer | 17 possible audio sources (9 stereo channels simultaneously): combo 1 and 2 (can be combined for stereo), wireless 1 and 2, video clips, sounds, HDMI 1, 2 and 3 (each can be split for two mono), Bluetooth, 3 USB audio interfaces (computers), 1 hosting USB audio device (USB microphone) |
| Outputs with Custom Routing | 11 total – live mix, headphone 1, headphone 2, recording, USB 1 Chat, USB 1, USB 2, USB 4, Bluetooth, HDMI A, Network
Each output can be independently configured with custom level, mute status and level offset settings for each of the 9 inputs. |
STREAMING, RECORDING AND SOFTWARE SPECIFICATIONS
| Direct Streaming | Real Time Messaging Protocol (RTMP/RTMPS) over Ethernet or Wi-Fi |
|---|---|
| Supported Platforms | Youtube Live, Twitch Live, Facebook Live, Twitter/X Live, Custom server |
| Network | Ethernet (10/100/1000 BaseT) and Wi-Fi 6 (2.4 and 5GHz) for streaming, configuration, remote control, and over-the-air updates |
| RØDECaster App Companion Software | Scene builder: advanced scene construction and remote control
Auto-switching: configure automatic switching based on audio input Audio mixer: advanced configuration and routing Stream profiles: setup for streaming settings and profiles Device configuration: advanced settings and customisations |
| Storage Media | External USB mass storage device (exFAT format) for recordings |
| Video Recording | Program feed as H.264/AVC MP4 file with embedded AAC stereo mix |
| Isolated (ISO) Video Recording | 4 video inputs and 1 Program feed as independent H.264/AVC files (up to 1080p30) |
| Audio Recording | Stereo mix WAV audio file |
| Multitrack Audio Recording | 9 independent stereo WAV audio files |
| Compatible Operating Systems | macOS 11 or later, Windows 10 Version 1803 or later, Windows 11 |
POWER AND MECHANICAL SPECIFICATIONS
| Power Supply Requirements | USB-C PD 45W, 20V 2.25A |
|---|---|
| Weight (grams) | 875 |
| Dimensions (millimetres) | Length: 253.5
Width: 128.4 Height: 60.2 |
- Rode RODECaster Video S
- Power Supply
- SuperSpeed USB-C to USB-C Cable
What types of video sources can I connect to the RODECaster Video S?
You can connect up to four video sources using three HD (1080p) HDMI inputs and one multi-function USB-C port.
Can I use this console for live streaming?
Yes, the RODECaster Video S supports streaming directly to all major platforms via Wi-Fi or Ethernet.
Is it possible to record audio and video simultaneously?
Absolutely, you can record video while capturing high-quality audio through the built-in mixer.
How does the intelligent auto-switching feature work?
The intelligent auto-switching feature automatically switches video sources and scenes based on audio inputs, allowing for hands-free operation.
What kind of audio processing capabilities does this console offer?
It includes powerful APHEX® audio processing tools such as EQ, compressor, noise gate, high-pass filter, and various effects like Aural Exciter™ and Big Bottom™.
Can I customise my scenes and graphics?
Yes, you can build custom scenes, assign graphics, and manage media playback directly from the front panel or via the RØDECaster App.
Is the RODECaster Video S compatible with wireless microphones?
Yes, it features dual internal wireless receivers for connecting RØDE Series IV wireless microphones.
The Rode RODECaster Video S is a revolutionary all-in-one console for video and audio production, giving you intuitive control over every aspect of your content. A streamlined version of the RØDECaster Video, it combines powerful video switching, recording, and production tools with a fully integrated professional audio mixer, all in a compact, desktop-friendly package. From studio shoots and video podcasts to interviews and live streams, the RØDECaster Video S delivers seamless, broadcast-quality results with total ease.
Key Features of the Rode RODECaster Video S
- Switch between up to four video sources and five fully customisable scenes
- High-performance octa-core CPU video and audio processor
- Three HD (1080p) HDMI inputs, one configurable HDMI output, and one multi-function USB-C port for connecting webcams and RØDE USB audio devices
- Two studio-grade Neutrik® combo jacks with ultra-low noise, highgain Revolution Preamps™ for capturing pristine audio from XLR microphones, instruments or any other audio source
- Powerful APHEX® audio processing, including an EQ, compressor, noise gate, high-pass filter, de-esser and the legendary Aural Exciter™, Big Bottom™ and Compellor™ effects
- Media playback, keying, transitions, multi-source scenes and graphic overlays accessible from the front panel
- Support for network cameras (including PTZ operation) with up to four NDI inputs® and one output via Ethernet, plus dual-cam streaming with the free RØDE Capture app for iOS devices
- 2-inch high-resolution touchscreen and versatile rotary encoder for quick configuration and setting adjustment
- Connect an external SSD via USB to record video or output directly to a computer via UVC
- Remote control, user-assignable graphics and media, custom scene building, audio mixing and effects, and other advanced configuration options via RØDECaster App
- Intelligent auto-switching for seamless hands-free switching of video sources and scenes based on audio inputs
- Dual USB-C audio interfaces for simultaneous connection to two computers and/or mobile devices
- Dual internal wireless receivers for connecting RØDE Series IV wireless microphones
- Stream directly to all major platforms via Wi-Fi or Ethernet and record directly to an external USB storage device, including isolated (ISO) recording for complete postediting flexibility
- Designed and made in RØDE’s state-of-the-art facilities in Sydney, Australia
- MPN - RCVS
- GTIN - 698813017393
