Portkeys OEYE-RED Electronic Viewfinder
Portkeys OEYE-RED Electronic Viewfinder
$2,799.00
Sale price
$2,799.00
Skip to product information
View full item details
Order Limits Apply
View Full Details
Learn More
More details here.
$2,799.00
Sale price
$2,799.00
Description
- 1920 x 1080 Resolution Micro-OLED EVF
- Allows RED DSMC2 Menu Control
- 3G-SDI and HDMI Inputs/Loop Outputs
- Built-In +8 to -3 Adjustable Diopter
- 100,000:1 Contrast, 200 cd/m² Brightness
- Rosette Mount Allows Rotation
- Synchronization with RED Fan Mute
- Waveform, 3D LUTs, Audio Meters, Zoom
- False Color, Peaking, Grids, HSD Flip
- Durable Aluminum Construction
Delivery
Australia
Standard Shipping 4-7 business days: AU $8.95*
Express Shipping 1-3 business days: AU $15*
International Shipping
New Zealand 9-12 business days: AU$21*
*During peak promotional periods, please allow additional time for your order dispatch.
Returns
While we can’t offer a refund or replacement if you simply change your mind, we’re here to help if your item has a problem under Australian Consumer Law. You may be entitled to a refund or exchange if an item has a major problem. This is when the item:
- has a problem that would have stopped someone from buying the item if they had known about it
- is unsafe
- is significantly different from the sample or description
- doesn't do what we said it would, or what you asked for and can't be easily fixed
If the problem is not major, we will repair the item within a reasonable time. If it can’t be repaired in a reasonable time, we’ll offer a suitable resolution such as a refund or replacement. Please keep your proof of purchase — e.g. your receipt.
$2,799.00
Sale price
$2,799.00
BANK TRANSFER (EFT)
Description
- 1920 x 1080 Resolution Micro-OLED EVF
- Allows RED DSMC2 Menu Control
- 3G-SDI and HDMI Inputs/Loop Outputs
- Built-In +8 to -3 Adjustable Diopter
- 100,000:1 Contrast, 200 cd/m² Brightness
- Rosette Mount Allows Rotation
- Synchronization with RED Fan Mute
- Waveform, 3D LUTs, Audio Meters, Zoom
- False Color, Peaking, Grids, HSD Flip
- Durable Aluminum Construction
Delivery
Australia
Standard Shipping 4-7 business days: AU $8.95*
Express Shipping 1-3 business days: AU $15*
International Shipping
New Zealand 9-12 business days: AU$21*
*During peak promotional periods, please allow additional time for your order dispatch.
Returns
While we can’t offer a refund or replacement if you simply change your mind, we’re here to help if your item has a problem under Australian Consumer Law. You may be entitled to a refund or exchange if an item has a major problem. This is when the item:
- has a problem that would have stopped someone from buying the item if they had known about it
- is unsafe
- is significantly different from the sample or description
- doesn't do what we said it would, or what you asked for and can't be easily fixed
If the problem is not major, we will repair the item within a reasonable time. If it can’t be repaired in a reasonable time, we’ll offer a suitable resolution such as a refund or replacement. Please keep your proof of purchase — e.g. your receipt.
Frequently bought with
Display
| Color/Monochrome | Color |
|---|---|
| Panel Type | OLED |
| Display Size | 0.71" / 1.8 cm |
| Screen Resolution | 1920 x 1080 |
| Aspect Ratio | 16:9 |
| Touchscreen | No |
| Maximum Brightness | 200 nits / cd/m2 |
| Contrast Ratio | 100,000:1 |
| Bit Depth / Color Support | 8-Bit (16.7 Million Colors) |
| Pixels Per Inch (ppi) | 3102 ppi |
| Image Controls | Color Temperature Selection, Customizable Aspect Ratios, False Color, Focus Peaking, H/V Delay, Image Flip, Image Rotate, OSD Flip, Pixel Zoom, Pixel-to-Pixel Zoom, Screen Markers, Underscan, Waveform, Zebra |
Inputs / Outputs
| Video I/O | 1 x BNC (3G-SDI) Input
1 x BNC (3G-SDI) Loop Output 1 x HDMI Input 1 x HDMI Loop Output |
|---|---|
| Video Format | HDMI:
DCI 4K: 24 UHD 4K: 30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50 576i: 50 480p: 60/59.94 480i: 60/59.94 SDI (8-Bit 4:2:2 YUV): 1080p: 60/59.94/50 SDI (8-Bit 4:4:4/4:2:2 RGB, YUV): 1080p: 60/59.94/50/30/29.97/25/24/23.98 720p: 60/59.94/50 |
| System Connection | 5-Pin |
| Power I/O | 1 x LEMO 4-Pin Input |
Optics
| Diopter Correction | -3.0 to +8.0 |
|---|
Power
| DC Input Power | 7 to 24 VDC |
|---|---|
| Power Consumption | 10 W |
General
| Mounting | 1 x Rosette |
|---|---|
| Material of Construction | Aluminum |
| Dimensions | 7.1 x 2.9 x 2.7" / 18 x 7.24 x 6.97 cm, Including |
| Weight | 14.1 oz / 400 g, Including |
Packaging Info
| Package Weight | 1.77 kg |
|---|---|
| Box Dimensions (LxWxH) | 25 x 22 x 12.2 cm |
- Portkeys OEYE-RED Electronic Viewfinder
- 4-Pin to D-Tap Power Cable
- 5-Pin to 5-Pin Power Cable
- 4-Pin to 3-Pin Control Cable
- 9-Pin to 3-Pin Control Cable
- SDI Cable
- Mounting Clamp
- Allen Wrench
- Plastic Storage Case
0

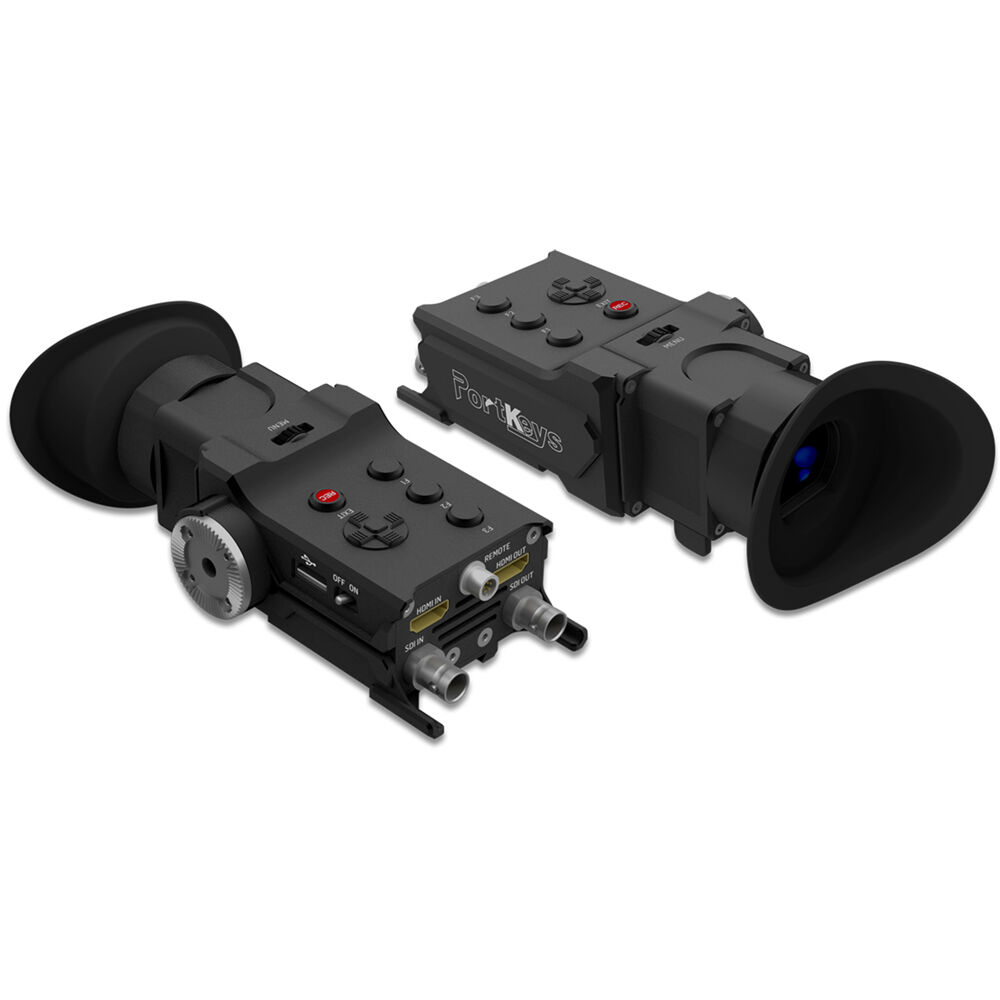

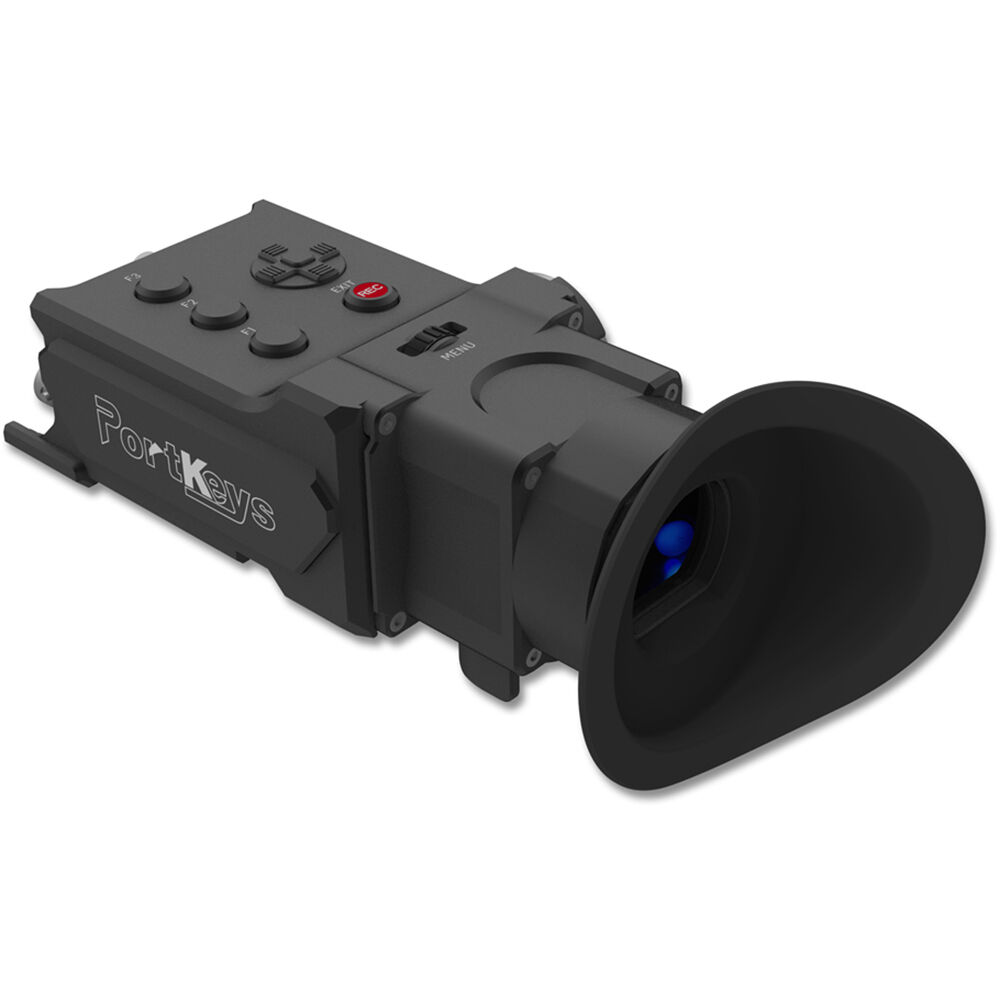

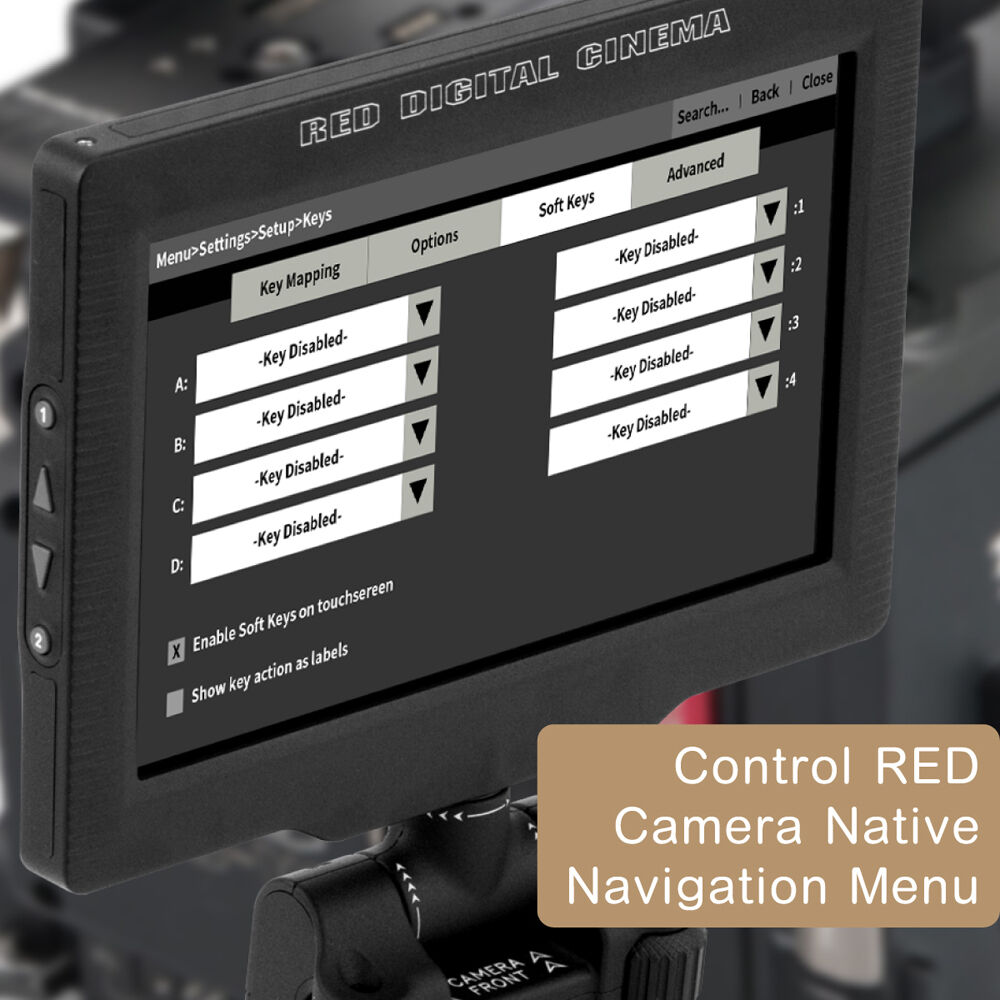

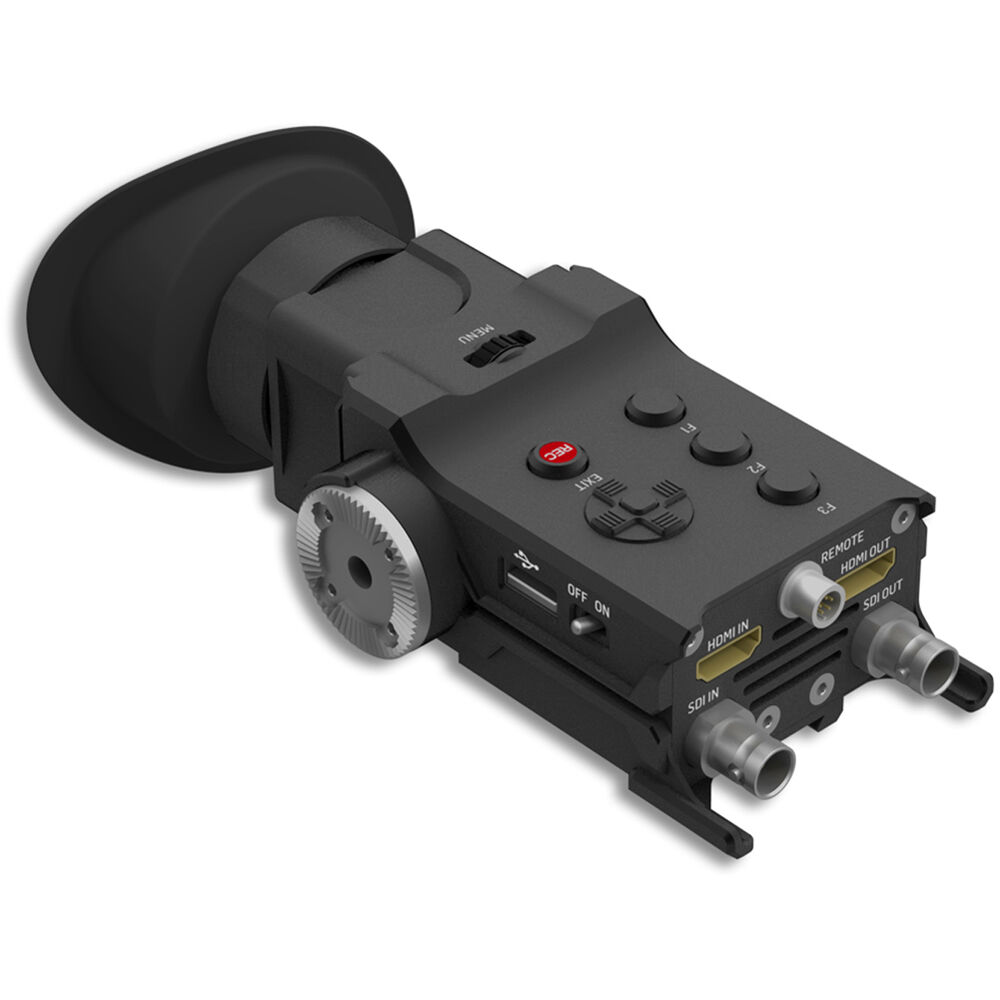

If you're in need of a display that can help simplify your RED camera rig, add a high-resolution OLED EVF with RED camera menu control with this Portkeys OEYE-RED Electronic Viewfinder. The OEYE electronic viewfinder offers a bright, sharp OLED micro-display with a comfortable eyepiece to view your camera video, and it also allows you to view and control the menu navigation and overlays on your RED DSMC2 camera right from the EVF.

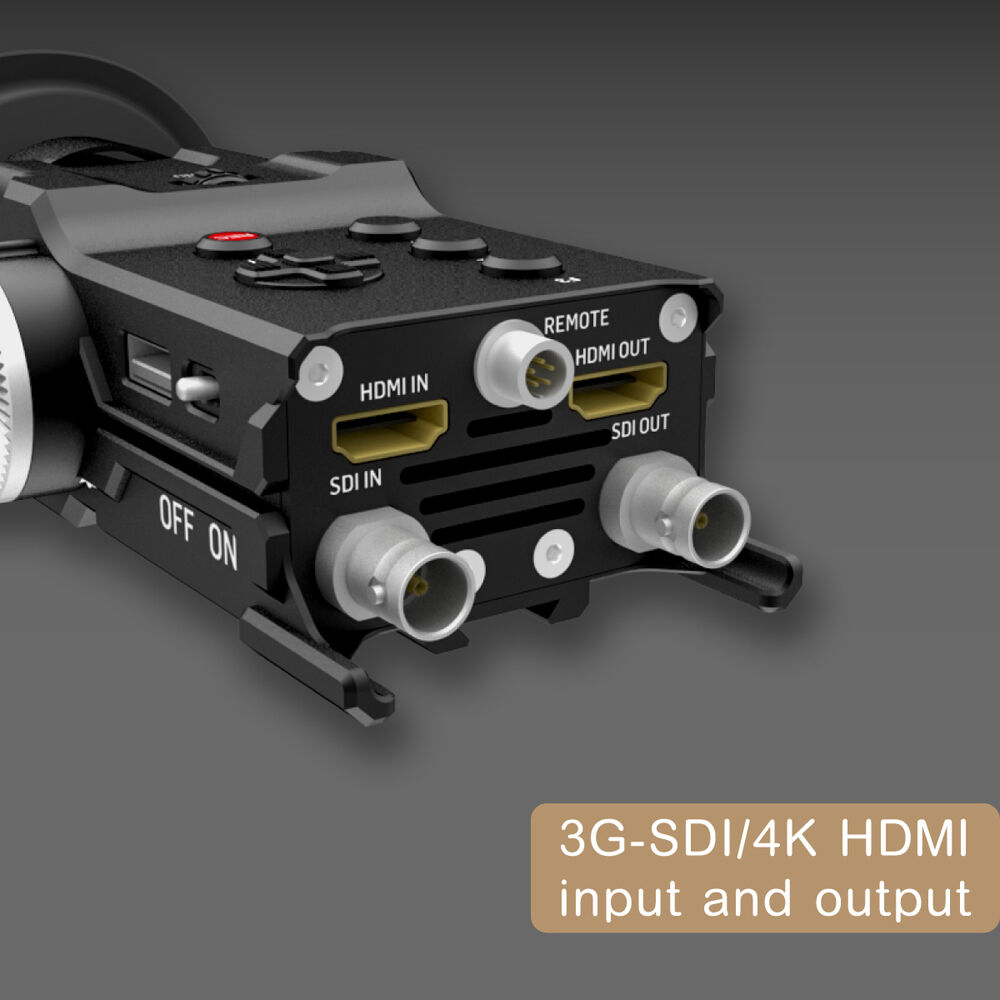

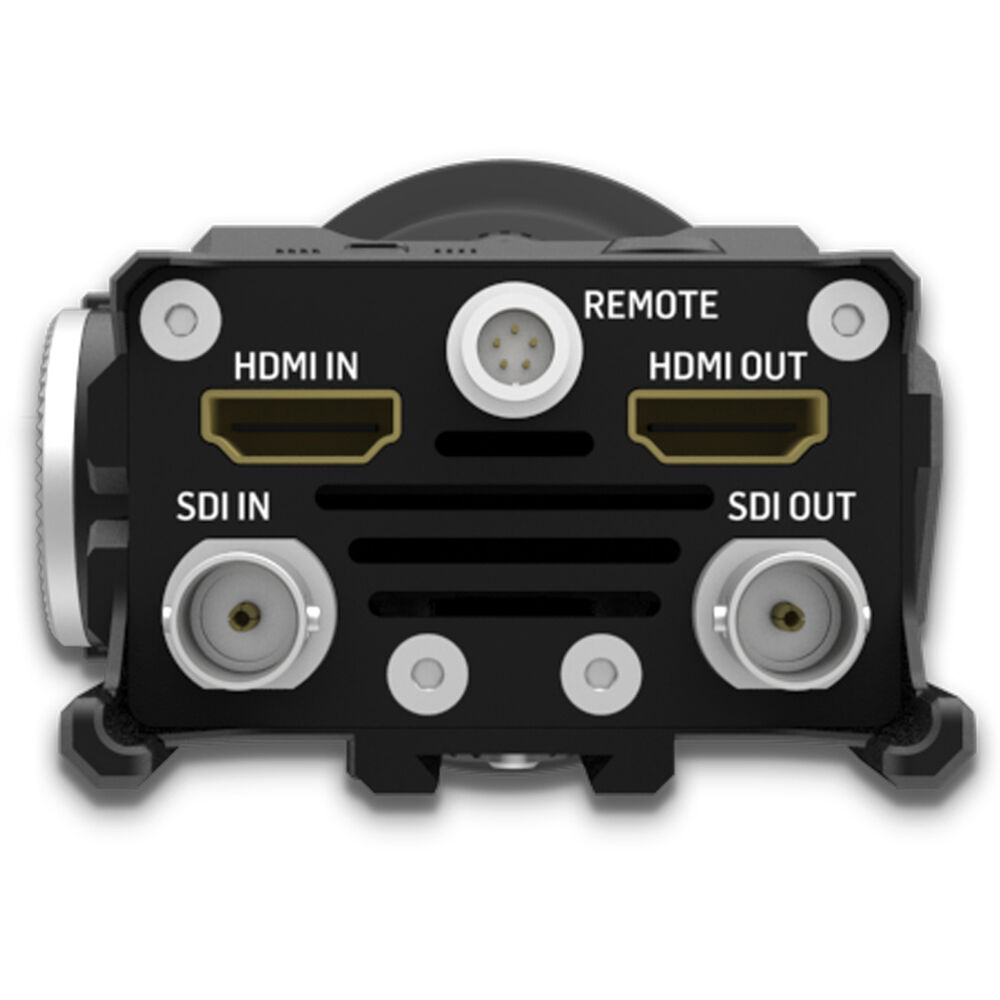

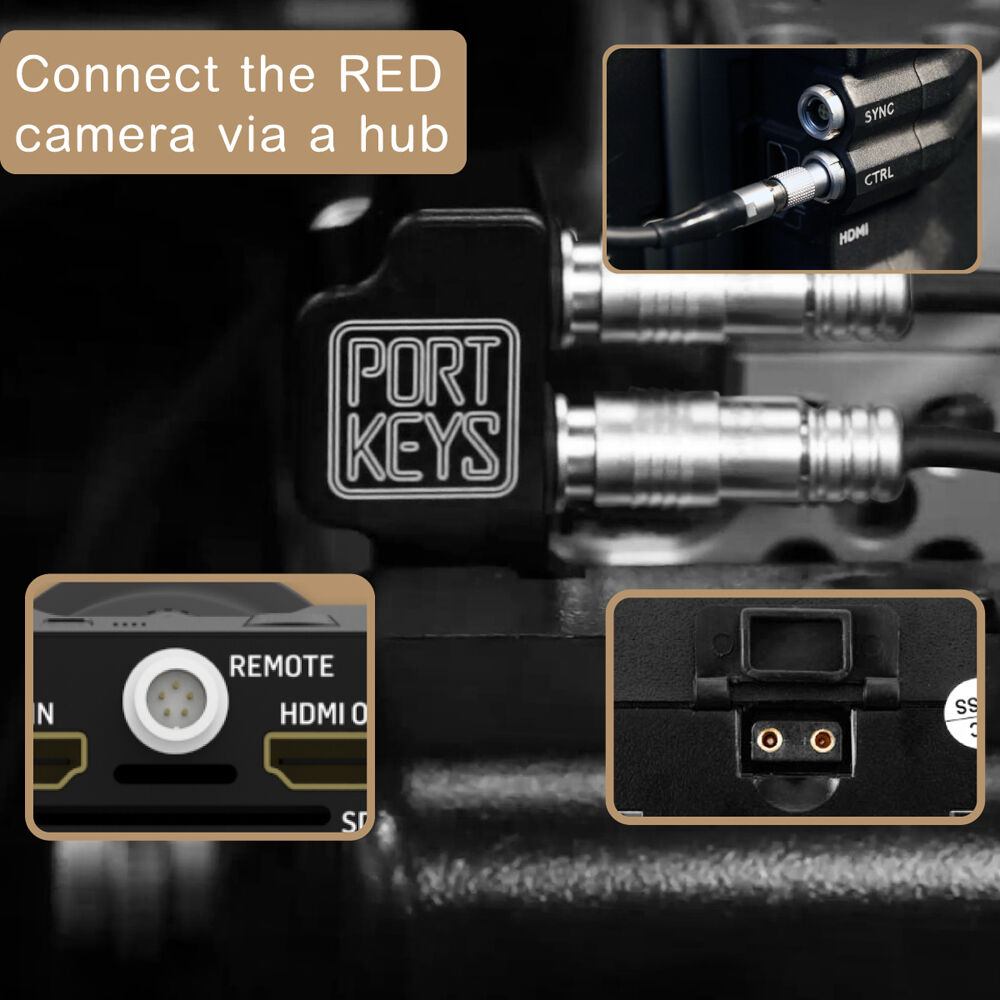

Video connectors include HDMI input and loop output that support resolutions up to DCI 4K24, and 3G-SDI input and loop output that support resolutions up to 1080p60, so you can preview your cinema video in high-resolution as well as send it to external displays. The OEYE connects to the camera control port using one of the included LEMO-type control cables, and it uses RCP (REDLINK Command Protocol) for communication.

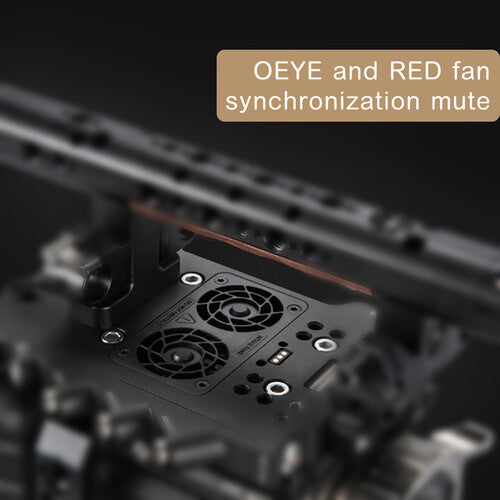

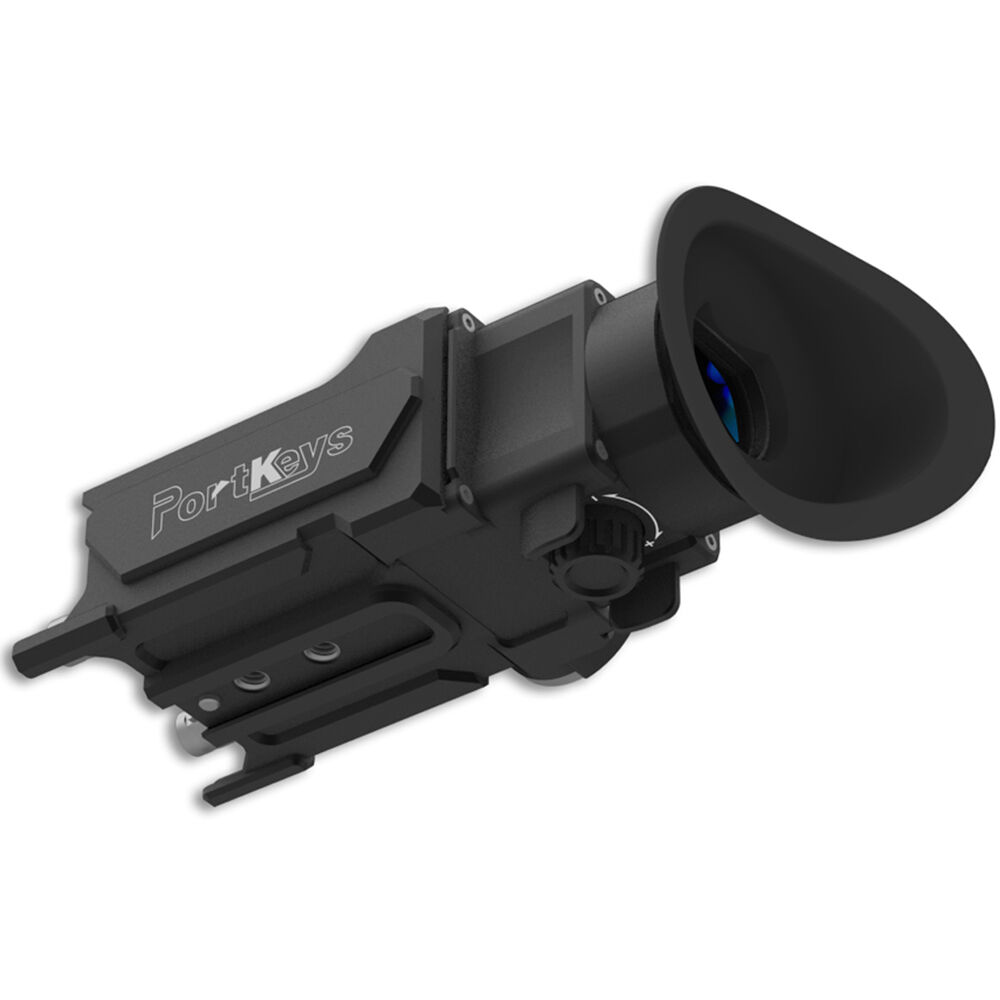

The durable aluminum chassis is lightweight at only 14 oz, and it features mounting threads on the bottom and an ARRI-style rosette on the side that offer multiple mounting options and 360° rotation. The unit also features cooling fans that synchronize with the RED camera fan mute feature when silence is required on set.
Key Features of the Portkeys OEYE-RED Electronic Viewfinder
- 1920 x 1080 Resolution Micro-OLED EVF
- Allows RED DSMC2 Menu Control
- 3G-SDI and HDMI Inputs/Loop Outputs
- Built-In +8 to -3 Adjustable Diopter
- 100,000:1 Contrast, 200 cd/m² Brightness
- Rosette Mount Allows Rotation
- Synchronization with RED Fan Mute
- Waveform, 3D LUTs, Audio Meters, Zoom
- False Color, Peaking, Grids, HSD Flip
- Durable Aluminum Construction

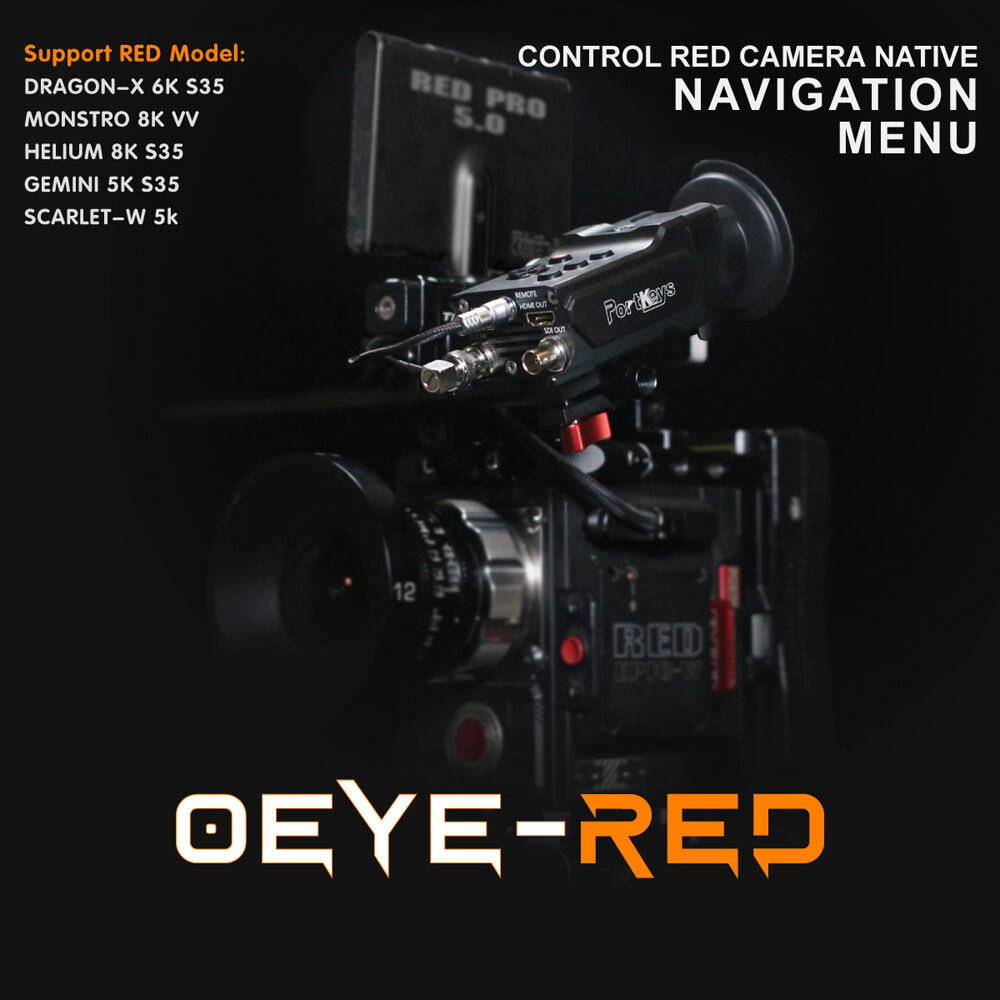

RED Camera Menu Control Compatibility
- RED MONSTRO 8K VV
- RED HELIUM 8K S35
- RED GEMINI 5K S35
- RED DRAGON-X 6K S35
- SCARLET-W 5K
Key EVF Features
- 0.71", 1920 x 1080 micro-OLED EVF display with comfortable eyecup
- 200 cd/m² brightness, 100,000:1 contrast ratio, 8-bit color
- HDMI input and output support resolutions up to DCI 4K24
- 3G-SDI input and output support resolutions up to 1080p60
- 5-pin LEMO-type remote control output port

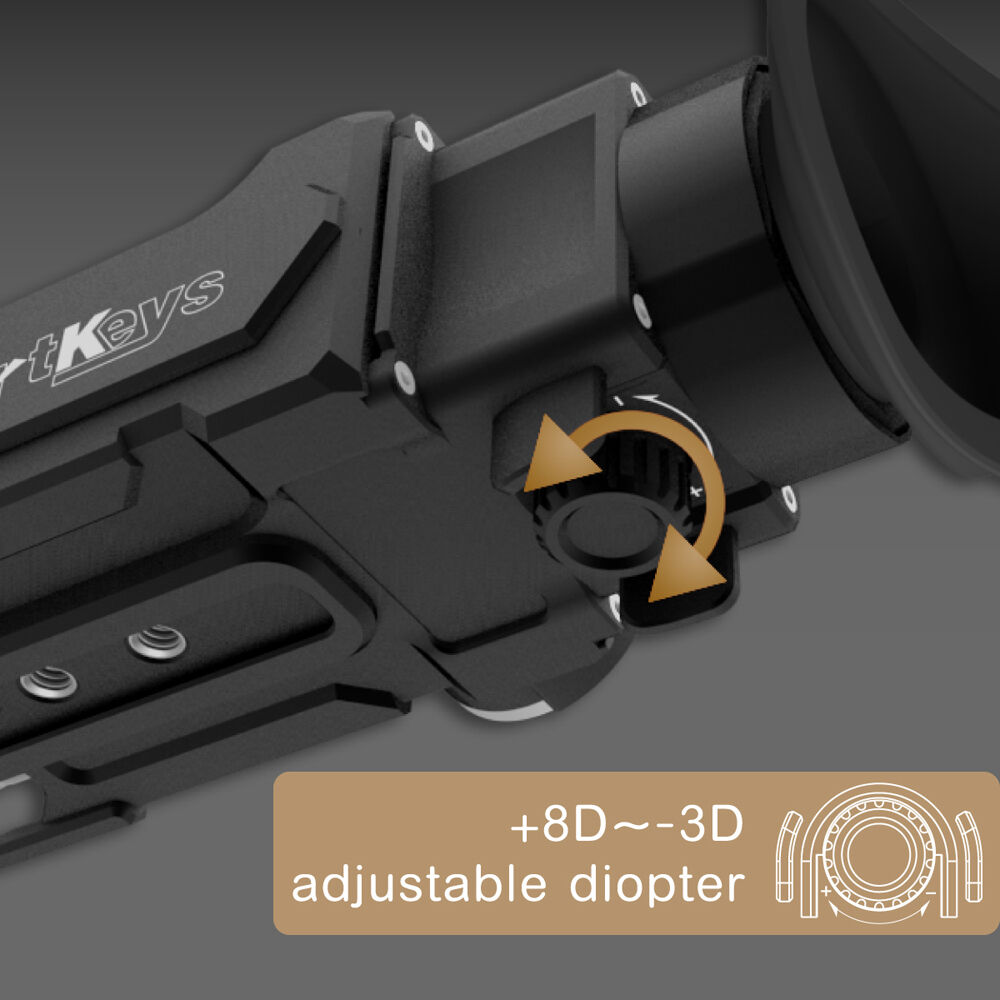

- Built-in adjustable +8 to -3 diopter
- Fan synchronization with RED camera
- Rosette mount on the side
- Durable aluminum construction
Monitoring and Image Analysis Tools
- 3D LUT
- Audio meters
- Pixel-to-pixel
- Brightness
- Contrast
- Chroma
- Backlight
- Zoom
- OSD flip
- Grids
- Peaking
- False color
- Waveform
- Sharpness
- Tint
- Color temperature
- Aspect
- Check field
- H/V delay
- Guides
- Crosshairs
- Zebra
- Underscan
- MPN - PK-OEYE-RED
- GTIN - 797427911346
