$899.00
Sale price
$899.00
Description
- 7" 1920 x 1080 Resolution Display
- Up to DCI 4K30 Video Input via HDMI
- Up to 1080p Video Input via 3G-SDI
- Wireless Control of Multiple Cameras
- 1000 cd/m² Brightness | 1000:1 Contrast
- Multiple Built-In Imaging Tools, 3D LUTs
- HDMI/SDI Loop Output, Headphone Jack
- 160° Viewing Angle, Top Buttons
- Power via L-Series Battery or DC Input
- 1/4"-20 Mounting Thread, Back Flex Mount
Delivery
Australia
Standard Shipping 4-7 business days: AU $8.95*
Express Shipping 1-3 business days: AU $15*
International Shipping
New Zealand 9-12 business days: AU$21*
*During peak promotional periods, please allow additional time for your order dispatch.
Returns
While we can’t offer a refund or replacement if you simply change your mind, we’re here to help if your item has a problem under Australian Consumer Law. You may be entitled to a refund or exchange if an item has a major problem. This is when the item:
- has a problem that would have stopped someone from buying the item if they had known about it
- is unsafe
- is significantly different from the sample or description
- doesn't do what we said it would, or what you asked for and can't be easily fixed
If the problem is not major, we will repair the item within a reasonable time. If it can’t be repaired in a reasonable time, we’ll offer a suitable resolution such as a refund or replacement. Please keep your proof of purchase — e.g. your receipt.
Description
- 7" 1920 x 1080 Resolution Display
- Up to DCI 4K30 Video Input via HDMI
- Up to 1080p Video Input via 3G-SDI
- Wireless Control of Multiple Cameras
- 1000 cd/m² Brightness | 1000:1 Contrast
- Multiple Built-In Imaging Tools, 3D LUTs
- HDMI/SDI Loop Output, Headphone Jack
- 160° Viewing Angle, Top Buttons
- Power via L-Series Battery or DC Input
- 1/4"-20 Mounting Thread, Back Flex Mount
Delivery
Australia
Standard Shipping 4-7 business days: AU $8.95*
Express Shipping 1-3 business days: AU $15*
International Shipping
New Zealand 9-12 business days: AU$21*
*During peak promotional periods, please allow additional time for your order dispatch.
Returns
While we can’t offer a refund or replacement if you simply change your mind, we’re here to help if your item has a problem under Australian Consumer Law. You may be entitled to a refund or exchange if an item has a major problem. This is when the item:
- has a problem that would have stopped someone from buying the item if they had known about it
- is unsafe
- is significantly different from the sample or description
- doesn't do what we said it would, or what you asked for and can't be easily fixed
If the problem is not major, we will repair the item within a reasonable time. If it can’t be repaired in a reasonable time, we’ll offer a suitable resolution such as a refund or replacement. Please keep your proof of purchase — e.g. your receipt.
Frequently bought with
Display
| Panel Type | LCD |
|---|---|
| Display Size | 7.0" / 17.8 cm |
| Native Resolution | 1920 x 1080 |
| Aspect Ratio | 16:9 |
| Viewing Angle | Horizontal: 160° (80/80)
Vertical: 160° (80/80) |
| Touchscreen | Yes |
| Maximum Brightness | 1000 nits / cd/m² |
| Contrast Ratio | 1000:1 |
| Color Support | 16.7 Million Colors (8-Bit) |
| HDR Support | No |
| Color Gamut | 100% Rec. 709 |
| LUT Support | No |
| Image Controls | Anamorphic De-Squeeze, Check Field, Color Temperature Selection, Customizable Aspect Ratios, False Color, Focus Peaking, Histogram, Image Flip, OSD Flip, RGB Parade, Screen Markers, Waveform, Zebra |
Inputs/Outputs
| Video I/O | 1x HDMI Input
1x BNC (3G-SDI) Input 1x HDMI Output 1x BNC (3G-SDI) Output |
|---|---|
| Embedded Audio | HDMI/SDI |
| Audio I/O | 1x 1/8" / 3.5 mm Headphone Output |
| Other I/O | 1x USB-A (Firmware/LUT Upload) Input |
| Media/Memory Card Slot | No |
Wireless
| Wi-Fi | Unspecified Version |
|---|---|
| Bluetooth | Yes |
| Mobile App Compatible | No |
Format Support
| Video Format | HDMI
DCI 4K: 30/29.97/25/24/23.98 UHD 4K: 30 1080p: 60/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50 576i: 50 480p: 60/59.94 480i: 60/59.94 SDI 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 |
|---|
Power
| Input Power | 7 to 20 VDC |
|---|---|
| Battery | 1x L-Series Mount on Fixed Plate |
| Power Consumption | 13 W |
Mounting
| Tripod/Accessory Mounting | Top
1x 1/4"-20 Female Bottom 1x 1/4"-20 Female Right 1x 1/4"-20 Female |
|---|
General
| Material of Construction | Aluminum |
|---|---|
| Dimensions | 6.9 x 4.1 x 1.5" / 176.2 x 103.8 x 39.3 mm |
| Weight | 14.4 oz / 409.00 g |

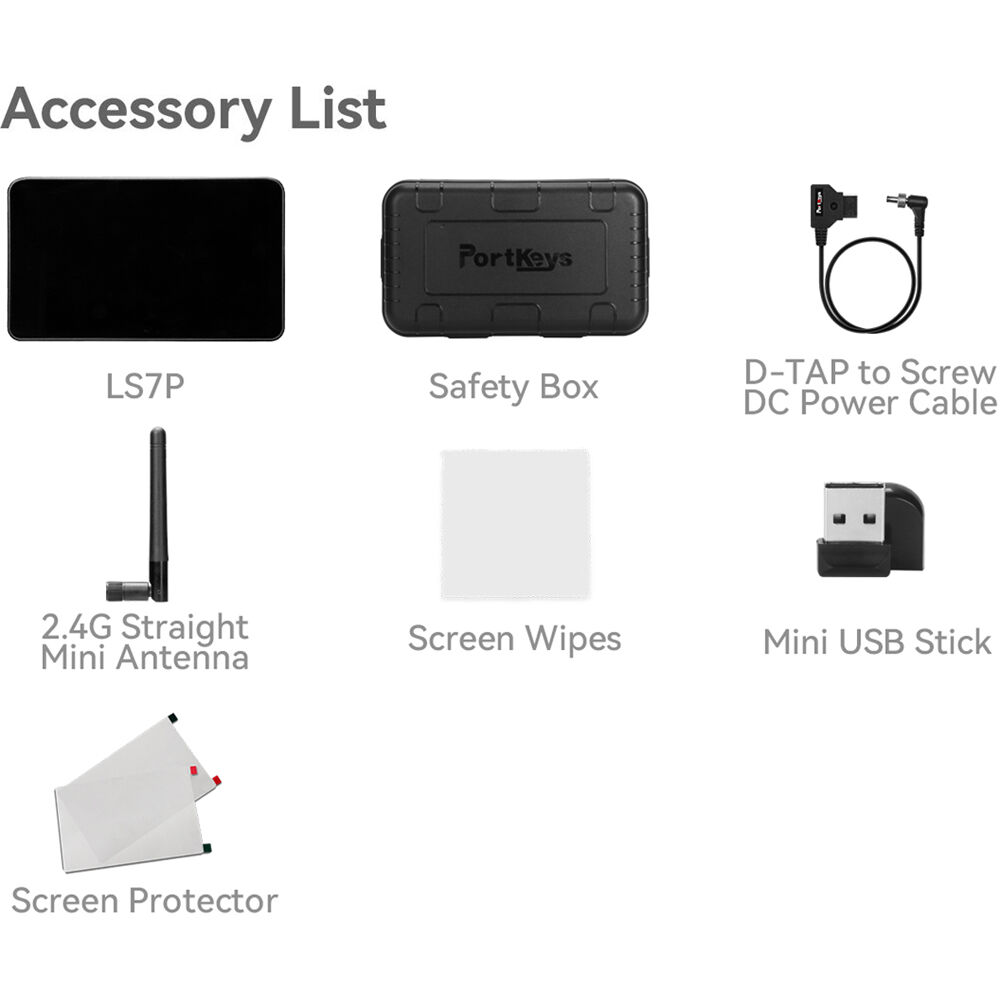

- Portkeys LS7P - High Brightness Monitor
- Safety Box
- 2.5 GHz Mini Antenna
- Mini-USB Flash Drive
- Screen Wipe
- D-Tap to Locking DC Power Cable
- Screen Protector
0

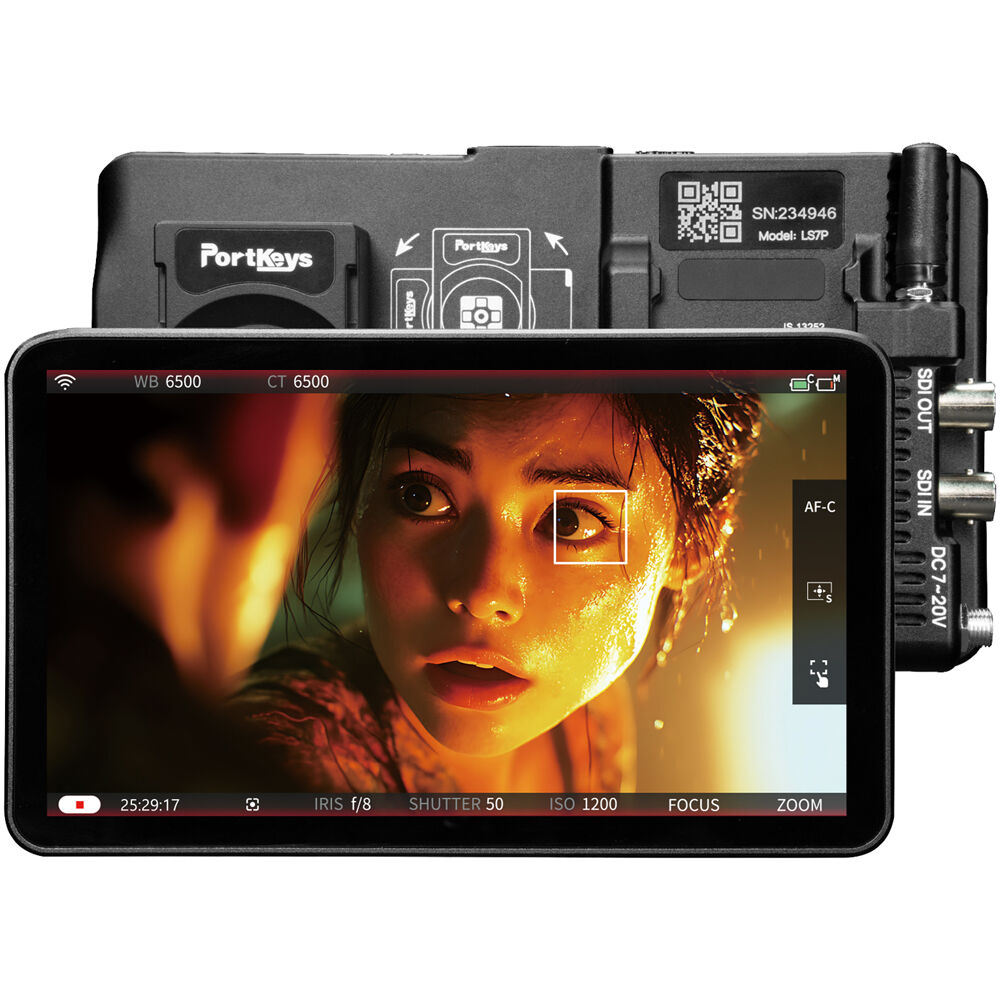

Preview and control video on multiple cameras with the Portkeys LS7P - High Brightness Monitor . This versatile touchscreen monitor provides up to DCI 4K30 input via HDMI, 1080p input via 3G-SDI, and it can also output to additional displays via HDMI and SDI. You can also wirelessly monitor and control up to four cameras simultaneously using the newest Movnorm OS interface and Wi-Fi or Bluetooth.
Key Features of the Portkeys LS7P - High Brightness Monitor
- 7" 1920 x 1080 Resolution Display
- Up to DCI 4K30 Video Input via HDMI
- Up to 1080p Video Input via 3G-SDI
- Wireless Control of Multiple Cameras
- 1000 cd/m² Brightness | 1000:1 Contrast
- Multiple Built-In Imaging Tools, 3D LUTs
- HDMI/SDI Loop Output, Headphone Jack
- 160° Viewing Angle, Top Buttons
- Power via L-Series Battery or DC Input
- 1/4"-20 Mounting Thread, Back Flex Mount
High-Quality 4K Monitoring

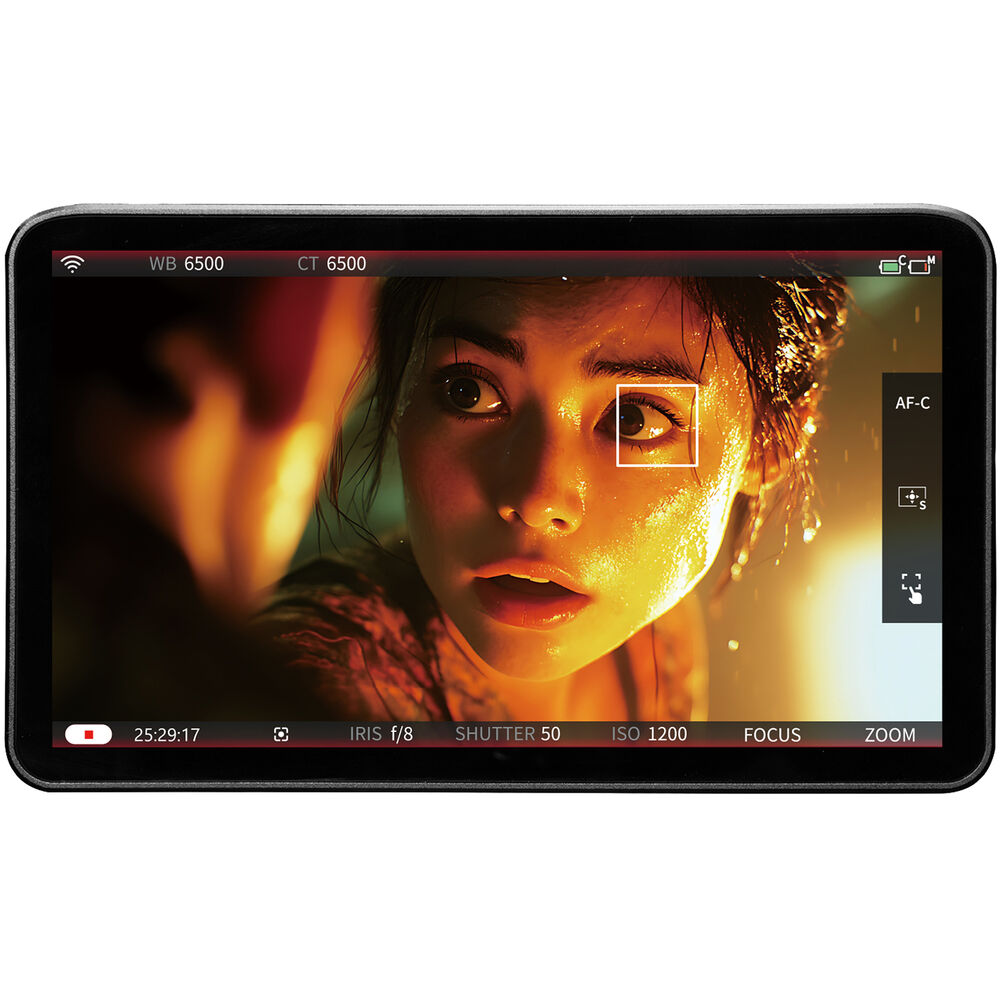

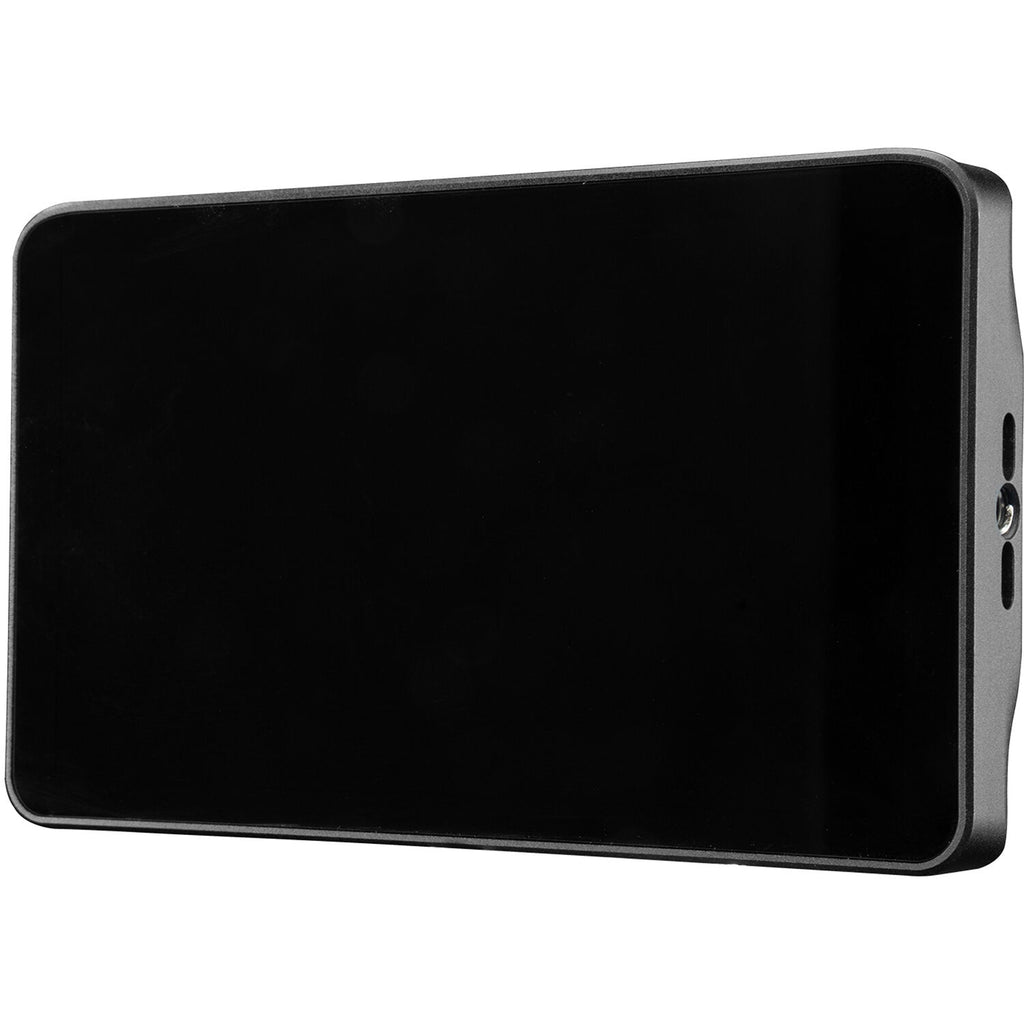

Monitor up to DCI 4K30 video on the 1920 x 1080 resolution LCD screen, which provides a 16:9 aspect ratio, a 1000:1 contrast ratio, and a 1000 cd/m² brightness for easy viewing outdoors as well as inside. The LCD provides a 160° viewing angle, enabling you to see an image without being directly in front of the monitor.
Multi-Camera Control
Control basic functions on a variety of cameras using wired or wireless connectivity. The monitor supports Wi-Fi and Bluetooth connections that make it easy to connect to compatible cameras. You can also connect to up to four cameras simultaneously, choosing each one from the monitor interface. Controls include touch focus, start/stop, and more.
3D LUTs
Apply 3D LUTs on the fly and on the loop outputs to view your footage on a larger external display.
You can load custom LUTs via the USB-A input via a flash drive and store them on the monitor.
Professional Built-In Imaging Tools
The LS7P monitor features a variety of image-evaluating tools, including exposure tools such as peaking, zebra, and false color; waveform tools such as luma, RGB, and audio meters; freeze frame; monitoring tools such as crosshair, grids, and guides; color adjustment tools such as contrast, sharpness, tint, and chroma; and image ratio adjustments such as anamorphic de-squeeze, rectangle crop, and preset lens ratios.
Quick Mount

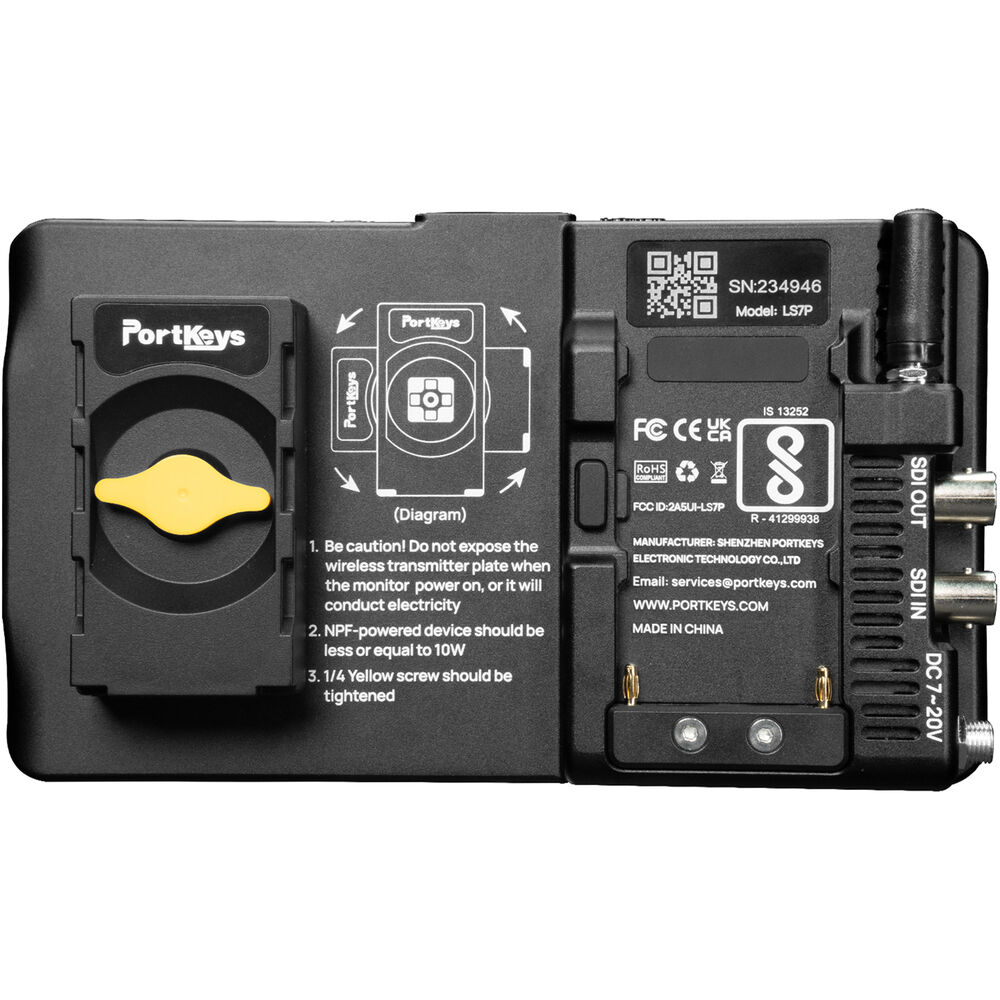

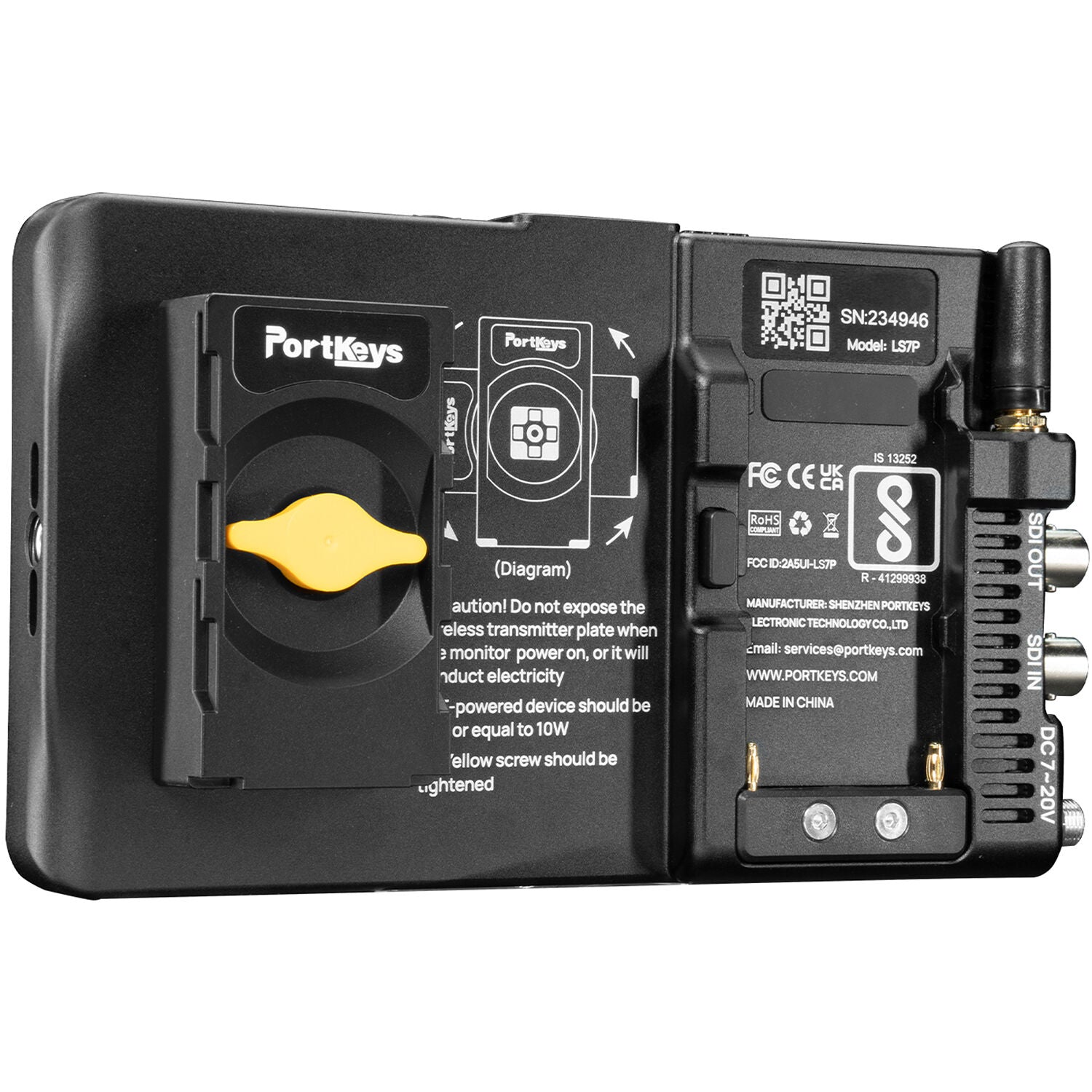

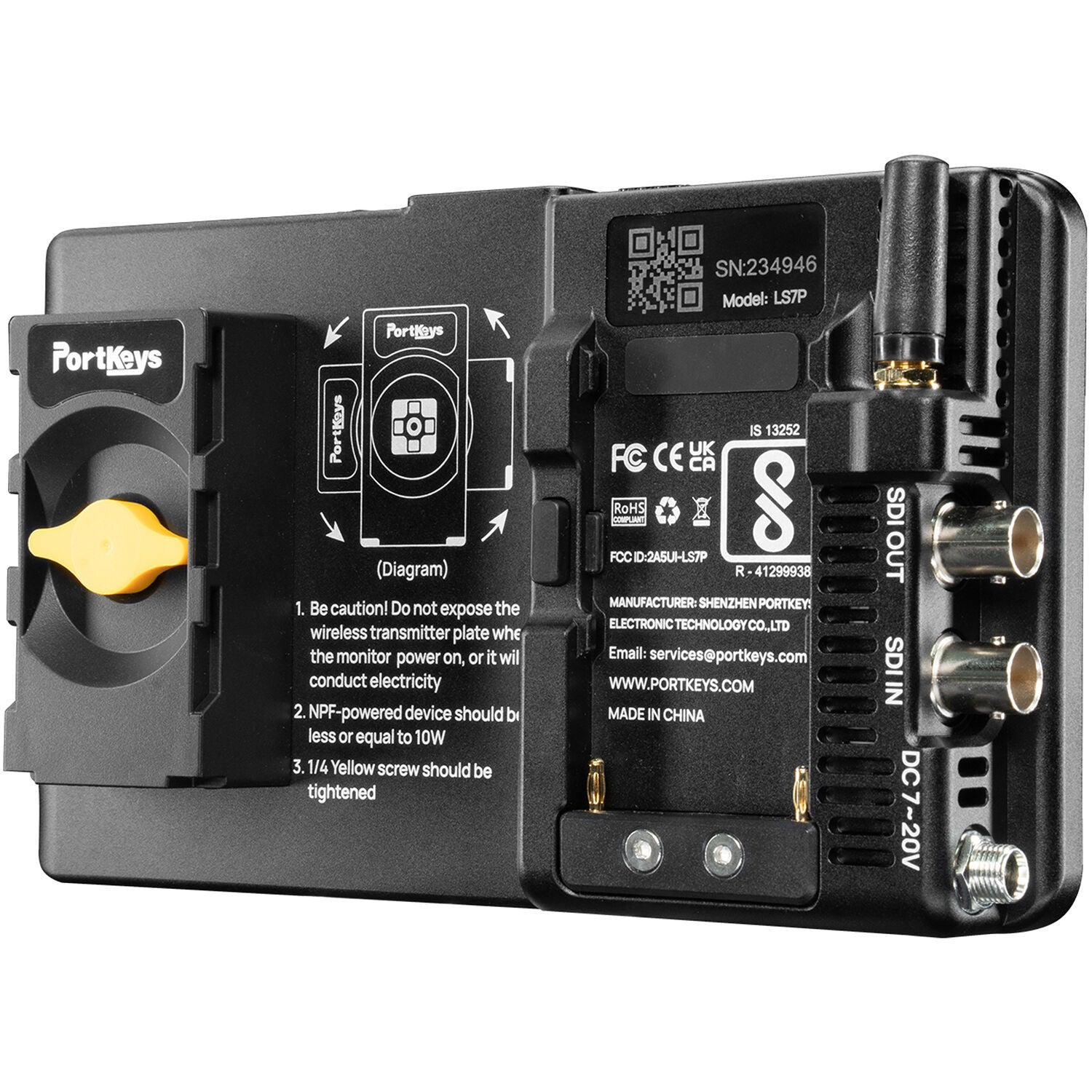

On the back of the monitor, there is a flex mount that features an L-series dummy battery that allows you to quickly mount a video transmitter or receiver that features an L-series mount. The battery plate on the monitor can provide power to the external accessory through the mount.
Power Options
The monitor is powered using a Sony L-series-type battery or via the locking DC power input using a separately available power supply.
Connections

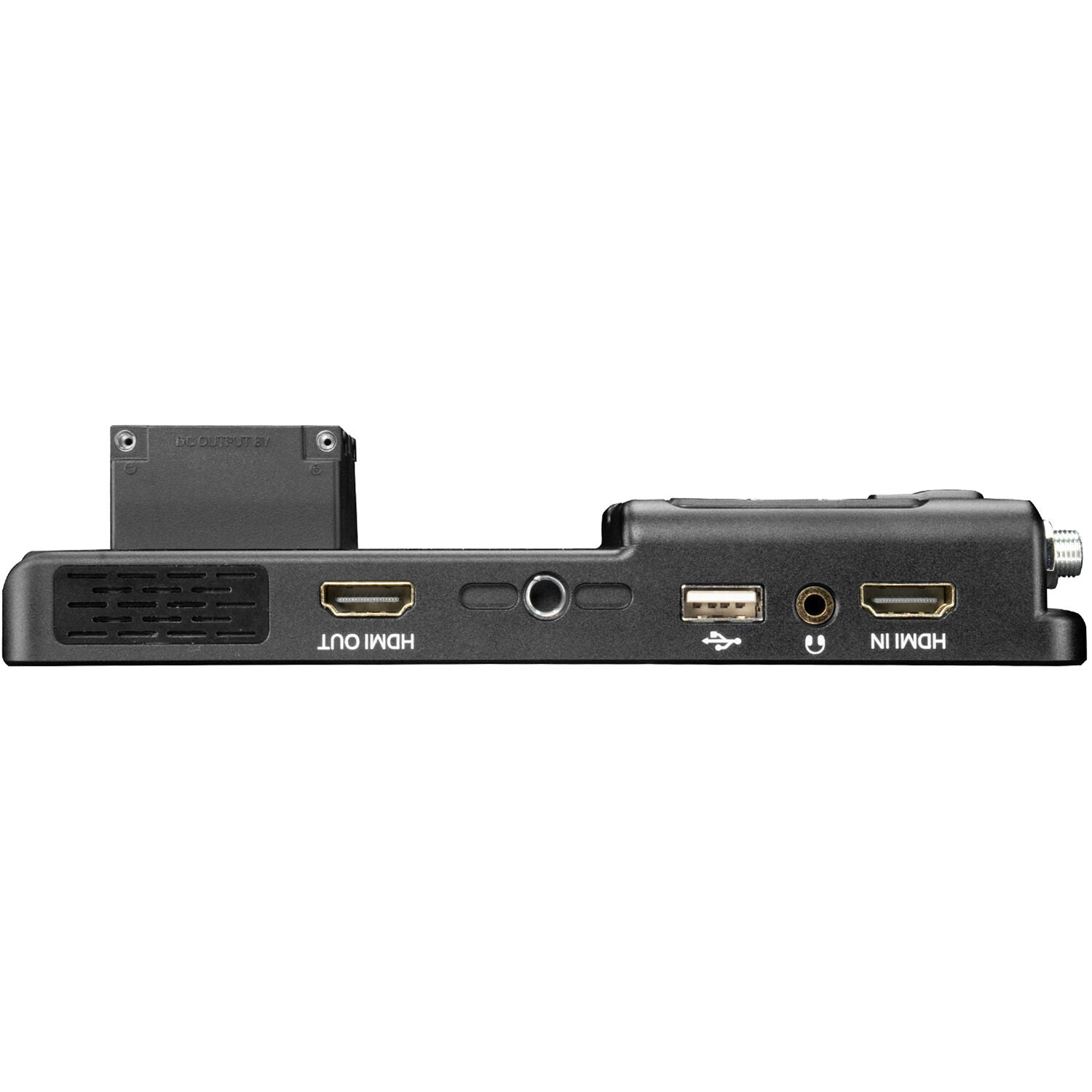

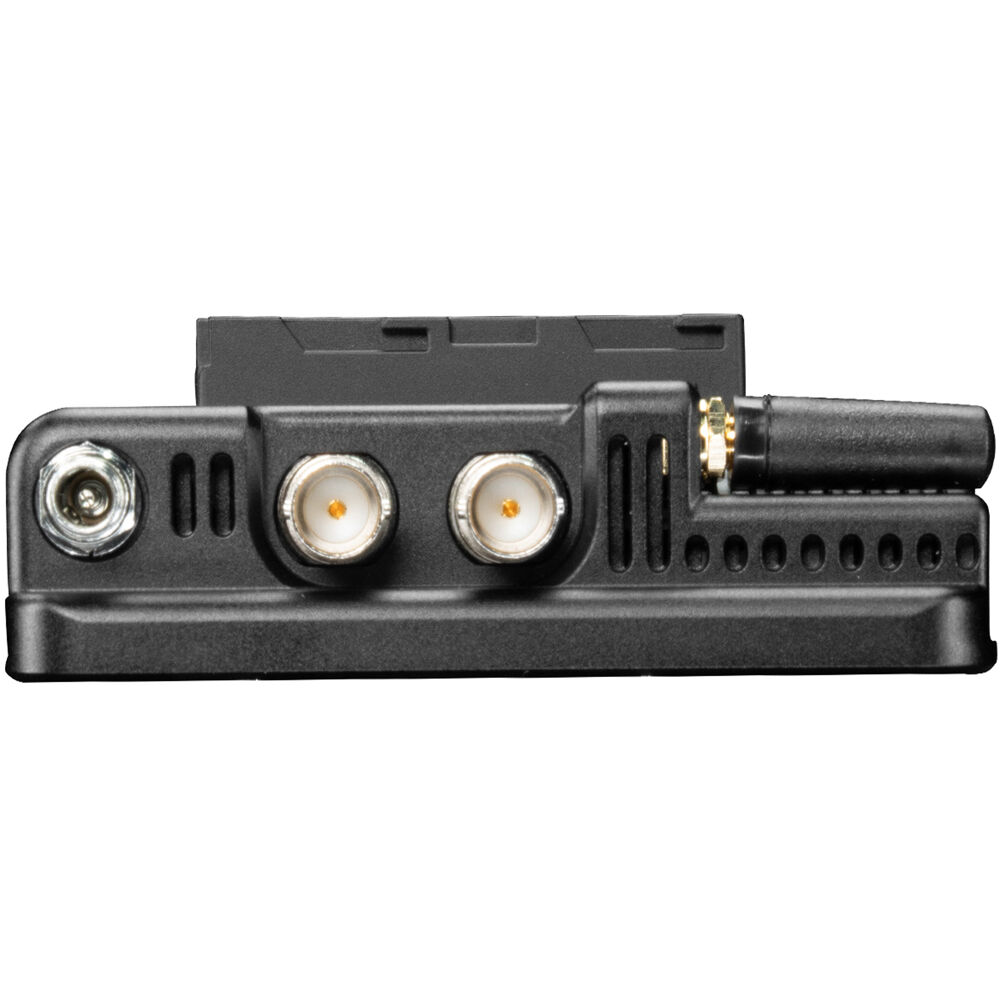

The monitor features HDMI input and output, 3G-SDI input and output, USB-A input for 3D LUTs, and a 3.5mm audio output for monitor audio via headphones or a speaker.
Physical Design

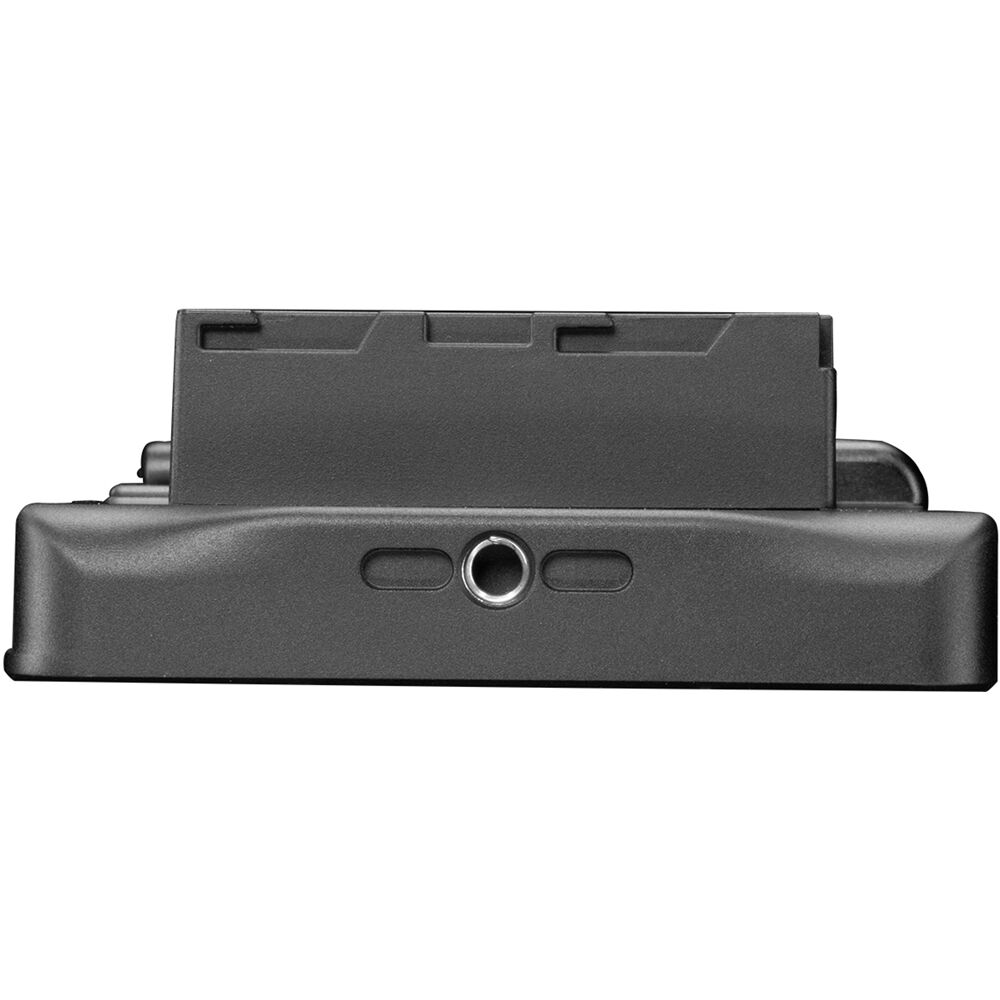

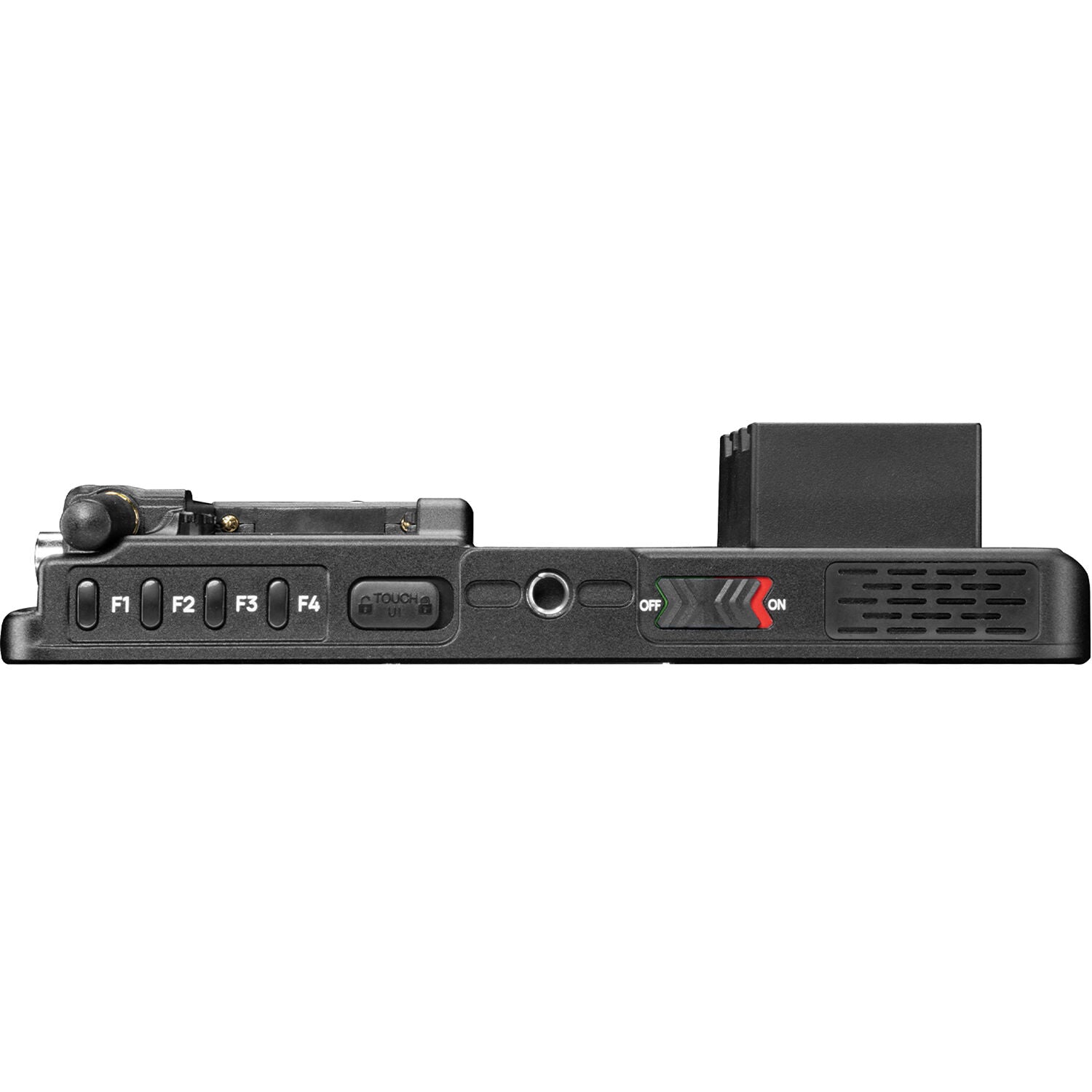

The chassis is made from durable, lightweight aluminum to withstand any environment. Customizable control buttons located on top of the monitor allow you to assign often-used controls. There are 1/4"-20 threads on the top, side, and bottom for mounting onto arms, cameras, and rigs.
Camera Compatibility
- Sony: FX6, a1, a9 II, a8S III, RX0, a7C, a7C II, a7S III, FX3, FX30, ZV-E1, ZV-E10, RX10, a7 IV, a7R IV, a7R V, ZV-1, ILX-LR1, a7 III
- Canon: EOS C400, C80, R5, R5 Mark II, R6, R6 Mark II, R7, R8
- Panasonic: BGH1, BS1H
- Blackmagic Design: BMPCC 6K, BMPCC 6K Pro, URSA Mini Pro 4.6K, BMPCC 4K
- ARRI: ALEXA Mini
- Nikon: Z8, Z9
- RED: KOMODO, KOMODO-X, V-RAPTOR, V-RAPTOR XL
- MPN - PK-LS7P
- GTIN - 797409189473
