• Portkeys BM5 IV WR - 5.5" HDMI Touchscreen Monitor with Camera Control
• 2.4 GHz Antenna
• Micro-USB Flash Drive
• D-Tap to 4-Pin Aviation Power Cable
• Storage Case

The Portkeys BM5 IV WR - 5.5" HDMI Touchscreen Monitor with Camera Control is a robust 5.5-inch on-camera monitor ready for all your next creative adventures. Powered by Portkeys’ latest CINENORM OS, this compact monitor is daylight-viewable, it can be operated via its touchscreen or the four user-assignable function buttons, it comes with a full suite of professional monitoring tools, and it has the capability to control your camera wired or wirelessly.

The Portkeys BM5IV WR is the perfect companion for directors, cinematographers, directors of photography, focus pullers, and filmmakers with all the monitoring features you can expect from a professional on-camera monitor

Key Features of the Portkeys BM5 IV WR - 5.5" HDMI Touchscreen Monitor with Camera Control

• 5.5" Wide Color Gamut Monitor
• 2000 cd/m² Touchscreen
• Wired and Wireless Camera Control
• HDMI and SDI Input/Output Ports
• SDI Output with New 3D LUTs
• Dual-Screen Monitoring
• User Calibration, Seven Custom Pages
• Log and Custom False Color
• Recording Synchronized Fan

Flexible Color Controls

The BM5IV WR uses three color gamuts to properly calibrate your image: 100% REC.709, 85% P3-DCI, and 85% P3-D65. You can manually select your Log mode, toggle Log false color, and select your own custom false color from 77 colors and 15 different segments. The monitor is factory calibrated with the option for users to create a 3D calibration LUT and an X-Rite color probe.

CINEFORM OS

CINEFORM OS powers the monitor and allows you to configure settings to suit your workflow. Import two sets of custom color calibration files, create seven custom control pages, and save it all to the included micro-USB drive for import to another monitor and streamline your workflow.

Dual-Screen Monitoring

When taking in multiple camera signals via the HDMI and SDI input ports, you can select different dual-screen monitoring configurations to view both images simultaneously. Choose between horizontal to vertical crop, picture-in-picture, dual vertical, dual horizontal, and vertical/horizontal split views.

Connectivity

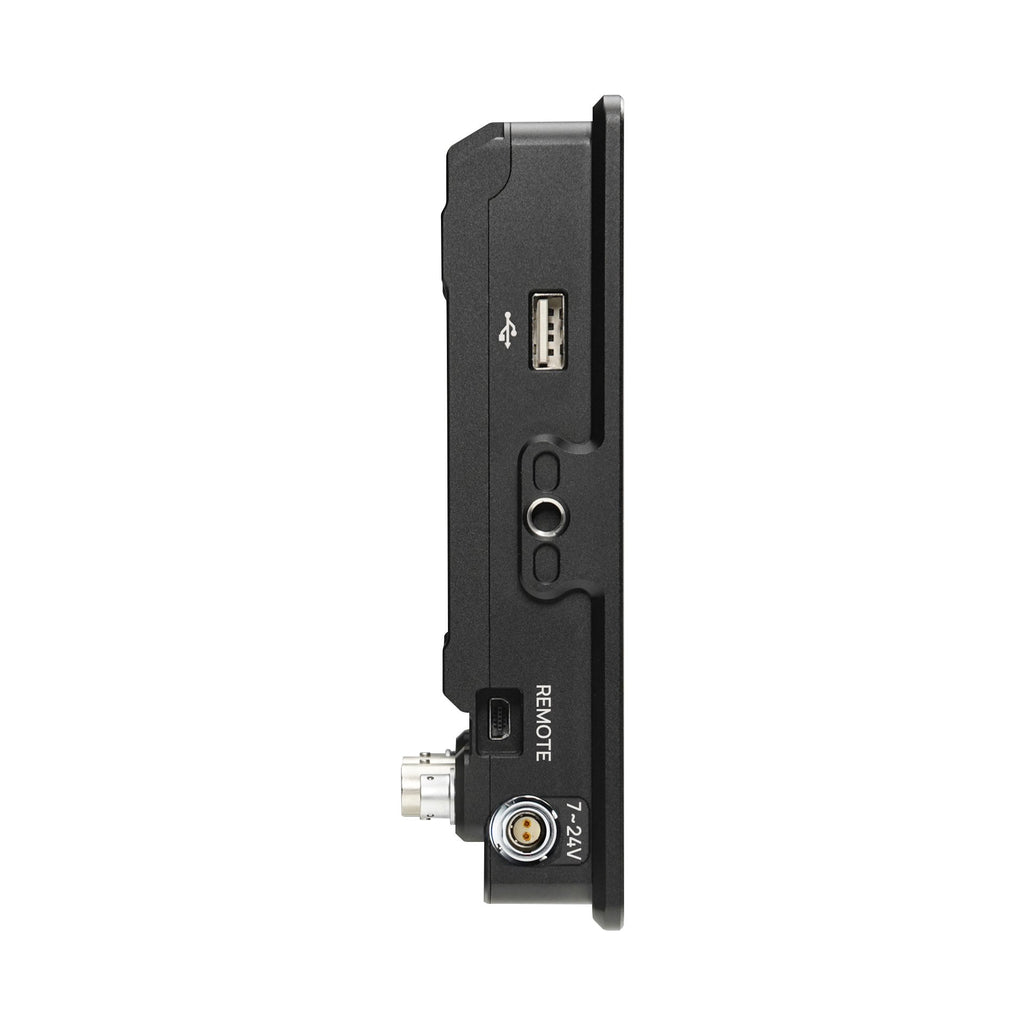

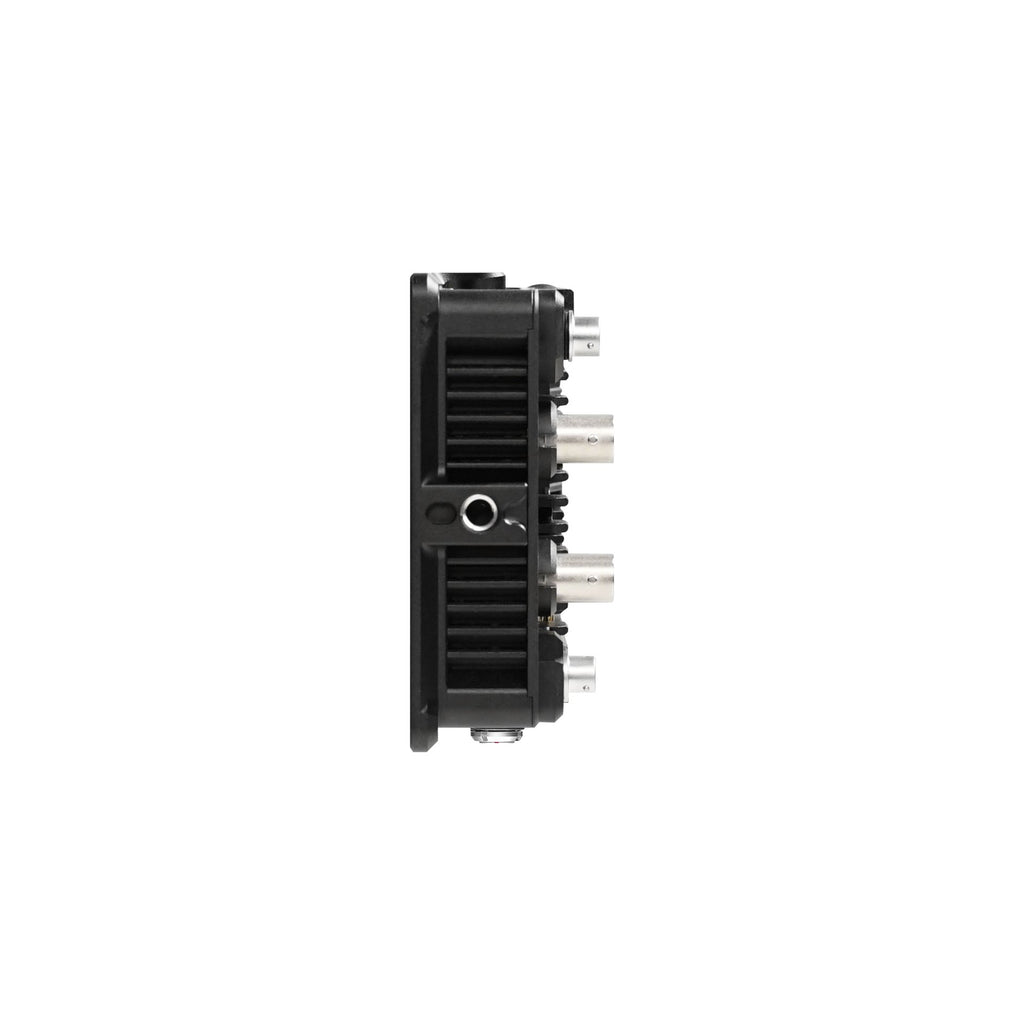

This upgraded BM5IV WR monitor features the same HDMI input, SDI input, and SDI output ports found on the previous model with the addition of an HDMI output, allowing you to convert signals with ease. The HDMI ports can support up to 4K60 video, while the SDI ports can support up to 1080p60 video. A USB-A port helps facilitate firmware updates and uploads 3D LUTs to the monitor.

Wired Camera & Motor Control

A micro-USB remote connection facilitates camera control with select camera models from RED, Sony, Blackmagic Design, Canon, Panasonic, and Z CAM using separately available cables. The BM5IV WR can also be used in tandem with your Tilta Nucleus N/M wireless focus system using its UART port for calibration and limit setting.

Wireless Control

An included 2.4 GHz antenna facilitates wireless communication with select camera models. The BM5IV WR is RED-approved and can connect to KOMODO/V-RAPTOR cameras to change settings directly from the monitor and perform touch-to-focus in real time. Select Sony camera models also have touch focus capabilities and support zoom adjustment. The monitor can also wirelessly control the ARRI ALEXA Mini, Nikon Z8/Z9, Canon EOS R5/R6/R6 Mark II/R7/R8, and Panasonic BGH1/BS1H.

Multiple Power Options

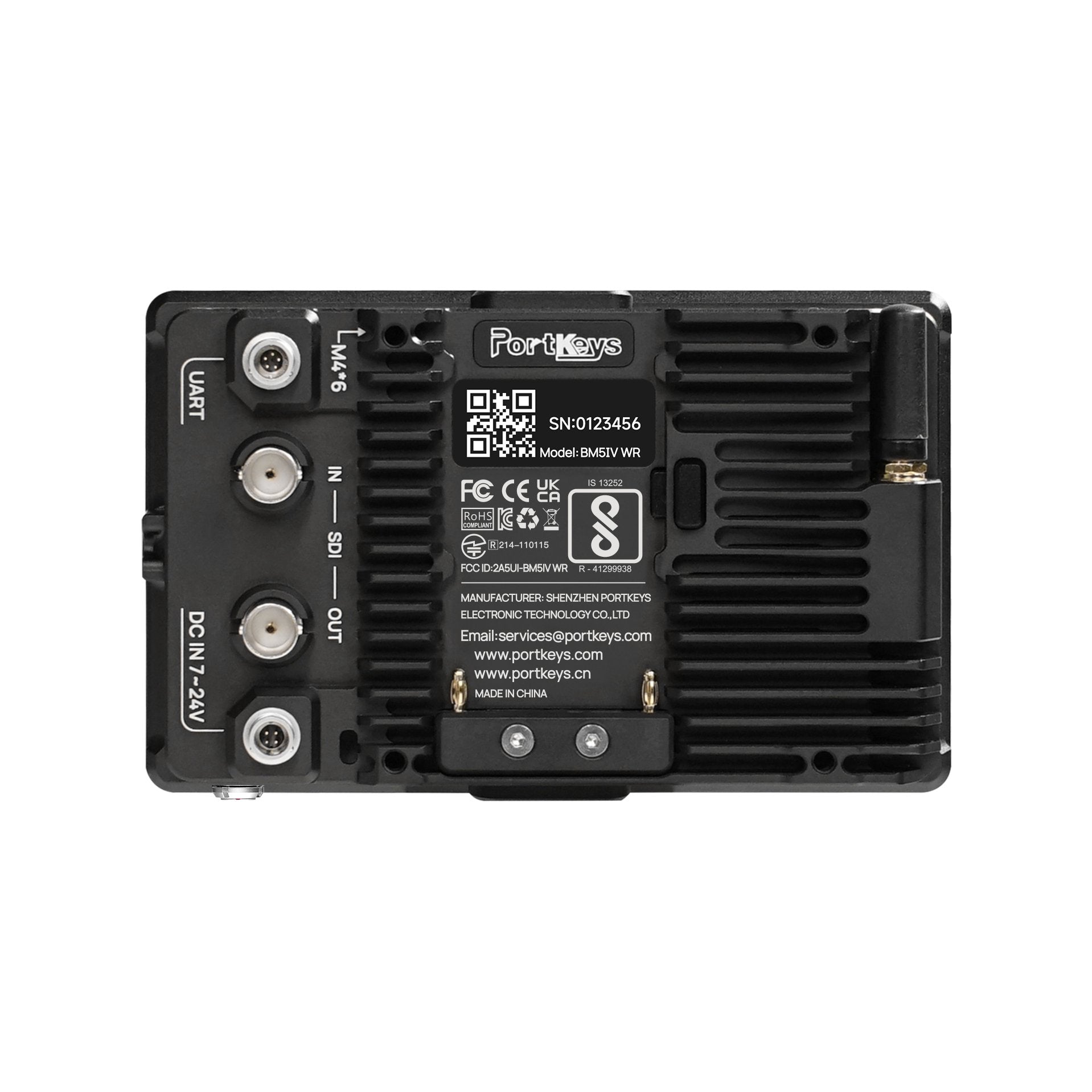

Use either the 2-pin LEMO port or the 4-pin interface and the included D-Tap cable to connect compatible power sources directly to the monitor. A built-in NP-F battery plate supports compatible batteries.

Robust Design

The monitor is constructed of durable aluminum alloy to withstand the rigors of production. The integrated fan can be set to switch to its lowest setting once the recording is toggled to minimize audio distortion.

• MPN - PK-BM5-IV-WR
• GTIN - 797409189367
