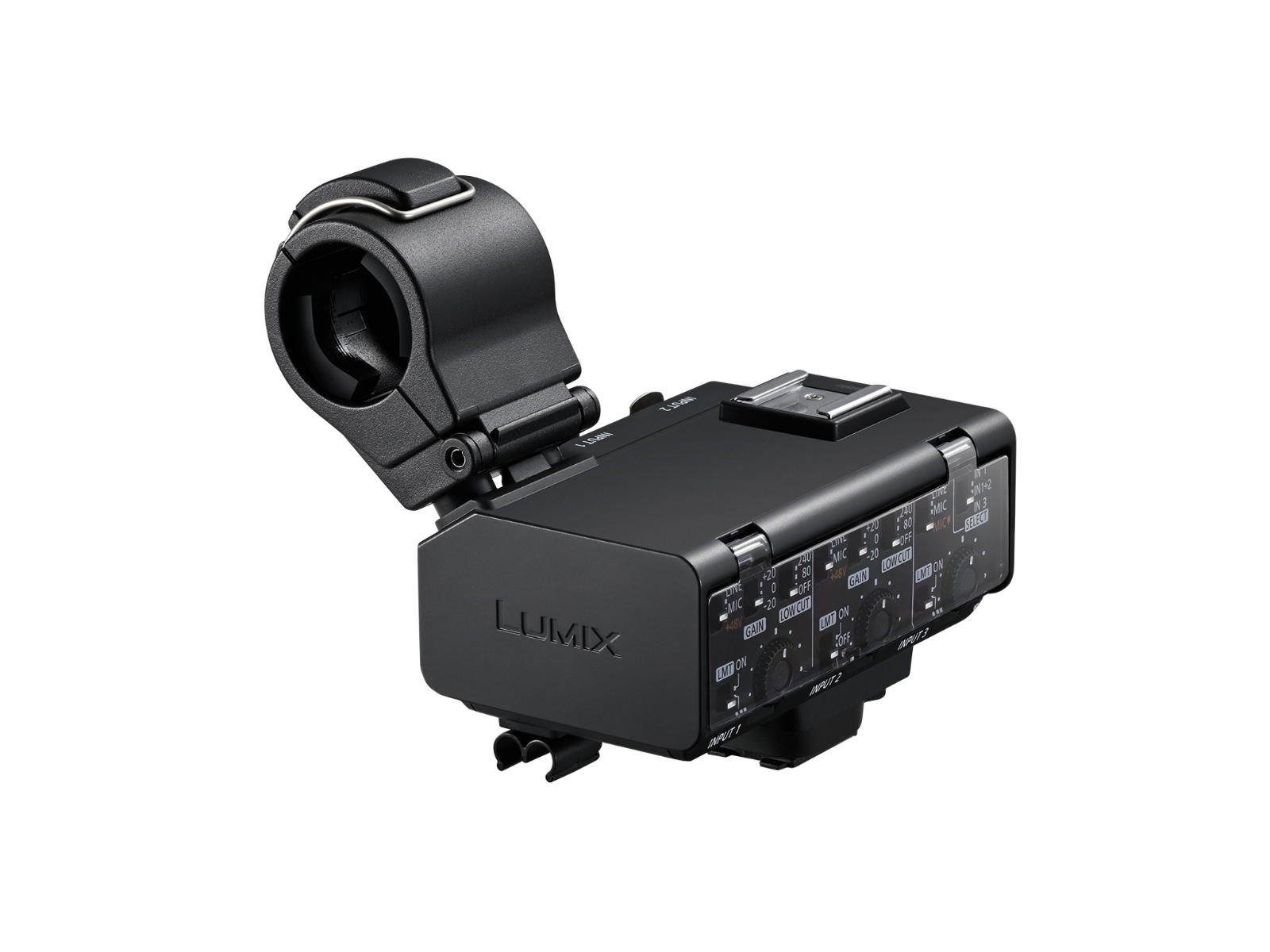

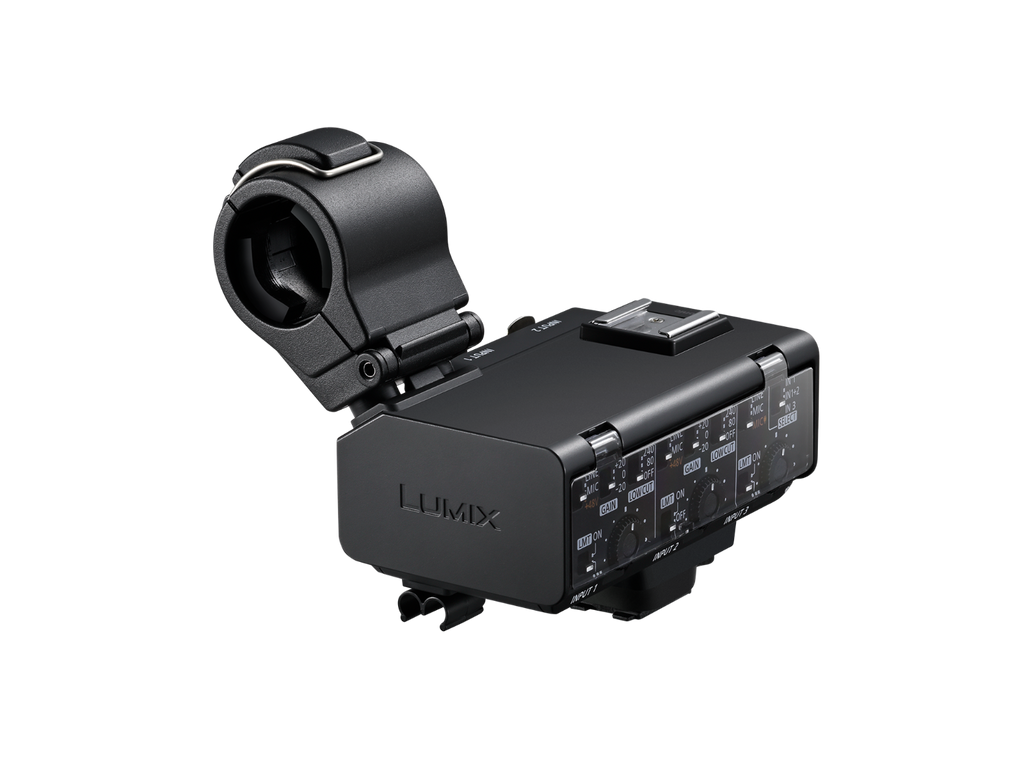

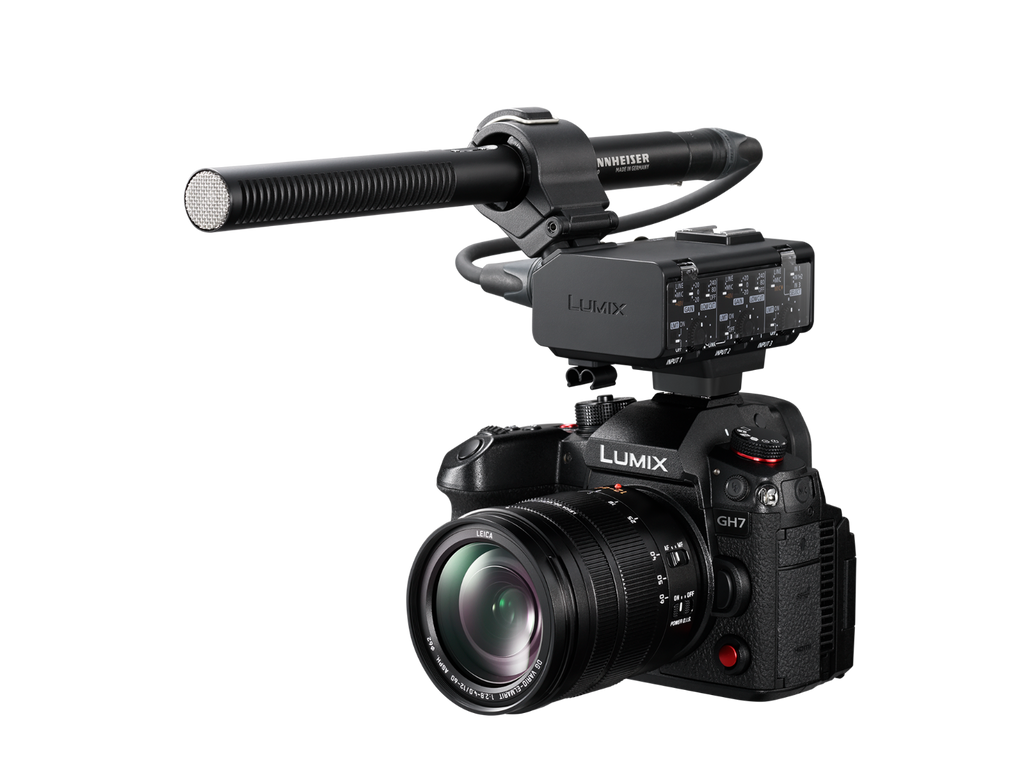

Panasonic LUMIX XLR2 Adaptor
Panasonic LUMIX XLR2 Adaptor
$899.00
Sale price
$899.00
Skip to product information
View full item details
View Full Details
Learn More
More details here.
$899.00
Sale price
$899.00
Description
- Physical Switches and Dials
- Compatible with Hi-res Sound
- DC Power Supply from Camera
- Connects to DC-GH7/GH6 through Hot Shoe
- Provides Two XLR Audio Inputs
- One 3.5mm Stereo Mini Jack Input
- Control Panel with Clear Cover
- Recording at up to 96 kHz, 32-Bit Float
- 48V Phantom Power on XLR or 3.5mm
- Cable Clamp for Wire Management
- Additional Shoe Mount on Top of Unit
- Powered by Camera
Delivery
Australia
Standard Shipping 4-7 business days: AU $8.95*
Express Shipping 1-3 business days: AU $15*
International Shipping
New Zealand 9-12 business days: AU$21*
*During peak promotional periods, please allow additional time for your order dispatch.
Returns
While we can’t offer a refund or replacement if you simply change your mind, we’re here to help if your item has a problem under Australian Consumer Law. You may be entitled to a refund or exchange if an item has a major problem. This is when the item:
- has a problem that would have stopped someone from buying the item if they had known about it
- is unsafe
- is significantly different from the sample or description
- doesn't do what we said it would, or what you asked for and can't be easily fixed
If the problem is not major, we will repair the item within a reasonable time. If it can’t be repaired in a reasonable time, we’ll offer a suitable resolution such as a refund or replacement. Please keep your proof of purchase — e.g. your receipt.
Description
- Physical Switches and Dials
- Compatible with Hi-res Sound
- DC Power Supply from Camera
- Connects to DC-GH7/GH6 through Hot Shoe
- Provides Two XLR Audio Inputs
- One 3.5mm Stereo Mini Jack Input
- Control Panel with Clear Cover
- Recording at up to 96 kHz, 32-Bit Float
- 48V Phantom Power on XLR or 3.5mm
- Cable Clamp for Wire Management
- Additional Shoe Mount on Top of Unit
- Powered by Camera
Delivery
Australia
Standard Shipping 4-7 business days: AU $8.95*
Express Shipping 1-3 business days: AU $15*
International Shipping
New Zealand 9-12 business days: AU$21*
*During peak promotional periods, please allow additional time for your order dispatch.
Returns
While we can’t offer a refund or replacement if you simply change your mind, we’re here to help if your item has a problem under Australian Consumer Law. You may be entitled to a refund or exchange if an item has a major problem. This is when the item:
- has a problem that would have stopped someone from buying the item if they had known about it
- is unsafe
- is significantly different from the sample or description
- doesn't do what we said it would, or what you asked for and can't be easily fixed
If the problem is not major, we will repair the item within a reasonable time. If it can’t be repaired in a reasonable time, we’ll offer a suitable resolution such as a refund or replacement. Please keep your proof of purchase — e.g. your receipt.
Frequently bought with
| Input 1,2 | Input Terminal
XLR 3-pin (female) Standard Recording Level -12 dBFS (at the standard input) Frequency Characteristic 20Hz to 40kHz, +1/-1 dB (during Fs=96kHz, during LINE) Phantom Power Source 48V |
|---|---|
| Input 3 | Input Terminal
φ3.5mm stereo mini jack Standard Input Level: LINE: 0 dBu MIC, +48V: -40 dBu (0 dBu=0.775 Vrms) Standard Recording Level -12 dBFS (at the standard input) Frequency Characteristic 20Hz to 40kHz, +1/-1 dB (during Fs=96kHz, during LINE) Plug-in Power 2.5V |
| Sampling Frequency
Bit Length |
Linear recording
48kHz/24-bit/2ch, 96kHz/24-bit/2ch (Select one of INPUT1, INPUT1+2, or INPUT3) 48kHz/24-bit/4ch |
| Number of Recording
Channel |
Float recording
48kHz/32-bit/2ch, 96kHz/32-bit/2ch (Select one of INPUT1, INPUT1+2, or INPUT3) 48kHz/32-bit/4ch |
| Dimension (W x H x D) | Approx. 61.2 x 60.9 x 92 mm / 2.41 x 2.40 x 3.63 inch (without microphone holder)
Approx. 94.6 x 106.2 x 92 mm / 3.73 x 4.19 x 3.63 inch (with microphone holder) (excluding the projecting parts |
| Weight | Approx. 158 g / 0.35 lb (without microphone holder)
Approx. 192 g / 0.43 lb (with microphone holder) |
| Operating Temperature | -10℃ to 40℃ (14℉ to 104℉) |
| Operating Humidity | 10 - 80 %RH |
| Standard Accessories | Cable Holder, Microphone Holder, Pouch |
- Panasonic LUMIX XLR2 Adaptor
0

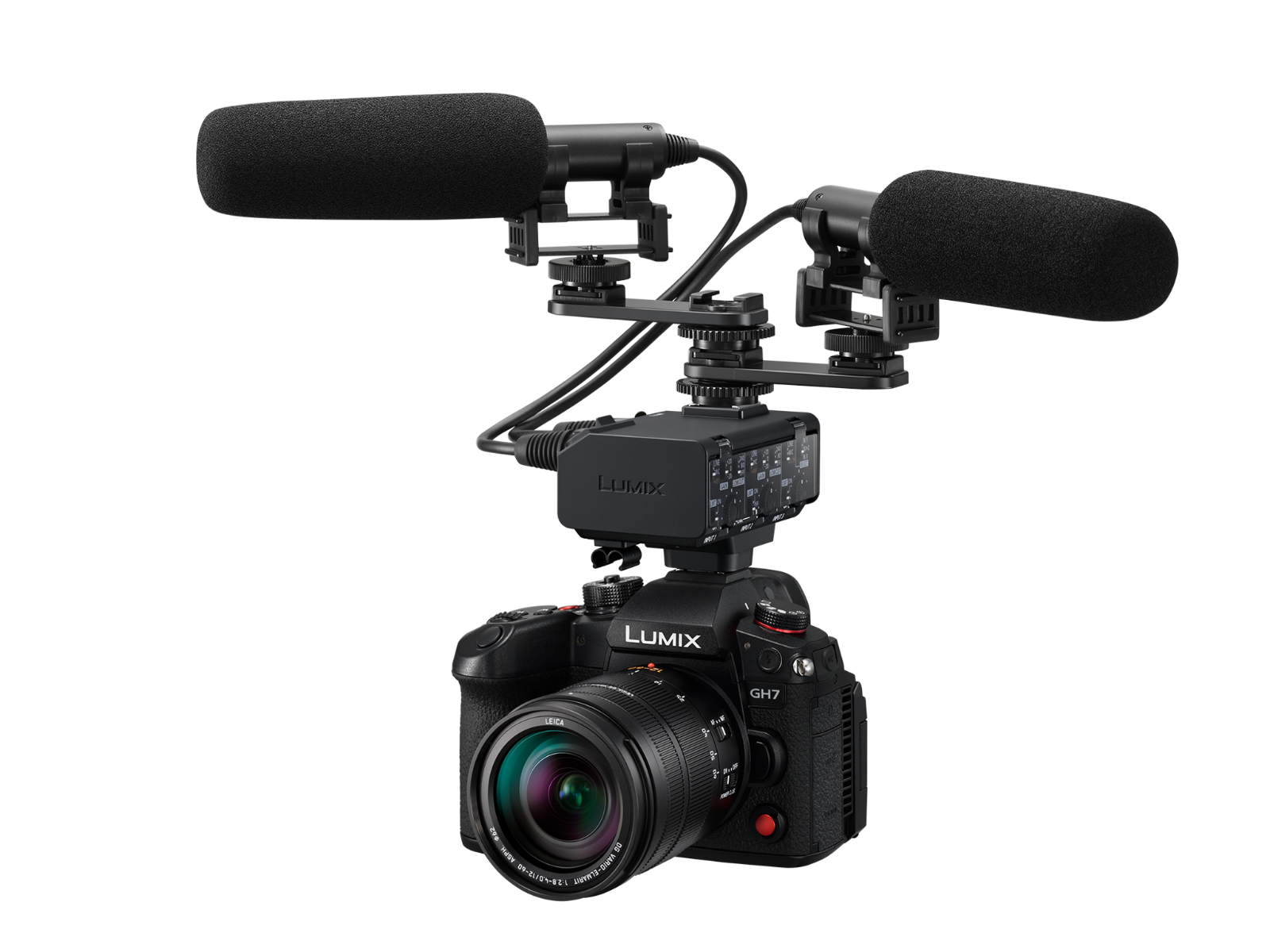

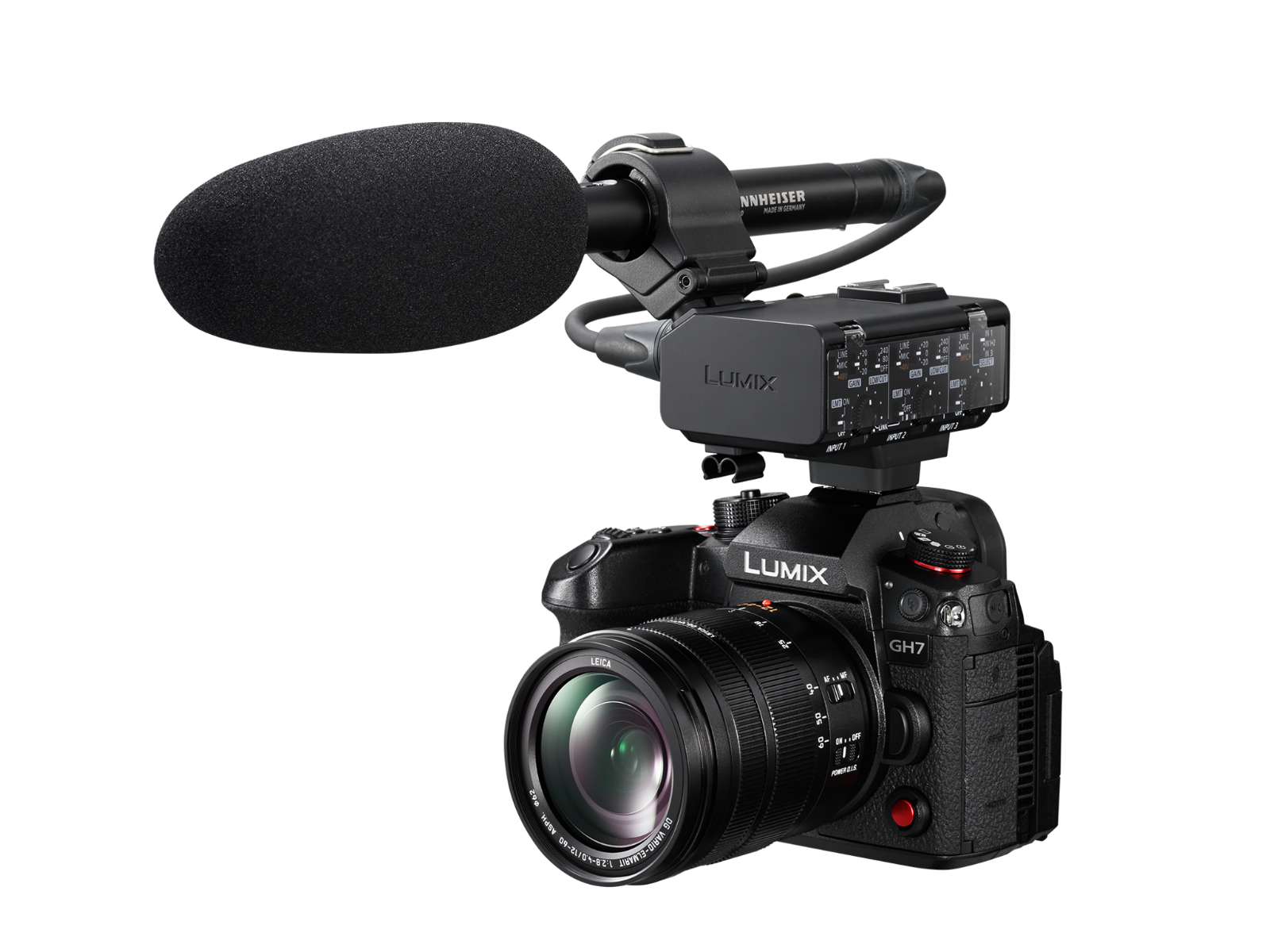

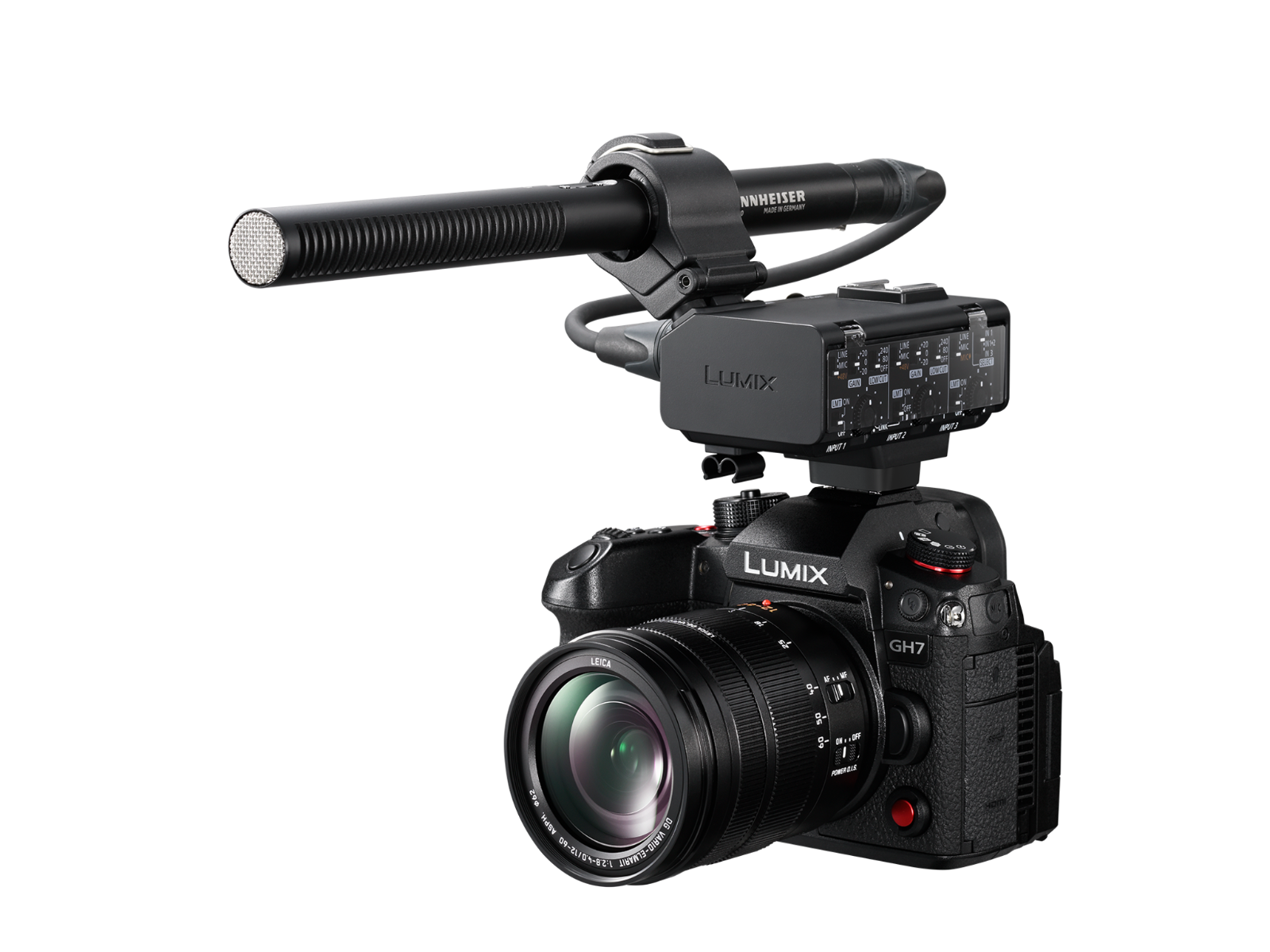

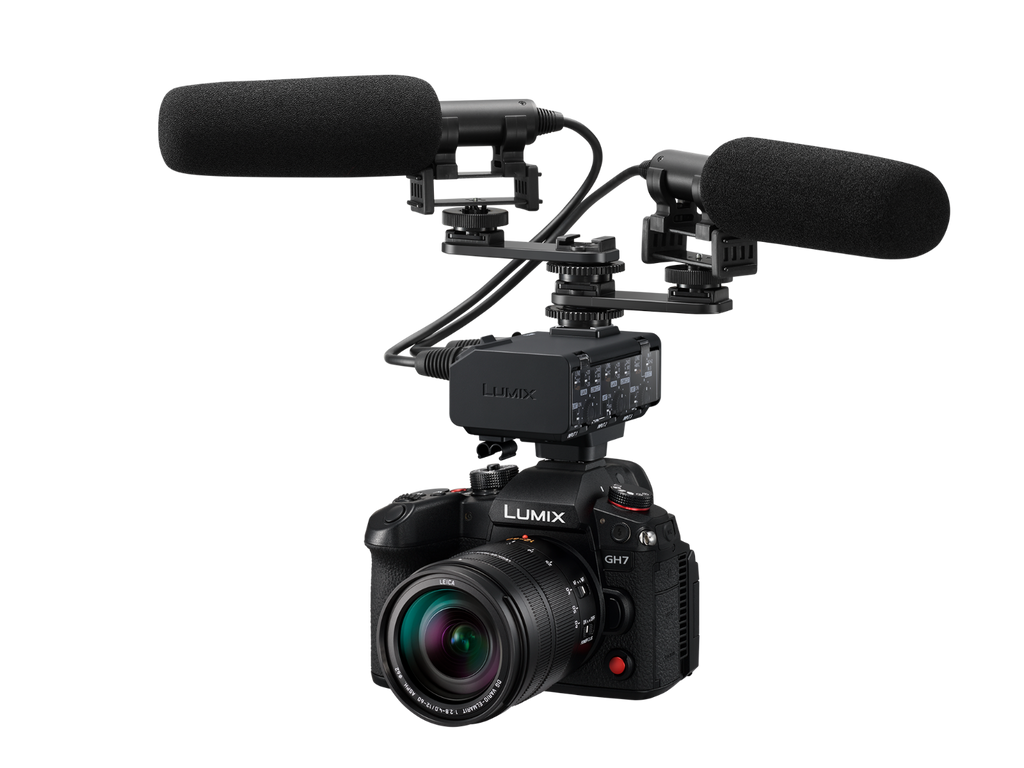

The Panasonic Lumix XLR2 Adaptor enabled high-grade stereo surround sound recording with the attached XLR microphone (2-channel) for professional video production. It is well suited to lip-sync recording, and 96 kHz/24bit hi-res sound recording is also possible. If features an easy-to-use design, physical switches and dials for easy setup and checking, and DC power supplied via a shoe connector
Key Features of the Panasonic LUMIX XLR2 Adaptor
- Physical Switches and Dials
- Compatible with Hi-res Sound
- DC Power Supply from Camera

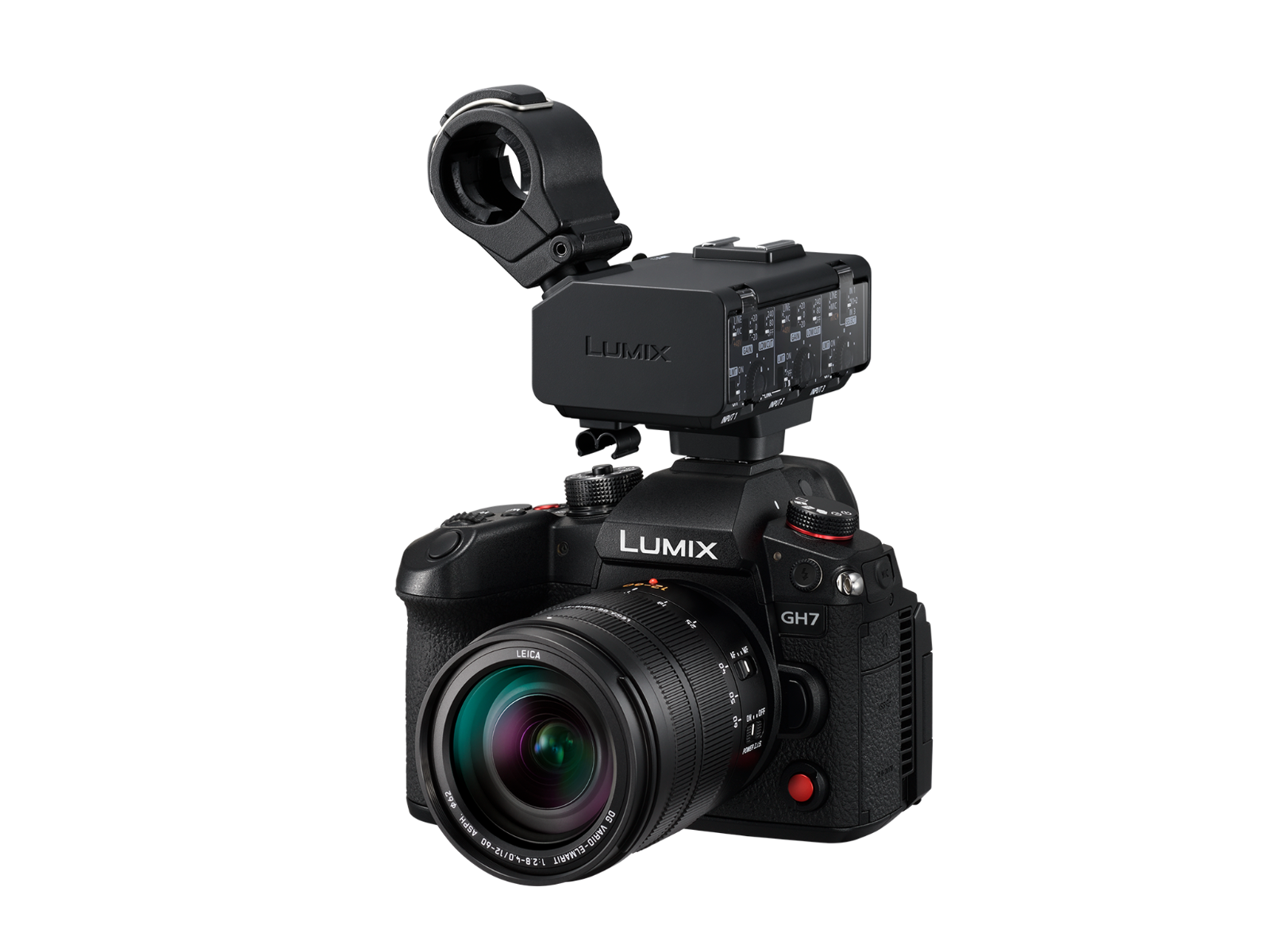

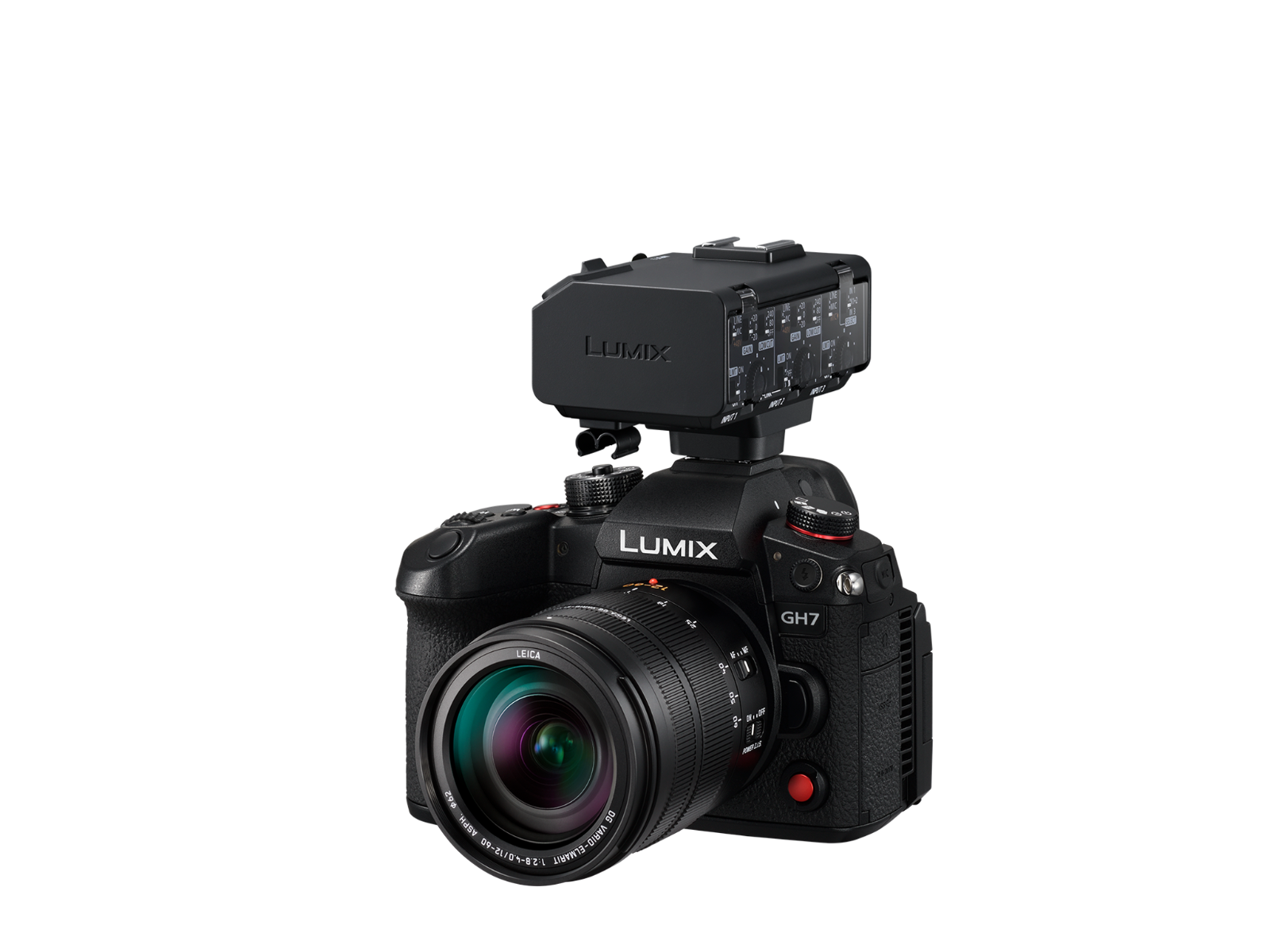

- Connects to DC-GH7/GH6 through Hot Shoe
- Provides Two XLR Audio Inputs
- One 3.5mm Stereo Mini Jack Input
- Control Panel with Clear Cover
- Recording at up to 96 kHz, 32-Bit Float
- 48V Phantom Power on XLR or 3.5mm
- Cable Clamp for Wire Management
- Additional Shoe Mount on Top of Unit
- Powered by Camera
- MPN - DMW-XLR2E
- GTIN - 5025232966110
