DJI SDR Transmission Combo
Skip to product information
View full item details
View Full Details
Learn More
More details here.
$819.00
Sale price
$819.00
Description
- SDR Transmission, Stable & Anti-Interference
- Strong Penetration, Extended Transmission Distance
- 20Mbps High Bitrate, 1080p FHD Image Quality
- Innovative USB-C Monitoring Experience
- Broadcast Mode, Unlimited Number of Receivers
- Ronin Compatibility & Remote Control
Delivery
Australia
Standard Shipping 4-7 business days: AU $8.95*
Express Shipping 1-3 business days: AU $15*
International Shipping
New Zealand 9-12 business days: AU$21*
*During peak promotional periods, please allow additional time for your order dispatch.
Returns
While we can’t offer a refund or replacement if you simply change your mind, we’re here to help if your item has a problem under Australian Consumer Law. You may be entitled to a refund or exchange if an item has a major problem. This is when the item:
- has a problem that would have stopped someone from buying the item if they had known about it
- is unsafe
- is significantly different from the sample or description
- doesn't do what we said it would, or what you asked for and can't be easily fixed
If the problem is not major, we will repair the item within a reasonable time. If it can’t be repaired in a reasonable time, we’ll offer a suitable resolution such as a refund or replacement. Please keep your proof of purchase — e.g. your receipt.
Description
- SDR Transmission, Stable & Anti-Interference
- Strong Penetration, Extended Transmission Distance
- 20Mbps High Bitrate, 1080p FHD Image Quality
- Innovative USB-C Monitoring Experience
- Broadcast Mode, Unlimited Number of Receivers
- Ronin Compatibility & Remote Control
Delivery
Australia
Standard Shipping 4-7 business days: AU $8.95*
Express Shipping 1-3 business days: AU $15*
International Shipping
New Zealand 9-12 business days: AU$21*
*During peak promotional periods, please allow additional time for your order dispatch.
Returns
While we can’t offer a refund or replacement if you simply change your mind, we’re here to help if your item has a problem under Australian Consumer Law. You may be entitled to a refund or exchange if an item has a major problem. This is when the item:
- has a problem that would have stopped someone from buying the item if they had known about it
- is unsafe
- is significantly different from the sample or description
- doesn't do what we said it would, or what you asked for and can't be easily fixed
If the problem is not major, we will repair the item within a reasonable time. If it can’t be repaired in a reasonable time, we’ll offer a suitable resolution such as a refund or replacement. Please keep your proof of purchase — e.g. your receipt.
Frequently bought with

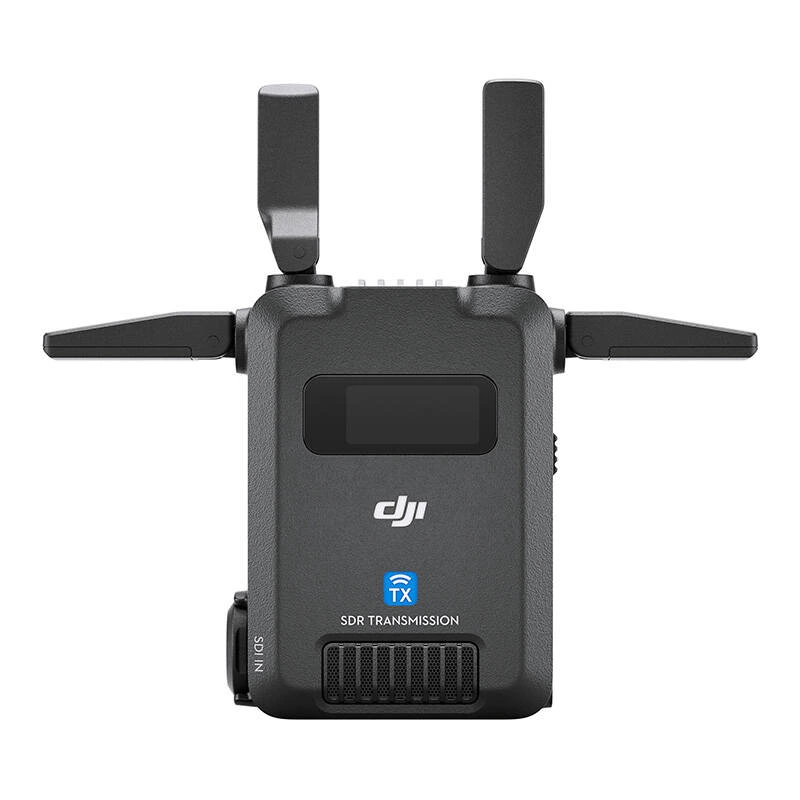

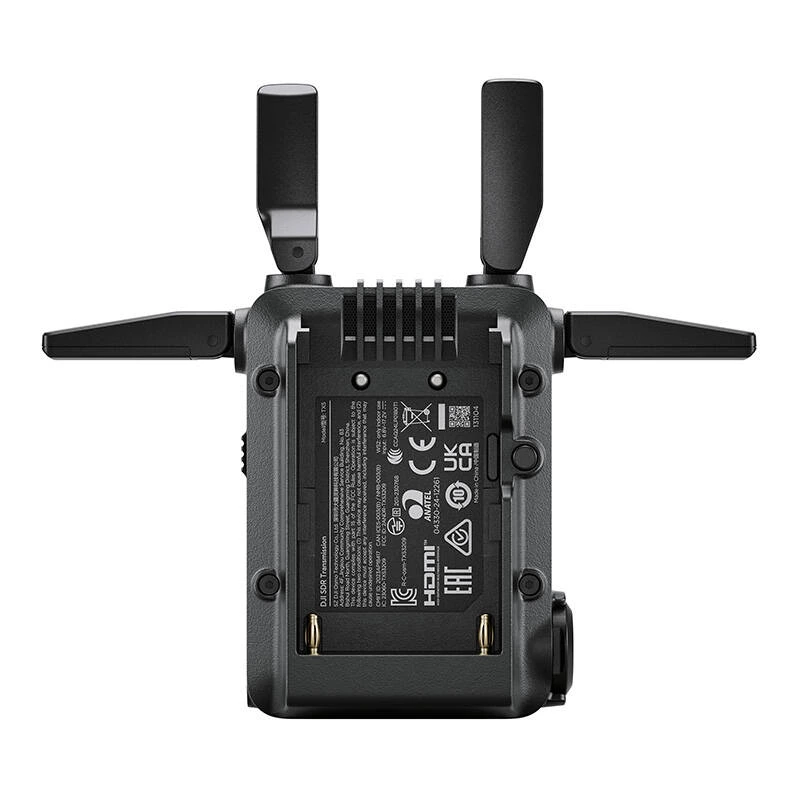

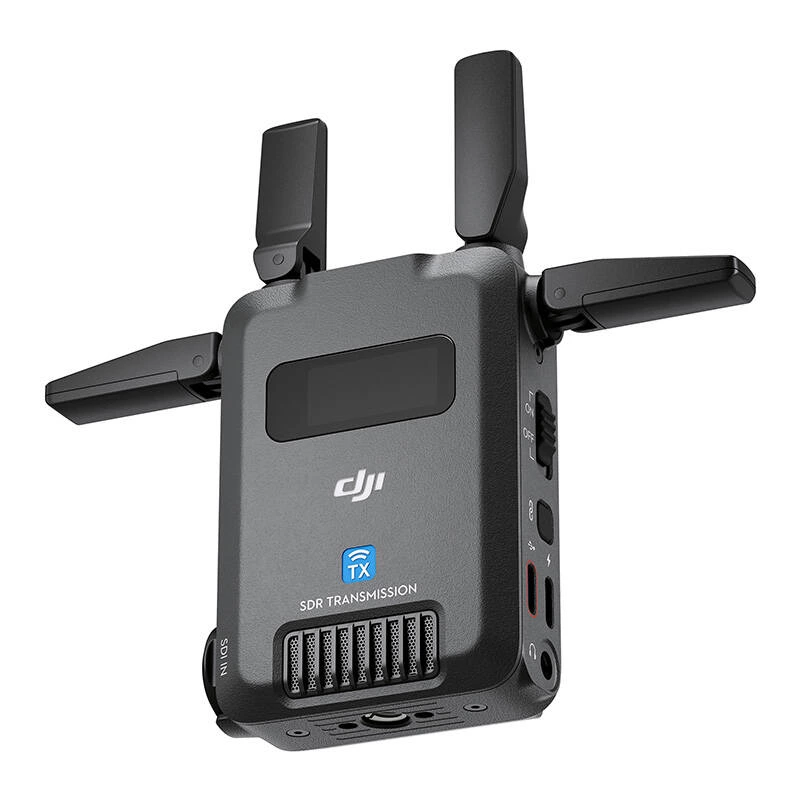

DJI SDR Transmission Transmitter (TX)
| Weight | Approx. 145 g (including antennas) |
|---|---|
| Dimensions | 86.5×64×32 mm (L×W×H, excluding antennas) |
| Ports | SDI Input Port
HDMI Input Port 3.5mm Stereo Jack USB-C Firmware Update Port USB-C Power and Gimbal Communication Port |
| Operating Frequency | SDR Operating Frequency
Non-DFS Frequency Band: 2.4000-2.4835 GHz 5.725-5.850 GHz DFS Frequency Band: 5.470-5.725 GHz 5.8 GHz is prohibited in some countries/regions. Check local laws and regulations for more information. 5.600-5.650 GHz is not used. |
| Wi-Fi Operating Frequency | 2.4000-2.4835 GHz
5.150-5.250 GHz |
| Transmitter Power (EIRP) | SDR: 2.4000-2.4835 GHz: < 30 dBm (FCC)
< 20 dBm (SRRC/CE/MIC) 5.470-5.725 GHz: < 30 dBm (FCC) < 23 dBm (CE/MIC) 5.725-5.850 GHz: < 30 dBm (FCC) < 14 dBm (CE) ＜30 dBm (SRRC) |
| Wi-Fi | 2.4000-2.4835 GHz:
< 26 dBm (FCC) < 20 dBm (SRRC/CE/MIC) 5.150-5.250 GHz: < 26 dBm (FCC) < 23 dBm (SRRC/CE/MIC) |
| Wi-Fi Protocol | 802.11b/a/g/n/ac/ax
Supports 2×2 MIMO Wi-Fi |
| Max Bandwidth | SDR: 20 MHz
Wi-Fi: 20 MHz |
| Max Bandwidth | SDR: 20 MHz
Wi-Fi: 20 MHz Wi-Fi: 8 Mbps * Measured in Control mode, with Broadcast mode turned off. |
| Power Consumption | 8.2 W
Measured at a room temperature of 25° C (77° F), when linked in Control mode, at a distance of approximately 10 meters, in a 1T1R setup, with Wi-Fi turned off, using PD for power supply. |
| Power Supply | USB-C Power Supply Type 1: 9 V, 2 A (PD protocol)
USB-C Power Supply Type 2: 6.8-17.2 V DC NP-F Battery Power Supply Voltage: 6.8-8.4 V |
| Input Video Format | 1080p: 23.98/24/25/29.97/30/50/59.94/60fps
1080i: 50/50.94/60fps (1080i is not available in Broadcast mode). 720p: 50/59.94/60fps |
| Input Audio Format | SDI embedded, HDMI embedded |
| Video Transmission System | SDR + Wi-Fi |
| Video Transmission Latency | SDR: 80 ms (including camera and screen display latency)
35 ms (excluding camera and screen display latency) Wi-Fi: 110 ms Measured when shooting 1080p/60fps video with Broadcast mode turned off. Measured when shooting 1080p/60fps video. |
| Video Coding Format | H.264 |
| Max Transmission Distance | SDR: 3 km (FCC)
2 km (CE/SRRC/MIC) Wi-Fi: 200 m Measured in Control mode, with Broadcast mode turned off. |
| Operating Temperature | -10° to 40° C (14° to 104° F) |
DJI SDR Transmission Receiver (RX)
| Max Bandwidth | 20 MHz |
|---|---|
| Max Bitrate | 20 Mbps
Measured in Control mode, with Broadcast mode turned off. |
| Power Consumption | 8.3 W
Measured at a room temperature of 25° C (77° F), when linked in Control mode, at a distance of approximately 10 meters, in a 1T1R setup, with Wi-Fi turned off, using PD for power supply. |
| Power Supply | USB-C Power Supply 1: 9 V, 2 A (PD protocol)
USB-C Power Supply 2: 6.8-17.2 V DC NP-F Battery Power Supply Voltage: 6.8-8.4V |
| Output Video Format | 1080p: 23.98/24/25/29.97/30/50/59.94/60fps
1080i: 50/50.94/60fps (1080i is not available in Broadcast mode). 720p: 50/59.94/60fps |
| Output Audio Format | PCM |
| Video Transmission System | SDR |
| Video Transmission Latency | 80 ms (including camera and screen display latency)
35 ms (excluding camera and screen display latency) Measured when shooting 1080p/60fps video with Broadcast mode turned off. |
| Video Coding Format | H.264 |
| Max Transmission Distance | 3 km (FCC)
2 km (CE/SRRC/MIC) Measured in Control mode, with Broadcast mode turned off. |
| Operating Temperature | -10° to 40° C (14° to 104° F) |

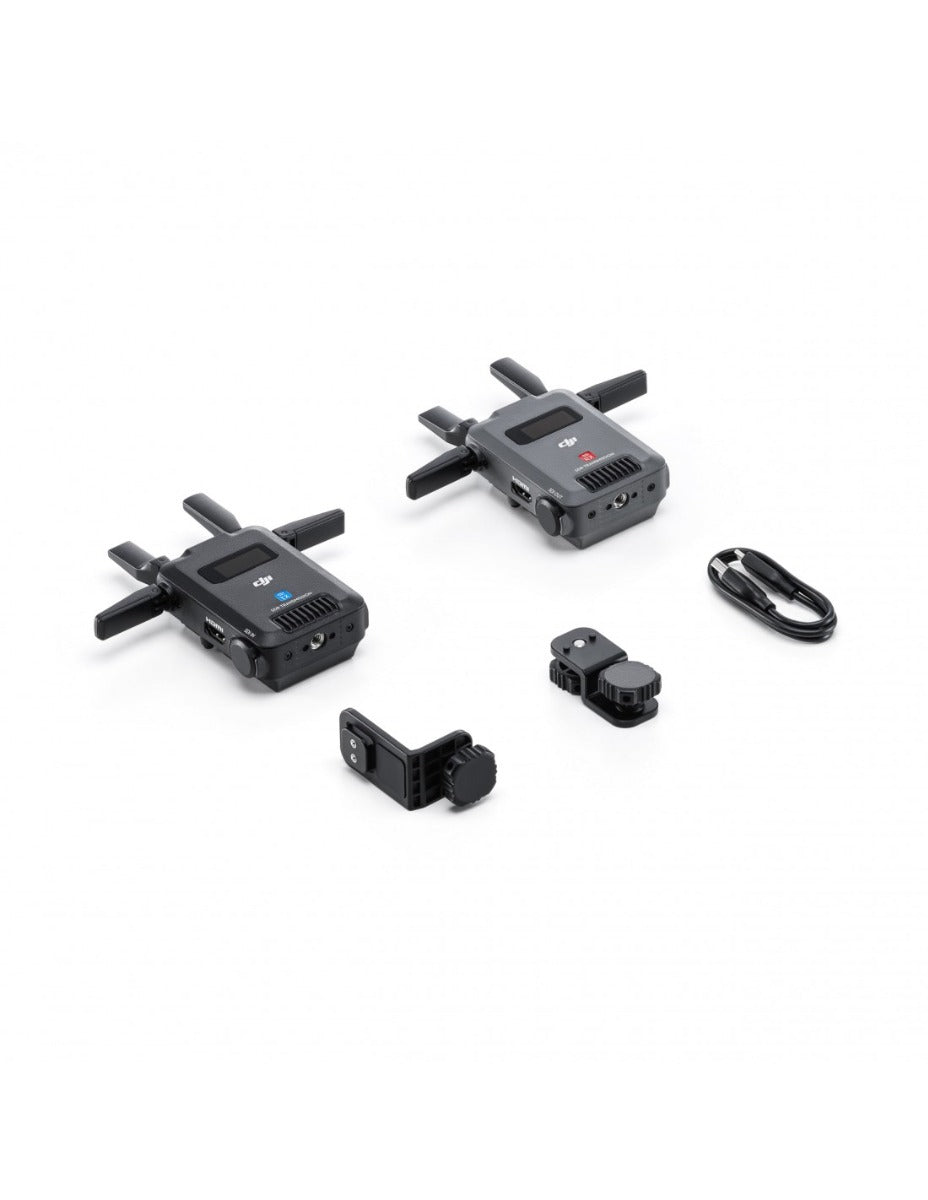

- DJI SDR Transmission Combo
- DJI SDR Transmission Transmitter (TX)
- DJI SDR Transmission Receiver (RX)
- USB-A to USB-C Cable (43 cm)
- TX Camera Mounting Adapter Plate
- TX Gimbal Mounting Adapter Plate
0
Meet DJI SDR Transmission Combo a revolutionary video transmission system built for professionals. With advanced SDR technology, DJI SDR Transmission offers stable transmission with a long range of up to 3 km, a minimum latency of only 35 ms, and excellent 1080p image quality at 60 fps. The system is extremely flexible, allowing for multi-frequency transmission, simultaneous connection to an unlimited number of receivers, and easy integration with professional ARRI and RED cameras. Discover a new quality of broadcasting and take your projects to the next level of professionalism! The kit includes a transmitter (TX), receiver (RX), connection cable and two adapters.
Key Features of the DJI SDR Transmission Combo
- SDR Transmission, Stable & Anti-Interference
- Strong Penetration, Extended Transmission Distance
- 20Mbps High Bitrate, 1080p FHD Image Quality
- Innovative USB-C Monitoring Experience
- Broadcast Mode, Unlimited Number of Receivers
- Ronin Compatibility & Remote Control
SDR Transmission, Stable & Anti-Interference
DJI SDR Transmission utilizes SDR technology to offer enhanced stability, interference resistance, and penetration capabilities. It also supports transmitting directly to smartphones or tablets via Wi-Fi.
Strong Penetration, Extended Transmission Distance
DJI SDR Transmission
features a transmission distance of up to 3 km/10,000 ft, suitable for wide-area mobile filming scenarios, and advanced penetration capabilities
20Mbps High Bitrate, 1080p FHD Image Quality
DJI SDR Transmission supports 1080p/60fps video specifications with a transmission bitrate of up to 20 Mbps and a minimal latency of just 35 ms.
Innovative USB-C Monitoring Experience
DJI SDR Transmission introduces a USB-C output monitoring method. Users can now use a USB-C cable to connect the receiver to a smartphone or tablet.
roadcast Mode, Unlimited Number of Receivers
In Broadcast mode, each transmitter can connect to an unlimited number of receivers, providing a high-quality monitoring experience.
Ronin Compatibility & Remote Control
DJI SDR Transmission supports control of the RS series stabilizers, remote camera control, various monitoring assistance, and camera source switching.
- MPN - DJISDRTRANS-CB
- GTIN - 6941565984012
