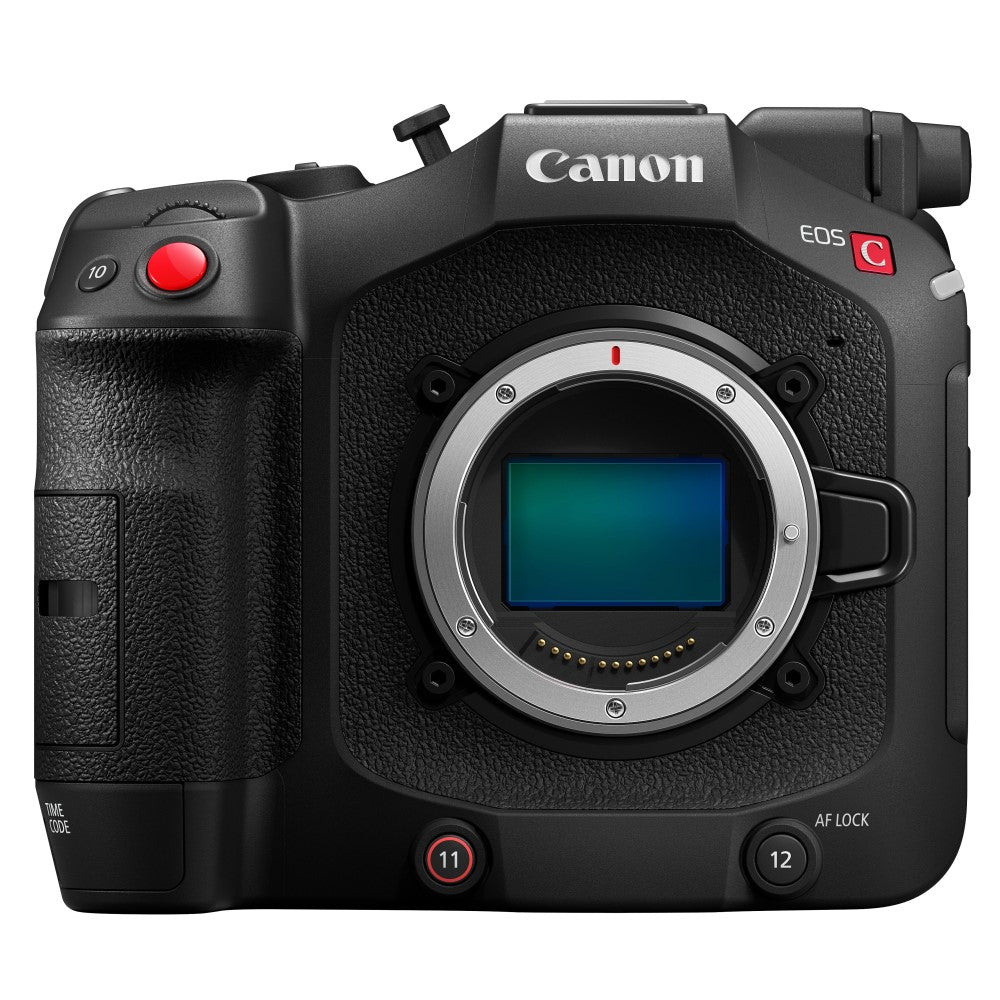

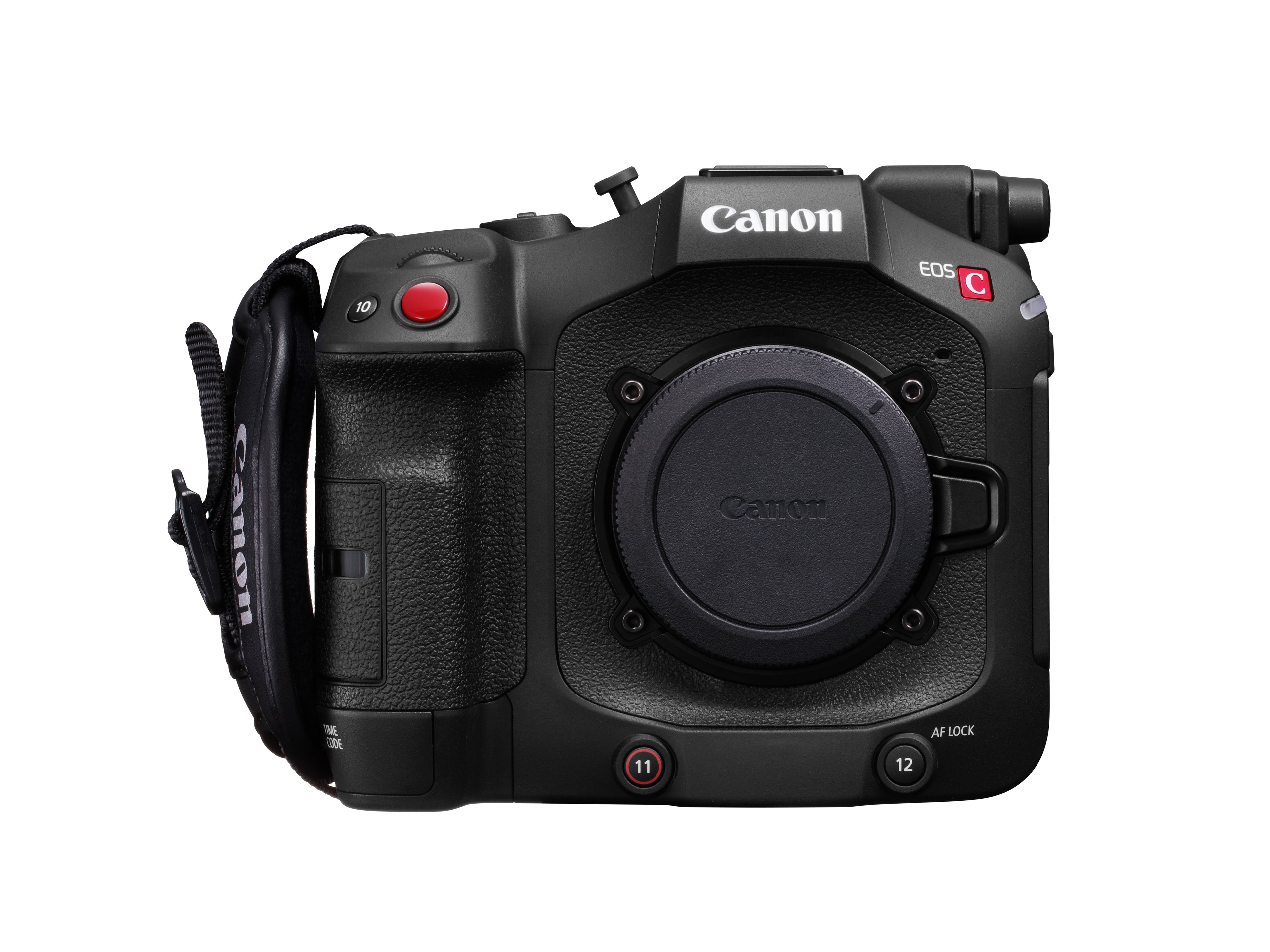

Canon EOS C80 Cinema Body
Skip to product information
View full item details
View Full Details
Learn More
More details here.
$6,730.00
Sale price
$6,730.00
Description
- 6K FF Back-Illuminated CMOS Sensor
- 6K30, DCI 4K/2K, UHD 4K120 S35 Recording
- Full Frame and Super35 Modes
- 12G-SDI and HDMI Simultaneous Output
- Triple-Base ISO: 800, 3200, 12,800
- Cinema Raw Light LT, HEVC, AVC Codecs
- 16+ Stops of Total Dynamic Range
- Dual-Pixel CMOS AF II, Built-In NDs
- 1 x BNC Timecode, 2 x Mini-XLR Audio In
- 2 x SD Card Slots, LUT/Long GOP Support
Delivery
Australia
Standard Shipping 4-7 business days: AU $8.95*
Express Shipping 1-3 business days: AU $15*
International Shipping
New Zealand 9-12 business days: AU$21*
*During peak promotional periods, please allow additional time for your order dispatch.
Returns
While we can’t offer a refund or replacement if you simply change your mind, we’re here to help if your item has a problem under Australian Consumer Law. You may be entitled to a refund or exchange if an item has a major problem. This is when the item:
- has a problem that would have stopped someone from buying the item if they had known about it
- is unsafe
- is significantly different from the sample or description
- doesn't do what we said it would, or what you asked for and can't be easily fixed
If the problem is not major, we will repair the item within a reasonable time. If it can’t be repaired in a reasonable time, we’ll offer a suitable resolution such as a refund or replacement. Please keep your proof of purchase — e.g. your receipt.
Description
- 6K FF Back-Illuminated CMOS Sensor
- 6K30, DCI 4K/2K, UHD 4K120 S35 Recording
- Full Frame and Super35 Modes
- 12G-SDI and HDMI Simultaneous Output
- Triple-Base ISO: 800, 3200, 12,800
- Cinema Raw Light LT, HEVC, AVC Codecs
- 16+ Stops of Total Dynamic Range
- Dual-Pixel CMOS AF II, Built-In NDs
- 1 x BNC Timecode, 2 x Mini-XLR Audio In
- 2 x SD Card Slots, LUT/Long GOP Support
Delivery
Australia
Standard Shipping 4-7 business days: AU $8.95*
Express Shipping 1-3 business days: AU $15*
International Shipping
New Zealand 9-12 business days: AU$21*
*During peak promotional periods, please allow additional time for your order dispatch.
Returns
While we can’t offer a refund or replacement if you simply change your mind, we’re here to help if your item has a problem under Australian Consumer Law. You may be entitled to a refund or exchange if an item has a major problem. This is when the item:
- has a problem that would have stopped someone from buying the item if they had known about it
- is unsafe
- is significantly different from the sample or description
- doesn't do what we said it would, or what you asked for and can't be easily fixed
If the problem is not major, we will repair the item within a reasonable time. If it can’t be repaired in a reasonable time, we’ll offer a suitable resolution such as a refund or replacement. Please keep your proof of purchase — e.g. your receipt.
Frequently bought with
The Canon EOS C80 Cinema Camera is a groundbreaking RF mount cinema camera poised to revolutionise filmmaking and live production, with a native RF-mount and full-frame, back-illuminated stacked CMOS sensor, designed for filmmakers that require a full-featured camera in a compact body.. Building upon the legacy of the acclaimed EOS R5 C and EOS C70, the EOS C80 seamlessly blends cutting-edge technology with a compact and ergonomic design, empowering professionals to capture cinematic visuals with greater ease.
Key Features of the Canon EOS C80 Cinema Body
- 6K FF Back-Illuminated CMOS Sensor
- 6K30, DCI 4K/2K, UHD 4K120 S35 Recording
- Full Frame and Super35 Modes
- 12G-SDI and HDMI Simultaneous Output
- Triple-Base ISO: 800, 3200, 12,800
- Cinema Raw Light LT, HEVC, AVC Codecs
- 16+ Stops of Total Dynamic Range
- Dual-Pixel CMOS AF II, Built-In NDs
- 1 x BNC Timecode, 2 x Mini-XLR Audio In
- 2 x SD Card Slots, LUT/Long GOP Support
6K Full-Frame Back-Illuminated Stacked CMOS Sensor
The Canon EOS C80 camera features a 6K full-frame, back-illuminated CMOS sensor, with triple-base ISO, allowing the camera to deliver stunning imagery in a wide range of lighting conditions. The base ISOs of 800, 3200, and 12,800 maximize the full dynamic range of the camera.
The EOS C80 camera also features Canon’s latest Dual Pixel CMOS Autofocus, Dual Pixel AF II. The back-illuminated stacked sensor’s positioning offers superb light-capturing efficiency, which widens the area of the sensor that can be used for autofocusing. The sensor also empowers fast readout speed, as well as amazing 4K image quality from 6K oversampling.
12-G SDI and a Variety of Interfaces
In addition to moving to a full-frame sensor, the EOS C80 camera has also stepped up from its predecessor by adding 12G-SDI output, which enables uncompressed transfer of your video signal with a secure cable connection. The camera’s design includes a variety of other interfaces including HDMI, mini-XLR audio inputs, time code, built-in Wi-Fi® connectivity, and Ethernet. This internet connectivity enables the camera to be controlled remotely via our IP-based XC Protocol using Canon’s Remote Camera Control Application (available for free on the Canon USA Website), or our Multi-Camera Control App for iPhone (available for free on the App Store).

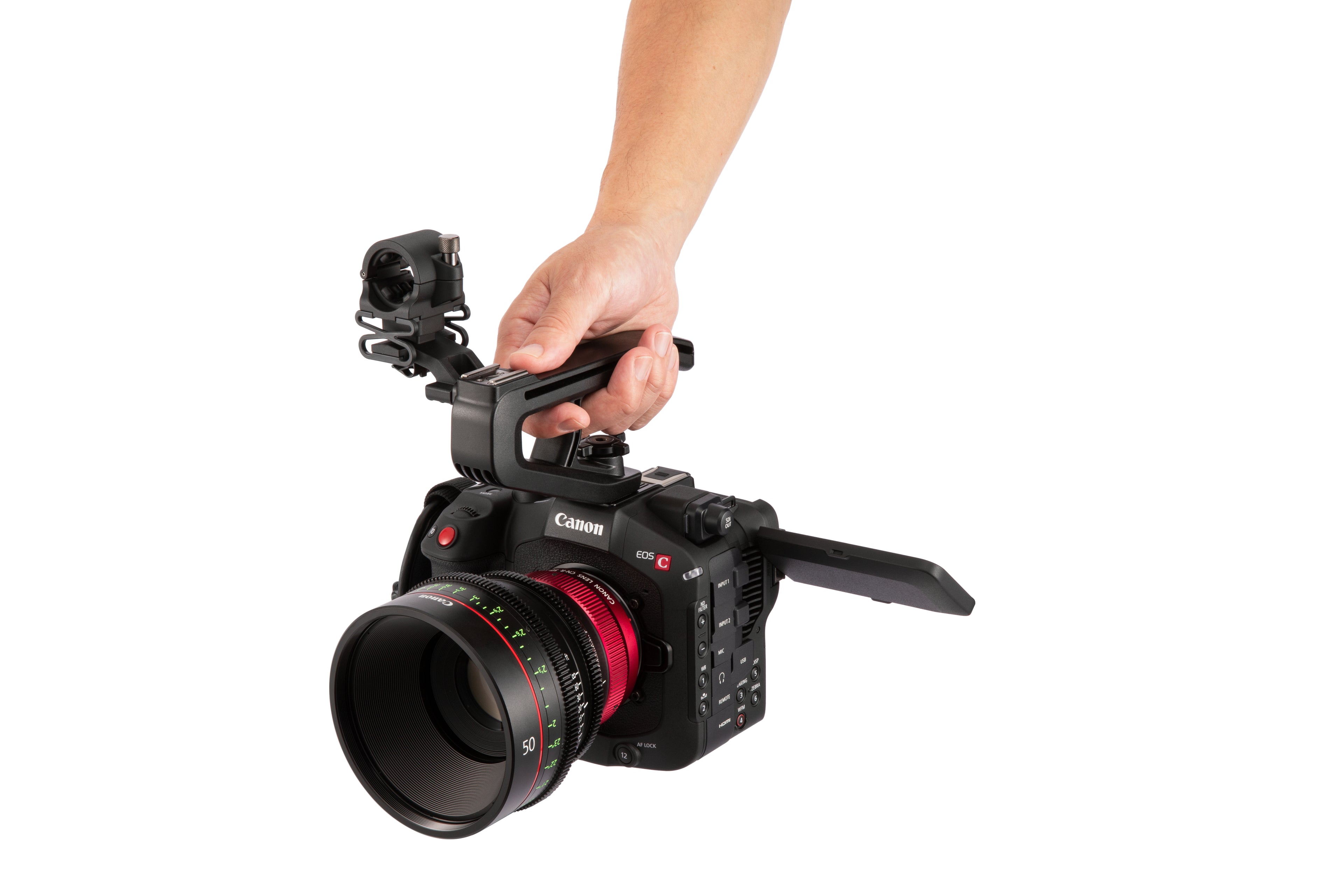

Compact Design
The compact and lightweight EOS C80 camera is suitable on a drone, gimbal, tripod, or in any configuration where compact size and light weight are important.
The camera is ergonomically designed with a new, lightweight handle assembly. The Multi-function Shoe is located just above the LCD screen and the joystick controller provides easy control and menu navigation.
Recording Options
The EOS C80 camera can record up to 6K 30P in Cinema RAW Light. Other recording options include our standard XF-AVC codec which can record in 10-bit 4:2:2 with oversampling from the 6K sensor, creating rich detail and smooth imagery without the need for cropping the image from the sensor. Furthermore, autofocus is enabled when recording in slow or fast motion at up to 4K 120P.
Additionally, the EOS C80 camera has two more recording codecs, XF-AVC S and XF-HEVC S. These formats were first introduced with the EOS C400 camera and feature an easy-to-manage naming system and folder structure, while recording in the familiar MP4 format and preserving metadata.
- MPN - C80
- GTIN - TBA
Imaging
| Lens Mount | Canon RF |
|---|---|
| Lens Communication | Yes: Cooke /i |
| Image Sensor | Full-Frame BSI Stacked CMOS |
| Sensor Resolution | Effective: 19.05 Megapixel (6008 x 3170) Actual: 26.67 Megapixel (6202 x 4300) |
| Image Stabilization | Digital, 5-Axis |
| Built-In ND Filter | Mechanical Filter Wheel with 2-Stop (1/4), 4-Stop (1/16), 6-Stop (1/64), 8-Stop (1/256), 10-Stop (1/1024) ND Filters |
| Internal Filter Holder | No |
| Capture Type | Stills & Video |
Exposure Control
| Shutter Type | Electronic Rolling Shutter |
|---|---|
| Shutter Speed | 1/2000 to 1 Second |
| Shutter Angle | 11.25 to 360° |
| ISO/Gain Sensitivity | Native: 100 to 102,400 |
| Advertised Dynamic Range | 16 Stops |
| White Balance | Range: 2000 to 15,000K Presets: AWB, Daylight, Set A, Set B, Tungsten |
Focus
| Focus Mode | Continuous-Servo AF, Focus Lock AF Area Mode, Manual Focus, One-Shot AF |
|---|
Video Capture
| Internal Recording | Cinema RAW Light 12-Bit 6000 x 3164 at 23.98/24.00/25/29.97 fps (553 to 639 Mb/s) 4368 x 2304 at 23.98/24.00/25/29.97/50/59.94 fps (293 to 678 Mb/s) XF-AVC S Intra 4:2:2 8/10-Bit 4096 x 2160 at 50/59.94/120 fps (150 to 600 Mb/s) 3840 x 2160 at 23.98/24.00/25/29.97/50/59.94/120 fps (150 to 500 Mb/s) 2048 x 1080 at 23.98/24.00/25/29.97/50/59.94/120/180 fps (35 to 300 Mb/s) 1920 x 1080 at 23.98/24.00/25/29.97/50/59.94/120/180 fps (35 to 300 Mb/s) XF-AVC S Long GOP 4:2:0 8-Bit 4096 x 2160 at 50/59.94/120 fps (150 Mb/s) 3840 x 2160 at 23.98/24.00/25/29.97/120 fps (100 Mb/s) 2048 x 1080 at 23.98/24.00/25/29.97/50/59.94/180 fps (35 Mb/s) 1920 x 1080 at 23.98/24.00/25/29.97/50/59.94/180 fps (35 Mb/s) XF-HEVC S Long GOP 4:2:2 10-Bit 4096 x 2160 at 50/59.94/120 fps (225 Mb/s) 3840 x 2160 at 23.98/24.00/25/29.97/120 fps (135 Mb/s) 2048 x 1080 at 23.98/24.00/25/29.97/30.00/50/59.94/180 fps (50 Mb/s) 1920 x 1080 at 23.98/24.00/25/29.97/30.00/50/59.94/180 fps (50 Mb/s) XF-HEVC S Long GOP 4:2:0 10-Bit 4096 x 2160 at 50/59.94/120 fps (150 Mb/s) 3840 x 2160 at 23.98/24.00/25/29.97/120 fps (100 Mb/s) 2048 x 1080 at 23.98/24.00/25/29.97/50/59.94/180 fps (35 Mb/s) 1920 x 1080 at 23.98/24.00/25/29.97/59.94/180 fps (35 Mb/s) XF-HEVC S Intra 4:2:0 8-Bit 2048 x 1080 at 23.98/24.00/25/29.97/50/59.94 fps (9 to 16 Mb/s) 1920 x 1080 at 23.98/24.00/25/29.97/50/59.94/60.00 fps (9 to 16 Mb/s) 1280 x 720 at 23.98/24.00/25/29.97/50/59.94 fps (6 Mb/s) **Sensor Crops During Recording** XF-HEVC S Long GOP 4:2:0 10-Bit 2048 x 1080 at 23.98/24.00/25/29.97/50/59.94/60.00 fps (9 to 16 Mb/s) 1920 x 1080 at 23.98/24.00/25/29.97/50/59.94 fps (9 to 16 Mb/s) XF-HEVC S Long GOP 4:2:0 8-Bit 1280 x 720 at 23.98/24.00/25/50/59.94 fps (6 Mb/s) |
|---|---|
| Video Output | via HDMI / SDI/BNC / USB 4096 x 2160 |
| Fast-/Slow-Motion Support | Yes |
| Gamma Curve | Canon Log 2, Canon Log 3, HDR-HLG, Rec709, Rec2020 |
| Built-In Microphone | Stereo |
| Audio Recording | Cinema RAW Light: 4-Channel, 24-Bit at 48 kHz via LPCM Audio XF-AVC: 4-Channel, 24-Bit at 48 kHz via LPCM Audio XF-AVC S, XF-HEVC S: 4-Channel, 24-Bit at 48 kHz via LPCM Audio XF-AVC S, XF-HEVC S: 2-Channel, 16-Bit at 48 kHz via AAC Audio |
| IP Streaming | H.264, MPEG2, RTP, RTSP, SRT, UDP 1920 x 1080 at 50i, 50p, 59.94i, 59.94p (4.0 to 9.0 Mb/s) |
Interface
| Media/Memory Card Slot | Dual Slot: SD/SDHC/SDXC |
|---|---|
| Internal Storage | No |
| Video I/O | 1x BNC (12G-SDI) Output 1x HDMI Output |
| Audio I/O | 2x Mini XLR Input 1x 1/8" / 3.5 mm TRS Stereo Microphone Input on Camera Body 1x 1/8" / 3.5 mm TRS Stereo Headphone Output |
| Power I/O | 1x Barrel (23.7 to 25VDC) Input |
| Other I/O | 1x RJ45 (XC) Control 1x USB-C Monitor 1x BNC (Timecode) (Shared with Video Output) 1x 2.5 mm Sub-Mini (LANC) Control |
| Wireless | Wi-Fi 5 (802.11ac) |
| Mobile App Compatible | Yes: iOS Only App Name: Remote Camera Control App Functionality: Adjust Settings, Remote Control, View Live Feed |
| Global Positioning (GPS, GLONASS, etc.) | No |
Monitor
| Display Type | Primary Monitor: Included External 3.5" Touchscreen LCD |
|---|---|
| Resolution | Primary Monitor: 1280 x 720 |
Power
| Battery | Canon BP-AN Series |
|---|---|
| Power Consumption | ≤19.6 W |
Environmental
| Operating Conditions | 32 to 104°F / 0 to 40°C up to 85% Humidity |
|---|---|
| Storage Conditions | 23 to 113°F / -5 to 45°C up to 60% Humidity |
General
| Shoe Mount | 1x Intelligent Hot Shoe |
|---|---|
| Tripod Mount | 2x 1/4"-20 Female 1x 3/8"-16 Female |
| Netflix Approved | Yes |
| Dimensions (W x H x D) | 6.3 x 5.4 x 4.6" / 160 x 138 x 116 mm 10.9 x 6.8 x 6.3" / 276 x 173 x 160 mm (With Handle, Included Battery, Mic Holder) |
| Weight | 3 lb / 1.30 kg (Body Only) 3 lb / 1.545 kg (With Battery, Handle) |
Packaging Info
| Package Weight | 6.385 lb |
|---|---|
| Box Dimensions (LxWxH) | 11 x 8.9 x 7.4" |
- Canon EOS C80 Cinema Body
- Canon BP-A30N Battery Pack
- Handle Unit
- Canon CA-CP300B Compact Power Adapter
- Canon Single Battery Charger for EOS C300 Mark II, C200, and C200B Batteries
- Microphone Holder
- SS-1200 Shoulder Strap
- Tape Measure Hook
- Grip Belt
