Description
- Desktop or portable digital-to-analog convertor
- Mac or PC plug-and-play, no drivers to install
- High-performance headphone amp included
- USB and optical inputs
- USB-powered, no separate power supply needed
- Stream bit-perfect HD audio with low jitter
- Based on high-performance AK4396 DAC
Delivery
Australia
Standard Shipping 4-7 business days: AU $8.95*
Express Shipping 1-3 business days: AU $15*
International Shipping
New Zealand 9-12 business days: AU$21*
*During peak promotional periods, please allow additional time for your order dispatch.
Returns
While we can’t offer a refund or replacement if you simply change your mind, we’re here to help if your item has a problem under Australian Consumer Law. You may be entitled to a refund or exchange if an item has a major problem. This is when the item:
- has a problem that would have stopped someone from buying the item if they had known about it
- is unsafe
- is significantly different from the sample or description
- doesn't do what we said it would, or what you asked for and can't be easily fixed
If the problem is not major, we will repair the item within a reasonable time. If it can’t be repaired in a reasonable time, we’ll offer a suitable resolution such as a refund or replacement. Please keep your proof of purchase — e.g. your receipt.
$249.00
Sale price
$249.00
BANK TRANSFER (EFT)
Description
- Desktop or portable digital-to-analog convertor
- Mac or PC plug-and-play, no drivers to install
- High-performance headphone amp included
- USB and optical inputs
- USB-powered, no separate power supply needed
- Stream bit-perfect HD audio with low jitter
- Based on high-performance AK4396 DAC
Delivery
Australia
Standard Shipping 4-7 business days: AU $8.95*
Express Shipping 1-3 business days: AU $15*
International Shipping
New Zealand 9-12 business days: AU$21*
*During peak promotional periods, please allow additional time for your order dispatch.
Returns
While we can’t offer a refund or replacement if you simply change your mind, we’re here to help if your item has a problem under Australian Consumer Law. You may be entitled to a refund or exchange if an item has a major problem. This is when the item:
- has a problem that would have stopped someone from buying the item if they had known about it
- is unsafe
- is significantly different from the sample or description
- doesn't do what we said it would, or what you asked for and can't be easily fixed
If the problem is not major, we will repair the item within a reasonable time. If it can’t be repaired in a reasonable time, we’ll offer a suitable resolution such as a refund or replacement. Please keep your proof of purchase — e.g. your receipt.
Frequently bought with
| Converter Type | D/A Converter |
|---|---|
| Number of Channels | 2 |
| Converter Circuitry | D/A Chipset:
AKM4396 Optical Chipset: CS8416 |

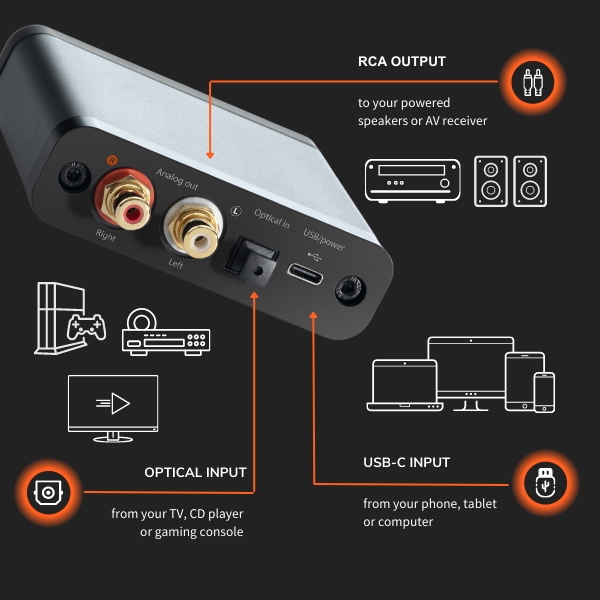

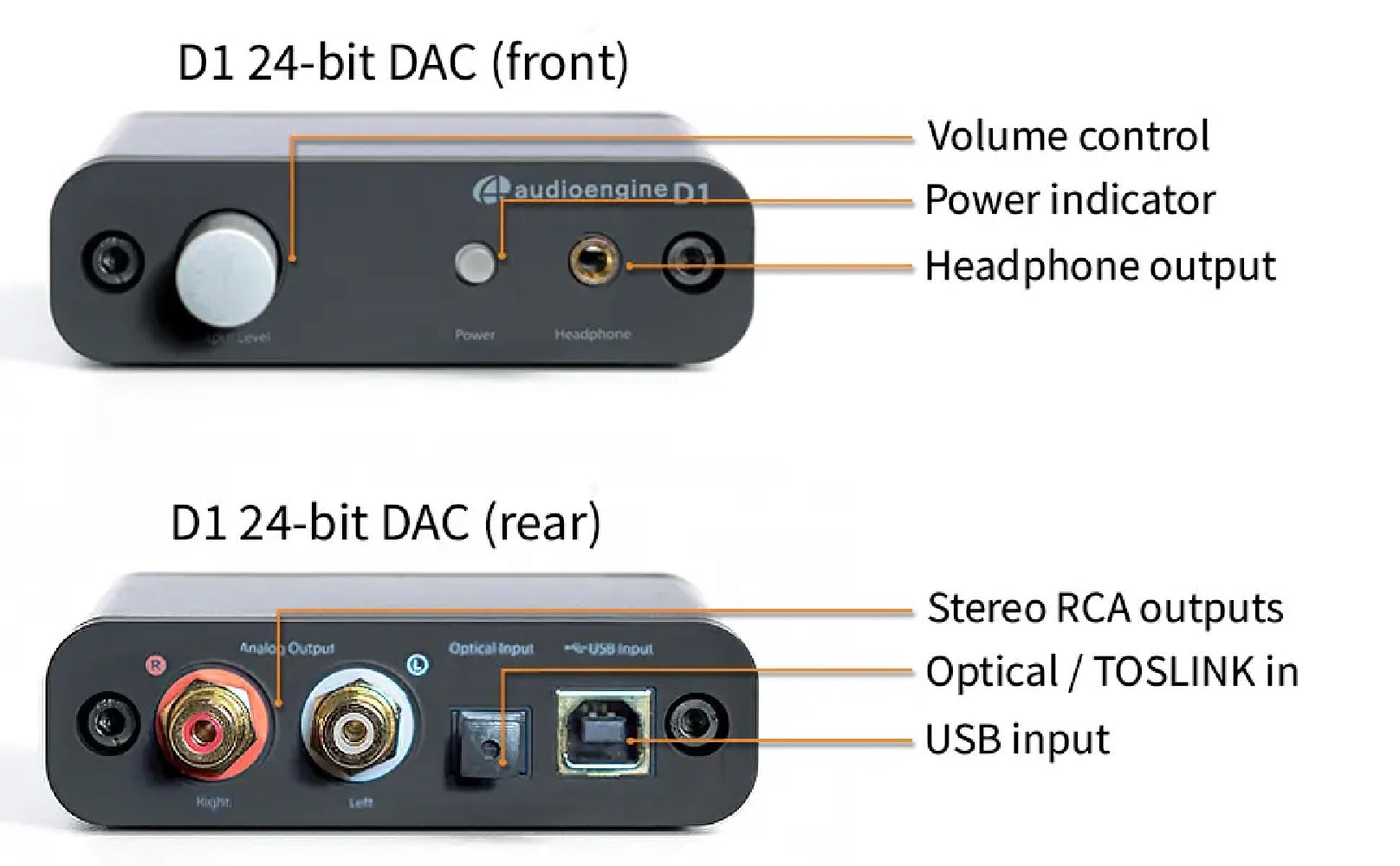

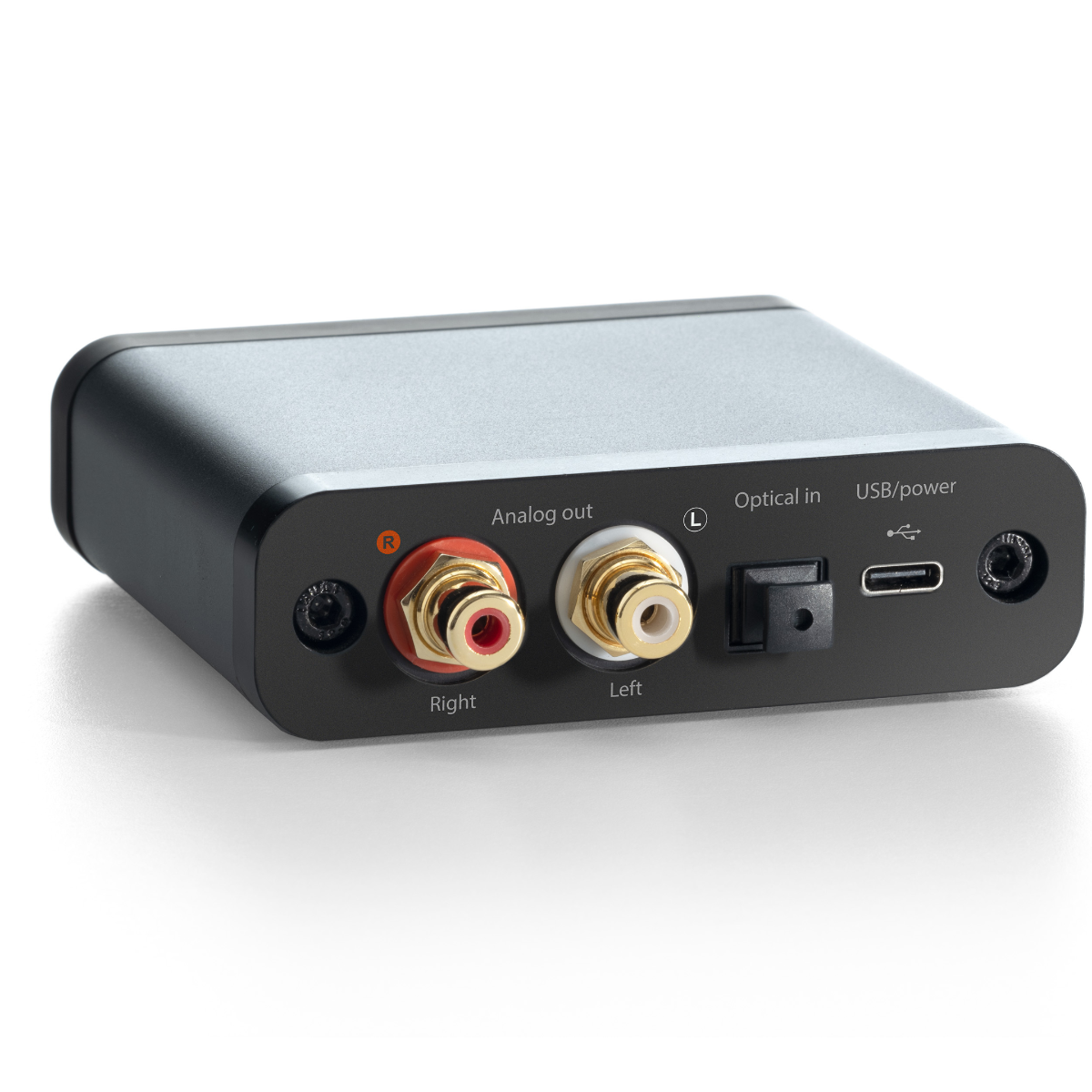

Connectivity

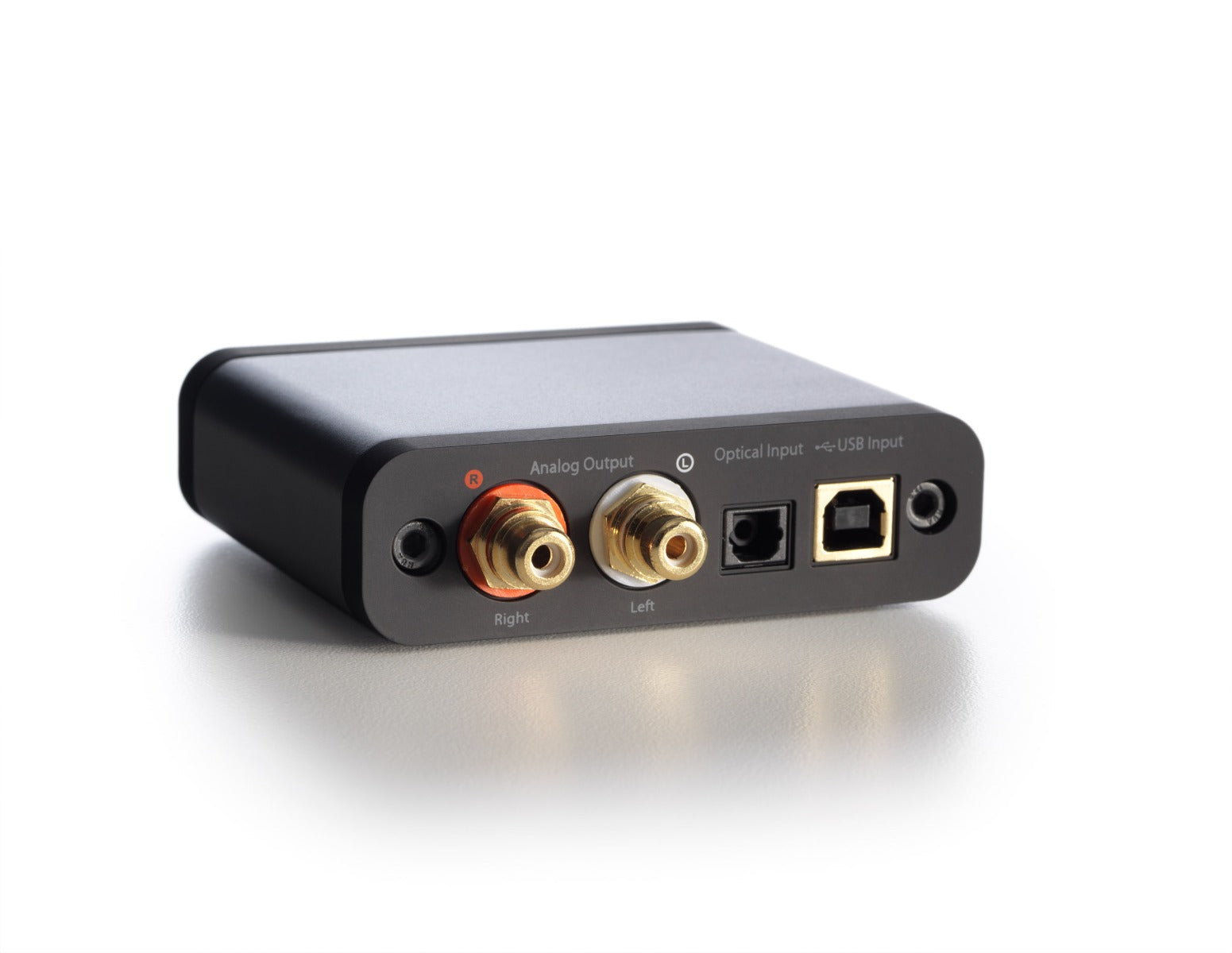

| Analog Audio I/O | 1 x Stereo RCA Coaxial Output
1 x 1/8" / 3.5 mm TRS Headphone Output |
|---|---|
| Digital Audio I/O | 1 x TOSLINK Optical S/PDIF Input |
| Host Connection / USB | 1 x USB Type-B (USB 1.1) |
| Sync I/O | None |
| Network I/O | None |
| MIDI I/O | None |
Performance
| Frequency Response | 10 Hz to 25 kHz ±0.5 dB |
|---|---|
| Max Output Level | RCA Outputs:
2 Vrms at 0 dBFS Headphone Outputs: 2 Vrms at 0 dBFS |
| Impedance | RCA Outputs:
47 Ohms Headphone Outputs: 10 Ohms |
| SNR | > 110 dB |
| THD+N | < 0 |
| Crosstalk | < -85 dB |
Digital Audio
| Sample Rates | Optical S/PDIF:
Up to 192 kHz USB Inputs: 96 kHz |
|---|---|
| Bit Depths | Up to 24-Bit |
Power
| Power Requirements | USB Bus Power |
|---|---|
| Current Consumption | 200 mA |
Physical
| Operating Humidity | 5 to 95% |
|---|---|
| Operating Temperature | 32 to 95°F / 0 to 35°C |
| Storage Temperature | -4 to 113°F / -20 to 45°C |

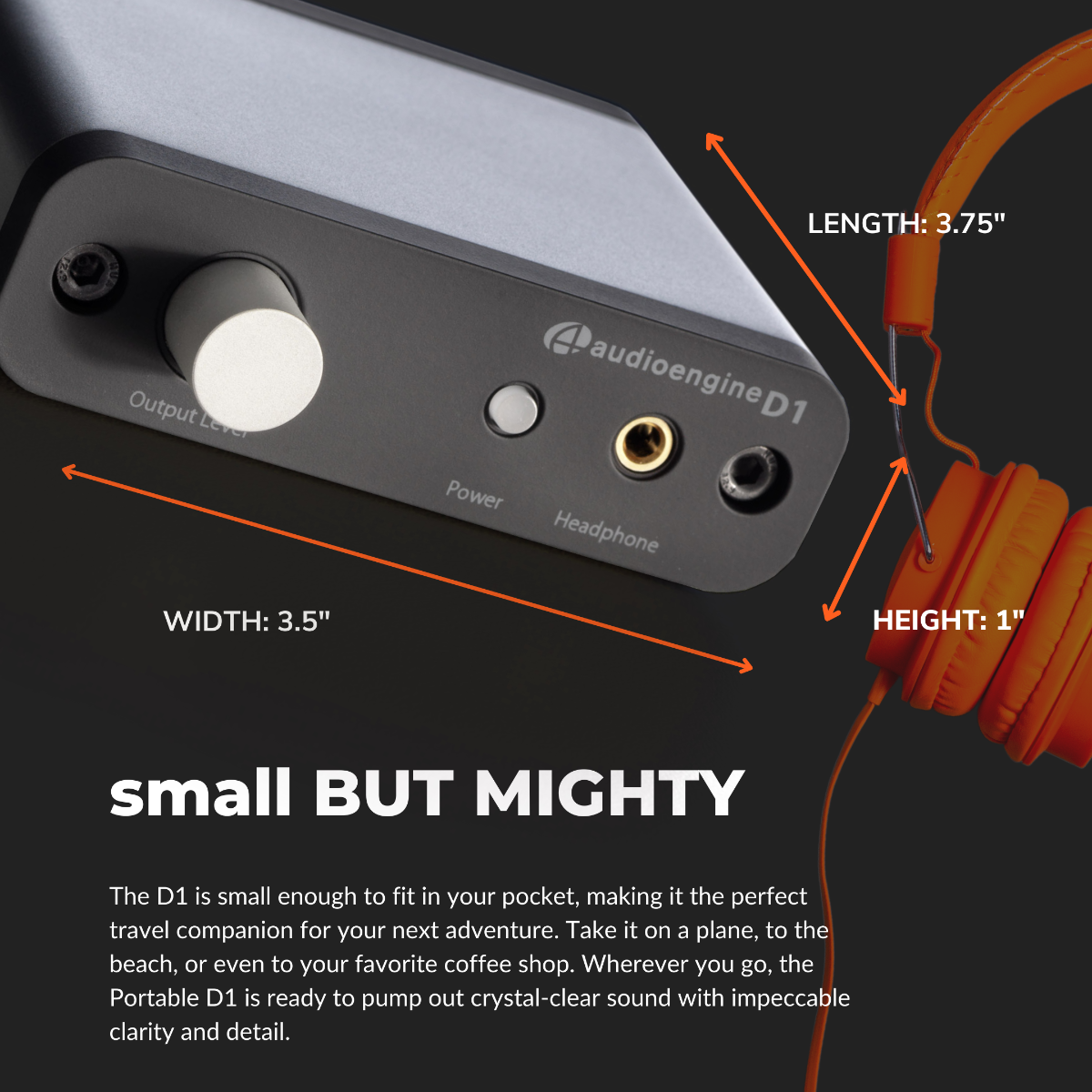

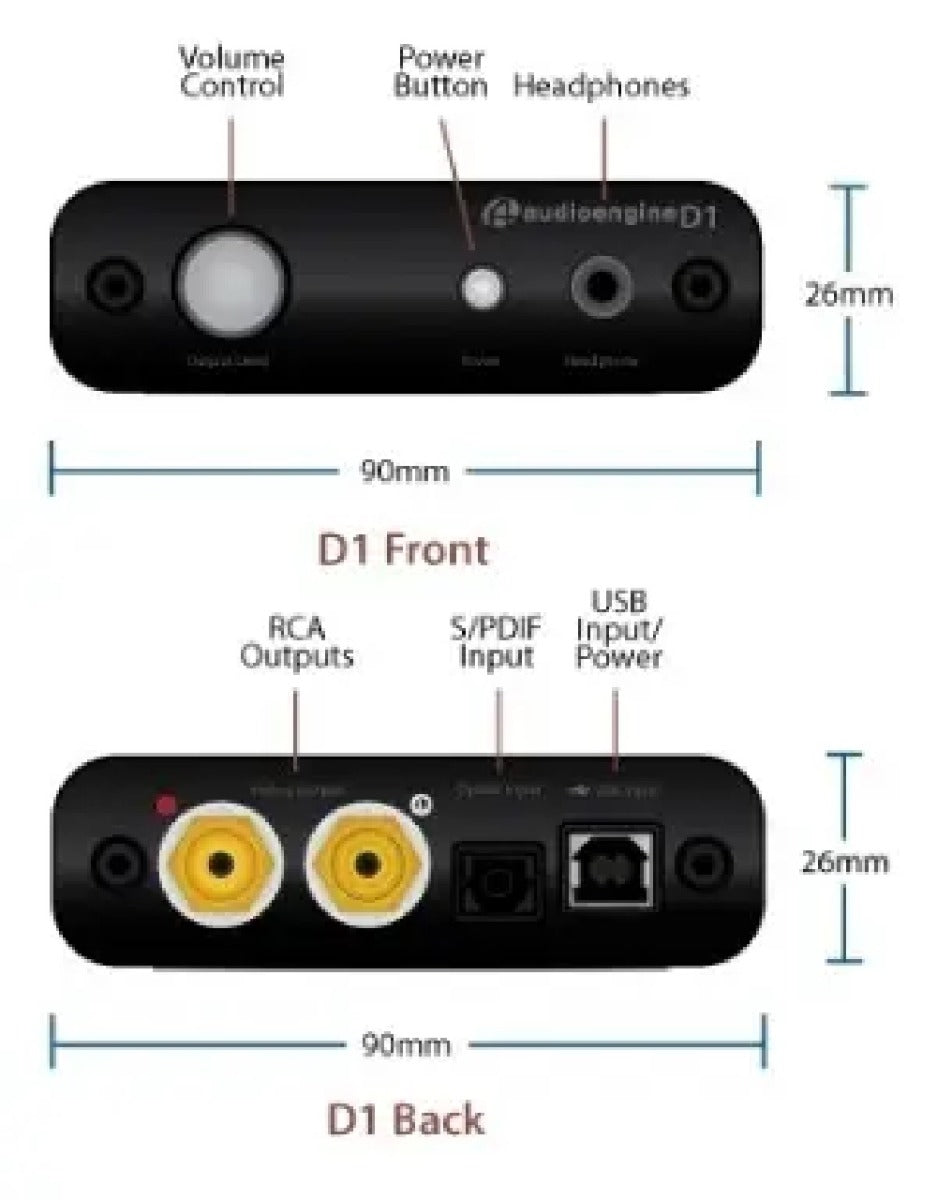

| Dimensions | 4 x 3.5 x 1" / 10.16 x 8.89 x 2.54 cm |
| Weight | 1.0 lb / 0.5 kg |
- Audioengine D1 24-Bit DAC/Headphone Amp (Gen 2)
- USB Cable 2 ft (0.6m)
- Microfiber Product Bag
0
Perfect for providing a higher quality audio signal to speakers or headphones, the Audioengine D1 24-Bit DAC/Headphone Amp (Gen 2) is a high quality 24-bit DAC and headphone amplifier for your computer, smartphone, TV, and more. The D1 connects to your device’s USB port or Optical output without special software to download, making the D1 quick and easy to set up.

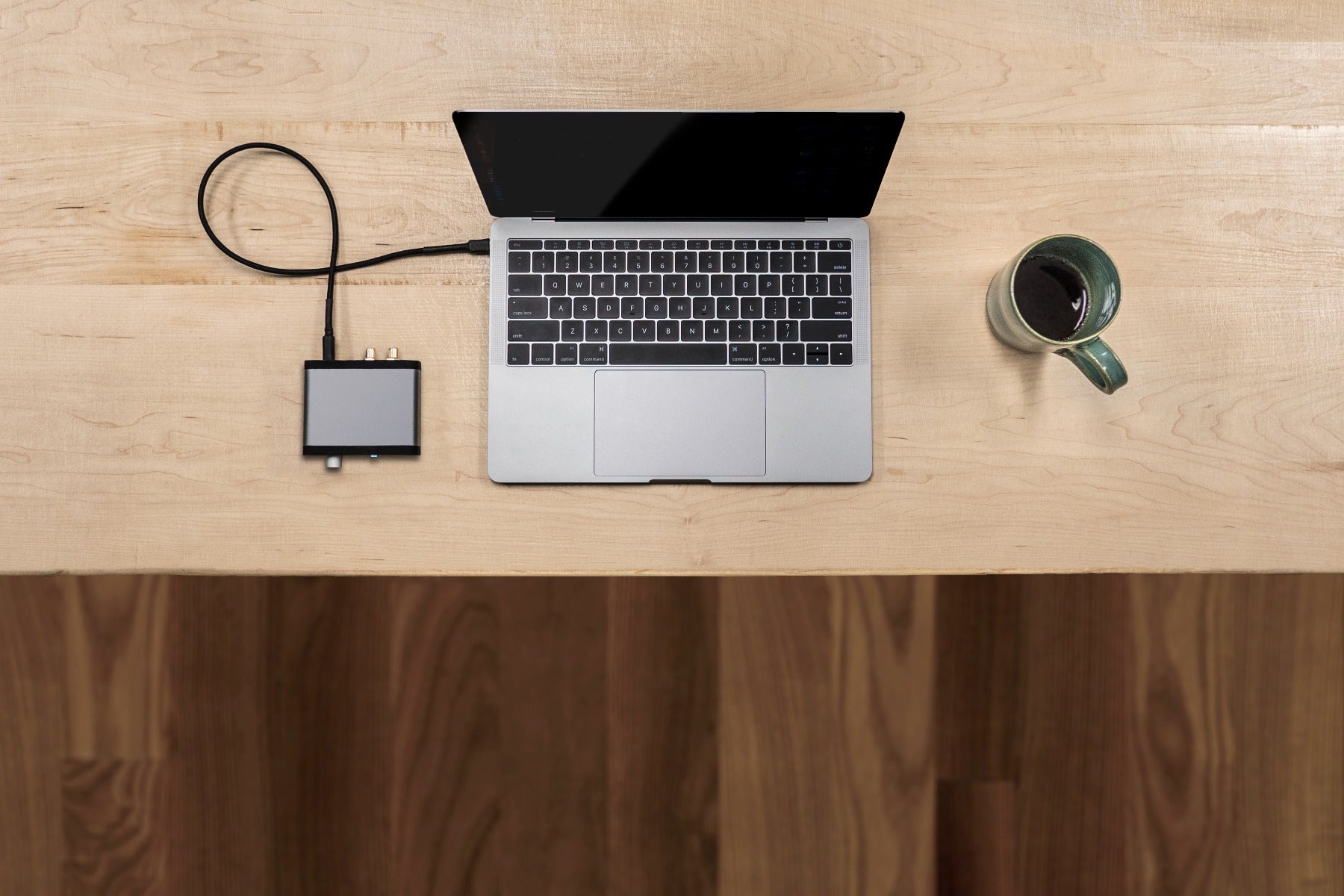

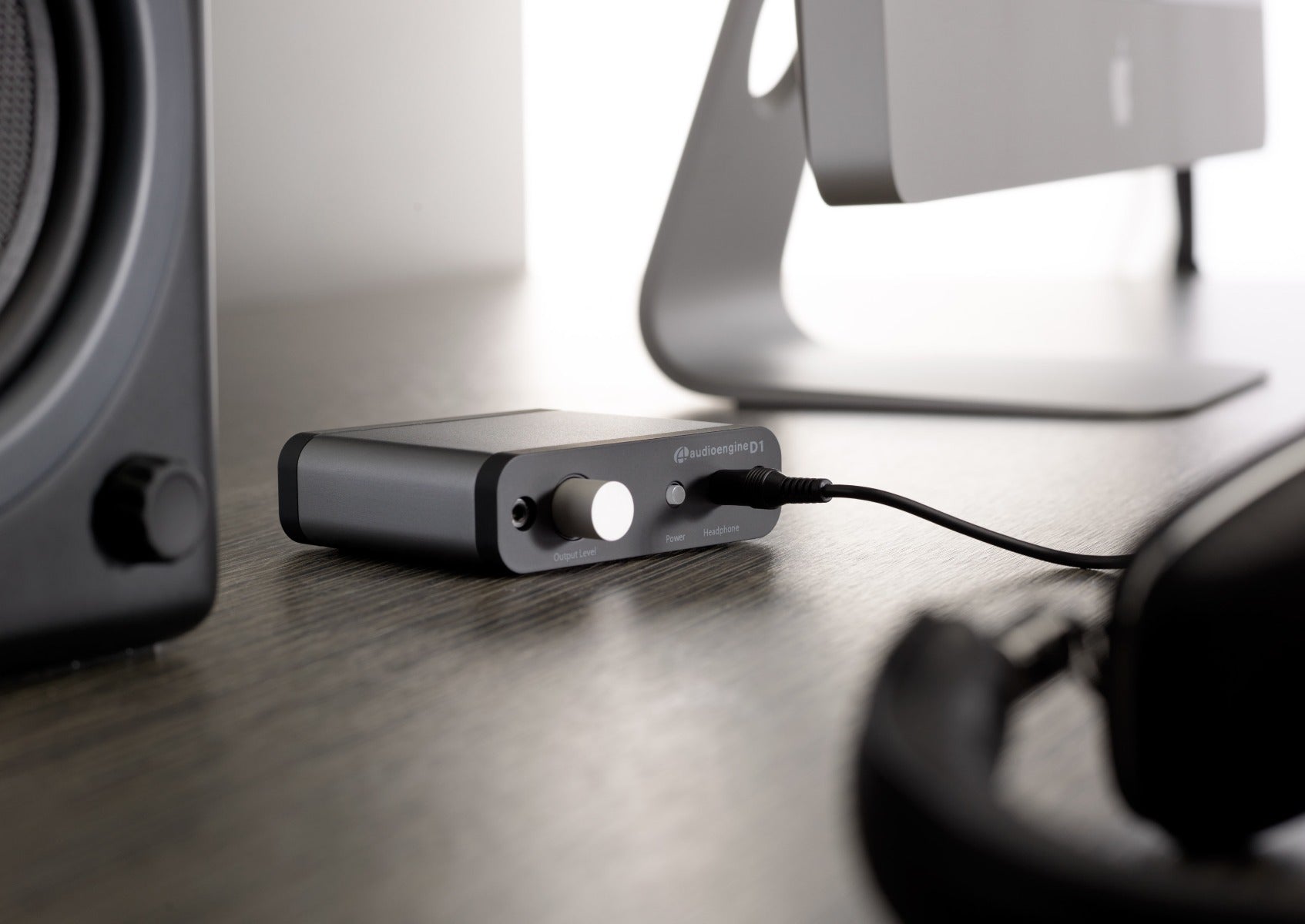

Note: Product is shown in use for illustration Only, additional equipment is not included.

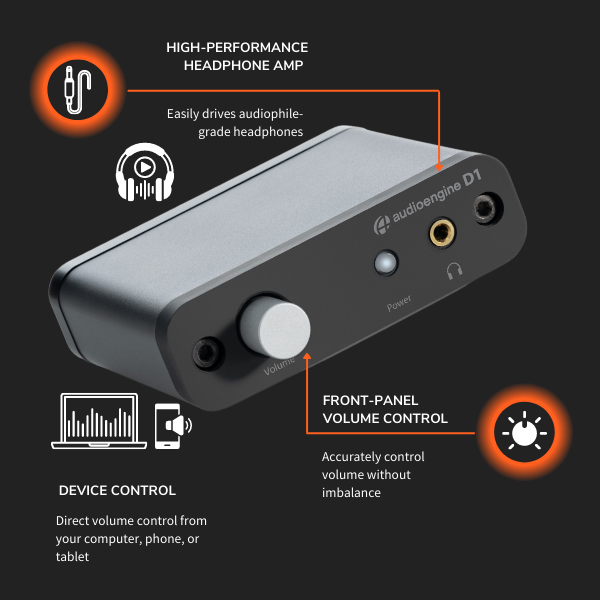

Key Features of the Audioengine D1 24-Bit DAC/Headphone Amp (Gen 2)
- Desktop or portable digital-to-analog convertor
- Mac or PC plug-and-play, no drivers to install
- High-performance headphone amp included
- USB and optical inputs
- USB-powered, no separate power supply needed
- Stream bit-perfect HD audio with low jitter
- Based on high-performance AK4396 DAC
- MPN - 90021970
- GTIN - 819955250039
