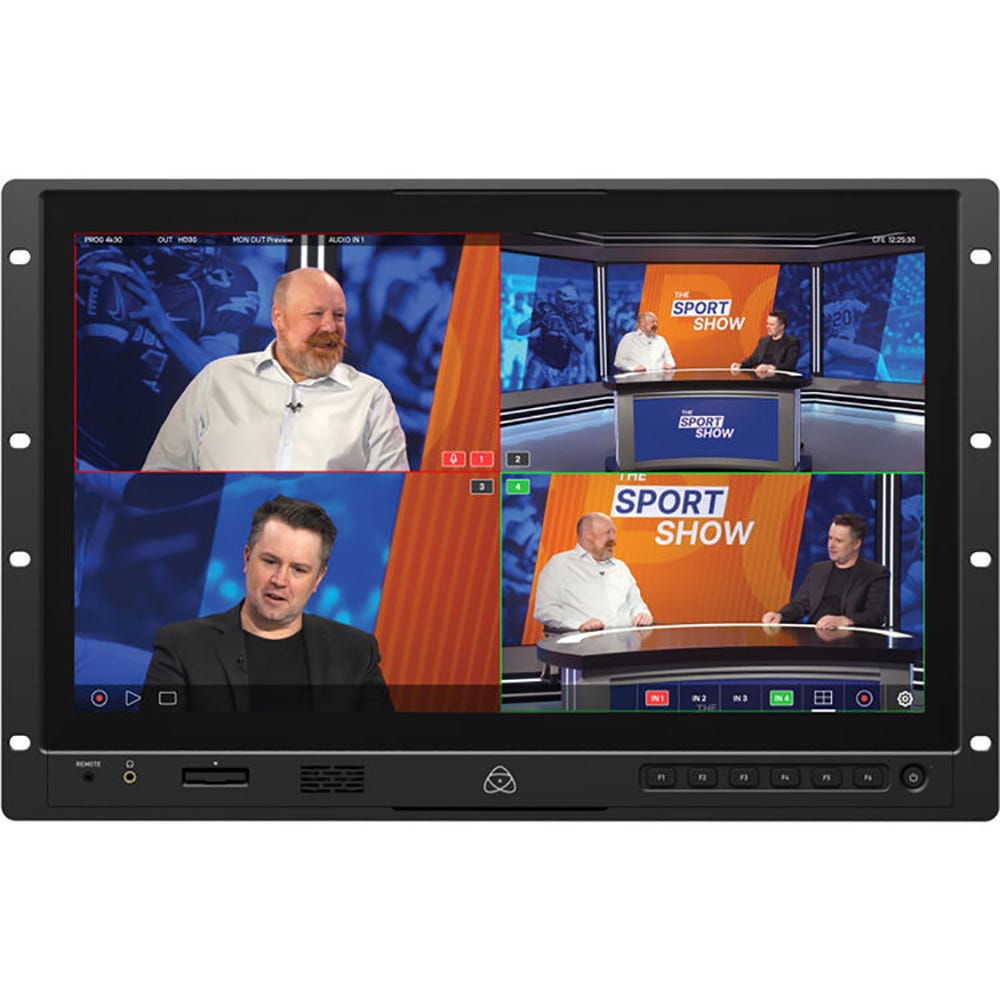

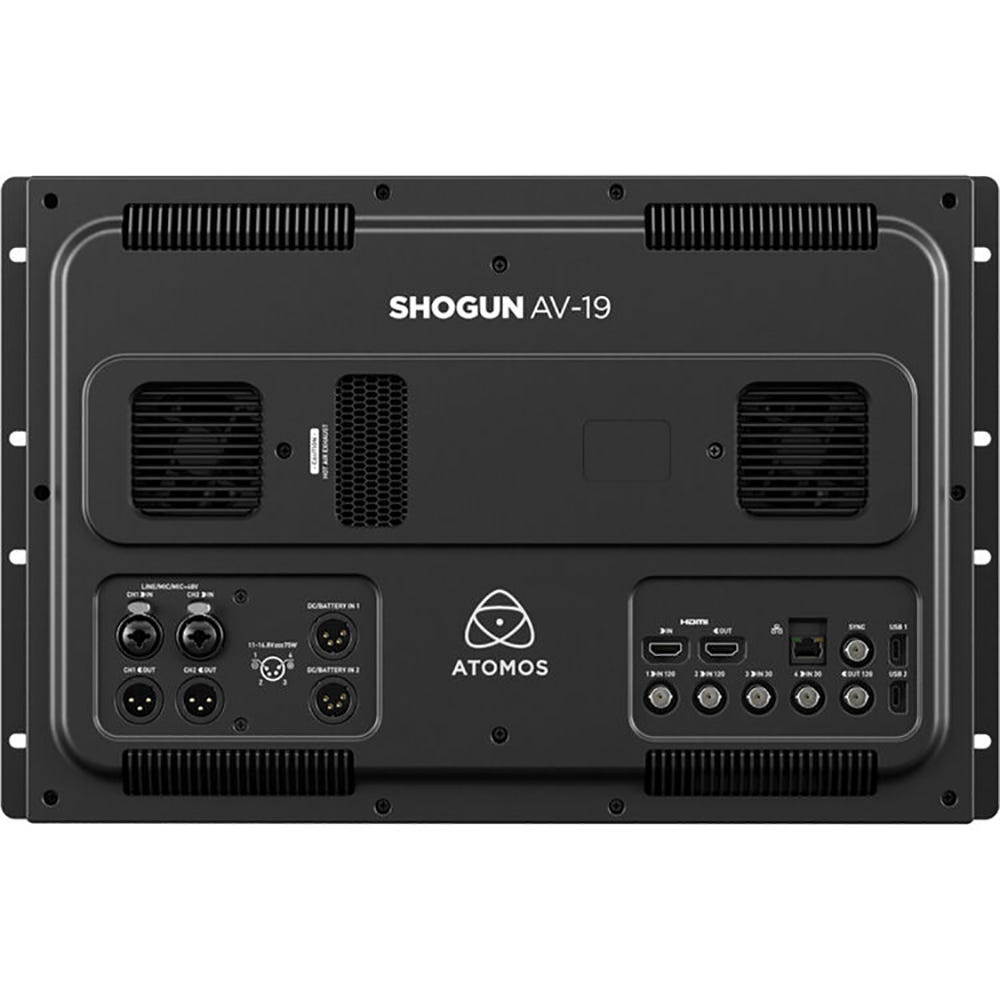

Atomos Shogun AV-19
Skip to product information
Not eligible for discount.
View full item details
Not eligible for discount.
Order Limits Apply
View Full Details
Learn More
More details here.
$3,899.00
Sale price
$3,899.00
Description
- 19" 3840 x 2160 Capacitive Touchscreen
- HDMI and 12G-SDI Video I/O, LANC Control
- 6K Raw, 10-Bit HDR, NDI|HX3 Support
- 1200 cd/m² Brightness
- Real-Time ProRes/Raw, DNx, Pre-Roll, LTC
- ISO Recording to CFexpress or USB-C
- Custom 3D LUTs, XLR I/O, Speakers
- Quad Split or Fullscreen, 7 RU Rack Size
- Professional Built-In Monitoring Tools
Delivery
Australia
Standard Shipping 4-7 business days: AU $8.95*
Express Shipping 1-3 business days: AU $15*
International Shipping
New Zealand 9-12 business days: AU$21*
*During peak promotional periods, please allow additional time for your order dispatch.
Returns
While we can’t offer a refund or replacement if you simply change your mind, we’re here to help if your item has a problem under Australian Consumer Law. You may be entitled to a refund or exchange if an item has a major problem. This is when the item:
- has a problem that would have stopped someone from buying the item if they had known about it
- is unsafe
- is significantly different from the sample or description
- doesn't do what we said it would, or what you asked for and can't be easily fixed
If the problem is not major, we will repair the item within a reasonable time. If it can’t be repaired in a reasonable time, we’ll offer a suitable resolution such as a refund or replacement. Please keep your proof of purchase — e.g. your receipt.
$3,899.00
Sale price
$3,899.00
BANK TRANSFER (EFT)
Description
- 19" 3840 x 2160 Capacitive Touchscreen
- HDMI and 12G-SDI Video I/O, LANC Control
- 6K Raw, 10-Bit HDR, NDI|HX3 Support
- 1200 cd/m² Brightness
- Real-Time ProRes/Raw, DNx, Pre-Roll, LTC
- ISO Recording to CFexpress or USB-C
- Custom 3D LUTs, XLR I/O, Speakers
- Quad Split or Fullscreen, 7 RU Rack Size
- Professional Built-In Monitoring Tools
Delivery
Australia
Standard Shipping 4-7 business days: AU $8.95*
Express Shipping 1-3 business days: AU $15*
International Shipping
New Zealand 9-12 business days: AU$21*
*During peak promotional periods, please allow additional time for your order dispatch.
Returns
While we can’t offer a refund or replacement if you simply change your mind, we’re here to help if your item has a problem under Australian Consumer Law. You may be entitled to a refund or exchange if an item has a major problem. This is when the item:
- has a problem that would have stopped someone from buying the item if they had known about it
- is unsafe
- is significantly different from the sample or description
- doesn't do what we said it would, or what you asked for and can't be easily fixed
If the problem is not major, we will repair the item within a reasonable time. If it can’t be repaired in a reasonable time, we’ll offer a suitable resolution such as a refund or replacement. Please keep your proof of purchase — e.g. your receipt.
Frequently bought with
Display
| Panel Type | IPS-Type LCD |
|---|---|
| Display Size | 19.00" / 48.3 cm |
| Native Resolution | 3840 x 2160 |
| Aspect Ratio | 16:9 |
| Touchscreen | Yes |
| Maximum Brightness | 1200 nits / cd/m2 |
| Color Support | 1.07 Billion Colors (10-Bit) |
| HDR Support | Yes: Hybrid Log Gamma |
| Color Gamut | 100% Rec. 709 99% DCI-P3 87% Rec. 2020 99% NTSC |
| LUT Support | Yes |
| Image Controls | Anamorphic De-Squeeze, False Color, Focus Peaking, Image Flip, RGB Parade, Vectorscope, Waveform, Zebra |
Inputs/Outputs
| Video I/O | 1x HDMI 2.0 Input 2x BNC (12G-SDI) Input 2x BNC (3G-SDI) Input 1x HDMI 2.0 Output 1x BNC (12G-SDI) Output 2x USB-C 3.0 / 3.1/3.2 Gen 1 Output 1x RJ45 (NDI) Input/Output |
|---|---|
| Embedded Audio | HDMI/SDI |
| Audio I/O | 2x XLR Mic/Line Input 2x XLR Monitor/Line Output 1x 1/8" / 3.5 mm Headphone Output |
| Built-In Speaker | No |
| Power I/O | 1x XLR 4-Pin (16.8 VDC) Input |
| Other I/O | 1x BNC (LTC) Input 1x 2.5 mm (LANC) Input/Output |
| Media/Memory Card Slot | Single Slot: CFexpress Type B [Supports Recording] |
Wireless
| Wi-Fi | No |
|---|---|
| Bluetooth | No |
| Mobile App Compatible | No |
Format Support
| Video Format | HDMI/SDI (8/10-Bit 4:2:2/4:2:0 YCC) 5.7K: 30 DCI 4K: 60 UHD 4K: 60 1080p: 60 1080i: 60/50 720p: 60 HDMI (8/10-Bit 4:2:2/4:2:0 YCC) DCI 4K UHD 4K: 60 1080p 1080i: 60/50 720p: 60 |
|---|---|
| Video Signal Conversion | HDMI to SDI SDI to HDMI |
| Timecode Support | Yes |
Recording
| Pulldown Conversion | 2:2, 3:2 |
|---|---|
| Camera Trigger | SDI, HDMI |
| Pre-Roll Record | 4K: 2 Seconds Full HD: 8 Seconds |
| Encoding Formats | x ProRes 422, 422 HQ, HQ, LB, LT, Raw, SQ DNxHD 36, 145, 220x, HQ, HQX, LB, SQ |
| Maximum Audio Tracks | 12 |
| Closed Caption Support | No |
Power
| Input Power | 12 to 16.8 VDC |
|---|---|
| Battery | No |
| Power Consumption | 75 W |
General
| Environmental Resistance | No |
|---|---|
| Operating Conditions | Up to 104°F / 40°C |
| Material of Construction | Aluminum, Plastic |
| Dimensions | 19 x 12.2 x 2.4" / 482 x 310 x 60 mm |
| Weight | 11.51 lb / 5.22 kg |
- Atomos Shogun AV-19
- 4-Pin XLR Power Supply
- IEC Power Cable Kit (5 International Plugs)
- 10 x Rackmount Nut + Bolt
- Cleaning Cloth
0
Expand your production monitoring with the Atomos Shogun AV-19, the latest workhorse in the Atomos Shogun line of onboard camera video monitor-recorders. This large 19" studio display provides monitoring, recording, and switching in a single unit, and it features a bright capacitive touchscreen display. It supports HDMI and 12G-SDI input and output, as well as NDI|HX3 via Gigabit Ethernet, so it's perfect for cinema capture, live events, and broadcast productions.
Key Features of the Atomos Shogun AV-19
- 19" 3840 x 2160 Capacitive Touchscreen
- HDMI and 12G-SDI Video I/O, LANC Control
- 6K Raw, 10-Bit HDR, NDI|HX3 Support
- 1200 cd/m² Brightness
- Real-Time ProRes/Raw, DNx, Pre-Roll, LTC
- ISO Recording to CFexpress or USB-C
- Custom 3D LUTs, XLR I/O, Speakers
- Quad Split or Fullscreen, 7 RU Rack Size
- Professional Built-In Monitoring Tools
Bright UHD 4K Screen
- Large 3840 x 2160 resolution display
- 1200 cd/m² brightness
- Capacitive touchscreen
- Quad- or full-screen display setup
- Play back your recently captured shots on the same pristine screen for reviewing
Multicamera Switching
- One HDMI, two 12G-SDI, and two 3G-SDI inputs transform the Shogun into a quad-view live switcher and recorder on your multicamera shoots
- Monitor live, multicamera feed
- Record a fifth program channel of your switched feed and display the resulting mixed output live
- Switching is completely asynchronous, eliminating the need for expensive locked sources and allowing the use of more affordable cameras
NDI Support
The Shogun includes NDI support via its Gigabit Ethernet LAN port, providing easy integration with PTZ camera control and existing NDI networks. It supports input and output of your program via the high-quality, low-latency NDI|HX3 protocol.
HDR I/O and Color Management
Deliver content via live HDMI or SDI out, in real time, from any HDR camera to a compatible HDR TV or monitor. You can monitor every pixel of SDR or HDR as it's captured and view it in 10-bit HDR. It's a perfect companion for a high-end ARRI, RED, or Sony VENICE cinema camera.
Shogun AV-19 receives Log signals from the camera and offers real-time LUT (Look-Up Table) preview to approximate what the final graded image will look like in Rec.709 while recording in high-quality ProRes, DNxHR, or ProRes RAW.
Recording and Custom LUTs
Use with your DSLR or mirrorless camera via HDMI to record ProRes, ProRes Raw, and AVID DNx codecs for easy editing and archival quality. You can record the main program up to 6K30 via 12G-SDI and up to DCI 4K60 via HDMI and up to four 1080p60 streams simultaneously as separate ISOs while cueing and switching in real time with a simple touch of the screen.
Record to a CFexpress slot on the front of the monitor or to external media via USB-C output. Custom LUTs (.cube files) can be loaded from the CFexpress card or SSD and used in conjunction with the Shogun's built-in monitoring tools for precise exposure control.
User-Definable Function Buttons
Six function buttons on the front of the monitor provide quick access to frequently used features.
You can instantly bring up monitoring tools, playback modes, LUTs, anamorphic desqueeze, and more with just the touch of a button.
Monitoring Tools
The 7" Shogun Classic features numerous built-in monitoring tools, including:
- Custom 3D LUTs
- False color
- Focus peaking
- HDR exposure
- Pixel magnification (1:1, 2:1)
- RGB parade
- Vectorscope
- Frame guides
- Zebra
- Waveform
- Safe areas
- Markers
- Vertical flip
- Atomos Calibrator with Display Pro HL and Display Plus HL
- Downscaling to HD and crop
- Interlaced and PSF to progressive
- Anamorphic de-squeeze
Powerful Live and on Set
On set or during live broadcasts, the Shogun AV-19 provides a bright, color-accurate reference display for directors, DITs, and other crew with quick and easy playback of recorded takes.
With a full suite of Atomos monitoring tools, switching tools, and graphic capabilities, the Shogun AV makes it easy to evaluate exposure, focus, color, and framing with confidence.
Additional Features
- LTC input via BNC
- 3-pin XLR audio input for 2-channel input and output
- 7 RU rackmount size
- Dual 4-pin XLR power inputs for redundant DC and/or battery options
- Remote start/stop trigger via 2.5mm LANC jack on front
- 3.5mm headphone output
- Tally light on the front
- MPN - ATOMSHGAV1
- GTIN - 814164023382
