Atomos Shogun 7
Skip to product information
View full item details
View Full Details
Learn More
More details here.
$1,978.90
Sale price
$1,978.90
Description
- 1 x HDMI and 4 x SDI I/O
- 7.2" 1920 x 1200 Capacitive Touchscreen
- 1,000,000:1 Contrast Ratio, 10-Bit HDR
- Up to 3000 cd/m² Brightness
- Real-Time 4K ProRes, DNG, DNx
- 4 x ISO Recording, 2-Channel XLR I/O
- Up to DCI/UHD 4K60 I/O, Custom 3D LUTs
- Dual L-Series Battery Plate
- Professional Built-In Monitoring Tools
Delivery
Australia
Standard Shipping 4-7 business days: AU $8.95*
Express Shipping 1-3 business days: AU $15*
International Shipping
New Zealand 9-12 business days: AU$21*
*During peak promotional periods, please allow additional time for your order dispatch.
Returns
While we can’t offer a refund or replacement if you simply change your mind, we’re here to help if your item has a problem under Australian Consumer Law. You may be entitled to a refund or exchange if an item has a major problem. This is when the item:
- has a problem that would have stopped someone from buying the item if they had known about it
- is unsafe
- is significantly different from the sample or description
- doesn't do what we said it would, or what you asked for and can't be easily fixed
If the problem is not major, we will repair the item within a reasonable time. If it can’t be repaired in a reasonable time, we’ll offer a suitable resolution such as a refund or replacement. Please keep your proof of purchase — e.g. your receipt.
Description
- 1 x HDMI and 4 x SDI I/O
- 7.2" 1920 x 1200 Capacitive Touchscreen
- 1,000,000:1 Contrast Ratio, 10-Bit HDR
- Up to 3000 cd/m² Brightness
- Real-Time 4K ProRes, DNG, DNx
- 4 x ISO Recording, 2-Channel XLR I/O
- Up to DCI/UHD 4K60 I/O, Custom 3D LUTs
- Dual L-Series Battery Plate
- Professional Built-In Monitoring Tools
Delivery
Australia
Standard Shipping 4-7 business days: AU $8.95*
Express Shipping 1-3 business days: AU $15*
International Shipping
New Zealand 9-12 business days: AU$21*
*During peak promotional periods, please allow additional time for your order dispatch.
Returns
While we can’t offer a refund or replacement if you simply change your mind, we’re here to help if your item has a problem under Australian Consumer Law. You may be entitled to a refund or exchange if an item has a major problem. This is when the item:
- has a problem that would have stopped someone from buying the item if they had known about it
- is unsafe
- is significantly different from the sample or description
- doesn't do what we said it would, or what you asked for and can't be easily fixed
If the problem is not major, we will repair the item within a reasonable time. If it can’t be repaired in a reasonable time, we’ll offer a suitable resolution such as a refund or replacement. Please keep your proof of purchase — e.g. your receipt.
Frequently bought with
General Specifications
| Weight (without batteries & media) | 709g / 25oz |
|---|---|
| Dimensions (W x H x D mm) | 214 x 127 x 45mm |
| Construction | Polycarbonate ABS |
| Mounting Points | 1/4-20 screw mount (1x top, 1x bottom) |
Power
| Operating Power | 10 - 33W |
|---|---|
| Compatible Batteries | Atomos NP-F series and supporting accessories |
| Input Voltage (Battery) | 6.2V to 16.8V |
| Battery Time (2 x 7.4V) | 5200mAh - up to 1.5hrs (monitor & record 4K 30p)
7800mAh - up to 2.2hrs (monitor & record 4K 30p) |
| DC In | 1 x DC in (6.2 - 16.8V) |
Touchscreen
| Size | 7.2 inches |
|---|---|
| Resolution | 1920 x 1200 |
| PPI | 325 |
| Aspect Ratio | 16:9 native |
| Color Gamut | Up to Wide color gamut (105% DCI-P3) |
| Look Up Table (LUT) Support | 3D LUT (.cube format) |
| Anamorphic De-squeeze | 2x, 1.5x, 1.33x |
| Technology | Dynamic AtomHDR zoned backlight, IPS LCD |
Dynamic AtomHDR Technology
| Backlight | Direct LED |
|---|---|
| Zones | 360 direct backlight individual LEDs |
| LEDs | Wide Color Calibrated D65 or D95 |
| Bit Depth | 10-bit (8+2 FRC) |
| Color | DCI-P3 105% |
| Brightness | 3000 nits (+/- 10%) |
| Control | Real-time brightness analysis for LED control |
| HDR Conversion | Log/RAW to HLG or PQ |
HDR Monitoring Technology
| Gamma | Supports multiple camera logs (e.g., Sony SLog/SLog3, Canon CLog, Panasonic Vlog, ARRI Log, etc.) |
|---|---|
| Gamut | Supports wide color spaces (e.g., Sony SGamut3, Canon Cinema, Rec709/BT.2020) |
Video Input/Loop Out
| HDMI | 1 x HDMI (2.0) |
|---|---|
| SDI | Quad Link 4 x 3G/6G SDI, 2x 12G single link SDI |
| Signal | Uncompressed true 10-bit or 8-bit 422 |
| Genlock | Genlock input and output signal supported |
Recording
| Supported Codecs | ProRes RAW, ProRes, CinemaDNG, Avid DNxHD |
|---|---|
| Supported Media | 2.5 SSD/HDD (visit atomos.com/drives for compatibility) |
| Pre-roll Record | Yes (HD 8s, 4K 2s) |
| Custom Timelapse | Yes |
- Atomos Shogun 7
- MasterCaddy II
- 12V Power Supply
- Carry Case
0

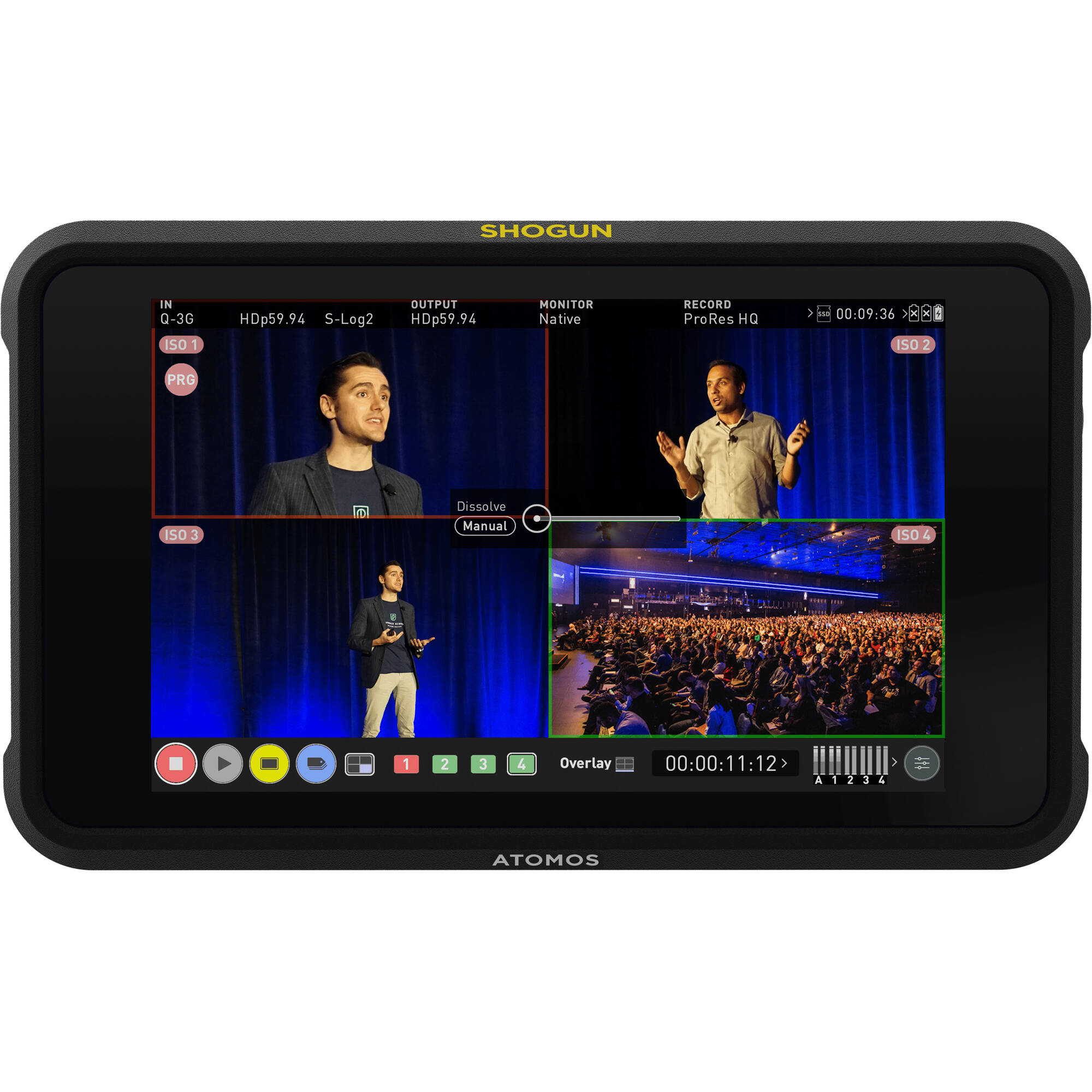

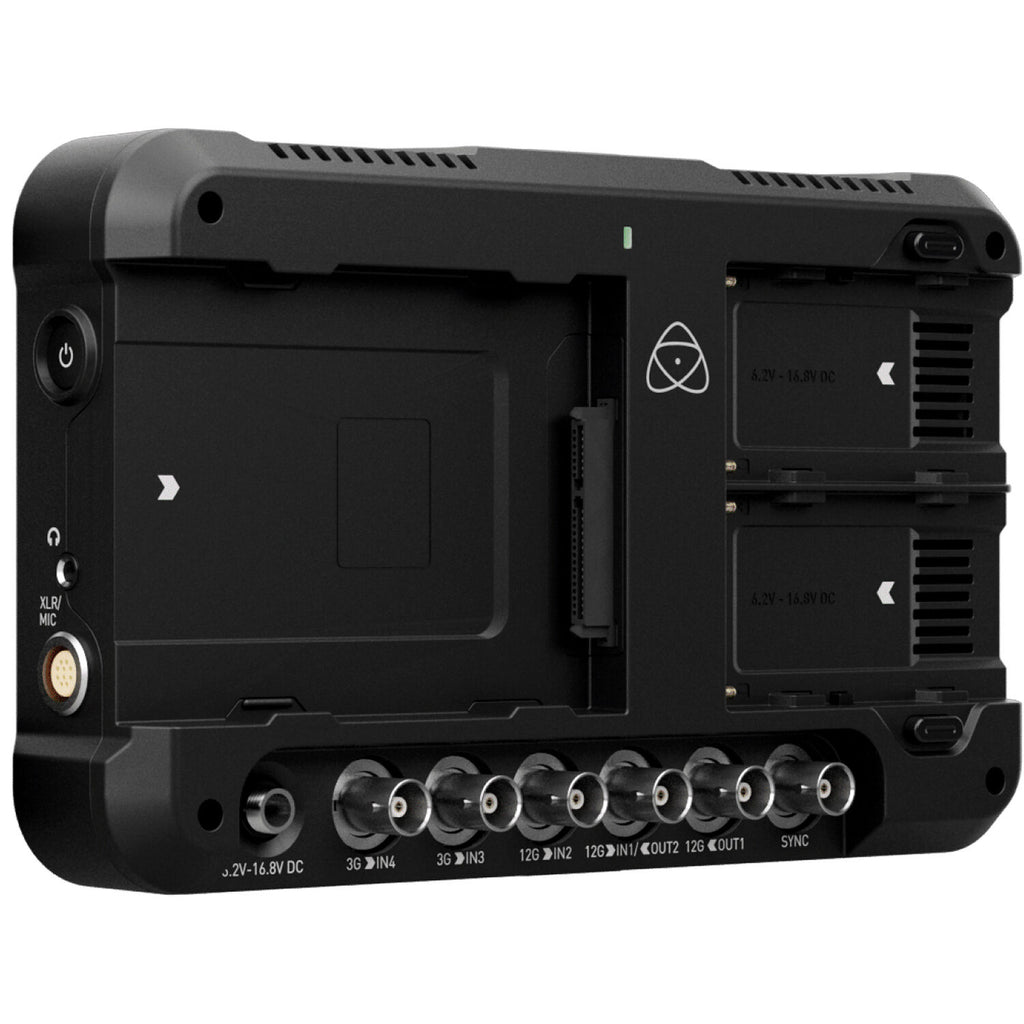

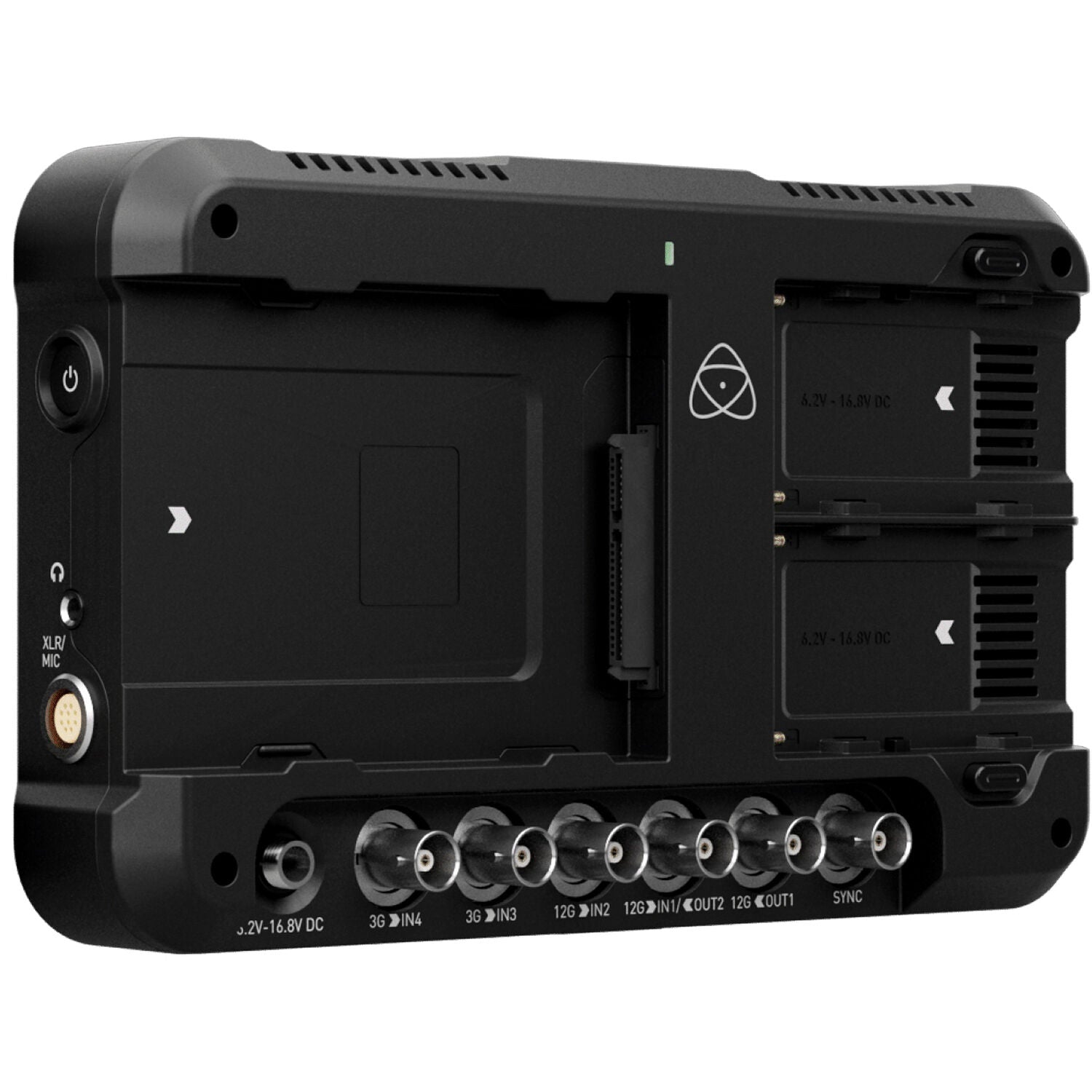

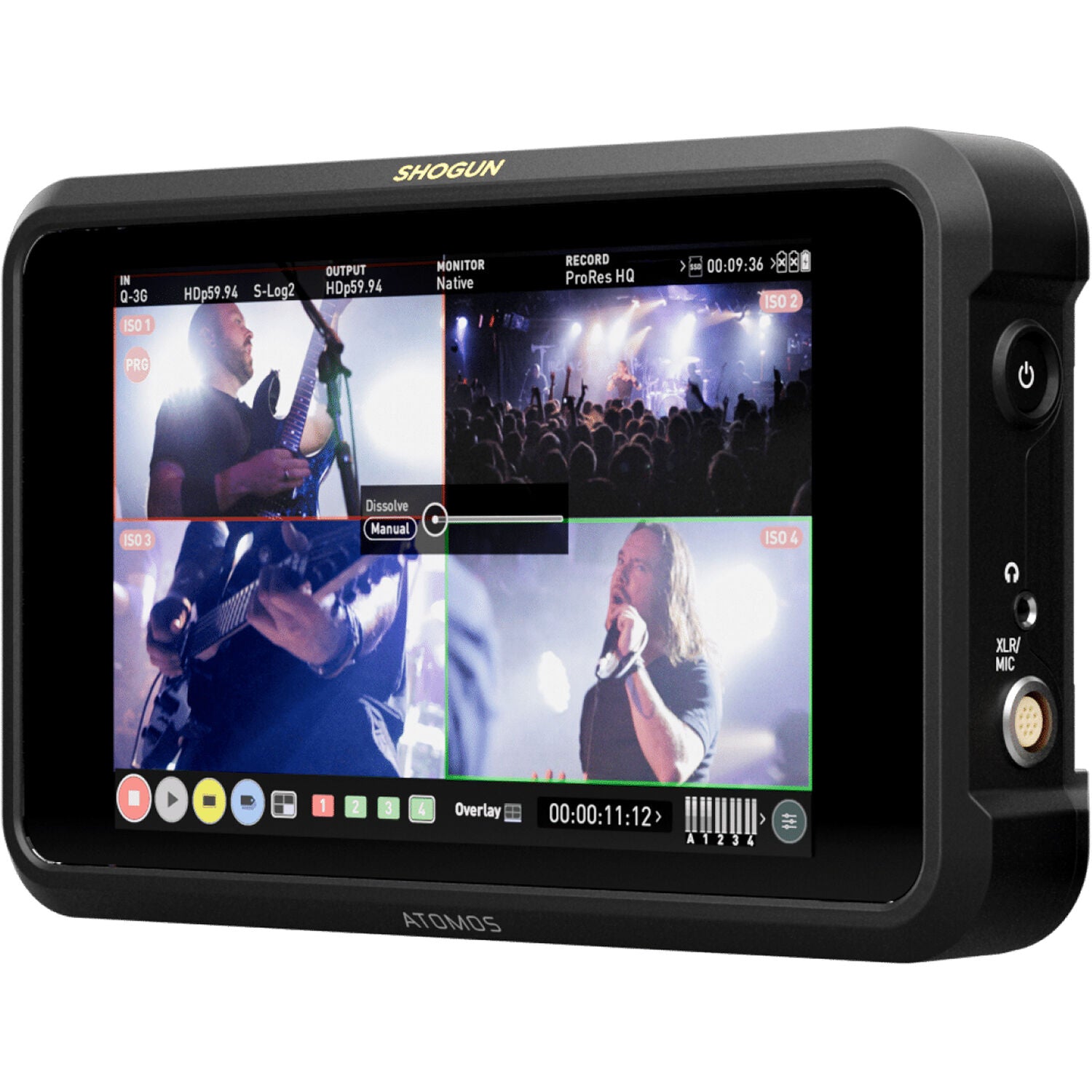

The Atomos Shogun 7 is one of the latest workhorses in the Atomos line of Shogun onboard camera video monitor-recorders, provides monitoring, recording, and switching in a single, compact tool. The ultra-bright 3000 cd/m² display can input up to DCI/UHD 4K60 video and features HDMI and SDI input and output, so it's perfect for cinema capture, live events, and broadcast productions.

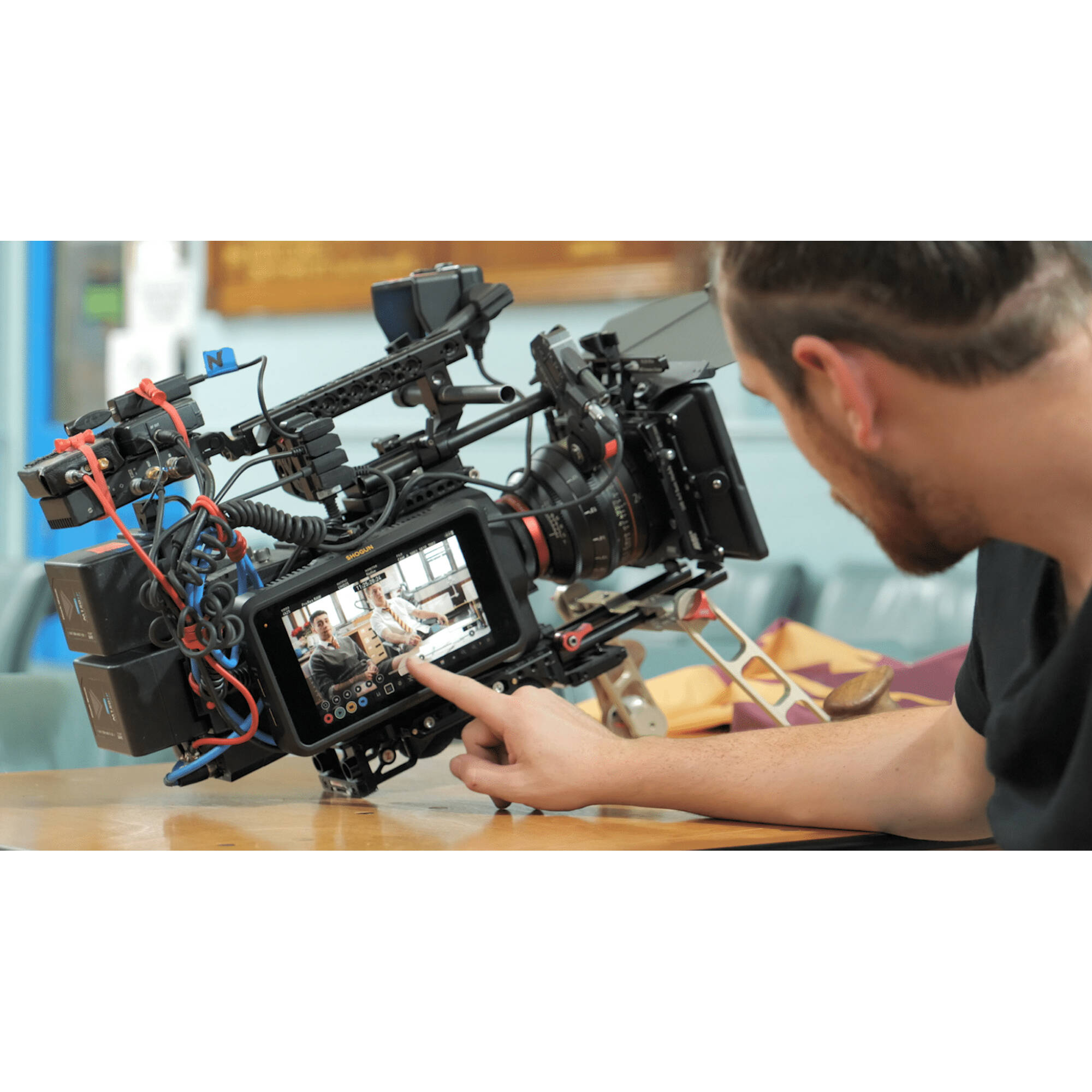

Shogun 7's portable size lets you monitor, analyze and tag while on set; and check how your content will look in your audience’s home via real-time Dolby Vision output. With Shogun 7 you’re not locked into any format, camera manufacturer or pipeline. It is a completely flexible master recording and production station.
Key Features of the Atomos Shogun 7
- 7.2" Screen Size
- High Bright Monitor at 1500 nits
- 1,000,000:1 Contrast Rate
- 1920x1280 Resolution
- 15+ Stops Dynamic AtomHDR 360 Zones
- 4xISO, 1xProgram for Live Video Streams
- 4k60p Maximum Capture
- 2k240p Slow Motion
- 16 types of metadata tags
- 100fps Instant Slow-Mo Playback
- AtomHDR
- 105% DCI:p3 Colour Gamut
- D65 White Point
- 360 Zones of Backlight Control
- 10 bit Precision
- MPN - ATOMSHG701
- GTIN - 814164022002
