Atomos Shinobi 7 RX
Atomos Shinobi 7 RX
$1,199.00
Sale price
$1,199.00
Skip to product information
View full item details
Awaiting stock
Order Limits Apply
View Full Details
Learn More
More details here.
$1,199.00
Sale price
$1,199.00
Description
- 7" 1920 x 1080 Touchscreen HDR Display
- Wi-Fi Camera Control, Focus, Streaming
- HD 3G-SDI & 4K60 HDMI 2.0 Input & Output
- 2200 cd/m² Brightness
- Dual L-Series Battery Slots, USB-C PD In
- HDMI/SDI Cross Conversion
- AtomOS, 3D LUT Support, LANC Control
- 10-Stop Dynamic Range
- Supports a Variety of Log Formats, Tools
Delivery
Australia
Standard Shipping 4-7 business days: AU $8.95*
Express Shipping 1-3 business days: AU $15*
International Shipping
New Zealand 9-12 business days: AU$21*
*During peak promotional periods, please allow additional time for your order dispatch.
Returns
While we can’t offer a refund or replacement if you simply change your mind, we’re here to help if your item has a problem under Australian Consumer Law. You may be entitled to a refund or exchange if an item has a major problem. This is when the item:
- has a problem that would have stopped someone from buying the item if they had known about it
- is unsafe
- is significantly different from the sample or description
- doesn't do what we said it would, or what you asked for and can't be easily fixed
If the problem is not major, we will repair the item within a reasonable time. If it can’t be repaired in a reasonable time, we’ll offer a suitable resolution such as a refund or replacement. Please keep your proof of purchase — e.g. your receipt.
$1,199.00
Sale price
$1,199.00
BANK TRANSFER (EFT)
Description
- 7" 1920 x 1080 Touchscreen HDR Display
- Wi-Fi Camera Control, Focus, Streaming
- HD 3G-SDI & 4K60 HDMI 2.0 Input & Output
- 2200 cd/m² Brightness
- Dual L-Series Battery Slots, USB-C PD In
- HDMI/SDI Cross Conversion
- AtomOS, 3D LUT Support, LANC Control
- 10-Stop Dynamic Range
- Supports a Variety of Log Formats, Tools
Delivery
Australia
Standard Shipping 4-7 business days: AU $8.95*
Express Shipping 1-3 business days: AU $15*
International Shipping
New Zealand 9-12 business days: AU$21*
*During peak promotional periods, please allow additional time for your order dispatch.
Returns
While we can’t offer a refund or replacement if you simply change your mind, we’re here to help if your item has a problem under Australian Consumer Law. You may be entitled to a refund or exchange if an item has a major problem. This is when the item:
- has a problem that would have stopped someone from buying the item if they had known about it
- is unsafe
- is significantly different from the sample or description
- doesn't do what we said it would, or what you asked for and can't be easily fixed
If the problem is not major, we will repair the item within a reasonable time. If it can’t be repaired in a reasonable time, we’ll offer a suitable resolution such as a refund or replacement. Please keep your proof of purchase — e.g. your receipt.
Frequently bought with
Display
| Panel Type | IPS-Type LCD |
|---|---|
| Display Size | 7.0" / 17.8 cm |
| Native Resolution | 1920 x 1200 |
| Aspect Ratio | 16:10 |
| Touchscreen | Yes |
| Maximum Brightness | 2200 nits / cd/m² |
| Color Support | 1.07 Billion Colors (10-Bit) |
| HDR Support | Yes: Advanced HDR |
| Color Gamut | 100% Rec. 709 |
| LUT Support | Yes |
| Image Controls | Anamorphic De-Squeeze, Blue Only, False Color, Focus Peaking, Histogram, Pixel-to-Pixel Zoom, RGB Parade, Screen Markers, Vectorscope, Waveform, Zebra |
Inputs/Outputs
| Antenna I/O | 2x RP-SMA |
|---|---|
| Video I/O | 1x HDMI 2.0 Input
1x BNC (3G-SDI) Input 1x HDMI 2.0 Loop Output 1x BNC (3G-SDI) Output |
| Embedded Audio | HDMI: 8-Channel
SDI: 12-Channel |
| Audio I/O | 1x 1/8" / 3.5 mm Line Input
1x 1/8" / 3.5 mm Headphone Output |
| Built-In Speaker | No |
| Power I/O | 1x Barrel (16.8 VDC) Input |
| Other I/O | 1x 2.5 mm (LANC) Output
1x USB-C 3.0 / 3.1 / 3.2 Gen 1 Input (Shared with Power, Camera Control) 2x USB-C 3.0 / 3.1 / 3.2 Gen 1 Output |
| Media / Memory Card Slot | Single Slot: SD / SDHC / SDXC (LUT / Firmware Update Only) |
Wireless
| Wireless Range | 984.3' / 300 m |
|---|---|
| Frequency Range | 5 GHz |
| Latency | 60 ms |
| Wi-Fi | Wi-Fi 6E (802.11ax) |
| Bluetooth | No |
| Mobile App Compatible | No |
Format Support
| Video Format (HDMI) | HDMI (8/10-Bit 4:2:2)
DCI 4K: 60/59.94/50/30/29.97/25/24/23.98 UHD 4K: 60/59.94/50/30/29.97/25/24/23.98 DCI 2K: 60/59.94/50/30/29.97/25/24/23.98 1080p: 60/59.94/50/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 |
|---|---|
| Video Format (SDI) | SDI (8/10-Bit 4:2:2)
DCI 2K: 60/59.94/50/30/29.97/25/24/23.98 1080p: 60/59.94/50/30/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 |
| Video Signal Conversion | HDMI to SDI: 1080p
SDI to HDMI: 1080p |
| Audio Format | 8-Channel 24-Bit |
Power
| Input Power | 6.2 to 16.8 VDC |
|---|---|
| Battery | 2x L-Series Mount on Fixed Plate |
| Power Consumption | 13 W (Maximum) |
Mounting
| Tripod/Accessory Mounting | Top
1x 1/4"-20 Female Bottom 1x 1/4"-20 Female |
|---|
General
| Environmental Resistance | No |
|---|---|
| Operating Conditions | Up to 104°F / 40°C |
| Material of Construction | Plastic |
| Dimensions | 7.8 x 5.2 x 1.5" / 198 x 133 x 39 mm |
| Weight | 1.3 lb / 580 g |
- Atomos Shinobi 7 RX
- 2 x Antenna
- Antenna Tip Set (Back, White, Yellow, Green, Red)
- 2 x Antenna Cap
- USB-C 2.0 Cable (3.3')
0

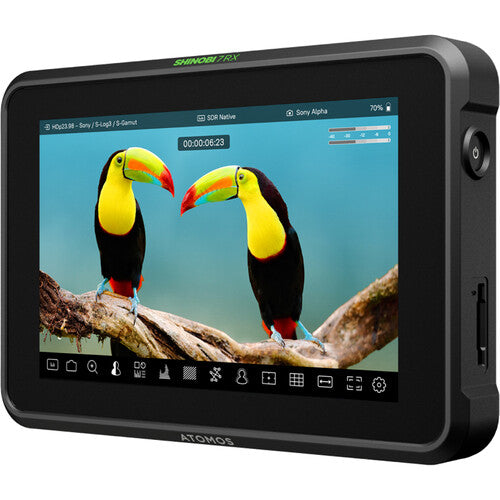

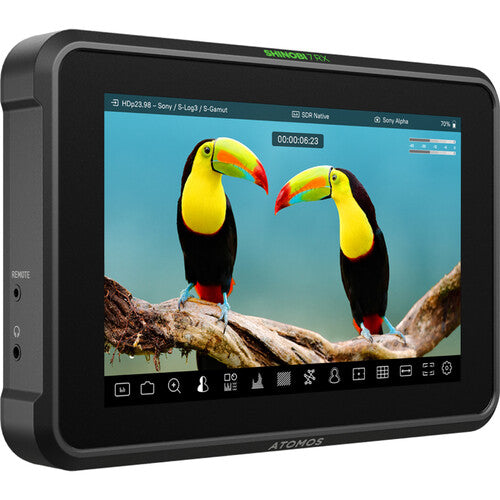

Add a bright, high-resolution on-camera monitor to your live production kit for your focus puller, director, or camera assistant with the Atomos Shinobi 7 RX . This 7" high-bright HDR monitor provides the ability to view 4K footage remotely via Wi-Fi while also providing remote focus and camera control in an Atomos TX/RX environment or via wired USB/serial.
Key Features of the Atomos Shinobi 7 RX
- 7" 1920 x 1080 Touchscreen HDR Display
- Wi-Fi Camera Control, Focus, Streaming
- HD 3G-SDI & 4K60 HDMI 2.0 Input & Output
- 2200 cd/m² Brightness
- Dual L-Series Battery Slots, USB-C PD In
- HDMI/SDI Cross Conversion
- AtomOS, 3D LUT Support, LANC Control
- 10-Stop Dynamic Range
- Supports a Variety of Log Formats, Tools

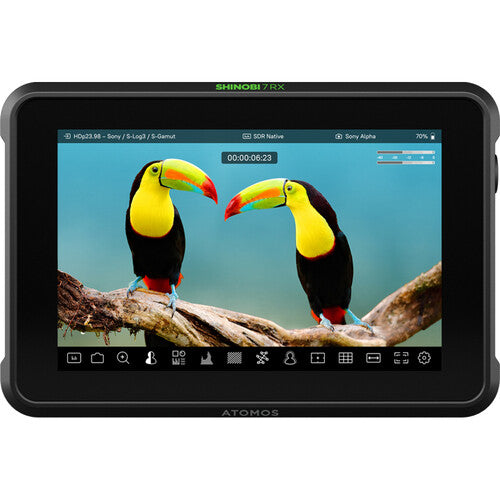

7" Daylight Viewable Screen
The Shinobi 7 RX features a 7" IPS LCD 1920 x 1080 screen that is illuminated by a bright 2200 cd/m² LED backlight, making it possible to view in daylight without requiring a hood. Plus, the screen is also color calibrated from the factory to ensure accurate image representation.

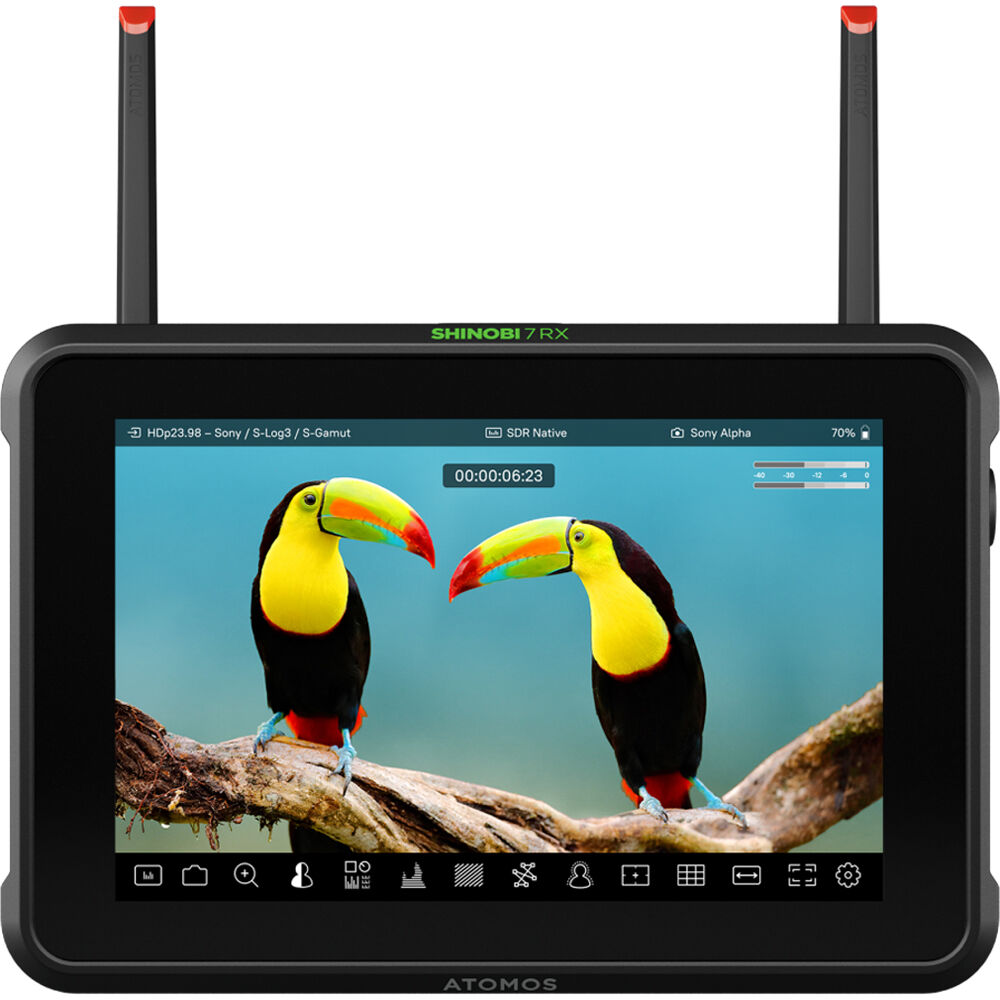

Built-In Wi-Fi 6E
The Shinobi 7 RX provides built-in Wi-Fi to pair with an Atomos TX device, and it can even view external RTSP H.264 streams with low-latency wireless under 60ms from up to 984' away.
This allows your crew to move elements on the set freely without losing visual connection.
High-Resolution Connectivity
- Monitor 4K footage in DCI or UHD 4K formats via HDMI 2.0 up to 60 fps and up to 1080p60 via 3G-SDI
- Output signal via HDMI and 3G-SDI loop outputs
- The Shinobi 7 RX features HDMI/SDI cross conversion support
Touch to Focus
While connected to a compatible camera, you can simply tap the Shinobi 7 RX touchscreen for the camera to automatically focus on your point of interest.
Touch to focus takes advantage of camera focus modes such as focus tracking for effortless control.
Power & Versatile USB-C Connection

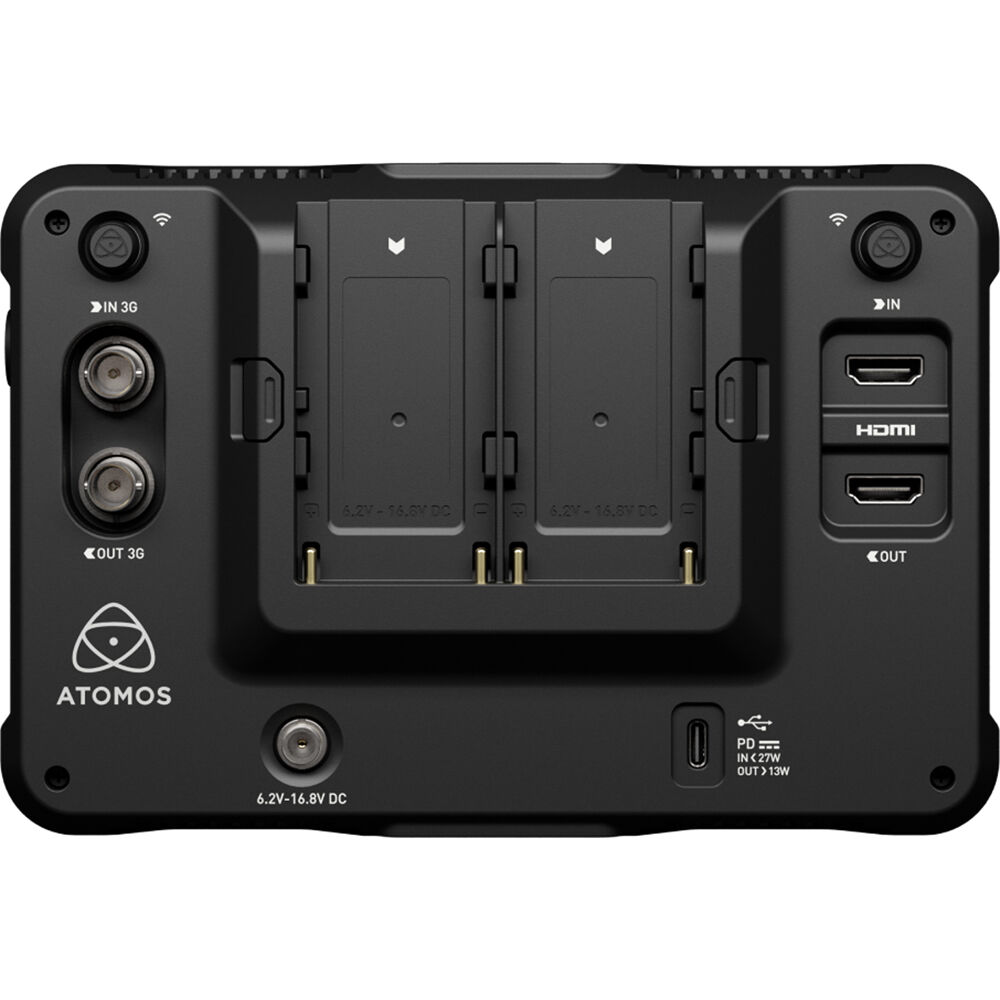

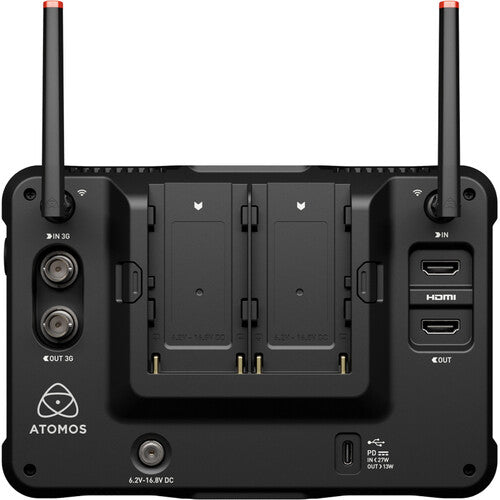

The back of the monitor features dual NP-F/L-series battery slots for longer shoot durations, and it can also accept optional battery eliminators/dummy batteries. You can also power the monitor via a USB-C PD input via an optional adapter, external battery, or power bank.
In addition to providing power, the USB-C port can provide camera control for supported cameras. The USB-C port can also be used with external calibrators without the need for a computer.
Supported Log Formats
- Sony: SLog / SLog2 / SLog3 / HLG
- Canon: C-Log / C-Log2 / C-Log3
- ARRI: Log CEI160 / LogCEI200 / LogCEI250 / LogCEI320 / LogCEI400 / LogCEI500 / LogCEI640 /
- LogCEI800 / LogCEI1000 / LogCEI1280 / LogCEI1600
- Panasonic: V-Log / HLG, JVC J-Log
- RED: RedLogFilm / Log3G10 / Log3G12
- FUJIFILM: F-Log, PQ (HDR10), HLG
- Nikon: N-Log
HDR Monitoring
- BT.2020, DCI P3, DCI-P3 D65, and Rec. 709
- Sony: S-Gamut / S-Gamut3 / S-Gamut3.cine / BT.2020 / Rec. 709
- Canon Cinema: DCI P3 / DCI P3plus / Rec. 709
- Panasonic: V Gamut
- ARRI: ALEXA Wide Gamut
- JVC: LS300
- RED: DragonColor / DragonColor2 / RedColor2 / RedColor3 / RedColor4 / RedWideGamut
Audio Monitoring
Input/output embedded audio via HDMI and SDI, and output audio using the 3.5mm headphone port for convenient audio monitoring. There's also a 3.5mm stereo line audio input to monitor external sound.
Image Tools
The monitor runs the latest AtomOS firmware that features a variety of onscreen analysis tools such as multi-scope views, exposure, framing, focus assist, waveform, RGB parade, and histogram tools.
An SD card slot allows you to load custom 3D LUTs and apply them to both input and output signals, and they can be used with the built-in image tools for exposure control.
Camera Control
The Shinobi 7 RX supports intuitive camera control for Canon, FUJIFILM, Nikon, Panasonic, Sony (via USB-C), and Z CAM E2 (via optional serial cable). Its intuitive interface makes adjusting aperture, shutter speed, and ISO fast and responsive.
Depending on the supported camera, it can control features such as Record Trigger, White Balance, Shutter Speed, Shutter Angle, Aperture, ISO, Camera Overlays, Record Indicator, Touch to Focus, and more.
Calibration
The Shinobi 7 RX monitor can be calibrated with Calibrite Display Pro HL/Plus HL probe, and using the Atomos Calibrator app, for ongoing accurate HDR and Rec. 709 monitoring.
Anamorphic De-Squeeze
The Shinobi 7 RX supports anamorphic de-squeeze, allowing you to comfortably view anamorphic footage with a squeeze of 2x, 1.8x, 1.79x, 1.65x, 1.6x, 1.5x, 1.33x, and 1.25x.
- MPN - ATOMSHBRX1
- GTIN - 814164023351
