Atomos Shinobi 7 II
Skip to product information
View full item details
View Full Details
Learn More
More details here.
$899.00
Sale price
$899.00
Description
- 7" 1920 x 1080 Touchscreen Display
- 4K30 HDMI 2.0 Input/Output
- 2800 cd/m² Brightness
- USB-C Camera Control, Touch to Focus
- 10 Stops of Dynamic Range
- Sony L-Series Battery Slot
- HDR & 3D LUT Support
Delivery
Australia
Standard Shipping 4-7 business days: AU $8.95*
Express Shipping 1-3 business days: AU $15*
International Shipping
New Zealand 9-12 business days: AU$21*
*During peak promotional periods, please allow additional time for your order dispatch.
Returns
While we can’t offer a refund or replacement if you simply change your mind, we’re here to help if your item has a problem under Australian Consumer Law. You may be entitled to a refund or exchange if an item has a major problem. This is when the item:
- has a problem that would have stopped someone from buying the item if they had known about it
- is unsafe
- is significantly different from the sample or description
- doesn't do what we said it would, or what you asked for and can't be easily fixed
If the problem is not major, we will repair the item within a reasonable time. If it can’t be repaired in a reasonable time, we’ll offer a suitable resolution such as a refund or replacement. Please keep your proof of purchase — e.g. your receipt.
Description
- 7" 1920 x 1080 Touchscreen Display
- 4K30 HDMI 2.0 Input/Output
- 2800 cd/m² Brightness
- USB-C Camera Control, Touch to Focus
- 10 Stops of Dynamic Range
- Sony L-Series Battery Slot
- HDR & 3D LUT Support
Delivery
Australia
Standard Shipping 4-7 business days: AU $8.95*
Express Shipping 1-3 business days: AU $15*
International Shipping
New Zealand 9-12 business days: AU$21*
*During peak promotional periods, please allow additional time for your order dispatch.
Returns
While we can’t offer a refund or replacement if you simply change your mind, we’re here to help if your item has a problem under Australian Consumer Law. You may be entitled to a refund or exchange if an item has a major problem. This is when the item:
- has a problem that would have stopped someone from buying the item if they had known about it
- is unsafe
- is significantly different from the sample or description
- doesn't do what we said it would, or what you asked for and can't be easily fixed
If the problem is not major, we will repair the item within a reasonable time. If it can’t be repaired in a reasonable time, we’ll offer a suitable resolution such as a refund or replacement. Please keep your proof of purchase — e.g. your receipt.
Frequently bought with

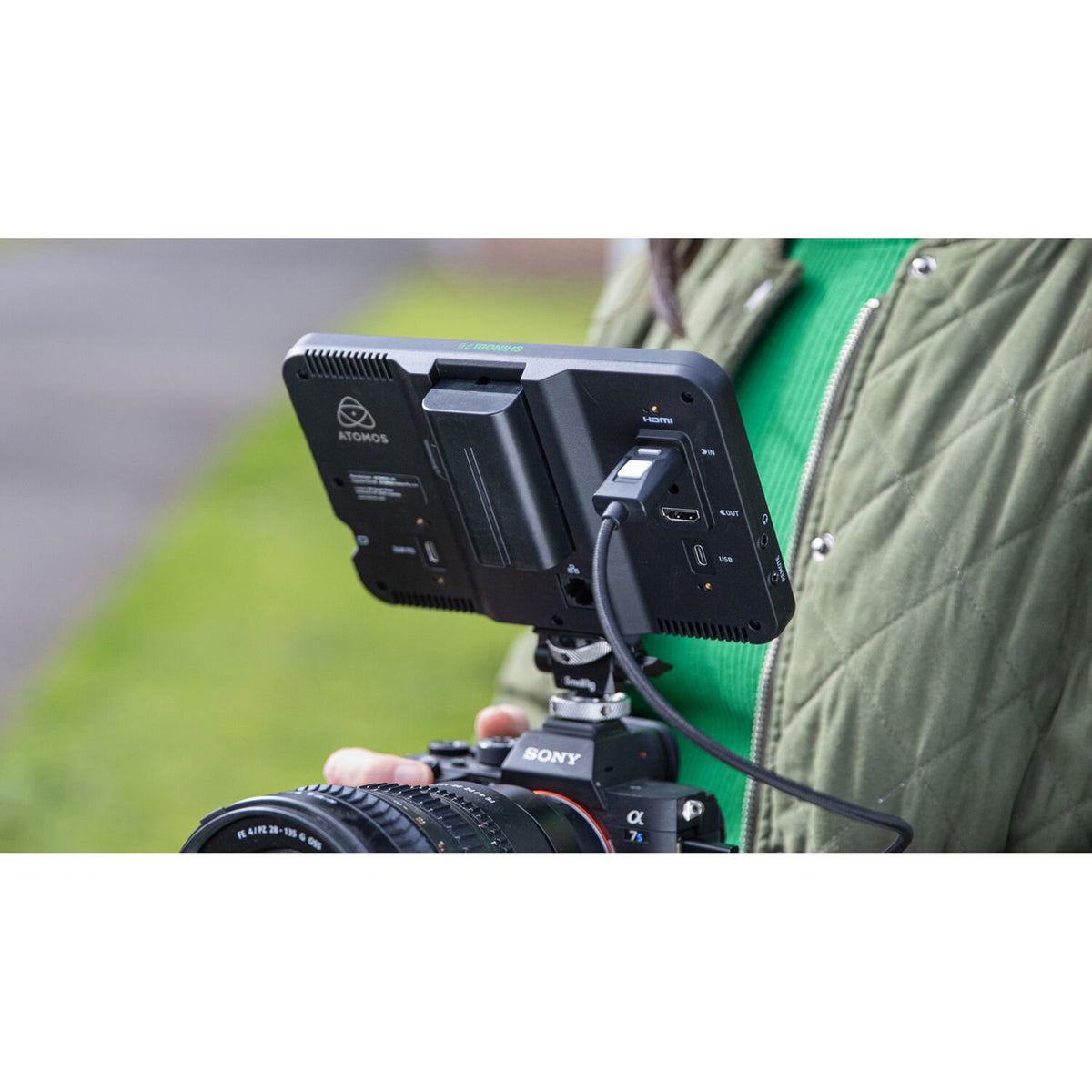

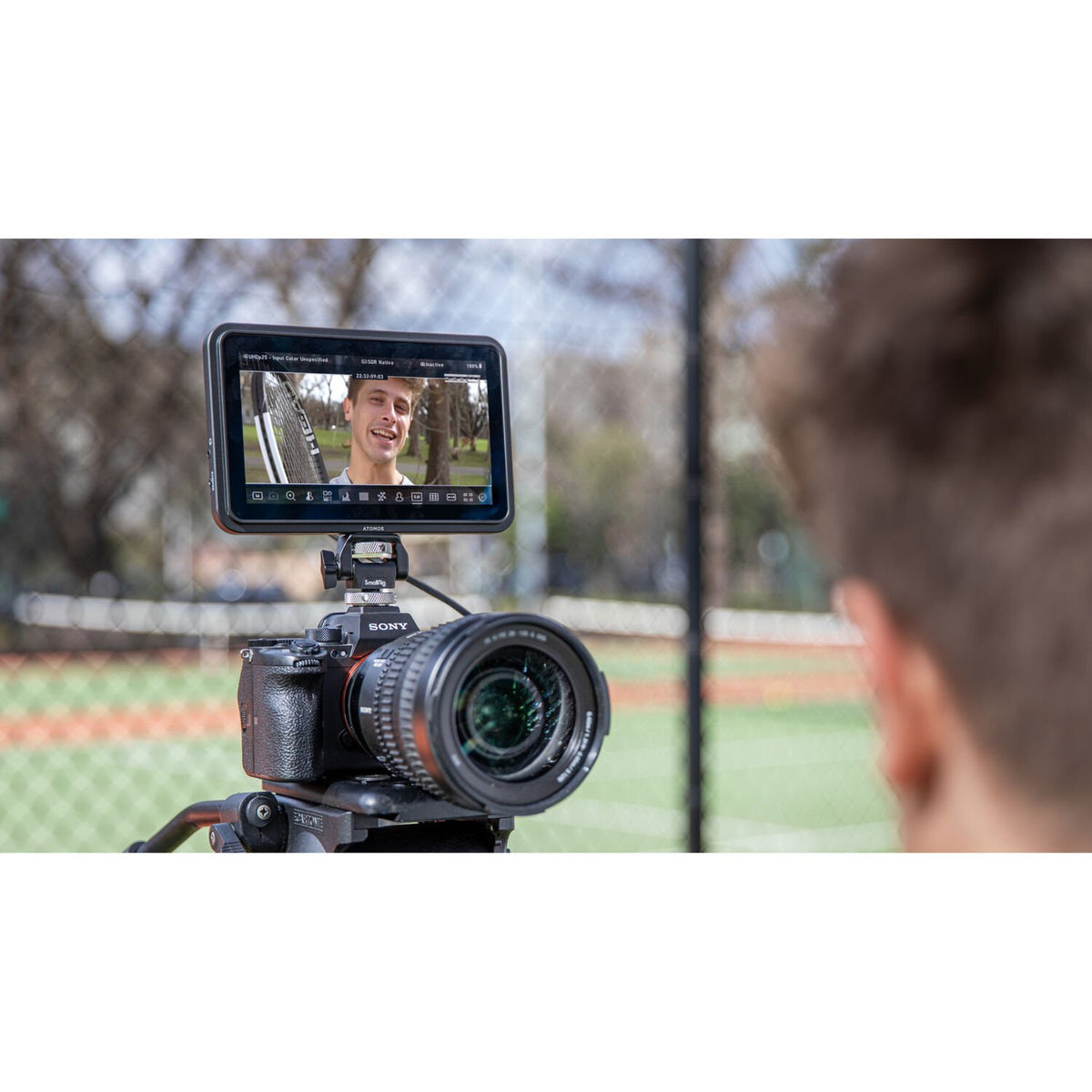

Add a bright, high-resolution monitor to control and view your cinema camera footage with the Atomos Shinobi 7 II . This 7" on-camera touchscreen monitor features a 1920 x 1080 display with a high brightness of 2800 cd/m², on-device calibration, and HDMI I/O, and it supports USB-C camera control. The Shinobi 7 II runs the latest AtomOS firmware, which features a variety of on-screen analysis tools..
Key Features of the Atomos Shinobi 7 II
- 7" 1920 x 1080 Touchscreen Display
- 4K30 HDMI 2.0 Input/Output
- 2800 cd/m² Brightness
- USB-C Camera Control, Touch to Focus
- 10 Stops of Dynamic Range
- Sony L-Series Battery Slot
- HDR & 3D LUT Support

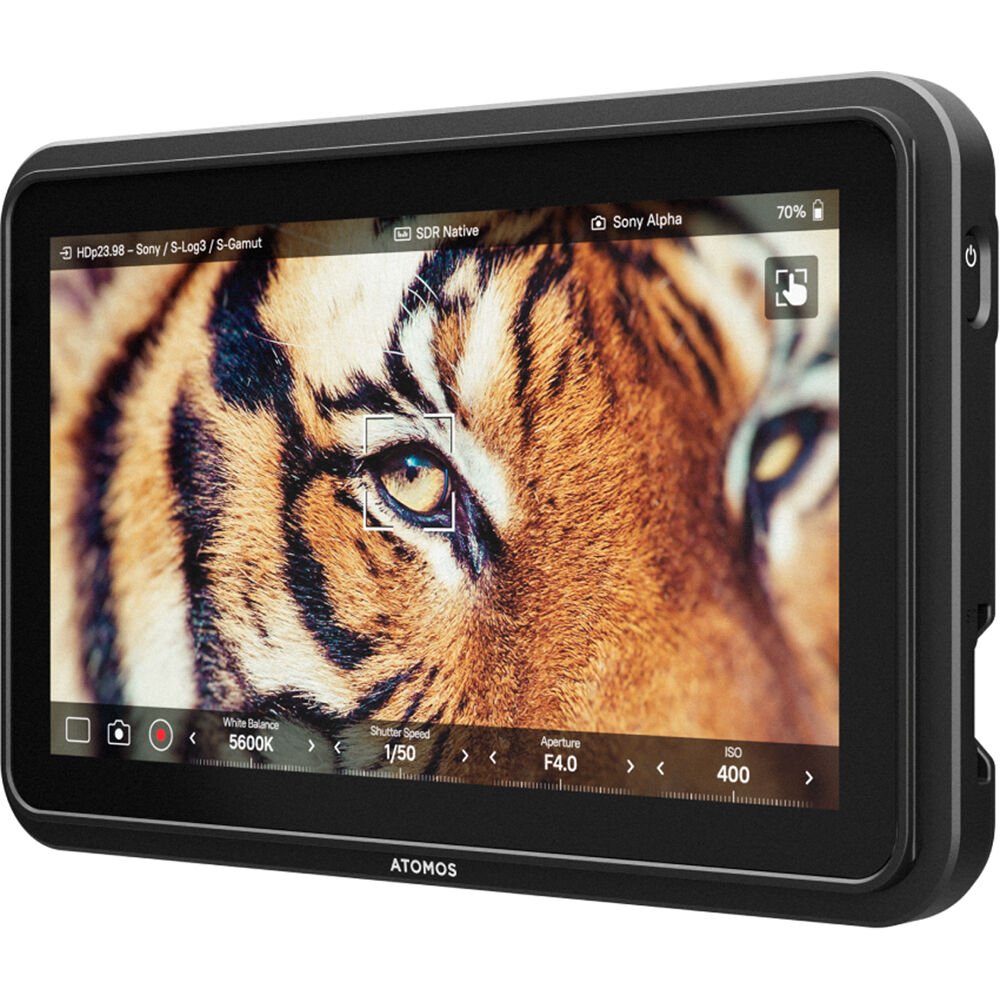

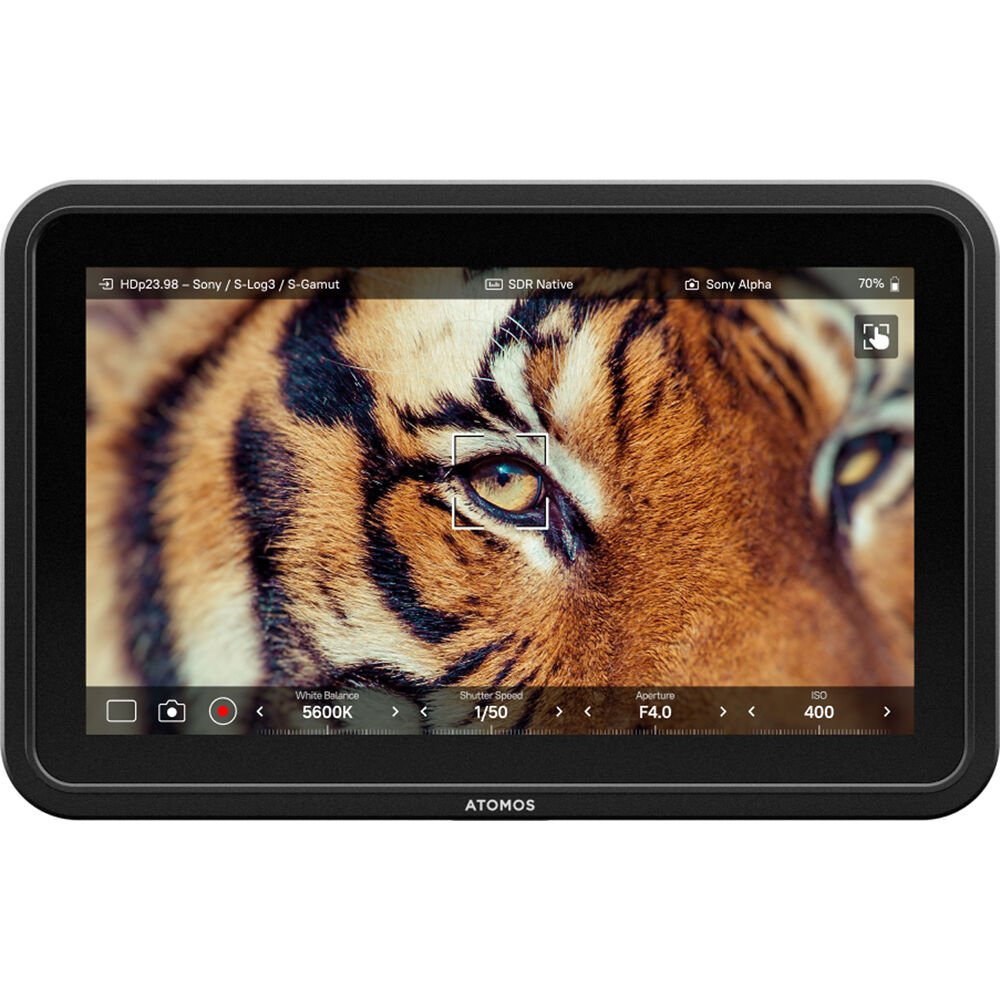

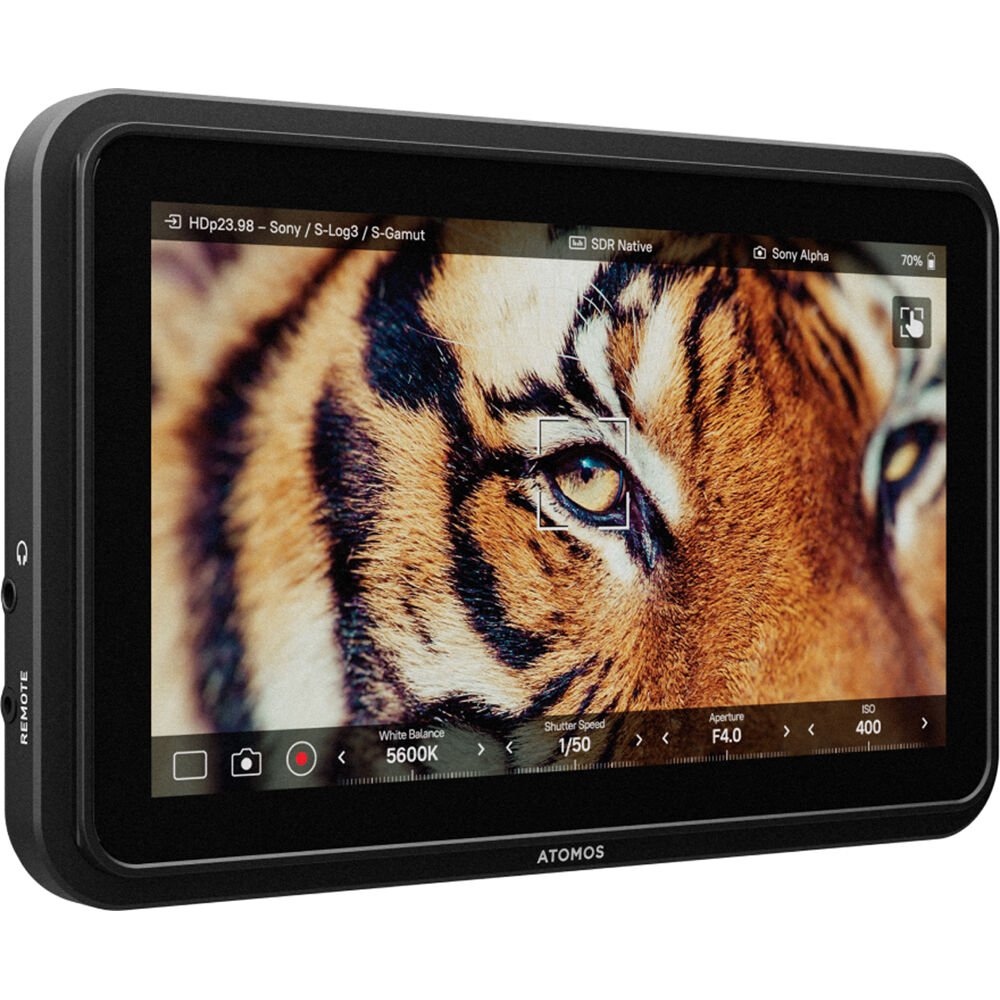

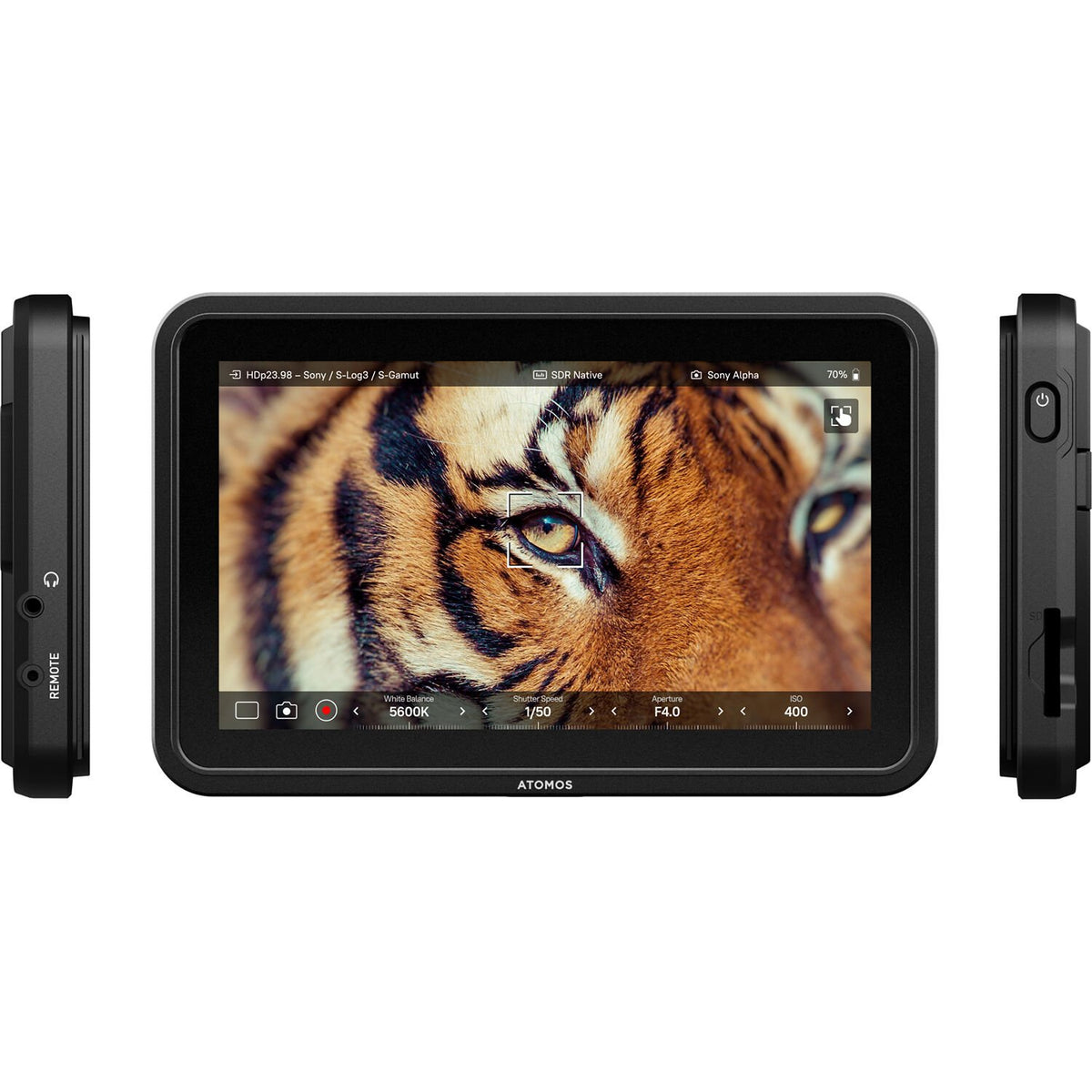

7" Daylight Viewable Screen
The Shinobi 7 II features a 7" IPS LCD 1920 x 1080 HDR screen that is illuminated by a bright 2800 cd/m² edge-lit LED backlight, making it possible to view in daylight without requiring a hood.
DCI/UHD 4K Input/Output
Monitor up to DCI or UHD 4K30 footage in formats via HDMI 2.0 and output up to 4K30 via the HDMI 2.0 output.

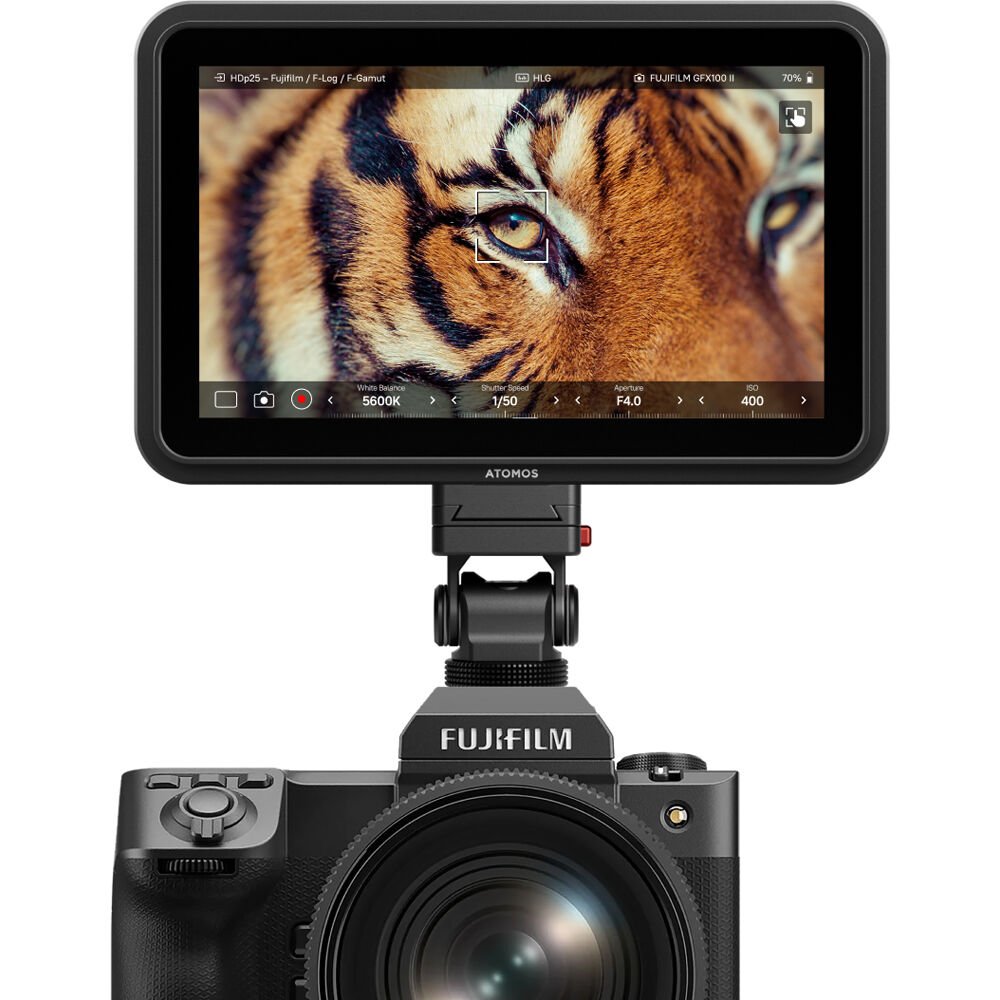

USB-C Camera Control

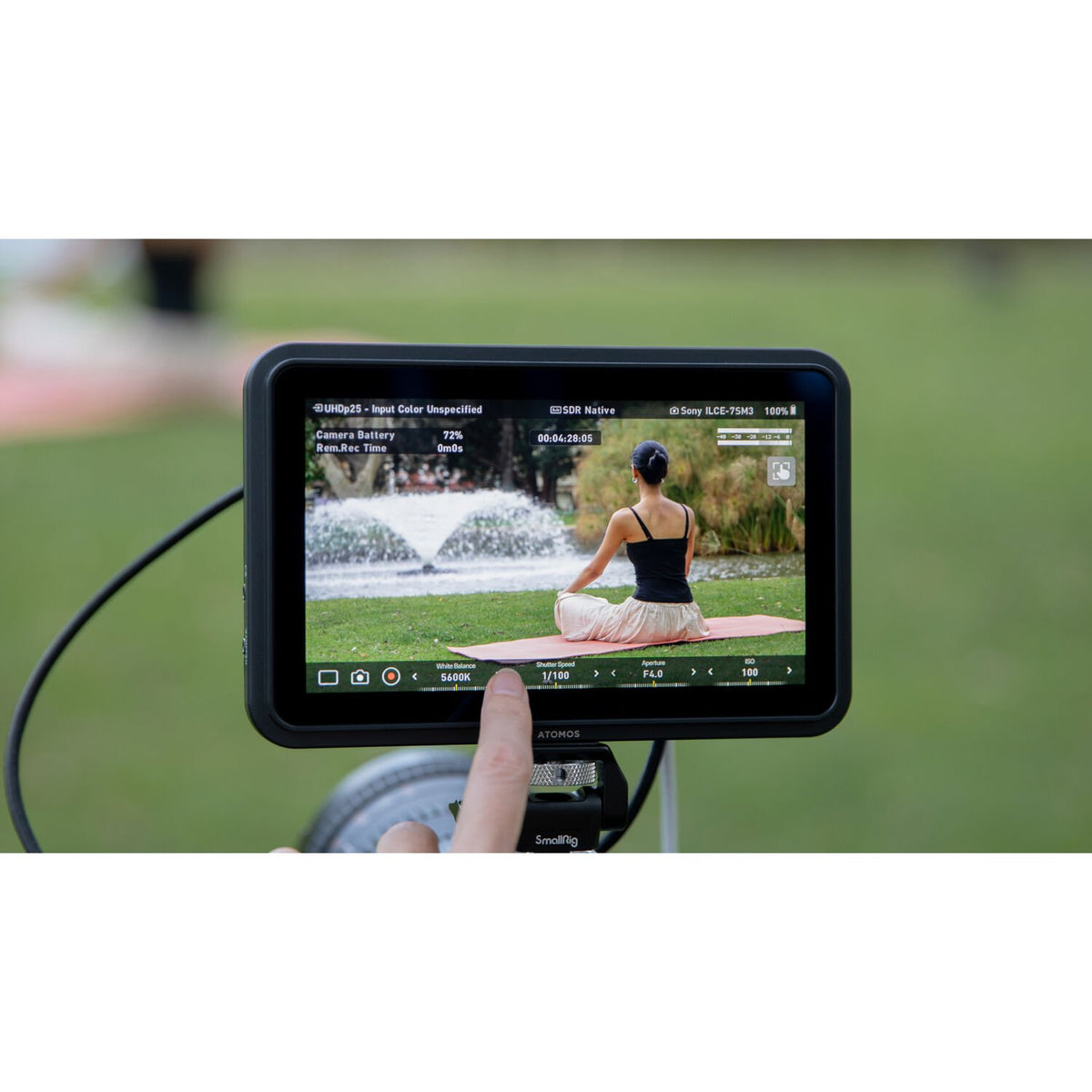

The monitor features a USB-C control port that supports a variety of cameras from brands such as Canon, FUJIFILM, Nikon, Panasonic, and Sony. For a camera compatibility list, visit the Atomos camera compatibility page. You can set the camera's focus point from the touchscreen and use on-screen sliders to adjust white balance, lens aperture, shutter speed/angle, and ISO.
The shutter-release function lets you take photos directly from the touchscreen, which is useful when shooting multiple exposures for HDR bracketing, focus stacking, and other workflows. A red border clearly indicates whether you are recording the camera feed internally, and whether it's triggered by the monitor or camera.
NOTE: Z CAM camera control is supported with a separately available USB-C to serial cable.
HDR Monitoring
You can monitor up to ten stops of dynamic range of your camera's Log image, which allows users to accurately assess and capture scenes with a wider dynamic range than conventional monitors.
This is ideal for productions with high-quality visuals that require increased detail and contrast.

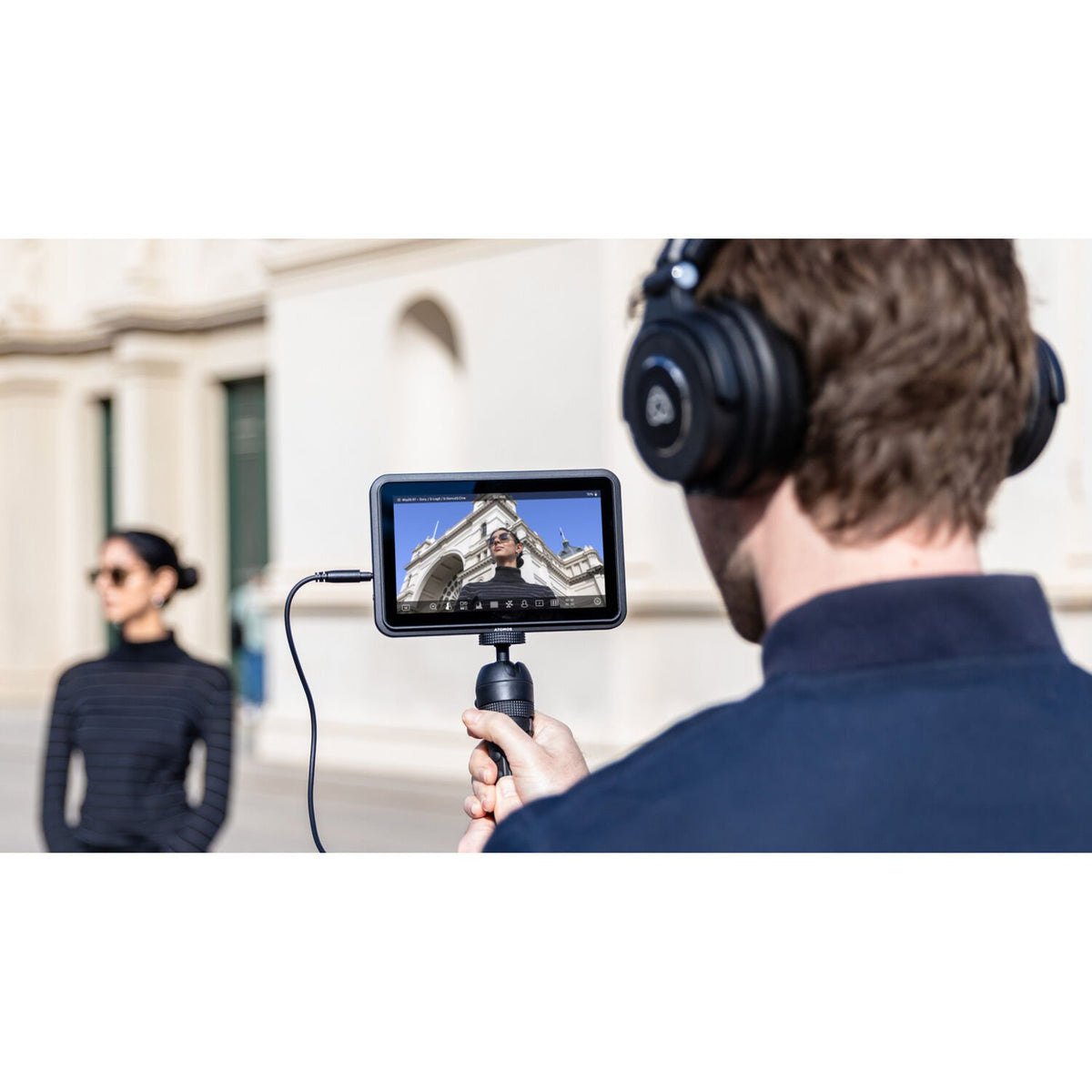

Audio Monitoring
Input/output embedded audio via HDMI or via the 3.5mm analog input and output for embedding, as well as convenient audio monitoring.
On-Device Calibration
The USB-C control port also allows you to calibrate the display using a separately available probe for on-device calibration, without the need to plug it into a computer. The screen comes color-calibrated from the factory to ensure accurate image representation out of the box.
Power Options

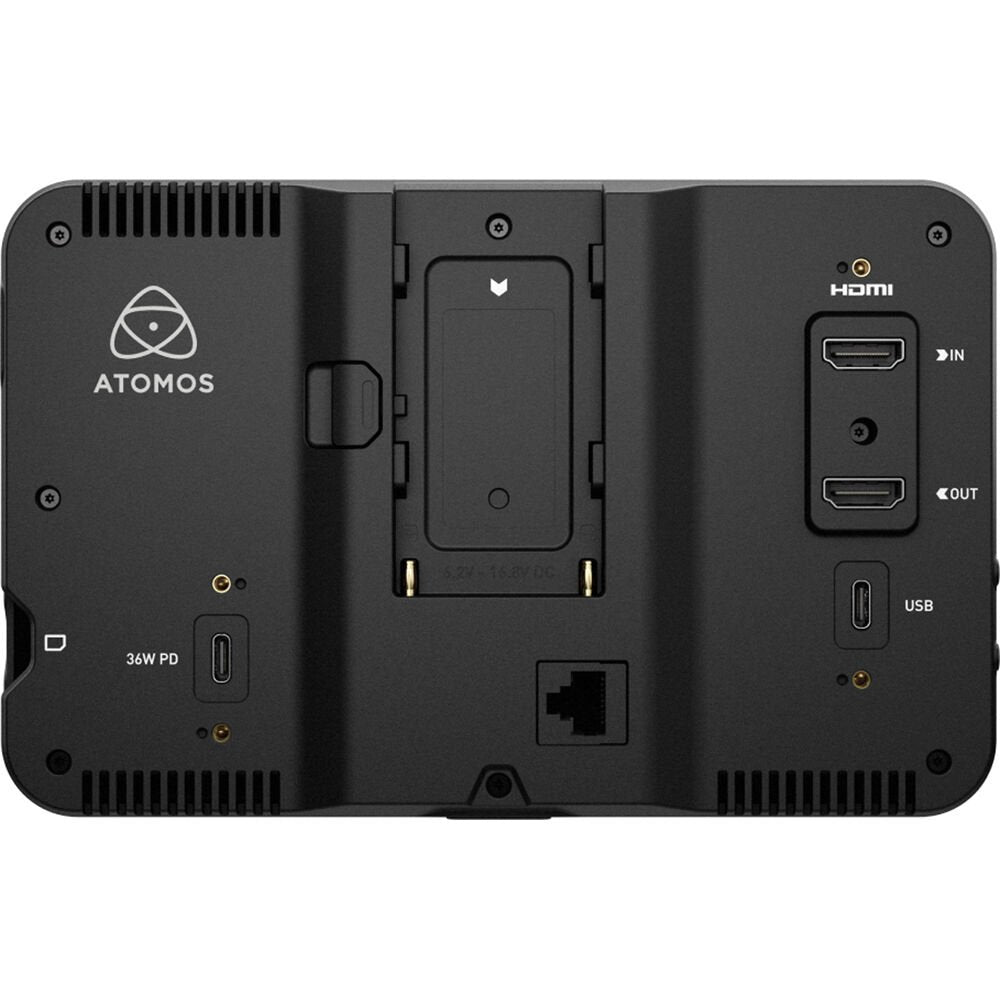

The back of the monitor features a centered L-series battery slot as well as a 36W USB-C PD power input.
It can also be powered via a separately available L-series battery eliminator (dummy battery) with an external power source.
3D LUT Management

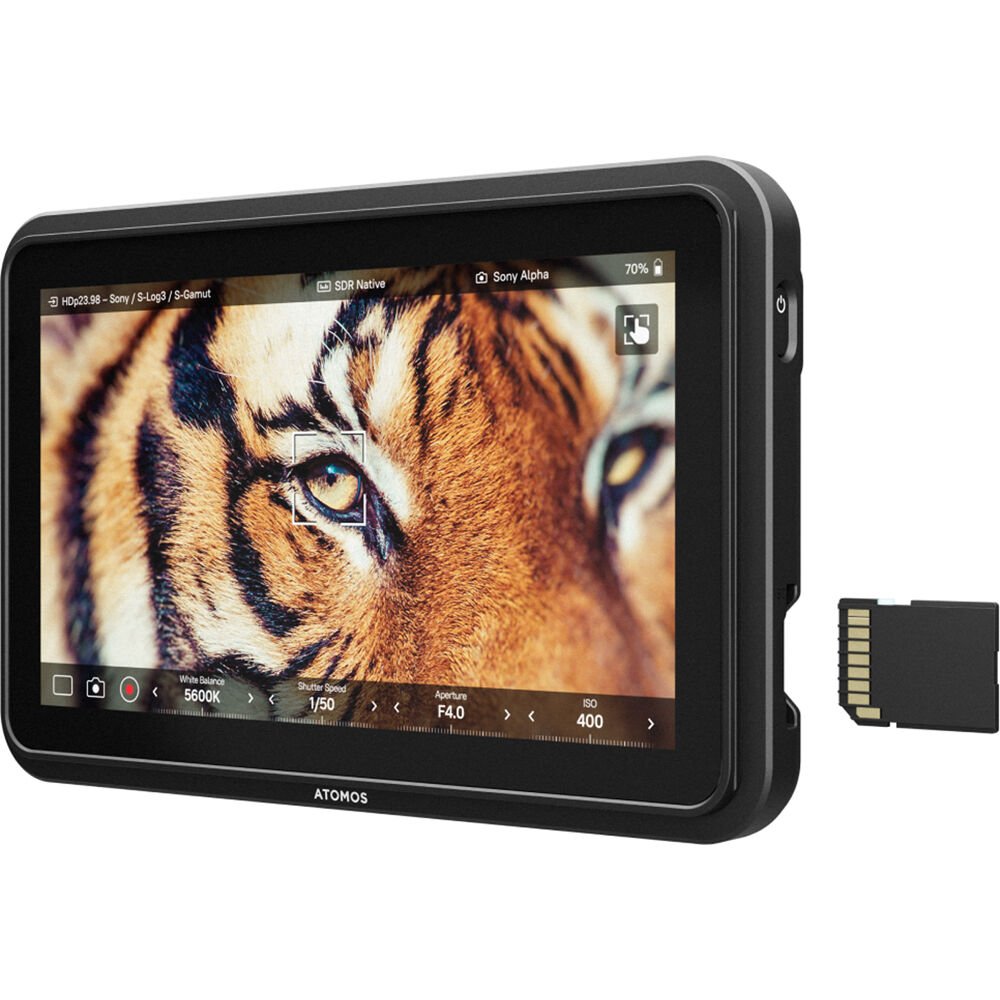

An SD card slot allows you to load custom 3D LUTs and apply them to both input and output signals. The SD card slot also allows you to apply firmware updates.
Supported Log Formats
- ARRI Log CEI160 / CEI200 / CEI250 / CEI320 / CEI400 / CEI500 / CEI640 / CEI800 / CEI1000 / CEI1280 / CEI1600
- Canon C-Log / C-Log 2 / C-Log 3
- FUJIFILM F-Log, PQ (HDR10), HLG
- JVC JLog
- Nikon N-Log
- Sony S-Log / S-Log2 / S-Log3
- Panasonic V-Log / HLG
- RED Log3G10 / Log3G12 / RED LogFilm
- PQ10k
- HLG
Gamut
- Sony SGamut / SGamut3 / SGamut3.cine
- Canon Cinema / DCI P3 / DCI P3+
- Panasonic V Gamut
- ARRI ALEXA Wide Gamut
- Rec. 709, BT.2020, DCI P3, DCI-P3 D65
- JVC LS300
- RED WideGamut / RED DragonColor / DragonColor2 / RED Color2 / RED Color3 / RED Color4
On-Screen Monitoring Tools
- MultiScope analysis view
- Waveform
- Histogram
- RGB parade
- Vectorscope
- 1x, 2x, and 4x Zoom
- Focus peaking
- Atomos false color
- ARRI false color
- EL Zone false color
- Zebra
- Isolate color channel
- Cine frame guides
- Social frame guides
- Safe areas
- Grid markers
- Anamorphic de-squeeze
- Display flip
- MPN - TBA
- GTIN - 814164023474
Display
| Panel Type | IPS-Type LCD |
|---|---|
| Display Size | 7.0" / 17.8 cm |
| Native Resolution | 1920 × 1080 |
| Aspect Ratio | 16:9 |
| Touchscreen | Yes |
| Maximum Brightness | 2800 nits / cd/m² |
| Color Support | 1.07 Billion Colors (10-Bit) |
| HDR Support | Yes: Advanced HDR |
| Color Gamut | 100% Rec. 709 |
| LUT Support | Yes |
| Image Controls | Anamorphic De-Squeeze, Blue Only, False Color, Focus Peaking, Histogram, Image Flip, Pixel-to-Pixel Zoom, RGB Parade, Screen Markers, Vectorscope, Waveform, Zebra |

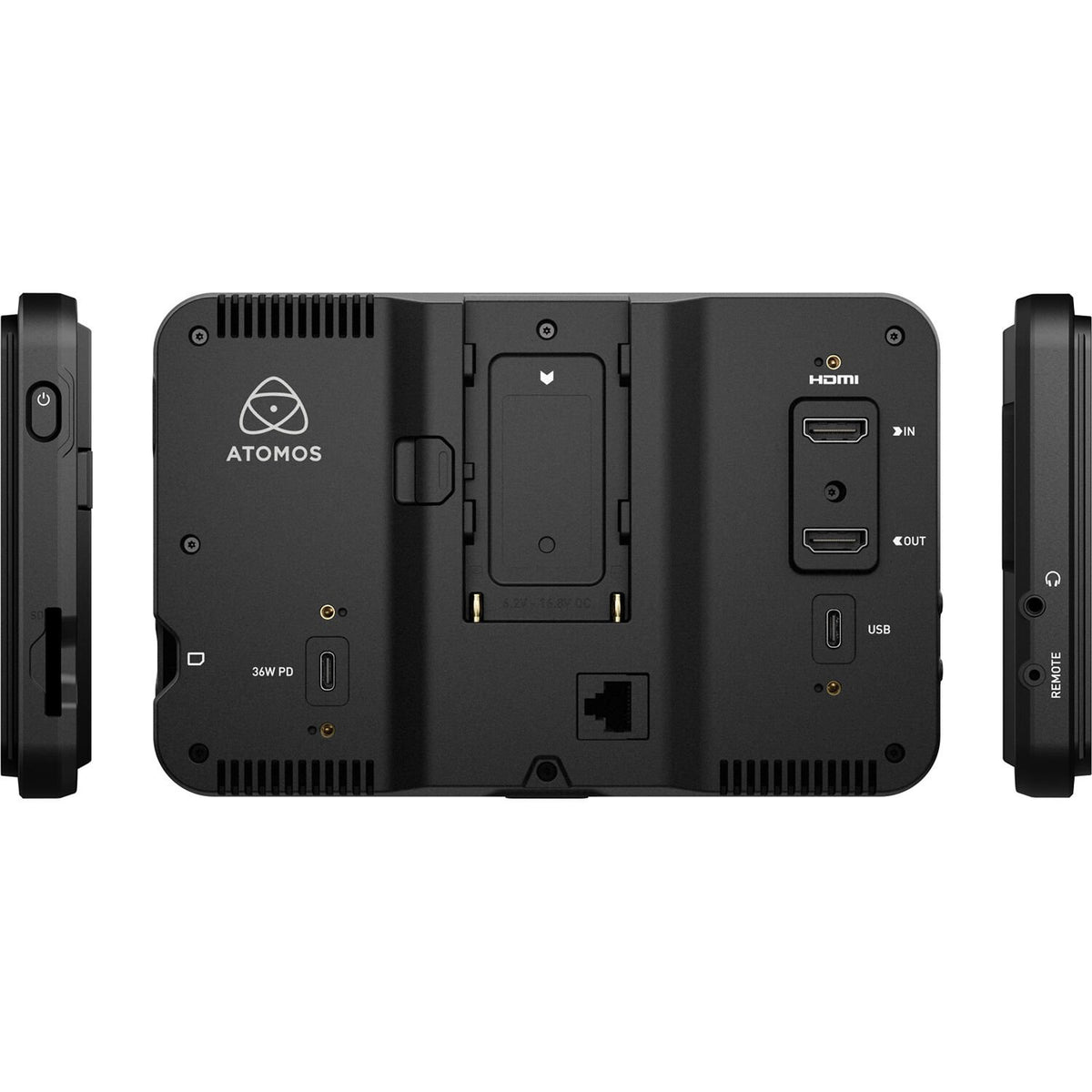

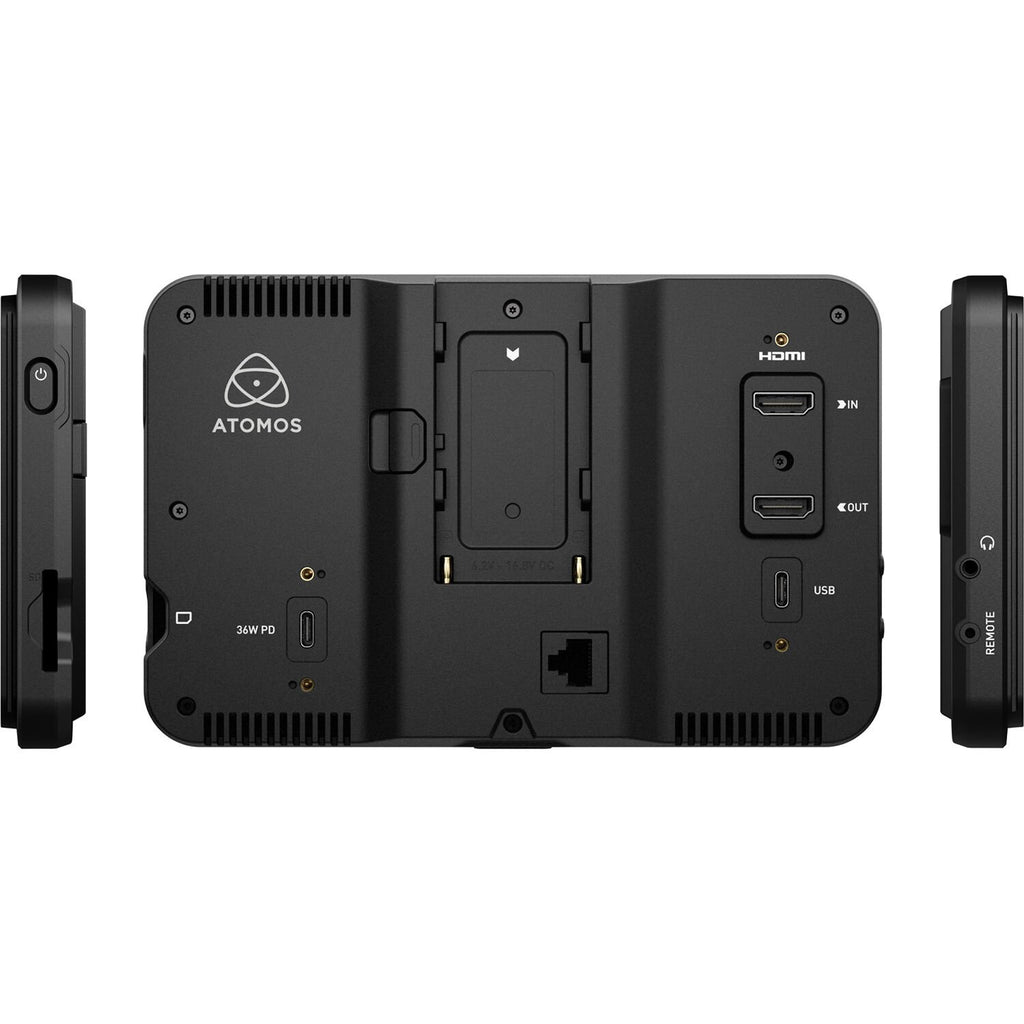

Inputs/Outputs
| Video I/O | 1 × HDMI 2.0 Input 1 × HDMI 2.0 Output |
|---|---|
| Embedded Audio | HDMI: 2-Channel |
| Audio I/O | 1 × 1/8" / 3.5 mm Line Input 1 × 1/8" / 3.5 mm Headphone Output |
| Built-In Speaker | No |
| Power I/O | 1 × USB-C (16.8 V DC) Input |
| Other I/O | 1 × RJ45 (LAN) Input/Output 1 × USB-C (Calibration) Input/Output (Shared with Camera Control) |
| Media / Memory Card Slot | Single Slot: SD / SDHC / SDXC (LUT / Firmware Updates Only) |
Wireless
| Wireless | No |
|---|---|
| Mobile App Compatible | No |
Format Support
| Video Format | HDMI (8/10-Bit 4:2:2) DCI 4K: 30/29.97/25/24/23.98 UHD 4K: 30/29.97/25/24/23.98 DCI 2K: 30/29.97/25/24/23.98 1080p: 60/59.94/50/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 |
|---|
Power
| Input Power | 6.2 to 16.8 V DC |
|---|---|
| Battery | 1 × L-Series Mount on Fixed Plate |
| Power Consumption | 13 W (Maximum) |
Mounting
| Tripod/Accessory Mounting | Top/Bottom 1x 1/4"-20 Female 1x 3/8"-16 Female |
|---|
General
| Environmental Resistance | No |
|---|---|
| Operating Conditions | Up to 104°F / 40°C |
| Material of Construction | Plastic |
| Dimensions | 7.4 × 4.7 × 0.9" / 188 × 120 × 23 mm |
| Weight | 0.88 lb / 401.00 g |
- Atomos Shinobi 7 II
- USB-C 2.0 Cable
- HDMI/USB-C Locking Cable Adapter
