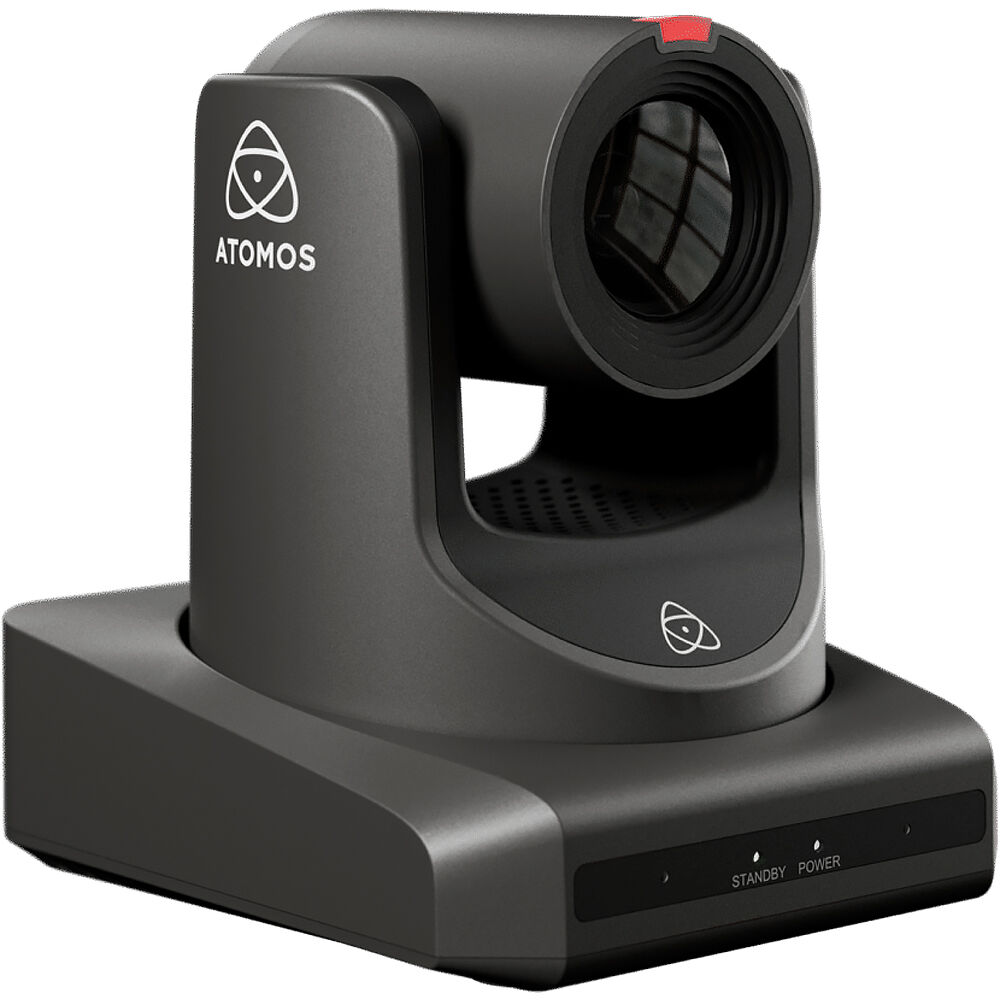

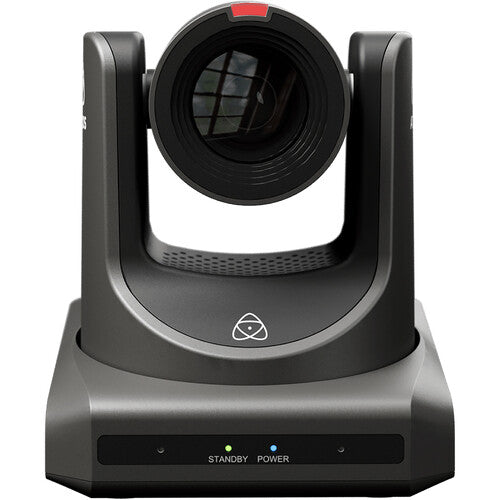

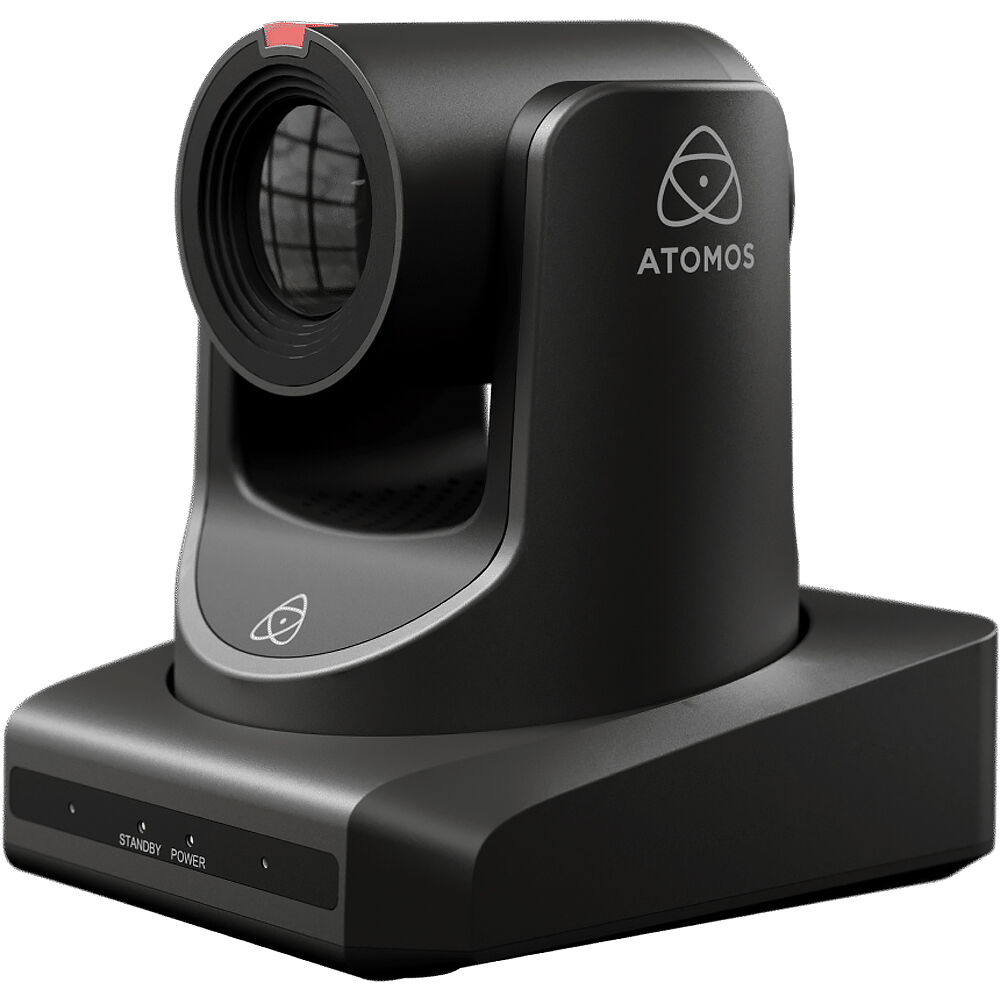

Atomos A-Eye HD-20X - PTZ Camera
Skip to product information
View full item details
Order Limits Apply
View Full Details
Learn More
More details here.
$1,799.00
Sale price
$1,799.00
Description
- Capture up to 2K60 Video
- 1/2.8" CMOS Sensor, AI Auto-Tracking
- 20x Optical Zoom, 16x Digital Zoom
- HDMI, 3G-SDI, USB-A 3.0 & IP Outputs
- Includes NDI|HX3 License
- Built-In Mic, 3.5mm Stereo Audio In/Out
- RS-485, UVC & IP Control Support
- Supports H.265/H.264/MJPEG Compression
- DC & PoE+ Support, Tally Lights
Delivery
Australia
Standard Shipping 4-7 business days: AU $8.95*
Express Shipping 1-3 business days: AU $15*
International Shipping
New Zealand 9-12 business days: AU$21*
*During peak promotional periods, please allow additional time for your order dispatch.
Returns
While we can’t offer a refund or replacement if you simply change your mind, we’re here to help if your item has a problem under Australian Consumer Law. You may be entitled to a refund or exchange if an item has a major problem. This is when the item:
- has a problem that would have stopped someone from buying the item if they had known about it
- is unsafe
- is significantly different from the sample or description
- doesn't do what we said it would, or what you asked for and can't be easily fixed
If the problem is not major, we will repair the item within a reasonable time. If it can’t be repaired in a reasonable time, we’ll offer a suitable resolution such as a refund or replacement. Please keep your proof of purchase — e.g. your receipt.
$1,799.00
Sale price
$1,799.00
BANK TRANSFER (EFT)
Description
- Capture up to 2K60 Video
- 1/2.8" CMOS Sensor, AI Auto-Tracking
- 20x Optical Zoom, 16x Digital Zoom
- HDMI, 3G-SDI, USB-A 3.0 & IP Outputs
- Includes NDI|HX3 License
- Built-In Mic, 3.5mm Stereo Audio In/Out
- RS-485, UVC & IP Control Support
- Supports H.265/H.264/MJPEG Compression
- DC & PoE+ Support, Tally Lights
Delivery
Australia
Standard Shipping 4-7 business days: AU $8.95*
Express Shipping 1-3 business days: AU $15*
International Shipping
New Zealand 9-12 business days: AU$21*
*During peak promotional periods, please allow additional time for your order dispatch.
Returns
While we can’t offer a refund or replacement if you simply change your mind, we’re here to help if your item has a problem under Australian Consumer Law. You may be entitled to a refund or exchange if an item has a major problem. This is when the item:
- has a problem that would have stopped someone from buying the item if they had known about it
- is unsafe
- is significantly different from the sample or description
- doesn't do what we said it would, or what you asked for and can't be easily fixed
If the problem is not major, we will repair the item within a reasonable time. If it can’t be repaired in a reasonable time, we’ll offer a suitable resolution such as a refund or replacement. Please keep your proof of purchase — e.g. your receipt.
Frequently bought with
Imaging
| Image Sensor | 1/2.8"-Type CMOS |
|---|---|
| Sensor Resolution | Effective: 2.07 Megapixel |
| IR Cut Filter | No |
| Focus Control | Autofocus, Manual Focus |
Lens
| Max Optical Zoom | 20x |
|---|---|
| Max Digital Zoom | 16x |
Video Capture
| Video Output | RJ45 / SDI / BNC / USB / HDMI
2048 × 1080 up to 60.00 fps |
|---|---|
| Embedded Audio | HDMI / IP / NDI / SDI / USB |
| Internal Recording | No |
| Audio Recording | AAC Audio |
| Broadcast Output | NTSC / PAL |
| Supported Protocols | Camera Control: NDI|HX3 / VISCA / RS-232 / RS-485 / IP |
Control
| Tilt | 120° (-30 to 90°) at 1.7 to 100°/s |
|---|---|
| Pan | 340° (-170 to 170°) at 1.7 to 69.9°/s |
| Tally Light | Yes |
Networking
| Wireless | No |
|---|

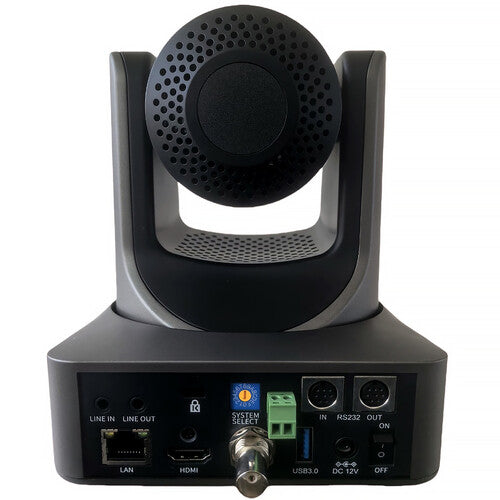

Interface
| Video I/O | 1 × HDMI 1.4 Output
1 × BNC (3G-SDI) Output 1 × RJ45 (NDI) Output 1 × USB-A 3.0 / 3.1 / 3.2 Gen 1 Output |
|---|---|
| Audio I/O | 1 × 1/8" (3.5 mm) TRS Stereo Line Input
1 × 1/8" (3.5 mm) TRS Stereo Line Output |
| Other I/O | 1 × Mini-DIN 8-Pin (RS-232) Control Input
1 × Mini-DIN 8-Pin (RS-232) Control Output 1 × Block 2-Pin (RS-485) Control Input/Output 1 × USB-A (USB 3.0) |
| Built-In Microphone | Stereo |
| Built-In Speaker | No |
Power
| PoE Support | PoE+ 802.3at |
|---|---|
| Power I/O | 1 × DC (12VDC) Input |
- Atomos A-Eye HD-20X - PTZ Camera
0
Add a high-resolution streaming and tracking camera to your classroom, house of worship, or conference room for remote meetings with software such as Skype, Microsoft Teams, or Zoom with the Atomos A-Eye HD-20X - PTZ Camera . The A-Eye HD-20X camera captures HD resolutions up to 2K60 (2048 x 1080) over IP, HDMI, USB-A, and 3G-SDI, and it features AI auto-tracking for presentations where your subject moves around the room. It is great for education, how-to videos, and corporate environments without the need for an operator. It also includes a license for NDI|HX3 high-quality, low-latency streaming networks.
The built-in zoom lens has an optical zoom range of 20x and further 16x digital zoom for closer shots. You can remotely control the camera to rapidly move between positions using IP or RS-485 with a separately available controller. Video output is compressed using H.265, H.264, or MJPEG formats. The camera features a built-in mic and supports external audio input via a 3.5mm stereo line-level jack for embedding audio into your stream. Power is provided by power adapter or via PoE+ (Power-over-Ethernet) on a supported network.
Key Features of the Atomos A-Eye HD-20X - PTZ Camera
- Capture up to 2K60 Video
- 1/2.8" CMOS Sensor, AI Auto-Tracking
- 20x Optical Zoom, 16x Digital Zoom
- HDMI, 3G-SDI, USB-A 3.0 & IP Outputs
- Includes NDI|HX3 License
- Built-In Mic, 3.5mm Stereo Audio In/Out
- RS-485, UVC & IP Control Support
- Supports H.265/H.264/MJPEG Compression
- DC & PoE+ Support, Tally Lights
- MPN - ATOMAEHD20
- GTIN - ATOMAEHD20
