Aputure Amaran F22C 2x2 200W RGBWW LED Flexible Mat
Skip to product information
View full item details
Order Limits Apply
View Full Details
Learn More
More details here.
Aputure Amaran F22C 2x2 200W RGBWW LED Flexible Mat
$1,549.00
Sale price
$1,549.00
Description
- RGBWW LED Flexible Mat
- 200W Output
- 6420 lux @ 1m (5600K)
- 3m Head Extension Cable
- Easy Mounting AC Power Supply with Included Battery Bracket
- Multiple DC Power Solutions: 14.4V/26/28.8V/48V (3-Pin XLR)
- Stepless Dimming from 0 to 100%
- Sidus Link App Control
- 15 Built-in Lighting FX and 46 Color Gel Presets
- DMX Control via USB-C to 5-Pin DMX512 In & Out Adapter Cable (Sold Separately)
Delivery
Australia
Standard Shipping 4-7 business days: AU $8.95*
Express Shipping 1-3 business days: AU $15*
International Shipping
New Zealand 9-12 business days: AU$21*
*During peak promotional periods, please allow additional time for your order dispatch.
Returns
While we can’t offer a refund or replacement if you simply change your mind, we’re here to help if your item has a problem under Australian Consumer Law. You may be entitled to a refund or exchange if an item has a major problem. This is when the item:
- has a problem that would have stopped someone from buying the item if they had known about it
- is unsafe
- is significantly different from the sample or description
- doesn't do what we said it would, or what you asked for and can't be easily fixed
If the problem is not major, we will repair the item within a reasonable time. If it can’t be repaired in a reasonable time, we’ll offer a suitable resolution such as a refund or replacement. Please keep your proof of purchase — e.g. your receipt.
$1,549.00
Sale price
$1,549.00
BANK TRANSFER (EFT)
Description
- RGBWW LED Flexible Mat
- 200W Output
- 6420 lux @ 1m (5600K)
- 3m Head Extension Cable
- Easy Mounting AC Power Supply with Included Battery Bracket
- Multiple DC Power Solutions: 14.4V/26/28.8V/48V (3-Pin XLR)
- Stepless Dimming from 0 to 100%
- Sidus Link App Control
- 15 Built-in Lighting FX and 46 Color Gel Presets
- DMX Control via USB-C to 5-Pin DMX512 In & Out Adapter Cable (Sold Separately)
Delivery
Australia
Standard Shipping 4-7 business days: AU $8.95*
Express Shipping 1-3 business days: AU $15*
International Shipping
New Zealand 9-12 business days: AU$21*
*During peak promotional periods, please allow additional time for your order dispatch.
Returns
While we can’t offer a refund or replacement if you simply change your mind, we’re here to help if your item has a problem under Australian Consumer Law. You may be entitled to a refund or exchange if an item has a major problem. This is when the item:
- has a problem that would have stopped someone from buying the item if they had known about it
- is unsafe
- is significantly different from the sample or description
- doesn't do what we said it would, or what you asked for and can't be easily fixed
If the problem is not major, we will repair the item within a reasonable time. If it can’t be repaired in a reasonable time, we’ll offer a suitable resolution such as a refund or replacement. Please keep your proof of purchase — e.g. your receipt.
Frequently bought with
| CCT | 2500K~7500K |
|---|---|
| CRI | ≥95 |
| TLCI | ≥97 |
| CQS | ≥96 |
| TM-30 RF (Average) | 94 |
| TM-30 RG (Average) | 102 |
| SSI (Tungsten) | ≥83 |
| Color Chipset | Red, Green, Blue, Warm White, Cool White |
| SSI (D56) | ≥74 |
| Beam Angle | 180° |
| Max Power Output | ≤200W |
| Max Power Consumption | ≤240W |
| Operating Current | 5A |
| AC Power Supply | 48V DC |
| D-Tap Battery | 12-28.8V DC |
| Battery Compatibility | 16.8V, 26V, 28.8V |
| DC Input | (3m) DC Self-locking |
| AC Power Cable | Self-locking IEC C13 AC Power Cable (4m) |
| Operating Temperature | -10°C ~ 40°C / -4°F ~ 113°F |
| Control Methods | On-board, Sidus Link App, DMX |
| Connectivity | Bluetooth 5.0 (Sidus Mesh) |
| Bluetooth Operating Range | ≥80m / 262.5ft |
| Firmware Upgradeable | Sidus Link OTA |
| Display Type | OLED |
| Fixture Cooling Method | Natural Dissipation |
| Control Box Cooling Method | Natural Dissipation |
| Umbrella Holder | Yes |
| Soft Box | Yes |
| Mounting | 1/4-20in * 3, Tilting Support Column |
| Estimated LED Lifetime (L70) | 50,000 Hours |
| Estimated Color Shift Over Lifetime (CCT) | 2% over 6,000 Hours |
| Certifications | CE, FCC, cTUVus, KC, NCC, ROHS |
Dimensions
| Fixture(No Accessory) | 60*30*0.5cm / 23.6*11.8*.2in |
|---|---|
| Fixture | 62.5 x 62.5 x 10.5cm / 24.6 x 24.6 x 4.13in |
| Aperture | 52 x 51cm / 20.4 x 20in |
| Control Box | 19*15*7cm / 7.4*5.9*2.7in |
| Carrying Case | 66*35*10.5cm / 25.9*13.7*4.1in |
Weight
| Fixture (No Accesory) | 0.88kg / 1.9lbs |
|---|---|
| Fixture(With Softbox) | 2.83kg / 6.25lbs |
| Control Grid | 116g / 0.26lbs |
| Control Box | 1.2kg / 2.6lbs |
| Power Supply | 1.1kg / 2.4lbs |
| Mounting Bracket | 0.66kg / 1.4lbs |
| Total w/ Case | 7.92kg / 17.45lbs |
Photometric
| CCT
2500K |
Distance:
.5m 1m 3m No Soft Box: 18,040 lux / 1,676 fc 5,500 lux / 511 fc 672 lux / 62 fc With Soft Box (1/2 Grid Cloth): 11,260 lux / 1,046 fc 3,780 lux / 351 fc 505 lux / 47 fc With Soft Box (2.5 Stop Diffusion): 8,800 lux / 818 fc 2,690 lux / 250 fc 333 lux / 31 fc |
|---|---|
| 3200K | Distance:
.5m 1m 3m No Soft Box: 18,760 lux / 1,743 fc 5,750 lux / 534 fc 703 lux / 65 fc With Soft Box (1/2 Grid Cloth): 11,900 lux / 1,106 fc 4,030 lux / 374 fc 534 lux / 50 fc With Soft Box (2.5 Stop Diffusion): 9,110 lux / 846 fc 2,870 lux / 267 fc 352 lux / 33 fc |
| 4300K | Distance:
.5m 1m 3m No Soft Box: 19,720 lux / 1,832 fc 5,930 lux / 551 fc 736 lux / 68 fc With Soft Box (1/2 Grid Cloth): 12,470 lux / 1,159 fc 4,300 lux / 400 fc 564 lux / 52 fc With Soft Box (2.5 Stop Diffusion): 9,570 lux / 889 fc 3,000 lux / 279 fc 372 lux / 35 fc |
| 5600K | Distance:
.5m 1m 3m No Soft Box: 21,260 lux / 1,975 fc 6,420 lux / 596 fc 790 lux / 73 fc With Soft Box (1/2 Grid Cloth): 13,400 lux / 1,245 fc 4,610 lux / 428 fc 603 lux / 56 fc With Soft Box (2.5 Stop Diffusion): 10,340 lux / 961 fc 3,260 lux / 303 fc 402 lux / 37 fc |
| 6500K | Distance:
.5m 1m 3m No Soft Box: 22,250 lux / 2,067 fc 6,770 lux / 629 fc 823 lux / 77 fc With Soft Box (1/2 Grid Cloth): 13,860 lux / 1,288 fc 4,840 lux / 450 fc 630 lux / 59 fc With Soft Box (2.5 Stop Diffusion): 10,820 lux / 1,005 fc 3,400 lux / 316 fc 421 lux / 39 fc |
| 7500K | Distance:
.5m 1m 3m No Soft Box: 23,250 lux / 2,160 fc 7,080 lux / 658 fc 870 lux / 81 fc With Soft Box (1/2 Grid Cloth): 14,610 lux / 1,357 fc 4,980 lux / 463 fc 661 lux / 61 fc With Soft Box (2.5 Stop Diffusion): 11,340 lux / 1,054 fc 3,550 lux / 330 fc 441 lux / 41 fc |

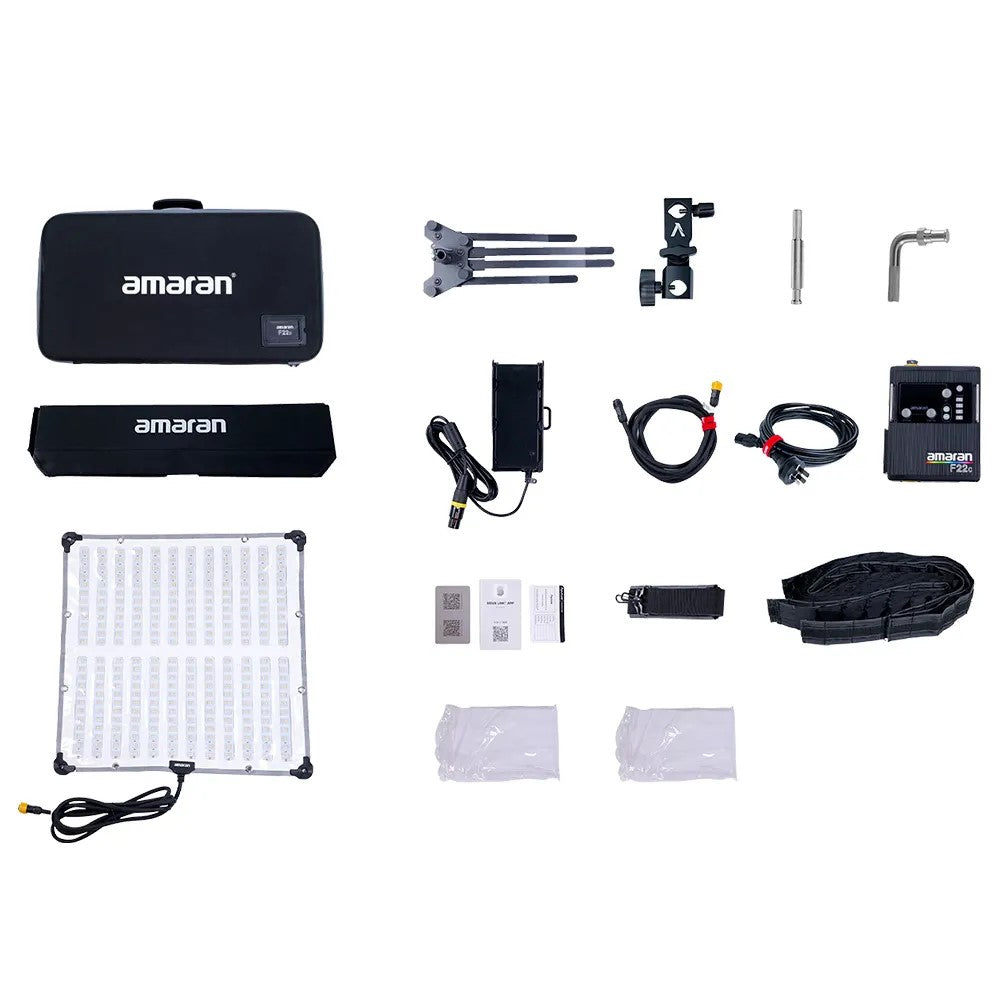

- Aputure Amaran F22C 2x2 200W RGBWW LED Flexible Mat
- Amaran F22c RGBWW LED Mat (V-Mount, 60x60cm)
- Control Box with V-Mount Battery Plate
- 3m Head Extension Cable
- Support Bracket
- Right-Angle Baby Pin Adapter
- Straight Baby Pin Adapter
- Tilting Stand Mount
- F22 Softbox Frame
- F22 Diffusion Cloth 1 (1/2 Grid Cloth)
- F22 Diffusion Cloth 2 (2.5 Stop)
- F22 45 ° Light Control Grid
- Multi-Voltage AC Power Supply
- AC Power Cable

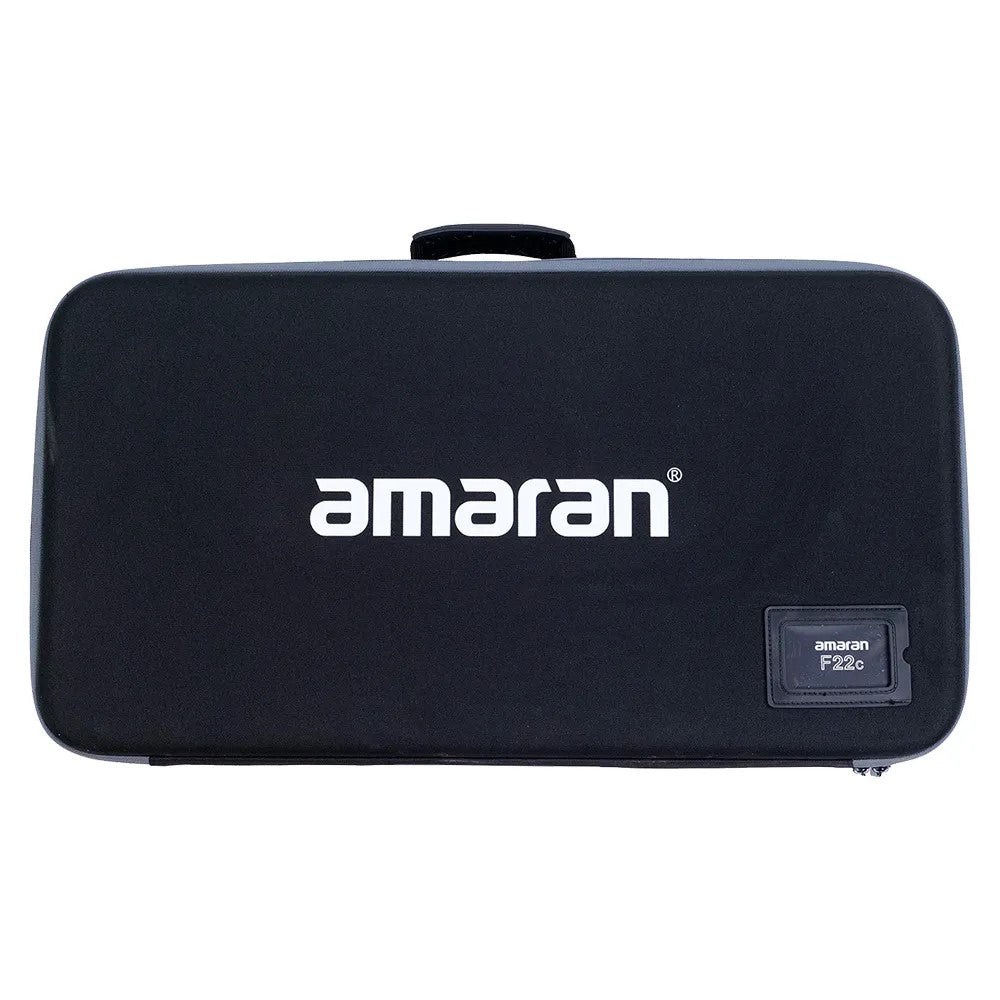

- Carrying Case
What kind of lighting effects can I get with the Aputure Amaran F22C 2x2 200W RGBWW LED Flexible Mat?
The Aputure Amaran F22C 2x2 200W RGBWW LED Flexible Mat offers a wide range of lighting effects, from subtle ambient lighting to bold, saturated tones. The mat features RGBWW (Red, Green, Blue, Warm White, and Cool White) control, allowing you to mix different colors and adjust brightness. You can also make use of the device’s onboard digital display and DMX control to further customize lighting effects.
What kind of mounting options does the Aputure Amaran F22C 2x2 200W RGBWW LED Flexible Mat have?
The Aputure Amaran F22C 2x2 200W RGBWW LED Flexible Mat has two flexible back-mount handles for easy installation. Additionally, it can be mounted directly onto a variety of walls and surfaces via the holes on the back of the mat.
What is the maximum power output of the Aputure Amaran F22C 2x2 200W RGBWW LED Flexible Mat?
The maximum power output of the Aputure Amaran F22C 2x2 200W RGBWW LED Flexible Mat is 200 watts.
The Aputure F22c RGBWW LED Mat is a powerful, versatile, and flexible LED mat that measures 60x60cm. It offers outstanding light output and colour rendering suitable for a variety of users, from filmmakers to videographers, content creators, and still photographers. Providing 200W of power, it features RGBWW LEDs for complete colour control, as well as tunable CCT from 2500K to 7500K, providing endless possibilities for creative lighting selections through 360° HSI control, 46 colour gel presets, and 15 unique customizable lighting effects. It has stellar CRI and TLCI scores of 95+ and 97+, and stepless dimming from 0 to 100%. An included folding X-frame stretches the mat to a rigid panel that can be attached directly to a C-stand grip head using the straight Baby Pin adapter, or onto any standard light stand with the included right-angle Baby Pin and tilting stand mount. The included foldable softbox has two strengths of diffusion and a fabric grid that uses an integrated hook-and-loop fabric to instantly turn this flexible mat into an ultrathin soft light that will add a beautifully controlled soft light to a scene.
The control box is a multi-voltage AC power supply that features a V-mount battery plate for use with compatible 14.4V, 26V, or 28.8V batteries. Full output can be achieved when using the AC power supply, using batteries allows the F22c to be used at either half or full power, depending on battery strength.
The free Sidus Link app makes it possible to utilize tools unique to the Aputure and Amaran ecosystems, such as Source Match, Color Picker, and Custom FX. The F22c can also be controlled using DMX with a separately available USB-C to 5-Pin DMX512 in & out adapter cable, adding professional-level control to an individual unit or groups of lights. The Amaran F22c is ideal for videographers who need a versatile and literally flexible lighting solution. The RGBWW flexible panel gives users unmatched strength and control over a wide, expanded CCT range to match a variety of white light environments.
Note: Product is shown in use for illustration Only, additional equipment is not included.
Key Features of the Aputure Amaran F22C 2x2 200W RGBWW LED Flexible Mat
- 200W output
- 60x60cm RGBWW flexible LED mat
- Colour temperature from 2500-7500K
- CRI: 95+, TLCI: 97+, CQS: 96+
- SSI (Tungsten): 83+, SSI (D56): 74+
- HSI Full Color Control
- Tunable green-magenta adjustment (plus/minus green)
- Stepless dimming from 0 to 100%
- Ultralight LED mat
- Sidus Link App control for smartphones & tablets
- DMX control with USB-C to 5-Pin DMX512 in & out adapter cable, separately available
- 15 Built-in lighting FX including paparazzi, lightning, TV, candle, fire, strobe, explosion, faulty bulb, pulsing, welding, police car, colour chase, and more
- 46 colour gel presets
- Easy-mounting multi-voltage AC power supply with included V-mount battery mount
- Multiple DC power solutions: 14.4V/26/28.8V/48V (3-Pin XLR)
- Soft carrying case
- MPN - 25.F22C
- GTIN - 6971842183357
